Product Description

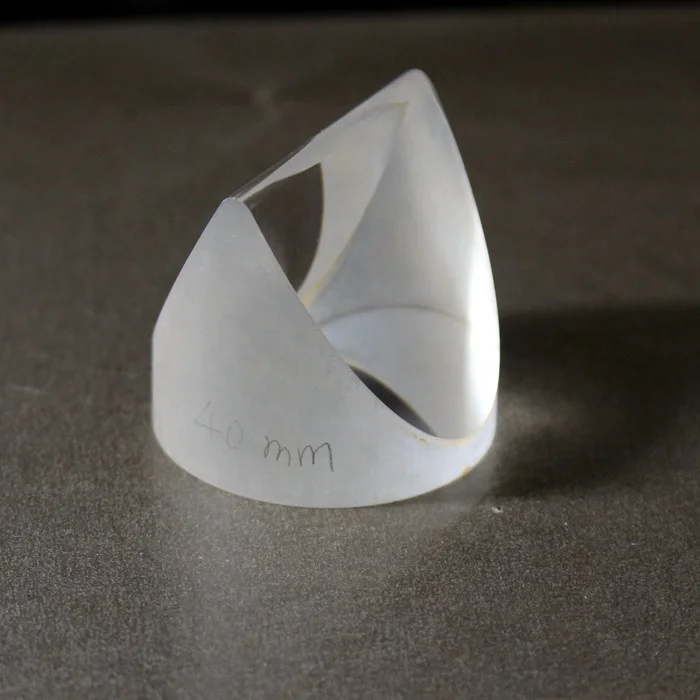

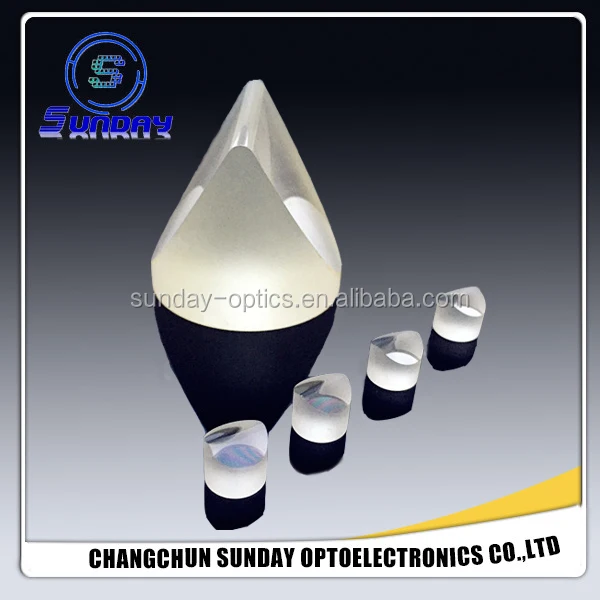

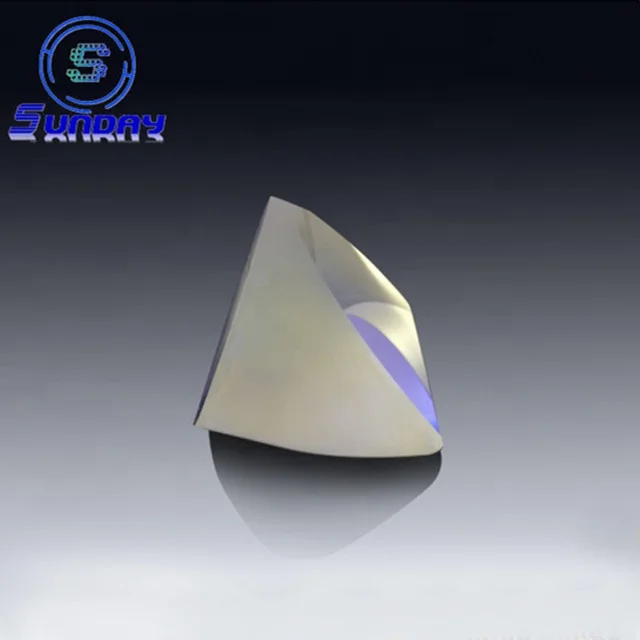

Powell lens
The Powell Lens is one kind of aspheric cylinder lens, which can transform laser beam into a uniform straight laser line. By using Powell Lens, you will get more even energy distribution along the laser line than using the rod lenses and lenses.
At present our Powell lens are available in fan angles of 3degree to 120degree.The optical line generator lens is optimized for a Φ0.8mm,Φ1mm,Φ2mm,Φ3mm,Φ5mm and Φ10mm input laser beam diameter. Using this design will result in an impressive, even distribution
of energy along the length of the line. These lenses offer excellent overall stability and line quality. They outperform
cylindrical lens that generate Gaussian beam profiles with hot-spot center points and fading edges. Originally designed for laser line generators, they are now offered uncounted for a variety of custom applications including use in alignment, machine vision systems, construction and process control.
The Powell Lens can be widely used in alignment, machine vision systems, construction and process control fields. At present our Powell Lens are available in a variety of fan angles as following.
At present our Powell lens are available in fan angles of 3degree to 120degree.The optical line generator lens is optimized for a Φ0.8mm,Φ1mm,Φ2mm,Φ3mm,Φ5mm and Φ10mm input laser beam diameter. Using this design will result in an impressive, even distribution
of energy along the length of the line. These lenses offer excellent overall stability and line quality. They outperform
cylindrical lens that generate Gaussian beam profiles with hot-spot center points and fading edges. Originally designed for laser line generators, they are now offered uncounted for a variety of custom applications including use in alignment, machine vision systems, construction and process control.
The Powell Lens can be widely used in alignment, machine vision systems, construction and process control fields. At present our Powell Lens are available in a variety of fan angles as following.
Dia. | N-BK7 |
Diameter Tol. | +0.00/-0.1mm |
Desigh Wavelength | 546.10nm |
Design Index | 1.5183 |
Centration | <3arcmin |
Clear Aperture | >90% |
S/D | 40-20 Scratch and dig |
Flatness | 1/4lambda at 632.80nm |
Chamfer | 0.25mmx45° |
Focal Length Tol. | +/-1% |
Details Images

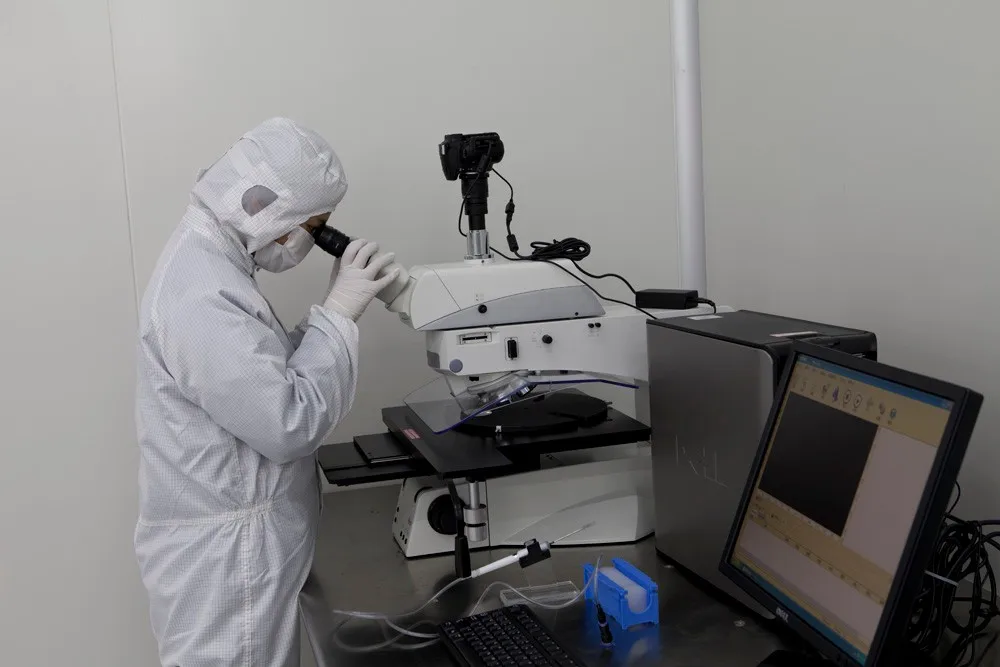

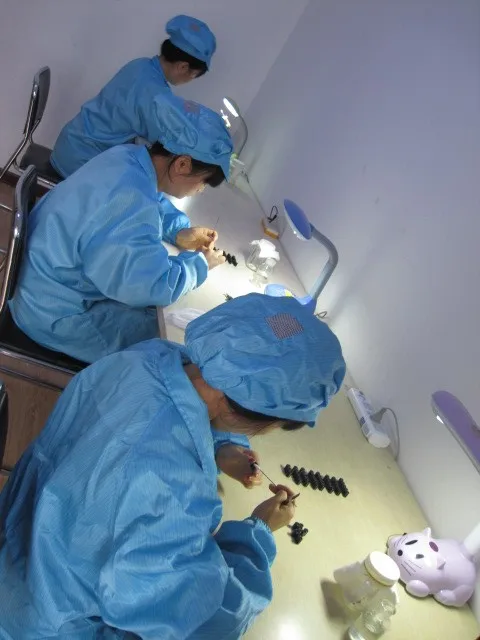

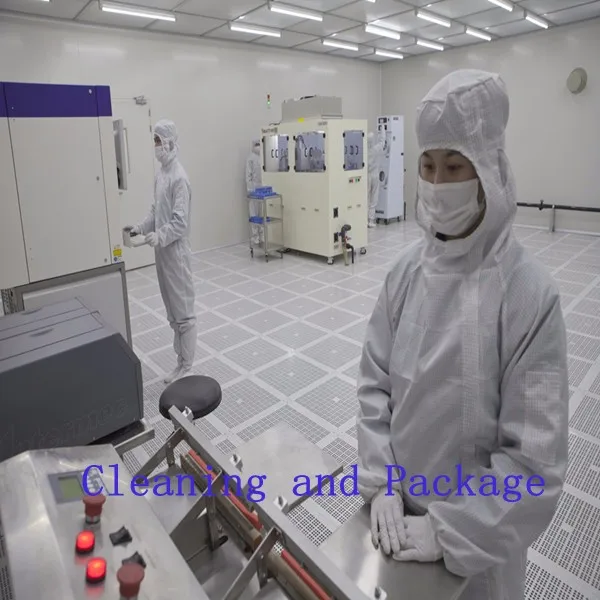

\t\t\t\t\t\t\t\t\tOur Factory \t\t\t\t\t\t\t
Exhibition
2019 SPIE Photonics West
Sunday Optics has established business relationship with domestic companies, university. our customer 60% from China, 40% from the worldwide, USA,Germany,Japan, Koran, Italy, Austria. Exhibitions booth will take place every year in Germany and USA, such as we attend 2017 laser world in Munich, 2018 Frankfult, 2019 SPIE Photonics West, We can see each other every year from our booth, and you are welcome to visit out factory.
Our Services
1. We will provide the free service on 24 hours.
2. We have a complete QC system,and regulary the quality on 24 hours.
3.We have a specialized foreign trade team,and can provide the professional service.
4.We have several sets of production equipments,can meet the your delivery time in time.
5.We are factory ,and can provide the cheap price for you.
Packing & Delivery
Packaging Details:
Inner packing-------special protective packing for optical products.
Outer packing------carton, Shock absorption material and bubble wrap
Delivery Time:7-20days
Delivery: Generally, we use the Fedex, DHL, UPS, TNT, Shunfeng, etc. Please note it before delivery. Transit time deponds on the express and destination. By the way, we would re-check all the details before delivery.
