X86 мини настольный ПК Celeron 2955U процессор Встроенный двойной дисплей 4x RS232 двойная LAN Qotom Мини Q401P
- Категории: Mini PC >>>
- Поставщик: Shenzhen,Qotom,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Front I/O
• Power Button
• 2 x USB 2.0 Ports
• 2 x USB 3.0 Ports
• 1 x Power LED
• 1 x Serial Port (RS-232)

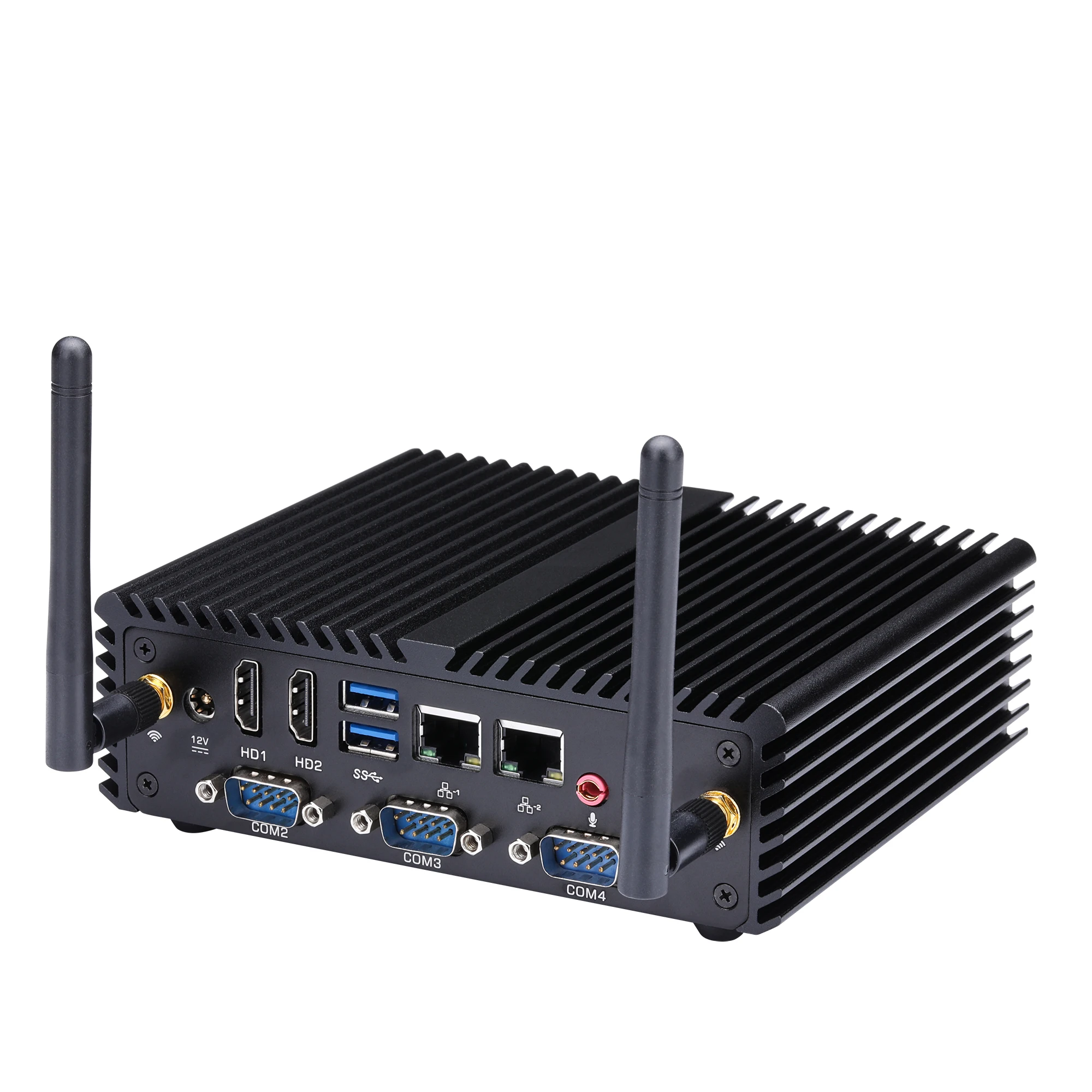

Rear I/O
• 1 x DC Jack
• 2 x HDMI Ports
• 2 x Realtek RTL8111E Gigabit LAN
• 2 x USB 3.0 Port
• 3 x Serial Ports (RS-232)
• Mic-in, Line-out
• Wi-Fi
Qotom Fan-less Mini Motherboard
Processor onboard:
CPU: Intel Celeron 2955U Processor, 2M Cache, dual core 1.4 GHzTDP: 15 W
Integrated graphics: Intel HD Graphics
Memory:
1 x DDR3 DIMM Memory Slot
Support DDR3L 1333/1600 MHz, 1.35V
Max: 8GB
Non-ECC
Storage:
Support SSD (MSATA / SATA)
Support HDD (2.5 inch SATA HDD)
Support HDD (2.5 inch SATA HDD)
Wi-Fi:
1 x Half mini pcie slot for Wi-Fi
Interface: PCIE
Wi-Fi
This link includes Wi-Fi:
Model: AzureWave AW-CB161H
802.11A/B/G/N+AC 150/433 Mbps DUAL BAND + Bluetooth 4.0 Wireless LAN Card Realtek chipset RTL8821AE
Wifi Standard: 802.11a/b/g/n/ac
Wifi Frequency: 2.4/5.0 GHz DUAL BAND
Chipset: Realtek RTL8821AE
Bluetooth Standard: Bluetooth 4.0
Driver Support: Linux/ Windows 7/ Windows 8 / Windows 10
Interface: Wifi: PCI-E / BT:USB
If you prefer to Wi-Fi card with Intel chipset, please contact us.
Operating System
• Preinstall inactive Windows 10 for test and Qotom do not provide any Windows license.
• Supports Windows 7/ 8/ 10, Linux, etc.
• Buyer can reinstall operating system.
• F11 key boot from USB Drive. Delete key enter BIOS.
Place an order online!
• Product price and shipping cost online are true.
• Please contact us in advance if you have below special requirements:
* Laser print logo on PC case (MOQ: 5 units)
* Plan to install 4G module and wifi card at the same time
* Wanna remove COM ports
* Wanna add a 2.5" SATA HDD
* Need preload other operating system
SIM & 4G LTE Module
* A Full mini pcie slot on motherboard for 3G/ 4G Module.
* A SIM card slot onboard.
* Qotom do not supply any SIM card and LTE module. * When you buy LTE module, please get details like drivers from the supplier.
* Q400P Series only have dual antennas holes for WI-Fi by default. If you wanna install LTE module at the same time, please contact us in advance to get PC case with 4x Antennas holes.
Qotom Q400P Series
* Qotom Mini PC Q400P Series contains below models, they are same except processor onboard.
* You can choose CPU according to demand.
* CPU has been integrated on motherboard, it's impossible to replace it.
* If you are interested in other CPU, please contact us for free.
Model | CPU |
Q401P | Intel Celeron 2955U (Haswell) |
Q430P | Intel Core i3-4005U (Haswell) |
Q450P | Intel Core i5-4200U (Haswell) |
Q430PY | Intel Core i3-4012Y (Haswell) |
Q450PY | Intel Core i5-4300Y (Haswell) |
Q435P | Intel Core i3-5005U (Broadwell) |
Q455P | Intel Core i5-5200U (Broadwell) |
Wide application
• Running 24/7
• Fan-less design, quite working.
• The frame is simple , maintain easily.
• Small size, only 155*127*48mm, save space and easy to move.
• With VESA Bracket, it can be hung.
• Attaching monitor, keyboard, mouse, it's your new personal computer, excellent POS terminal, mini server, etc.
• Support two monitors to display same or difference.
• Operating temperature: -10~ 50 degrees Celsius
Related Mini PC
Q400S Series
If you don't need 4 COM ports or just need 1 COM ports, please choose Q400S series. They have same motherboard and PC case.
Our Advantages
Qotom Team
* We are a professional designer and manufacturer of Mini PC and mini motherboard.
* We can provide customized service to try to full meet client's requirements.
* Quick delivery, competitive price, high quality and best long term service.
* Quick delivery, competitive price, high quality and best long term service.
Product packaging
Packing
1 x Mini PC
1 x Power supply (adapter and cord)
1 x VESA Bracket & screws
2 x Antennas
1 x Color packaging box
* Power cord options: EU/ SA/ AU/ US/ CH Type
* Contact us if you need Motherboard User Manual and Windows drivers.
Shipment
DHL / FedEx/ TNT/ UPS Express: FOB Shenzhen
Buyer can receive parcel within one week. Carrier will contact Buyer to collect the import fees (Duty, VAT and other fees). Seller is not responsible for it. Please pay attention to shipment.
Yun Express: DDP EU
Seller prepay the duties but Buyer should wait about 10~20 days. Only for European Union but can not deliver to all islands and overseas territories.
Ship to Russia
* ePacket: only ship one unit per shipment but freight is very cheap. About 20 days to Russia.
* J-NET: About one month to Russia but Seller prepay the duties (DDP). Cheaper freight.
* EMS: About 15 days to Russia. High freight.
If Buyer has forwarder in China
Seller can deliver goods in China.
* Important: There is a lithium metal battery on motherboard that some forwarders can not arrange shipment.
