Towable Backhoe
Небольшой садовый тракторный экскаватор-погрузчик AA прямо с

Небольшой садовый тракторный экскаватор-погрузчик AA прямо с

Категории: Towable Backhoe >>>
Поставщик: Shandong,Sunco,Aet,Co.,Ltd.

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

Backhoe

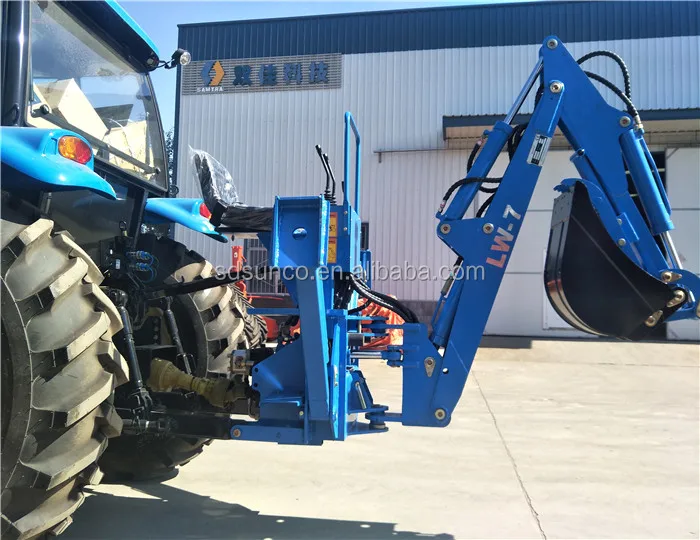

Mounted on 20-120hp , SAMTRA towable backhoe for tractors is the powerful digging machine on farm land . LW Series Backhoe Excavator for tractor is widely used in farm, grazing land, construction etc, mainly in ditching, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.

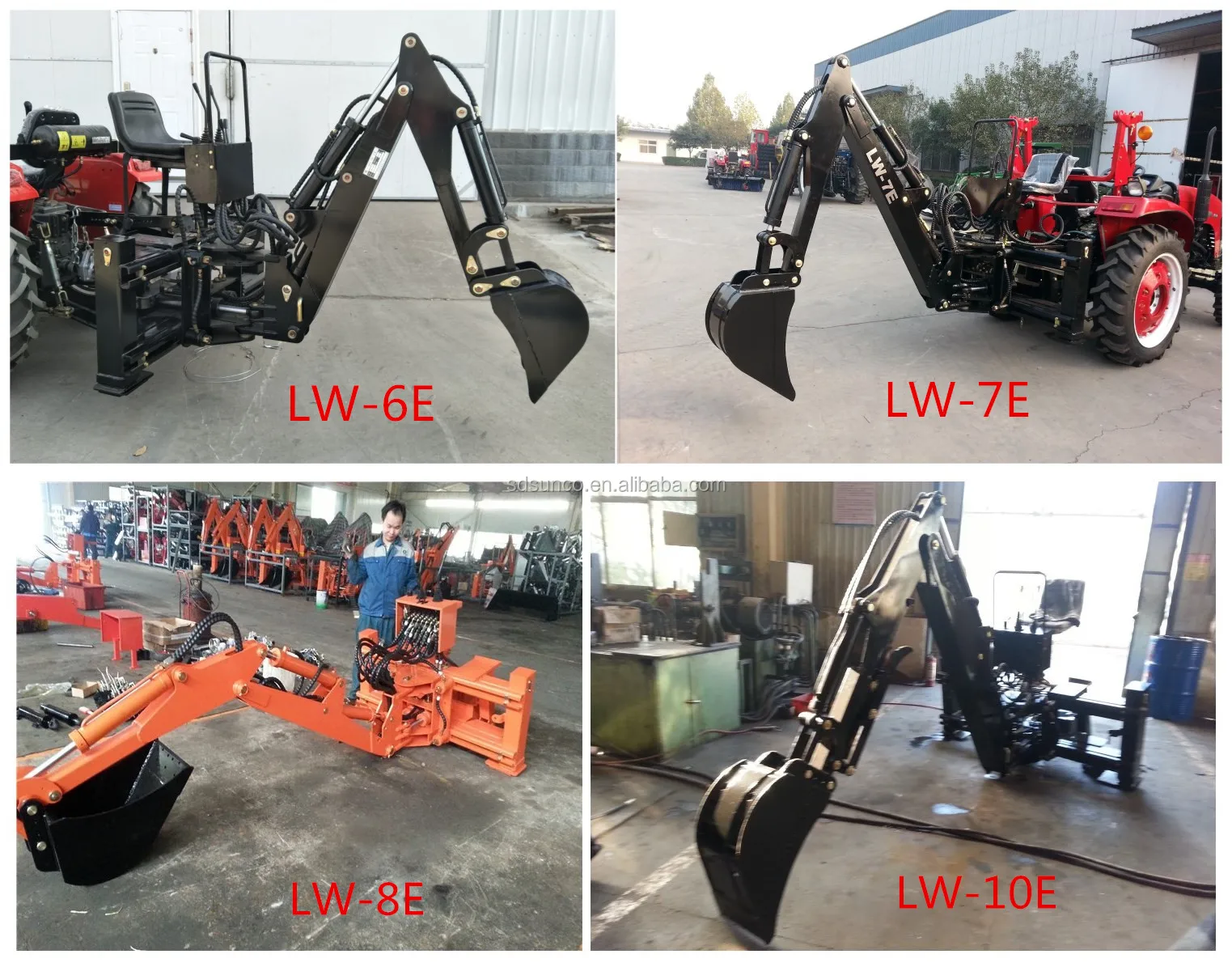

Backhoe Model			LW-5	LW-6	LW-6E	LW-7	LW-7E	LW-8	LW-8E	LW-10	LW-10E	LW-12
Matching Tractor		hp	15~25	20~35		30~55		50~90		70~120		100~180
Max.Digging Depth	A	mm	1650	2000		2400		2800		3200		3655
Max.Unloading Height	B	mm	1530	1860		2050		2380		2650		3627
Max.Digging Height	C	mm	2600	2970		3210		3460		3770		5040
Working Radius	D	mm	2300	2700		3140		3600		3920		4510
Ground Clearance	E	mm	450					500				700
Side Shift Distance	F	mm	0	0	770	0	770	0	1000	0	1200	0
Min.Transporting Width	G	mm	1150	1700	1470	1700	1470	1700	1700	1850	2000	2100
Max.Width of Supporting Legs	H	mm	2100	2200	1470	2200	1470	2200	1700	2300	2000	2550
Bucket Width		in.	14			16		18		20		22
Bucket Capacity		m³	0.03	0.03	0.04	0.05		0.06		0.07		0.13
Weight		kg	360	550	600	560	620	630	700	800	1000	1500
PTO Hydraulic System	6/8/21 Splines(Option)
Thumb Grab	Option

Main feature

1.use hydraulic transmission
2.compact structure
3.flexibility and convenient operation
4.quick mounting and dismounting
5.Share hydraulic oil with tractor
6.highly standardized hydraulic elements

Detailed Images
