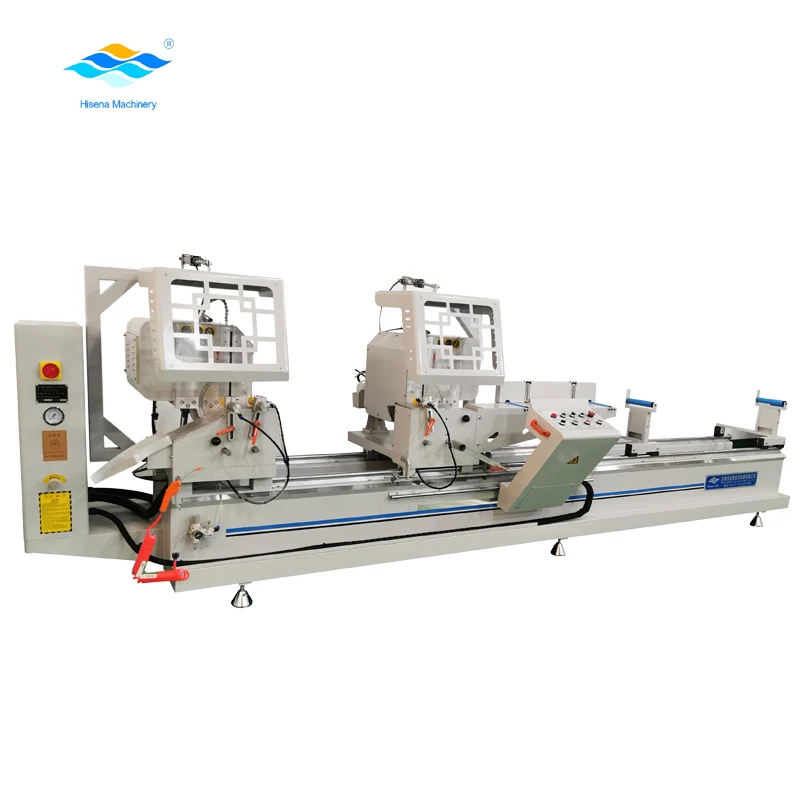

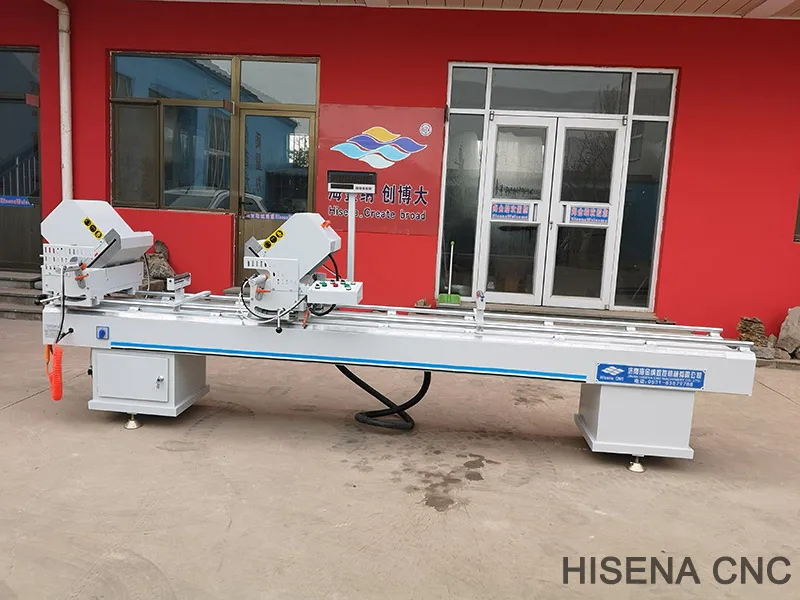

Products Description
Used for cutting aluminum and PVC at -45°~45°.
1. PVC&aluminum mitre saw
2.Used for PVC&aluminum profiles cutting.
1.Special for aluminum and PVC profile cutting at ± 45 ° /90 °
2. Carbide saw blade gives accurate processing and high endurance
3. The two heads can work independently or together.
4. Cutting off required length and two end angles are available by one processing
2.Used for PVC&aluminum profiles cutting.
Specification:
1.Special for aluminum and PVC profile cutting at ± 45 ° /90 °
2. Carbide saw blade gives accurate processing and high endurance
3. The two heads can work independently or together.
4. Cutting off required length and two end angles are available by one processing
Main Techinical Parameters
Power supply | 380V 50Hz |
Saw cutting(w*h) | 120×140mm |
Main motor power | 3KW |
Main motor rotation speed | 2800r/min |
Saw blade dimension | φ420× φ30 |
Cutting angle | ± 45 ° /90 ° |
Repeat Locating length | ≤0.3mm |
Angle cutting tolerance | ±5’ |
Planeness of cutting surface | ≤0.10mm |
Cutting profile surface roughness | Ra12.5um |
Max/Min cutting length | 3500-400mm |
Size | 4000x970x1400mm |
Weight | 900kg |
Details Images
Recommend Products
Which machines can be used for making a upvc window and door?

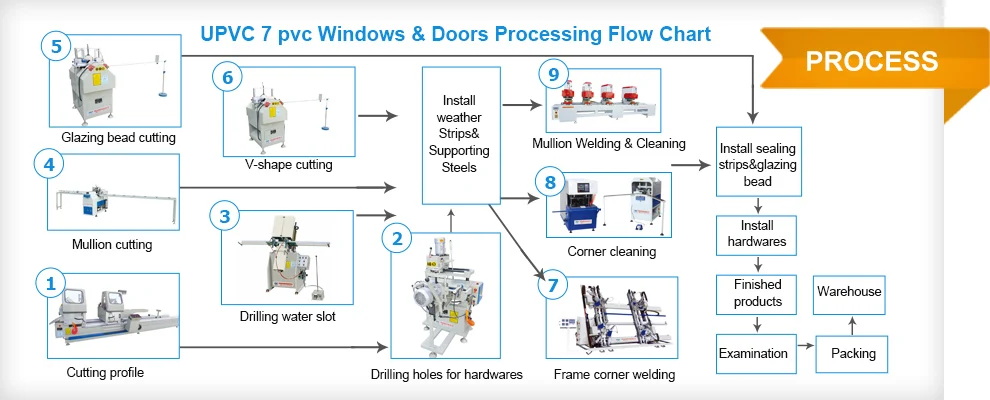

The picture below shows the production process of a window
2. 90°and ± 45° cutting is available. 90 and 45 degree can be automatically reversed.
3. Saw blade rotate smoothly due to high accuracy main spindle.
4. Imported carbide saw blade give accurate processing and high endurance.
5. Imported linear bearing motion pair ensured steady processing accuracy.
1.This machine used for milling UPVC window door all kinds hardware mounting hole
2.Two separate part , horizontal three hole drilling and vertical irregularly-shaped hole copy milling , can work out same time .
3.Both milling cutter feeding manually . Also the milling depth can be adjusted in advance . Suit for different model profile .
4.The copy milling part , can custom-made milling shape template.
vinyl profile mullion cutting machine
pvc profile cutting saw.upvc window machine
VJW-70A

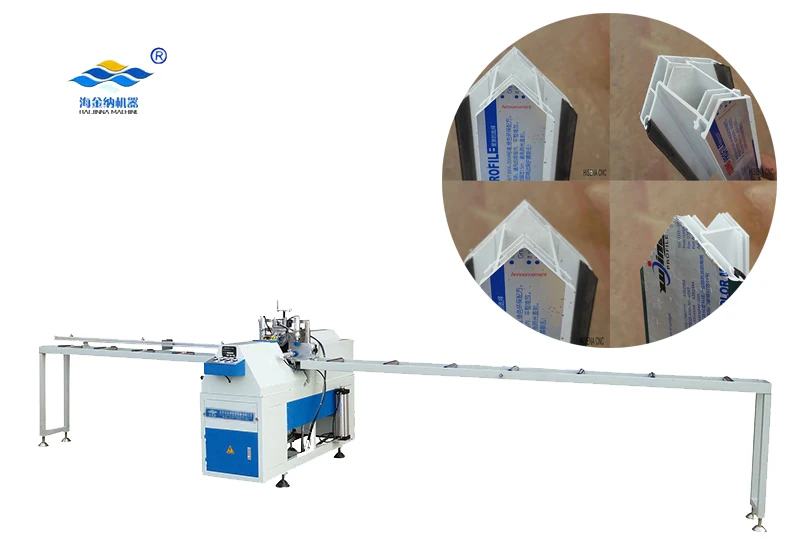

V-typed Cutting Saw designed for PVC window profile V-typed cutting
Main Features
1.Simple operation
2. Working stable.
3. Machine Height can be adjusted.
Main Features
1 Used for high-end colorful(filmed type /transfer type/two-color extrusion type/spraying type)Upvc and common white Upvc type window door frame double surface cleaning welding.
2 Adjust the melt temperature/melt time/cooling time for different type profile.
3 Each head have two cleaning tools.To make the welding surface smooth,after welding,those tools automatic cleaning the welding surface.
4 Adopts PLC system,increase extra pinch device,to make welding stable.welding frame corner high strength.
