Product Description
Dongfeng 4x4 fire fighting trucks front electric 5 ton winch water tanker fire trucks
Main specification | |||||||||
Product model and name | DONGFENG fire fighting truck | ||||||||
Gross weight(Kg) | 14000 | Drive type | 4X4 | ||||||
Payload(Kg) | 5950 | Overall dimension(mm) | 7800×2499 ×3196 | ||||||
Curb weight(Kg) | 8050 | Cab seats | 5 | ||||||
Approach/departure angle(°) | 34/17 | Front/rear hang(mm) | 1180/1815 | ||||||
Axle No. | 2 | Wheelbase(mm) | 4500 | ||||||
Front Axle/Rear axle load(Kg) | 5000/9000 | Max speed(Km/h) | 90 | ||||||
Chassis specification | |||||||||
Chassis model | EQ 1161 | Manufacturer | Dongfeng Motor Co.,Ltd | ||||||
Brand name | Dongfeng | Tyre No. | 6 | ||||||
Tyre specification | 10.00-20 | Transmission | 6 forward gear,1 reverse gear | ||||||
Emission standard | Euro 3 |
|
| ||||||
Cab | Dongfeng 153 type cabin . Four opening doors and whole flat top with crew cab. And all steel frame welded structure with air condition. With Front winch (capstan) | ||||||||
Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | Horsepower(HP) | |||||
B170-33 | Dongfeng cummins engine co. LTD | 5900 | 125 | 170 | |||||
Water tank fire fighting truck performance | |||||||||
Water tank volume(L) | 6000 | ||||||||
Tank material | Carbon steel material | ||||||||
Fire monitor | Fire monitor model PS30, level rotation by 360º, Max elevation +45º, Max angle of depression -15º, Flow rate:30L/S,Range≥50 m/1.0MPa | ||||||||
Fire pump | Model: CB10/40 Flow rate:40L/S Pressure:1.0MPa | ||||||||

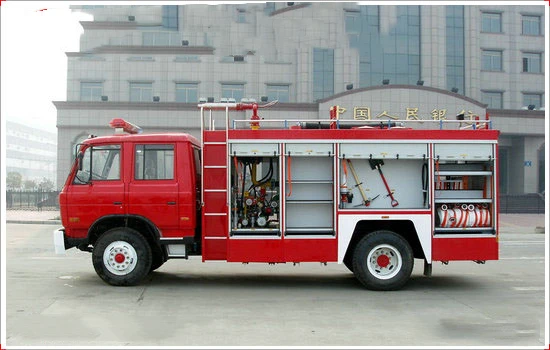

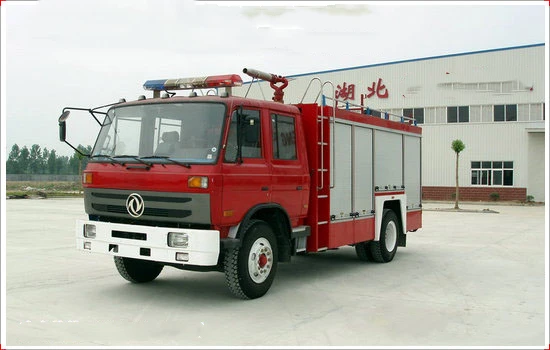

Detail picture
The main frame structure is welded by high quality square tube.
Aluminum alloy rolling shutters are arranged on both sides of the equipment box, and there are lights inside.
Long row of warning lights installed on the top of the cab; power 100W; one light above the rear of the vehicle
Crew room; equipment box and pump room set lighting
Work Flow
Customer Visit
Company Profile
ShiYan RockRich
Shiyan RockRich Industry & Trade Co., Ltd. is a professional exporter of trucks,buses, special vehicles and parts. Our company is located in the Wudang Mountain Scenic Area and Shiyan Dongfeng commercial vehicle production base.We can provide 4X2,6X4,8X4 dumper truck ,tractor head truck, cargo truck and special trucks. Also provide 6 m to 12m city buses, coach buses, professional school buses, 4X4 off-road buses, trailer type RV, self-propelled RV etc. Currently, Our products have been sold to 20 overseas countries and regions, Marketing service network coverage Africa, Southeast Asia, Oceania, Latin America and Central and South America etc.
FAQ
1. What is the warranty?
You can enjoy technical support by phone or email forever . We will provide a prompt solution. We also , offer the most convenient and efficient spare parts support with competitive price.
2. What is the delivery time?
The delivery time is usually within 15 workdays after we received your prepayment.
3. Do you provide customized service?
Yes. We offer customized service as you needs for the performance , included special requirements .
4. What is the payment method?
By TT ,L/C at sight and Trade Assurance , etc.
5. Why us ?
We guarantee professional one-stop service, competitive price with high performance and prompt response.
