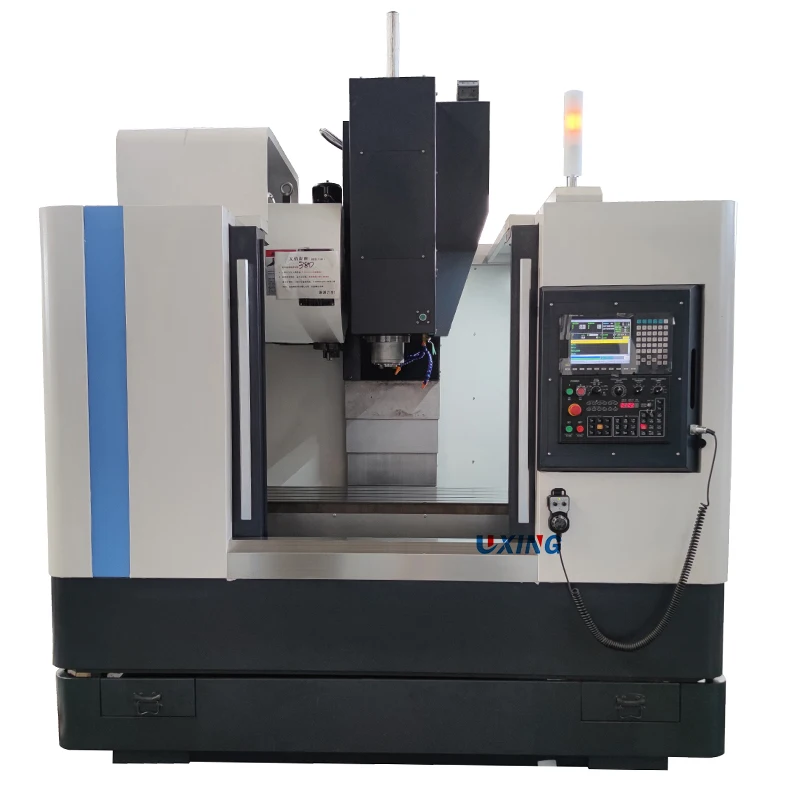

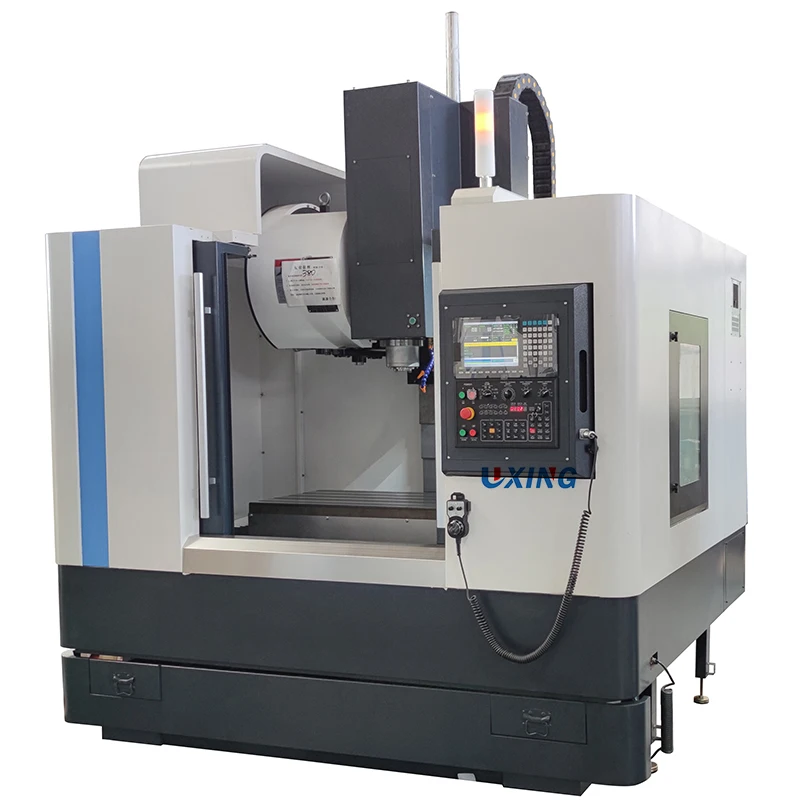

Chinese metal processing VMC1060 VMC1270 cnc milling machine vertical machining center
Product Description
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product Main Specifications:
Specification | Unit | VMC650 | VMC850 | VMC1060 | VMC1270 |
Table size | mm | 800×400 | 1000×500 | 1300×600 | 1300×700 |
T-slot(NO.x width ) | mm | 3-14 | 5-18 | 5-18 | 5-18 |
Max.table load | kg | 400 | 500 | 600 | 700 |
Guide rail type |
| Linear rail guide | Linear rail guide | Linear rail guide | Linear rail guide |
X/Y/Z axis travel | mm | 650×400×500 | 800×500×500 | 1000×600×500 | 1200×700×700 |
Distance from spindle nose to worktable | mm | 70-570 | 100-600 | 70-670 | 100-800 |
Distance from spindle center to column | mm | 450 | 580 | 655 | 750 |
Spindle taper |
| BT40 | BT40 | BT40 | BT40 |
Spindle Speed | rpm | 8000 | 8000 | 8000 | 8000 |
Spindle Drive |
| Belt | Belt | Belt | Belt |
Spindle Motor | kw | 5.5 | 7.5 | 11 | 11 |
X/Y/Z axis rapid feed speed | m/min | 20/20/20 | 24/24/24 | 20/20/16 | 20/20/16 |
X/Y/Z axis cutting feed rate | mm/min | 1-6000 | 1-10000 | 1-10000 | 1-10000 |
Tool changer |
| Hat type-16T | Arm type -24T | Arm type -24T | Arm type -24T |
Positioning accuracy | mm | ±0.01/300 | ±0.008/300 | ±0.01/300 | ±0.01/300 |
reposttioning accuracy | mm | ±0.01 | ±0.008 | ±0.01 | ±0.01 |
Machine dimensions(L*W*H) | mm | 2300×2000×2350 | 2200×2350×2550 | 3000×2500×2800 | 3000×2500×2800 |
Machine weight(N.W/G.W) | T | 3.0 | 5.0 | 5.8 | 5.8 |
Details
Optional accessories:

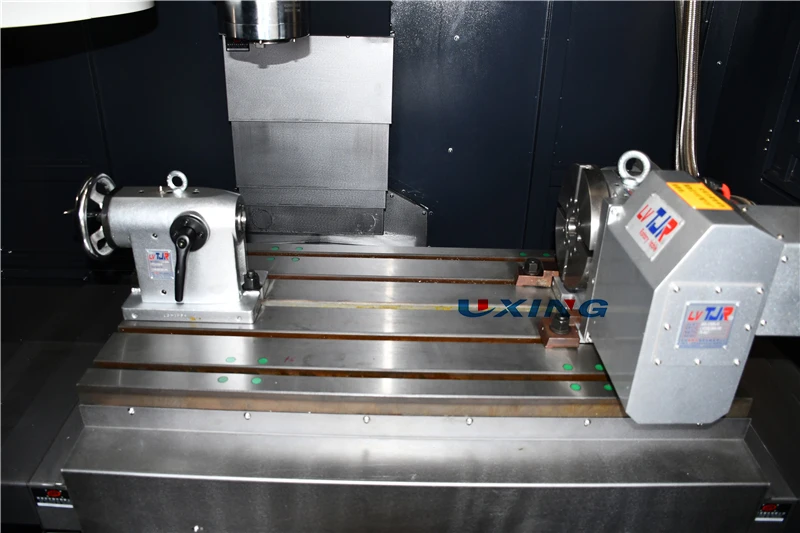

The 4th axis;
Chip conveyor;
Tool setter.
FAQ
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
