Ветряная турбина с вертикальной осью завитка 400 Вт 12 В

Model

RC-400SV-A

Rated Output

400W

Peak Output

410W

Rated Voltage

12V/24V AC

Start-up Wind Speed

2.5 m/s

Cut-in Wind Speed

3.5m/s

Rated Wind speed

12m/s

Survival Max. wind

45m/s

Number of Blades

12

Rotor Diameter

0.52m

Blade Material

Casting aluminum alloy

Generator Type

3-phase Maglev with high performance Neodymium Magnets

Generator case

Casting aluminum alloy

Controller Type

PWM

Net Weight

15kg

Tower Connector

Flange

Flange Size *

DN25

Tower Type *

Guy Cable Tower

Tower Size *

3mX2, 60*3mm

Working Temp. range

from -40°C to 60°C

Product Life

15 years

Warranty

1 years

Applications

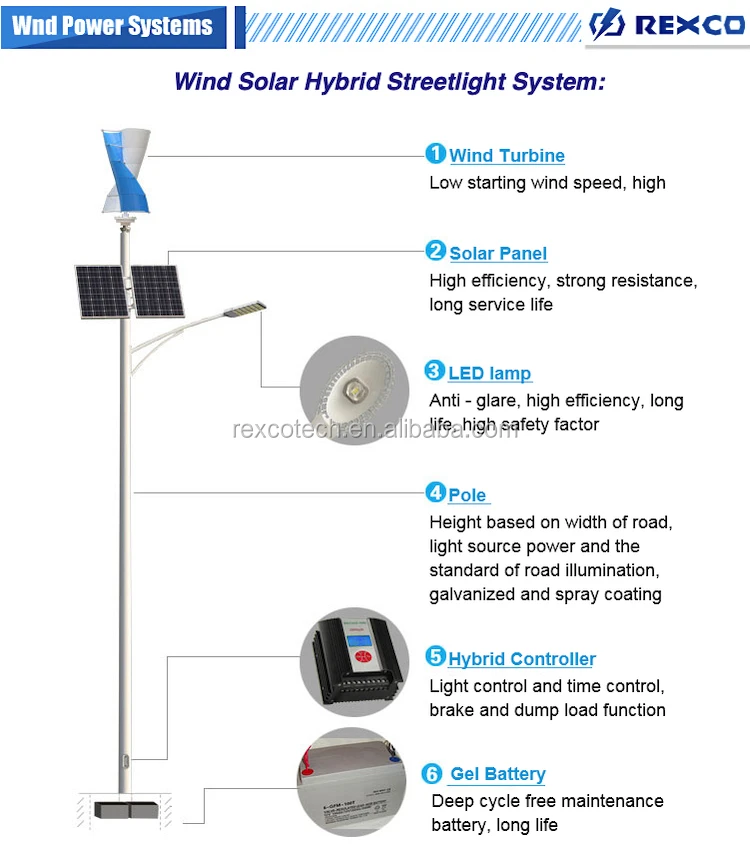

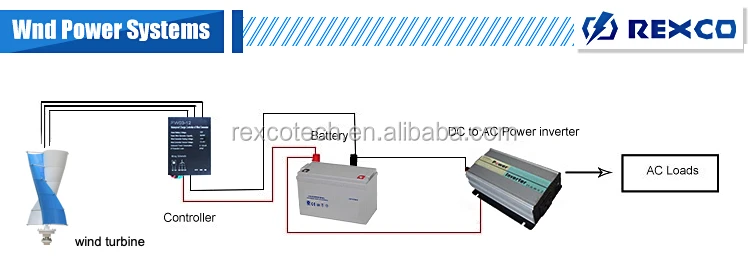

on/off-grid solar & wind hybrid system etc.

Measurement

118*28*30cm

Gross Weight

18.5kg
