Product Description

FSC-BT836B is a Bluetooth 5.0 dual mode module(BT 5.0 BR/EDR+LE), it supports transfer data via UART interface , data rate up to 82KB/s, customer can configure the module parameters via AT commands.

FSC-BT836B supports SPP, GATT(central/peripheral), HID profiles, it can transfer data in a high speed mode(SPP: 82KB/s, GATT: 65KB/s). FSC-BT836B also supports multiple connections(Supports connect with 1 iOS+7 Android smartphones simultaneously).

FSC-BT836B Bluetooth 5.0 dual mode modul's parameters:


Bluetooth module model
FSC-BT836B
Bluetooth version
Bluetooth 5.0 dual mode(BR/EDR+BLE)
Dimension
13mm x 26.9mm x 2.0mm
Transmit power
+10dBm maximum
Power supply
3.0 - 3.6V
Profiles
SPP, GATT(central/peripheral), HID
Frequency
2.402 - 2.480 GHz
Antenna
Built-in PCB Antenna(Default), supports install external antenna(Optional)
Features
High speed, Bluetooth 5.0, Multiple connection, OTA function, High compatibility, Supports iap2 protocol

FSC-BT836B Bluetooth module's development board:


FSC-DB004-BT836B: It contains a 6 pin(STATUS, RXD, TXD, GND, VCC, KEY) interface that connects with FSC-BT836B and is convenient for customer to test the Bluetooth module.

FSC-DB005-BT836B: It contains a USB to UART interface that connects with FSC-BT836B, customer could test the Bluetooth module with Feasycom Serail Port - a Windows app of Feasycom.

Related products
  Class 1 Bluetooth module
       High speed BT module
           Small BLE 5.0 module

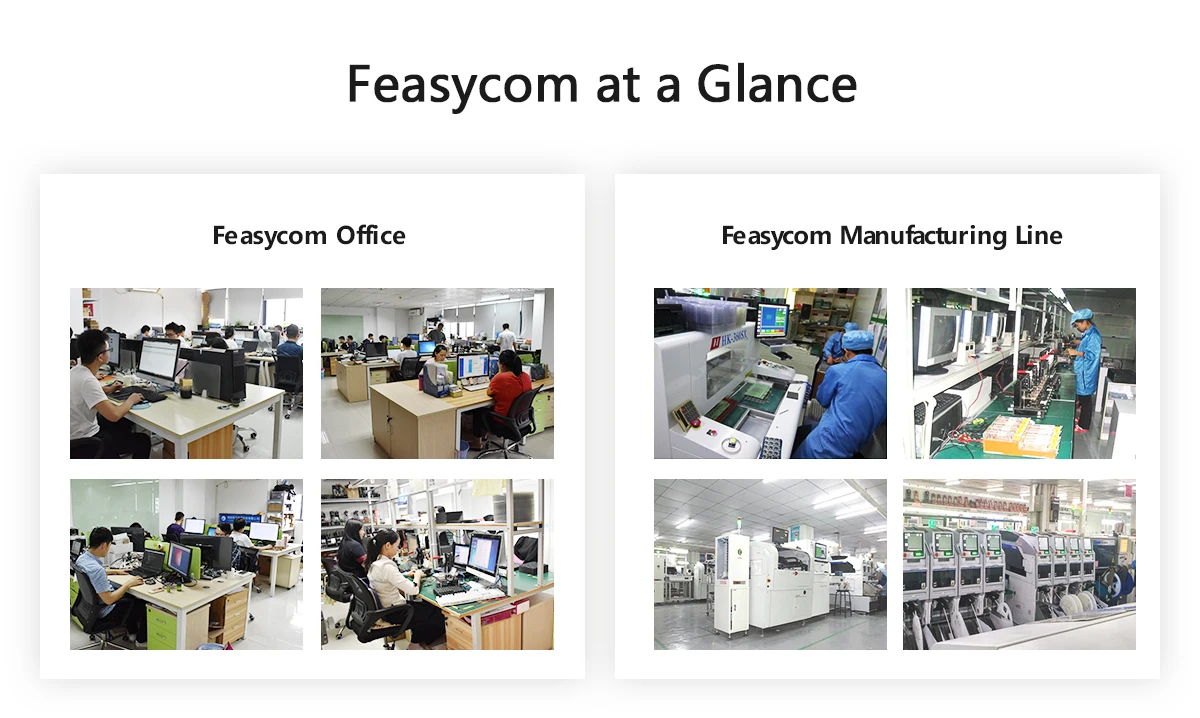

Our company
Feasycom focus on the researching and developing of IoT (internet of things) products, including Bluetooth Modules, WiFi and LoRa Modules, Bluetooth Beacon, etc. With more than 10-year experiences in the wireless connectivity, which ensure us have the capability for providing low-risk product development, reducing system integration cost and shortening product customization cycle to thousands of diverse customer worldwide.

SDK
APP Support
PCB Design
Development Board
Firmware Development
Depth Customization
Certification Request
Turn-Key Production Testing & Manufacturing

Our products and services mainly apply to Automotive, Point of Sale, Home Automation, Healthcare and Engineering, Banking, Computing, Vending Business, Location, Lighting and more.

Aiming at "Make Communication Easy and Freely", Feasycom is dedicated to design and develop high-quality products, efficient services to customers, for today, and all days to come.
Certifications
Packing & Delivery
FAQ

Q1.Are you a manufacturer or a trading company?
A1: We are a manufacturer.

Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.

Q3.Whether the product can be customized logo?
A3:For bulk orders, we support custom logo.

Q4.What is Bluetooth 5.0?
A4:Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.
Effective work distance can be 300m, 4 times of Bluetooth V4.2.


Q5.What is Bluetooth Dual Mode Module?
A5:Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate (EDR)/Low Energy (LE) Functions.

Q6.What payment mothods do you accept?
A6:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.

Q7.Lead time for sample orders/mass production orders?
A7:Samples,within 3 working days; Mass production,within 15 working days usually.

Q8.What shipping methods do you use?
A8:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping or sea shipping.
