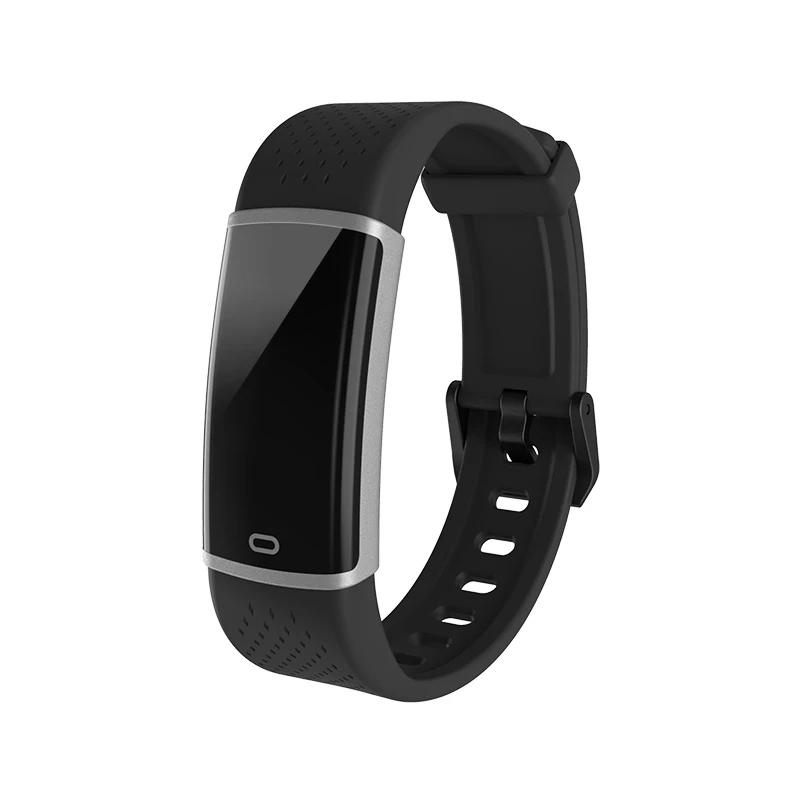

Bluetooth 5.0 Personnel Tracker Ble Beacon Wristband
W2-P5202D3 is a portable tag with 3-axis accelerometer sensor. It can advertise iBeacon, Eddystone and Sensor datas.
The W2-P5202D3 has a wearable bracelet shape, waterproof construction, precise hardware, powerful firmware and touch buttons. It
has a rechargeable lithium battery and a simple USB direct charging method.
All the parameters of W2-P5202D3 can be modified and all the sensor datas can be checked. Please check out our BeaconX Pro app,
available for iOS and Android.
The W2-P5202D3 has a wearable bracelet shape, waterproof construction, precise hardware, powerful firmware and touch buttons. It
has a rechargeable lithium battery and a simple USB direct charging method.
All the parameters of W2-P5202D3 can be modified and all the sensor datas can be checked. Please check out our BeaconX Pro app,
available for iOS and Android.
Product Description
Technology Parameter | ||||||||
Item | Value | Remarks | ||||||
Logo and color customizable | Yes | For free | For free | |||||
Provide SDK | Yes | |||||||
Main material | ABS | |||||||
Chipset | nRF52832 | |||||||
Battery Model | Lithium polymer battery | Lithium battery，80mAH 3.8V | ||||||
Operation Voltage | 3.3V | DC | ||||||
Waterproof level | IP67 | |||||||
Average Current | 41.7uA | Tested at -4dBm | ||||||
Transmission Range | max. Range 120m | In the open space | ||||||
Antenna | 50ohm | On board/PCB Antenna | ||||||
Battery Lifetime | About 50 days | At default settings② and without selfdischarge factor | ||||||
Size | 40.89x20.18x12mm | Wearable range: 13cm~21cm | ||||||
Net Weight | 24.8g | With battery | ||||||
Operating Temperature | -20 to +60ºC | |||||||
Details Images
Features
* ①Ultra-low power consumption chipset NORDIC® nRF52 series with 32 bit ARM® Cortex-M4 CPU.;
* ②Compatible with Apple iBeacon and Google Eddystone;
* ③Compatible with all Bluetooth® 5.0 devices;
* ④High quality rechargeable lithium battery (80mAH 3.8V), simple USB direct charge, easily get real-time battery notifications.
Flexible sensor function
* ②Compatible with Apple iBeacon and Google Eddystone;
* ③Compatible with all Bluetooth® 5.0 devices;
* ④High quality rechargeable lithium battery (80mAH 3.8V), simple USB direct charge, easily get real-time battery notifications.
Flexible sensor function
* ①3-axis accelerometer has dynamically user-selectable full scales of ±2g/±4g/±8g/±16g and the paremeter is configurable;
* ②3-axis accelerometer is capable of measuring accelerations with output data rates from 1 Hz to 100 Hz and the paremeter is
configurable;
* ③User can get the raw data of the 3-axis sensor sampling data from the device in real time;
Trigger function
* ②3-axis accelerometer is capable of measuring accelerations with output data rates from 1 Hz to 100 Hz and the paremeter is
configurable;
* ③User can get the raw data of the 3-axis sensor sampling data from the device in real time;
Trigger function
* ①Support button trigger and motion trigger;
* ②Control the device to start advertising all the time, stop advertising, or advertise for a while.
* ②Control the device to start advertising all the time, stop advertising, or advertise for a while.
Mechainical Draws
All dimensions is mm.
Product Usage
How to use it?
Load the URL onto beacon
If you'd like to set up your own Physical Web beacon, you can follow these steps below
1. Download the beacon configuration app MokobeaconX from Google Play or Apple store;
2. Open MokobeaconX, and connect the beacon.
3. Click the device icon, select the SLOT 3 (URL), and enter the URL slot, then Click'Save' to save the changes as below image.
If you'd like to set up your own Physical Web beacon, you can follow these steps below
1. Download the beacon configuration app MokobeaconX from Google Play or Apple store;
2. Open MokobeaconX, and connect the beacon.
3. Click the device icon, select the SLOT 3 (URL), and enter the URL slot, then Click'Save' to save the changes as below image.
Turn on/off
Company Introduction
Packing&Shipping
Samples:
we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
orders:
bulk orders usually take about 2 to 3 weeks after payment received
bulk orders usually take about 2 to 3 weeks after payment received
Related Products
FAQ
Q1: Do the Beacons work with IOS and Android phones?
A1: Yes, We will send the user manual to you to set up the beacon ,you can test the Beacon with IOS and Android phones.
Q2: Do you provide the technical support to the developers?
A2: SURE. The following technical data and documents will be provided.
1. SDK 2. API 3. Configuration APP 4. Instructions
Q3: Is the Beacons Certified ?
A3: Yes, all of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.
Q4: If the beacon can be managed remotely ?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the paramters.
Q5: If there have monthly charge after we purchased the beacon from you ?
A5: NO, we won't have monthly charge for our clients.
Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.
Q7: What's the warranty of the product?
Q7: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
Q8: Could we have an customized beacon ?
A8: Yes, We offer the OEM/ODM service.
A1: Yes, We will send the user manual to you to set up the beacon ,you can test the Beacon with IOS and Android phones.
Q2: Do you provide the technical support to the developers?
A2: SURE. The following technical data and documents will be provided.
1. SDK 2. API 3. Configuration APP 4. Instructions
Q3: Is the Beacons Certified ?
A3: Yes, all of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.
Q4: If the beacon can be managed remotely ?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the paramters.
Q5: If there have monthly charge after we purchased the beacon from you ?
A5: NO, we won't have monthly charge for our clients.
Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.
Q7: What's the warranty of the product?
Q7: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
Q8: Could we have an customized beacon ?
A8: Yes, We offer the OEM/ODM service.
For more questions, Welcome to contact us.
