Product Description


 36V-48V 500A dc motor controller  1205



Product Name
DC Motor Controller
Model Number
1205M-5603
Voltage
36-48V
Current
500A
Applied Model
Electric vehicle


Details Images

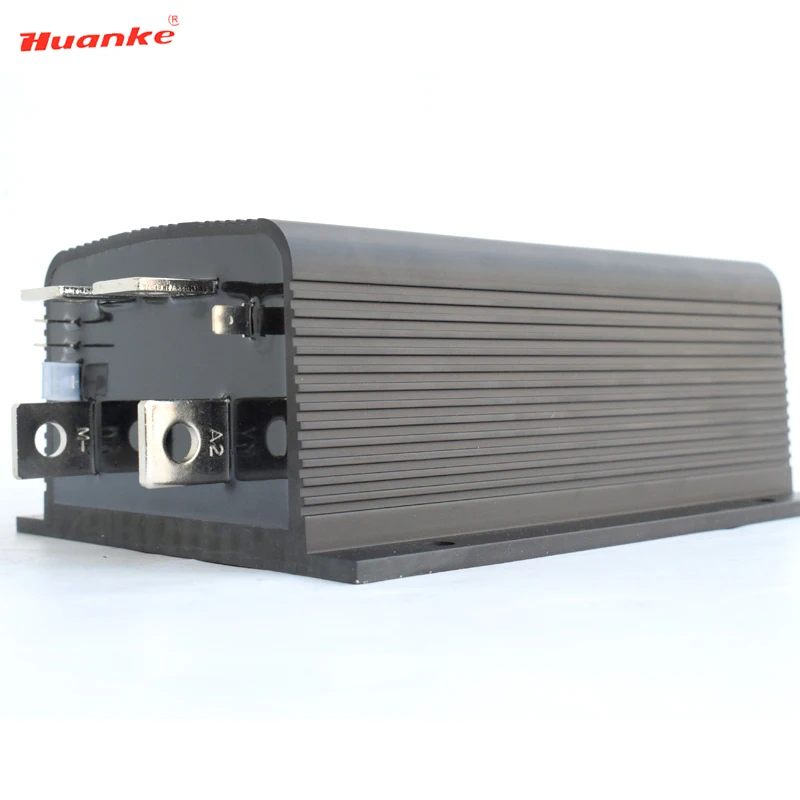

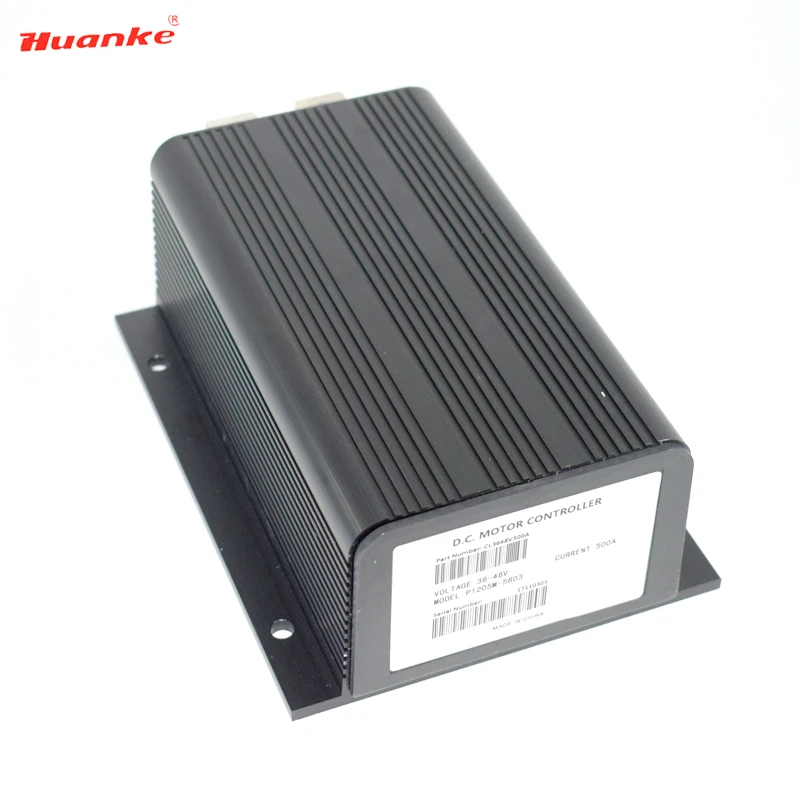

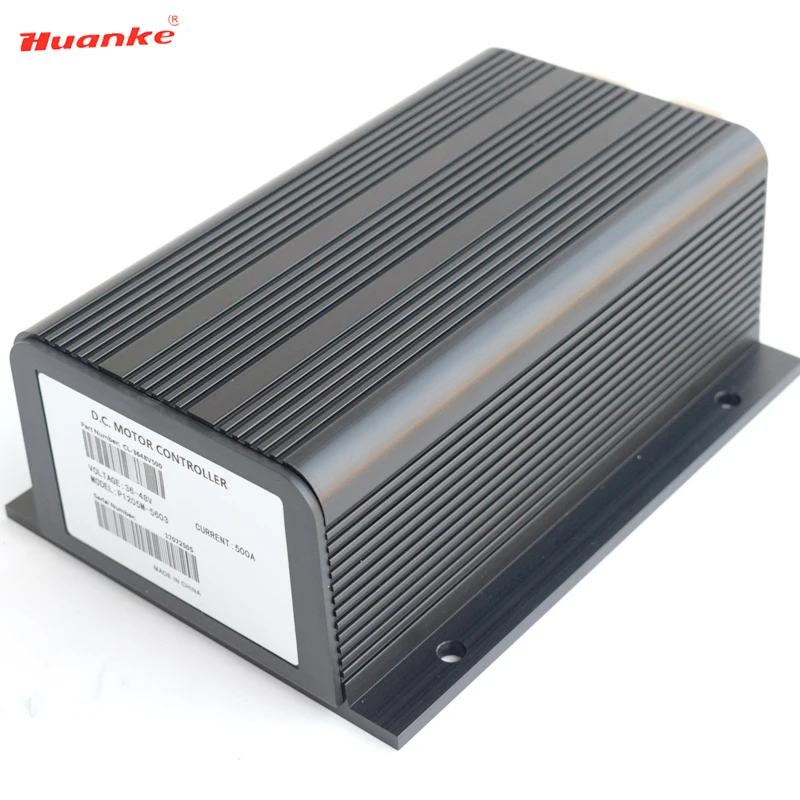

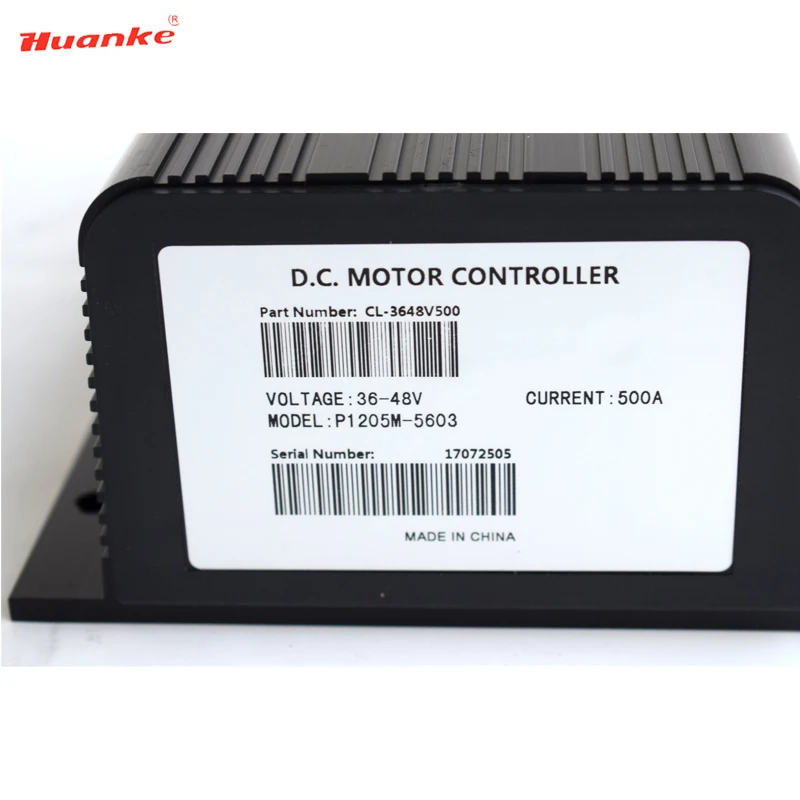

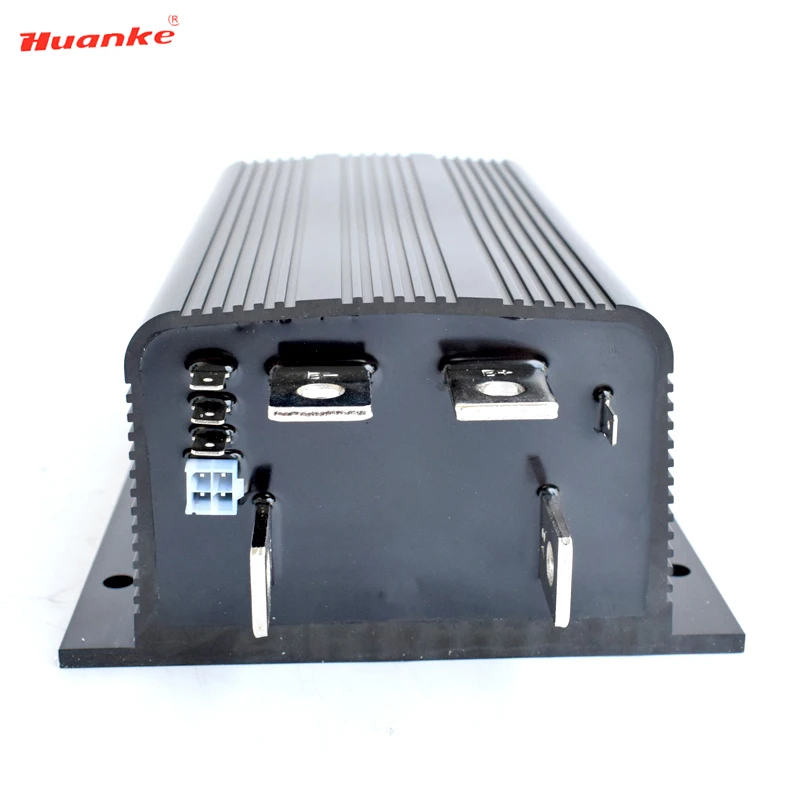

DC motor controller 1205M-5603

1205M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque. They are updated versions of the popular 1205 controllers, with the added functionality of being programmable-via the 1313-4401 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.

 1205M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.


Features include:
High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.

Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.

Compatible with either a two-wire potentiometer or a voltage throttle.

Throttle fault protection circuitry disables controller if throttle wires become open.

High pedal disable feature prevents controller operation if key is turned on while throttle is applied.

Plug braking diode internal to controller.

Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.

Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.

Easily programmable through the Curtis Model 1313-4401 Handheld Programmer or 1314 PC Programming Station.

Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.






Packing & Delivery




Every product is strongly packed by carton box with foam inside.

For example, 1 pc Curtis Controller 1204M-4201

Packing Size: 30x20x13 cm

Weight: 3 kg



Our Company




We, Hefei Huanke Electric Vehicle Parts Co., Ltd., are a professional supplier of forklift spare parts in China. Our company specializes in various kinds of electric pallet truck parts and forklift parts for both domestic and international markets.

Now, our company is the Curtis agent and distributor of Britain Albright Contactor. In addition, we have established strategic cooperation relations with France REALS Company and Belgium TVH Company which are the professional suppliers of forklift parts in the world.

Our product category covers forklift control system, running system, drive system, hydraulic system, etc. Controllers, contactors, sensors, PU wheels and other parts are supplied by our Huanke Company. Meanwhile, we have set up purchase department and development department to supply different brands of superior pallet truck parts and forklift parts, such as, TCM, TOYOTA, NICHIYU, NISSAN, MITSUBISHI, LINDE, HYSTER, DAEWOO, TAILIFT, HELI, HANGCHA, JAC, BAOLI etc.

Huanke Company keeps the development and wins markets based on our high quality products and professional services. With strong technology development capacity and good level services, we have won the trust of customers.

Our company is located at the crossing of Weiwu Road and Longwu East Road, Xinzhan Development Area, Hefei City, Anhui Province, China. We are determined to be a pallet truck and forklift part supplier with the most complete varieties, the strongest strength and the fastest response in China.

Welcome to visit our factory and have a face-to-face business conversation together.



Our Service


1.\tTechnology Support.
2.\t24 Hours Service
3.\t3 months warranty
4.\tReply in 24 hours
5.\tOEM is acceptable

6. Fast delivery



FAQ


Q1: Can I have a sample for testing?
A1: Yes, sample order is acceptable.

Q2: Can I add my logo on product?
A2: Yes, OEM is supplied

Q3: How can I get the after-service?
A3: We will give you technology information. If problems happen, our engineer will support you.




Trade Assurance




100% Product quality protection

100% On-time shipment protection


100% Payment protection





Hot Sale Product




Product Name
Curtis Programmer/Curtis Controller
Brand
Original Curtis
Model Number
1313K-4401/1230-2402
