Фрезерный станок хобби с ЧПУ XH7125, фрезерный станок с ЧПУ
US $14900-$15300
GMF6034X производен в
- Категории: Machine Centre >>>
- Поставщик: Nantong,Guosheng,Intelligence,Technology,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
GMF6034X China heavy cutting 5-axis cnc gantry-type milling machine center
Details Images
1. German Kessler AC swing head.
2. Heidenhain NC640 system.
3. Laser tool setting instrument.
4. Automatic chip removal device.
5. Water-cooling machine.
6. Ail path,gas path.
Specification
Machine Type | Unit | GMF6034X | ||
Worktable | ||||
Worktable (length*width) | mm | 6000*2600 | ||
Maximun Load of table | kg | 25000 | ||
T-slot | mm | 13-28*200 | ||
Processing scope | ||||
Gantry width | mm | 3400 | ||
Travel for X/Y/Z axis | mm | 6200*4200*1250 | ||
Distance from spindle nose to table surface | mm | 145-1395 | ||
Drive feed | ||||
Fast feed speed（ X/Y/Z） | m/min | 10/15/10 | ||
Precision | ||||
Positioning accuracy（ X/Y/Z） | mm | 0.025/0.02/0.016 | ||
Repeated Positioning accuracy（ X/Y/Z） | mm | 0.016/0.012/0.012 | ||
Spindle | ||||
AC Head | Kessler | |||
Maximum spindle speed | r.p.m | 18000 | ||
Spindle taper | HSK-A63 | |||
A-axis swing angle | ±105° | |||
C-axis swing angle | ±360° | |||
Spindle motor | kw | S1:56,S6:70 | ||
Max.torque of spindle | Nm | S1:90,S6:110 | ||
Tool magazine | ||||
Capacity of tool magazine | mm | 32T | ||
Max. tool length | mm | 300 | ||
Max. tool weight | kg | 20 | ||
Average tool weight | kg | 12 | ||
Max. tool diameter (No adjacent tool) | mm | 120(150) | ||
Others | ||||
Voltage | kva | 92 | ||
weight | kg | 83000 | ||
Floor area (length*width*height) | mm | 15000*7600*6500 | ||

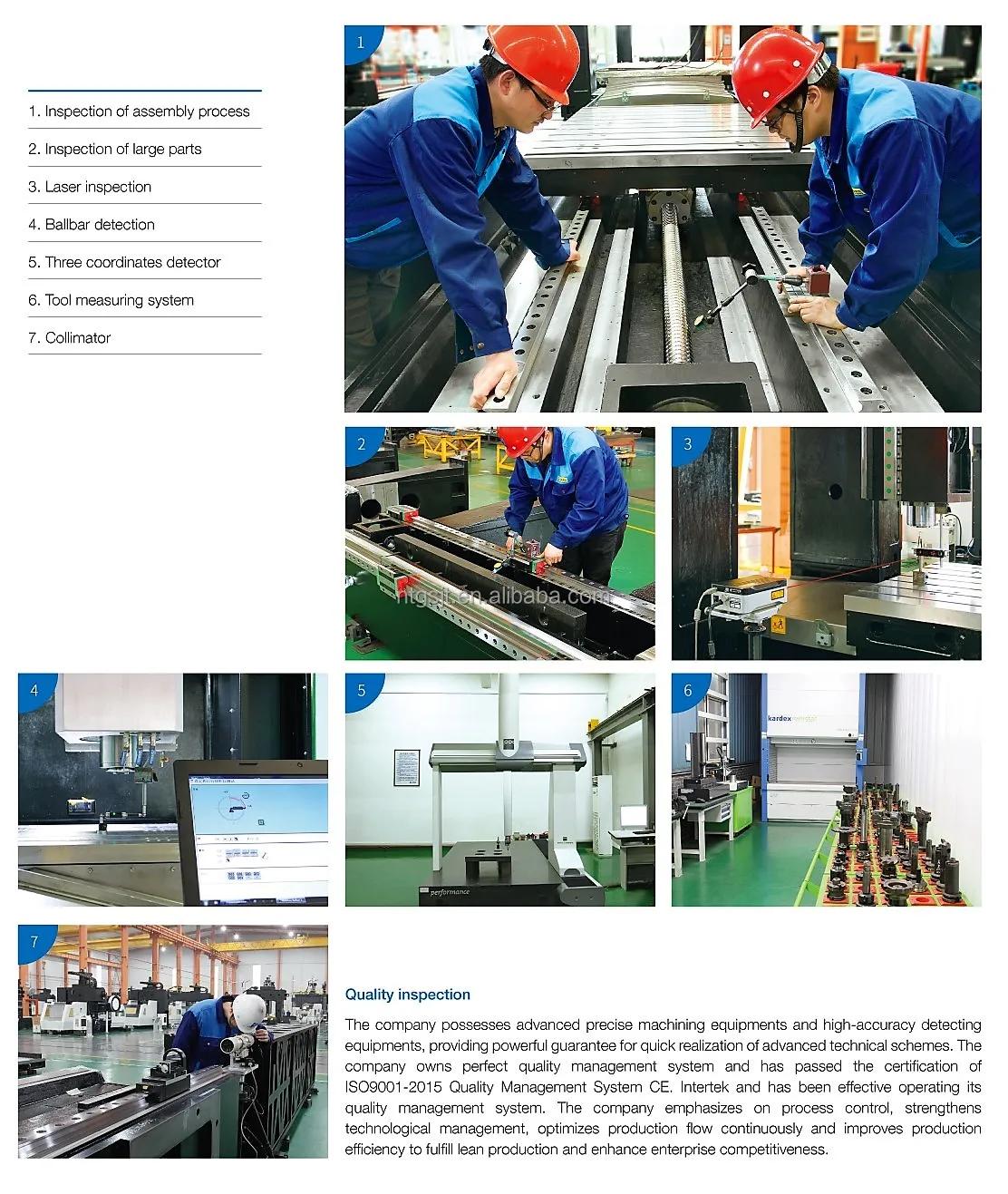

Quality control

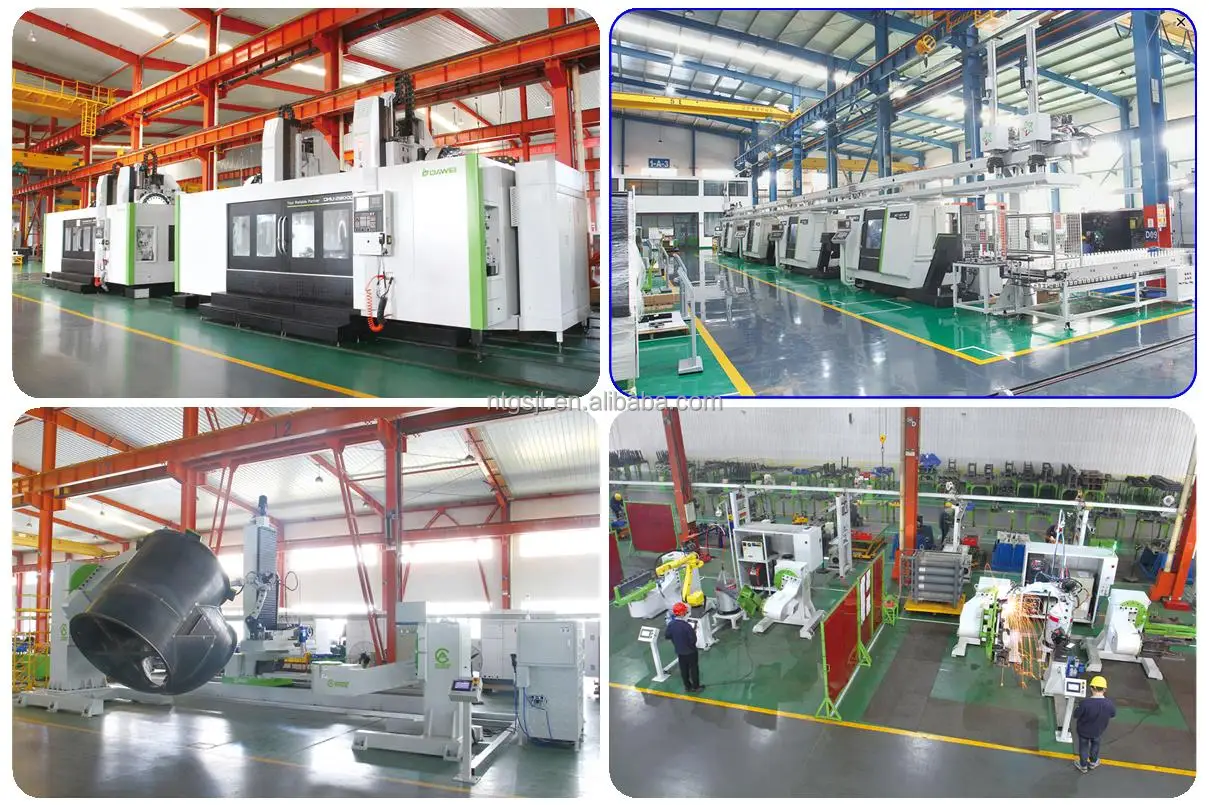

Intelligent automated production line
Company Profile
Nantong Guosheng Machinery & Power-Generating Group Co. Ltd. is specialized in producing the advanced CNC Horizontal
Machining Center, CNC Vertical Machining Center, Gantry Machining Center, Horizontal boring-milling machine and Precision sheet metal parts, professional welding
parts, high quality casting, CNC EDM Machine tool and so on.
Our products can meet the demand from mould industry, energy industry, shipbuilding industry, construction machinery industry, aerospace industry, military project and so on.
Guosheng Group is a high-tech enterprise with strong R&D team .We are among of the top 15 in Chinese CNC machine tool industry.And we own a lot of patents
and high-tech products.
With the strong technical support, precision machining, detection device, well-organized employee team and industry-leading service idea, now Guosheng group has
become the long-term partner of a lot of world famous enterprise like : DMG, BOMAG, SANDVIK, TOSHIBA MACHINE, HUSKY, FOXCONN and so on.
Guosheng group enterprise sprit is: "honest, quality, diligence, innovation." We will keep on provide the all-around solution and high quality products and fast-action to our international clients.
Machining Center, CNC Vertical Machining Center, Gantry Machining Center, Horizontal boring-milling machine and Precision sheet metal parts, professional welding
parts, high quality casting, CNC EDM Machine tool and so on.
Our products can meet the demand from mould industry, energy industry, shipbuilding industry, construction machinery industry, aerospace industry, military project and so on.
Guosheng Group is a high-tech enterprise with strong R&D team .We are among of the top 15 in Chinese CNC machine tool industry.And we own a lot of patents
and high-tech products.
With the strong technical support, precision machining, detection device, well-organized employee team and industry-leading service idea, now Guosheng group has
become the long-term partner of a lot of world famous enterprise like : DMG, BOMAG, SANDVIK, TOSHIBA MACHINE, HUSKY, FOXCONN and so on.
Guosheng group enterprise sprit is: "honest, quality, diligence, innovation." We will keep on provide the all-around solution and high quality products and fast-action to our international clients.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 1999,sell to . There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Vertical Machine Center,Horizontal Machine Center,Horizontal Boring and Milling Machine Center,Gantry Machine Center,CNC Lathe
4. why should you buy from us not from other suppliers?
We have nearly 16 years in producing CNC machine tools .We have been cooperated with a lof of famous enterprises like : TOSHIBA Machine, HUSKY, DMG, BOMAG, SANDVIK, DAVIS-Standard, FOXCONN, TRUMPF, Schaeffer Group and so on .
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
We are based in Jiangsu, China, start from 1999,sell to . There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Vertical Machine Center,Horizontal Machine Center,Horizontal Boring and Milling Machine Center,Gantry Machine Center,CNC Lathe
4. why should you buy from us not from other suppliers?
We have nearly 16 years in producing CNC machine tools .We have been cooperated with a lof of famous enterprises like : TOSHIBA Machine, HUSKY, DMG, BOMAG, SANDVIK, DAVIS-Standard, FOXCONN, TRUMPF, Schaeffer Group and so on .
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
