Китайский завод автоматический пневматический пресс машина для заклепок

Max riveting force : 60KN (6T)

Rated working pressure : 0.5-0.8MPA

Diameter of allowable rivet : 10mm

Effective travel distance of the traveler : 40mm

Height adjusting distance of the shoe iron bracket : 20mm.

Net weight:75kg

Gross Weight: 85kg

Overall dimension (L*W*H) : 580*540*1440mm

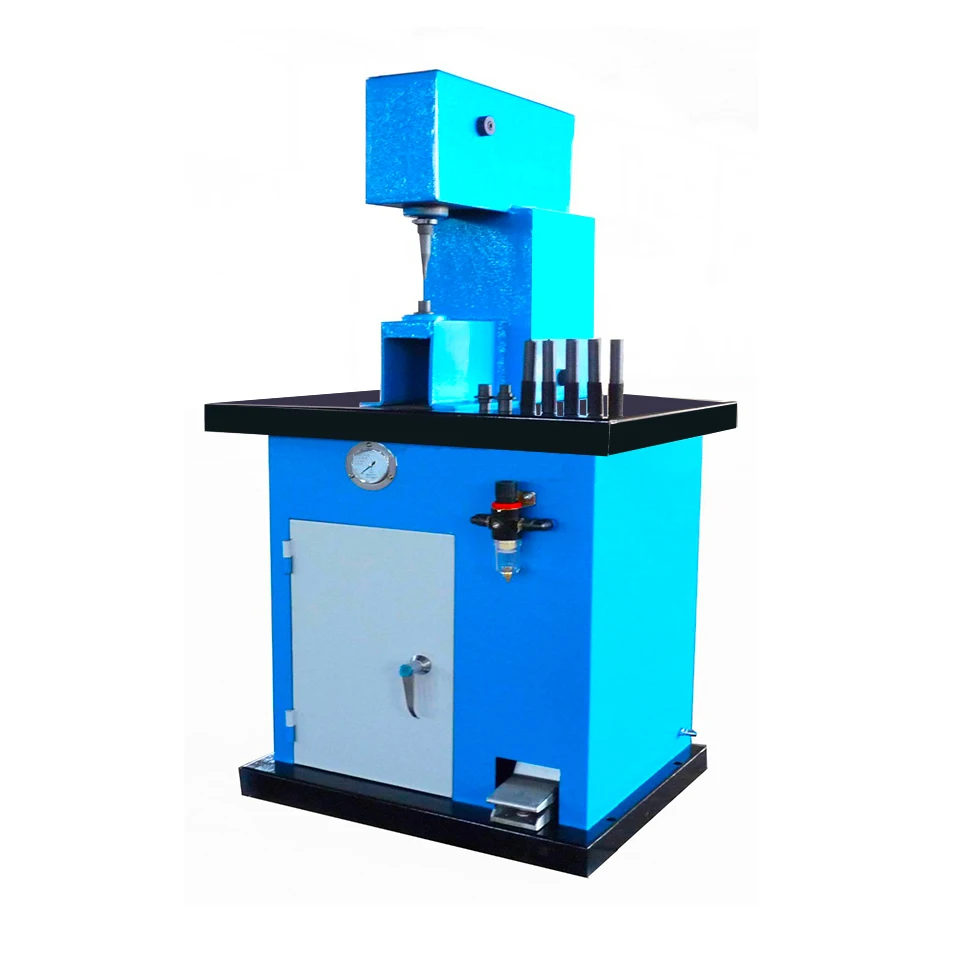

QM-24B Model Auto Brake Shoes riveting machine is a new type auto maintenance and repair equipment developed and upgraded from our QM-1A riveter. With its wide range of application, heavy punching and riveting force, it can perform one time punching and riveting of the rivet on various truck braking shoe plates. The work efficiency is high and its operation is easy. It can also be used for rivet joining of other parts like auto clutch friction plate.

 Precautions in equipment operation

1,The plant air supply shall be cut off when the equipment is under repair or replacing the punch head. It is strictly prohibited to place one’s hand underneath the punch head during operation for fear of accident.

2,During operation, if the riveting force is not sufficient, check if the air pressure is normal. The air pressure will drop when the punch head works in fast speed. Wait a few seconds for the pressure to rise to normal to guarantee the joining quality.

3,If joining action fails or no action during the operation, check if the air valve is damaged, if the air hose is choked and check if the rocking rod or other transmission parts are jammed. Lubricate the traveler, slide sleeve and other moving parts regularly.

V. Main technical parameters

1,Max riveting force:  58.8KN(6T)

2,Rated working pressure:  0.8MPa

3,Diameter of allowable rivet:  10mm (copper and aluminum)

4,Travel of the traveler: 35mm

5,Mass of the whole machine: 75KG

6,Overall dimension (L*W*H):600×500×1280mm

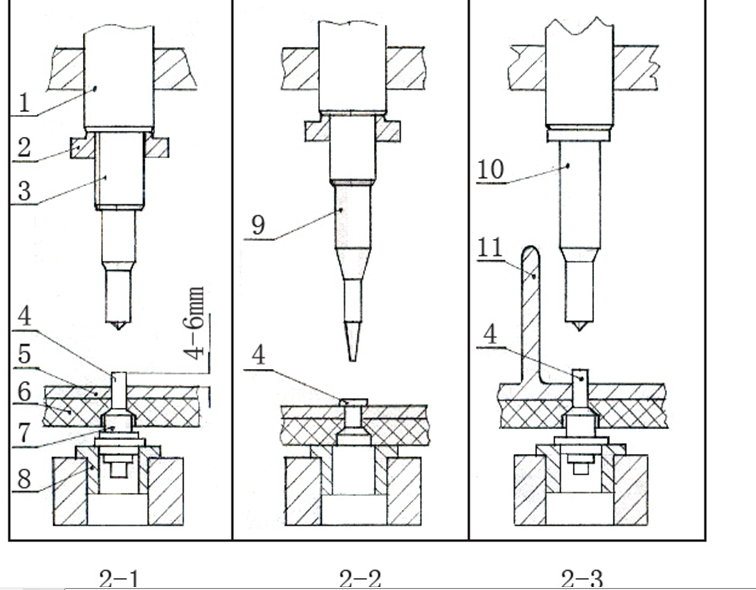

1,  Traveler   2,Locknut  3,Riveting punch head    4,Rivet

5,Shoe iron  6,Braking shoe plate  7,Lower bearing pin  8,Seat

9,Rivet punching out plunger  10,Special riveting punch  11,Special shoe
