6 цветов флексографский принтер пластиковые футболки пакеты для покупок Полиэтиленовая биоразлагаемая пленка логотип этикетка флексографическая печатная
- Категории: Форма флексографической печати >>>
- Поставщик: Wenzhou,Dayu,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Six 6 Colour Flexo Printer Plastic T-shirt shopping bag PE Biodegradable Film Logo Label Flexographic Printing Machine
flexo printing machine
flexographic printing machine
Why Choose Us
(1) Efficient and satisfied service
(2) Complete machines solution for the whole production line
(3) Various and multi solutions for different requirement
(4) More than 18-year professional experience
(5) Qualified product and strict quality control
(6) ODM,OEM is welcome
2 colors to 8 colors Flexographic Printing Machines Flexo Printers, 1 color to more than 10 colors Rotogravure Printing Machines
such multi-colors multi-functional printing machines can be supplied. Max. printing speed can be 50m/min to 200m/min.
(2) Complete machines solution for the whole production line
(3) Various and multi solutions for different requirement
(4) More than 18-year professional experience
(5) Qualified product and strict quality control
(6) ODM,OEM is welcome
2 colors to 8 colors Flexographic Printing Machines Flexo Printers, 1 color to more than 10 colors Rotogravure Printing Machines
such multi-colors multi-functional printing machines can be supplied. Max. printing speed can be 50m/min to 200m/min.
Main Features
Description:
This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper
etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and
clothes bag, etc.
1.Easy operation, flexible starting accurate colour register.
2.The meter counter can set printing quantity according to the requirement. Stop the machine automatically at the set quantity or
when the material is cut off.
3.Lift and lower the printing plate cylinder manually, It will automatically stir the printing ink after lifting
4.The printing ink is spread by the knurled cylindder with even ink colour.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360° continuous and adjustable longitudinal register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
8.There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine
when the plate is installed.
9. Double-side printing. 0+4, 1+3, 2+2.
etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and
clothes bag, etc.
1.Easy operation, flexible starting accurate colour register.
2.The meter counter can set printing quantity according to the requirement. Stop the machine automatically at the set quantity or
when the material is cut off.
3.Lift and lower the printing plate cylinder manually, It will automatically stir the printing ink after lifting
4.The printing ink is spread by the knurled cylindder with even ink colour.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360° continuous and adjustable longitudinal register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
8.There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine
when the plate is installed.
9. Double-side printing. 0+4, 1+3, 2+2.
Printing Samples
Product Paramenters
Model No. | WT-A6600 | WT-A6800 | WT-A61000 | WT-A61200 |
Max. Width of Printing Material | 600mm | 800mm | 1000mm | 1200mm |
Max. Printing Width | 560mm | 760mm | 960mm | 1160mm |
Printing length | 191-914mm | 191-914mm | 191-914mm | 191-914mm |
Max. Diameter of Roll Material | φ450mm | φ450mm | φ450mm | φ450mm |
Printing Speed | 5~60m/min | 5~60m/min | 5~60m/min | 5~60m/min |
Thickness of plate(Including Two-sides Glue Paper) | 2.38mm | 2.38mm | 2.38mm | 2.38mm |
Total Power | 16.55Kw | 20.5 Kw | 24.5Kw | 25.8kw |
Weight | 3000kg | 3500kg | 4000kg | 4200kg |
Overall Dimensions(mm) | 4200×1600×2400 | 4200×1800×2800 | 4200×2000×2800 | 4200×2200×2800 |

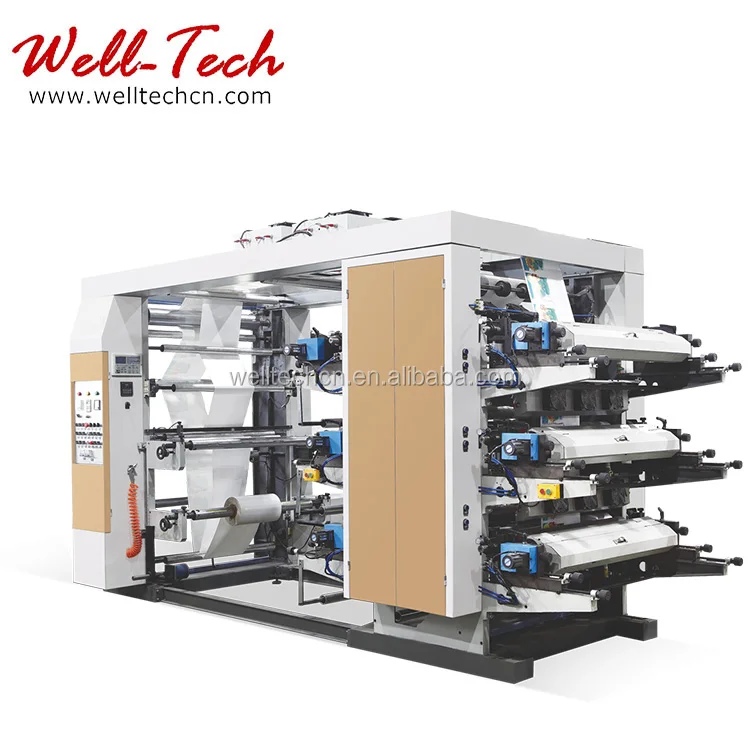

Machine Photos

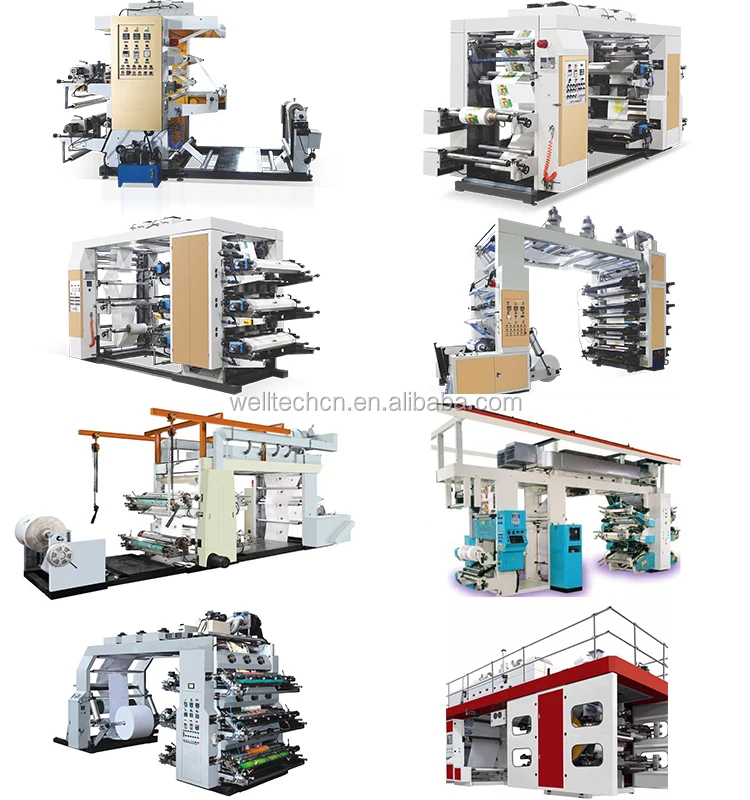

Plastic Bag Line
The Complete Plastic Polythene Bags Production Line Machines including Film Blowing Machine, Printing Machine, Plastic Bag Making
Machine, and Plastic Recycling Machines can be supplied. Multi solutions for the project of plastic bags production!
Machine, and Plastic Recycling Machines can be supplied. Multi solutions for the project of plastic bags production!
Company Profile
Contact Us
Well-Tech
Best Choice!
Attention Please
In order to offer you the exact correct Printing Machine, please always give us the printing specifications required as below
1 the materials specification
2 unwinding width, diameter, weight
3 printing colors
4 flexo print or gravure print
5 speed
6 sample printing
Contact Us
We had the honor to serve many customers from all over the world to help them to start from “0” to big factories and companies.
Welcome to be one of our top “VIP” customers.
We believe that “The quality is the soul of an enterprise”.
“With us your MONEY in SAFE; Your BUSINESS in SAFE”.
In order to offer you the exact correct Printing Machine, please always give us the printing specifications required as below
1 the materials specification
2 unwinding width, diameter, weight
3 printing colors
4 flexo print or gravure print
5 speed
6 sample printing
Contact Us
We had the honor to serve many customers from all over the world to help them to start from “0” to big factories and companies.
Welcome to be one of our top “VIP” customers.
We believe that “The quality is the soul of an enterprise”.
“With us your MONEY in SAFE; Your BUSINESS in SAFE”.
