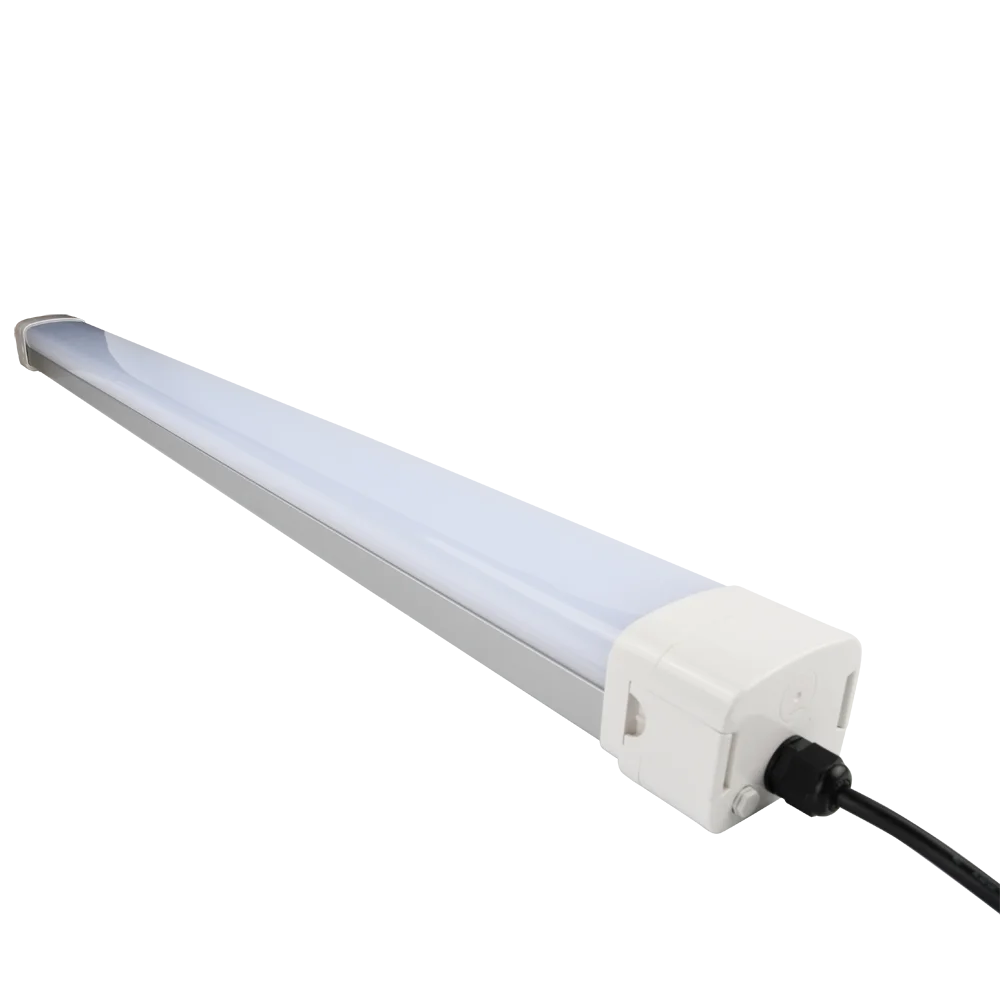

Водонепроницаемая светодиодная трубка с датчиком движения линейная арматура тройная промышленная Паровая плотная 60 Вт
- Категории: Lighting Bulbs & Tubes >>>
- Поставщик: Shenzhen,Sunpzone,Lighting,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
We invited Alibaba to film our factory. Pls click below, we'll take you visit our factory.
VR
Pls click below different product, you can see the details of different products.
Applications
1. Food Processing 2. Facilities Warehouses
3. Parking Garages 4. Wet Environments
5. Walkway Canopies 6. Harsh Environments
7. Hospitals 8. School
9. Gymnasiums 10. Recreation Centers
Customer feedback
Products Description
* Over 60% energy saving compared to fluorescent fixtures
* High optical PC cover with 93% transmission. Stainless Steel spec grade clips.
* Life time over to 50,000 hours.
* Multiple mounting option
1.There will be two junction boxes on each end of fixutre and also one waterproof connector and one breath kit.
2. Using tools such as screw driver to open the locker on both sides of junction box and pull out the junction box from the fixture body.
3. Loose the endcap of waterproof connectors and make wires go through the endcap and waterproof connector and junction box.
4. Make connection between the wires and quicker connector, black wire goes to L, green wire goes to G, white goes to N, Purple wire goes to dim+, and Gray wire goes to dim-. Relock the junction box screw the end cap of waterproof connector
* More energy saving: ours 160LM/W 40W=Others' 100LM/W 60W
* Emergency backup battery is available

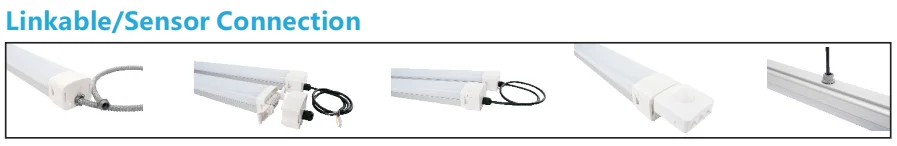

* Linkable with double ended connectors
* 0-10V dimmable is available. Compatible with DALI Dimmer
* IP65; 100-277V; 347V is available. Waterproof, Dustproof, Moistureproof
* Suitable for wet location
* IP65, IK10 and ETL listed
* Excellent thermal conductivity and heat dissipation
* ETL& Premium DLC 120-160lm/w;
5 years warranty; UGR less than 20
5 years warranty; UGR less than 20
Model | LED | Watt (W) | Input Voltage | Lumen (Lm) | IP Rate | Size (Inch) |
SPZTP230 | Epistar | 30 | 100-277V 100-347V | 4800 | IP65 | 23.6*2.36*3.54 |
SPZTP440L | Epistar | 40 | 100-277V 100-347V | 6400 | IP65 | 47.2*2.36*3.54 |
SPZTP460 | Epistar | 60 | 100-277V 100-347V | 9600 | IP65 | 47.2*2.36*3.54 |
SPZTP690L | Epistar | 90 | 100-277V 100-347V | 14400 | IP65 | 70.8*2.36*3.54 |
SPZTP890 | Epistar | 90 | 100-277V 100-347V | 14400 | IP65 | 94.5*2.36*3.54 |
SPZTP8120 | Epistar | 120 | 100-277V 100-347V | 19200 | IP65 | 94.5*2.36*3.54 |
Installation Process
Packaging & Shipping
Company Information
Certifications
FAQ
