6 Bar Spyder 480Watt dimmable High PPFD Samsung LM301B LM301H led grow light hydroponic for indoor garden
Led light size: according customer request
standrad size: 900*1000mm
standrad color: Samsung LM301B 3500K+deep red LH351H 660nm
Veg footprint : 5*4ft
Flowering footprint: 6*5ft
each bar size: 900*50mm
each bar power: 80watt
Price include:
6pcs Sunbar v1 version
Sunbar V1 version include 150pcs Samsung LM301B chips and 5pcs LH351H Deep red 660nm chips .
Custmoized for Samsung LM301H chips is available , but cost should be higher
light with meanwell HLG-480H-48B driver and Dimmer
waterproof connector and 1.5meter EU/US/UK/AU plug
1pcs 6in1 cable
1pair adjustable hinger
Specifications of products
1.Isolated standards isolated driver which is safety for everyone;
2.Full spectrum distribute most nutrient lights from vegetative growth ,flowering and fruit-bearing;
3.Samsung LM301B RA:80, CCT option: 3000k/3500K/4000K CreeXPE/Samsung LH351H 660nm
Initiator: | Russell | Date: | 2019-7-17 |
Project Name: | Sun led grow light | New Project Code: | R2T-Sunbar-480w |
Function Request | |||
Electronic Requirement): | 80W 900*50mm strips with heatsink: 3pcs each strip with 150pcs Samsung LM301B chip Plus 5pcs Cree XPE 660nm | ||
Optic Requirement: | total 6pcs Sunbar V1 strip. | ||
Mechanical & Outline Request | |||
Circuit Board Requirement: | N.Layer: | Single side LAYER | |
substrate: | Aluminum | ||
Board thickness: | 2.0mm | ||
Copper thickness: | 1oz | ||
Finishing: | HASL | ||
Solder Mask: | White | ||
silkscreen: | Black | ||
Panel | No request | ||
Special Requirement | 2.0w/m.K thermal conductivity | ||
Silkscreen Design: | Black words | ||
Location hole: | Size: | M3*8 | |
location | N/A | ||
Others |
| ||
Spectrogram
Testing Data:

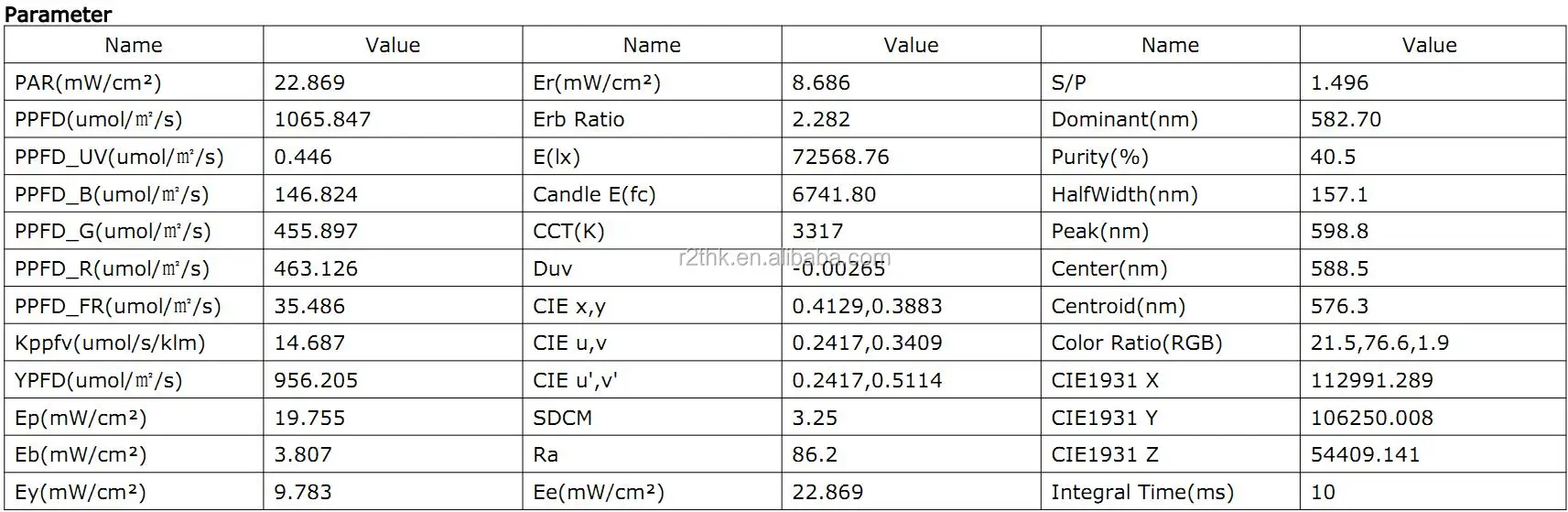

testing distance: 12inch

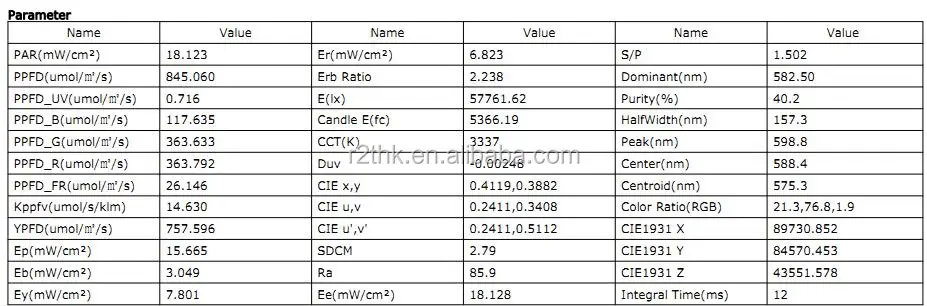

testing distance: 16inch

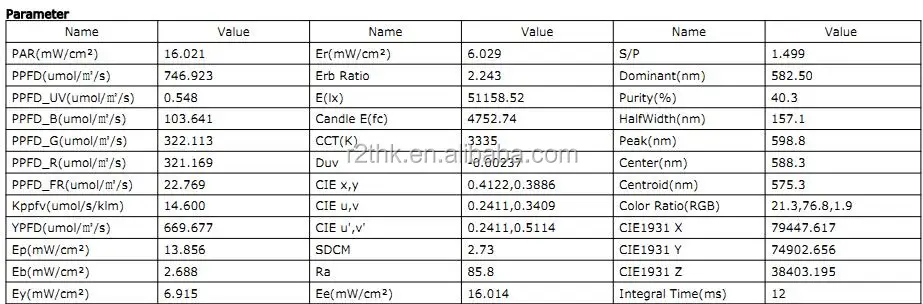

testing distance: 20inch

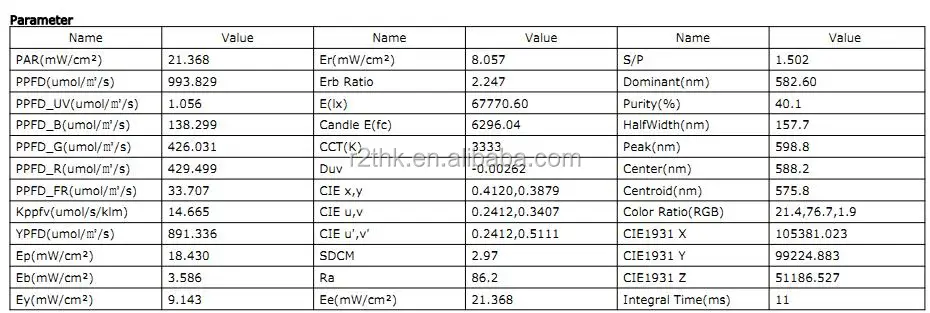

testing distance: 24inch

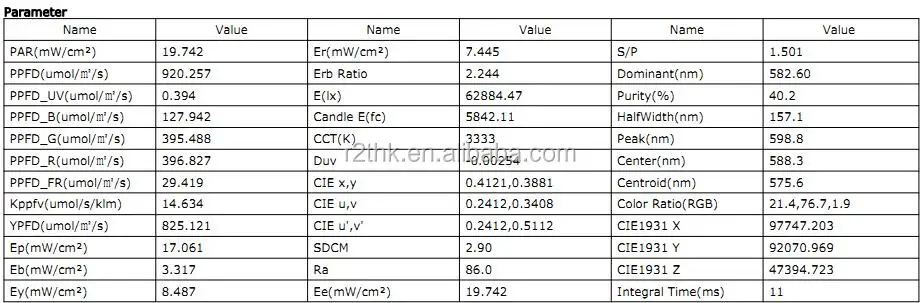

testing distance: 24inch
Effectivity of Special Wavelength
Why and when need grow light
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
Packing and Shipping:
