KSZJ 17 бар 650 куб. М дизельный винтовой воздушный

KSZJ 17 бар 650 куб. М дизельный винтовой воздушный

Категории: Air-Compressors & Parts >>>
Поставщик: Shaanxi,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

KSZJ water well applied 17 bar 650 cfm diesel screw type air compressor

Product Description

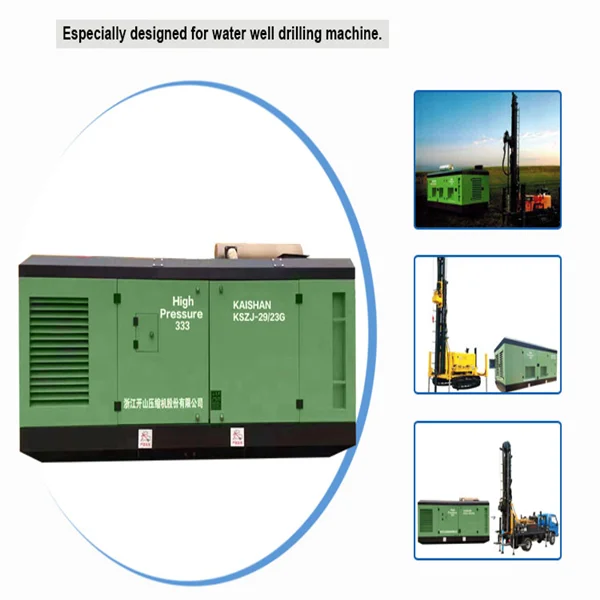

KAISHAN KSZJ Diesel Screw Air Compressor is designed for water welll.

Design Characteristics of Screw Rotor Profile:

1. It fully realizes "Convex-Convex" engagement to assist in the formation of hydrodynamic lubrication film, to reduce horizontal leakage passing the contact zone, and to improve efficiency of the compressor; improve rotor processing and testing property.

2. It adopts the design thought of "large rotor, large bearing and low speed method", thus its revolving speed is 30-50% lower than that of other brands to reduce noise, vibration, and exhaust temperature, improve rotor rigidity, increase service life, and reduce sensibility to sundries and oil carbide.

3. Its power range is 4~355KW, where 18.5~250KW applies to the compressor without direct-coupled gearbox, 200KW and 250KW apply to the compressor with Level 4 direct-coupled motor and the speed is as low as 1480 rmp.

4. It fully conforms to and exceeds requirements in GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation of Displacement Air Compressors.

kszj compressor

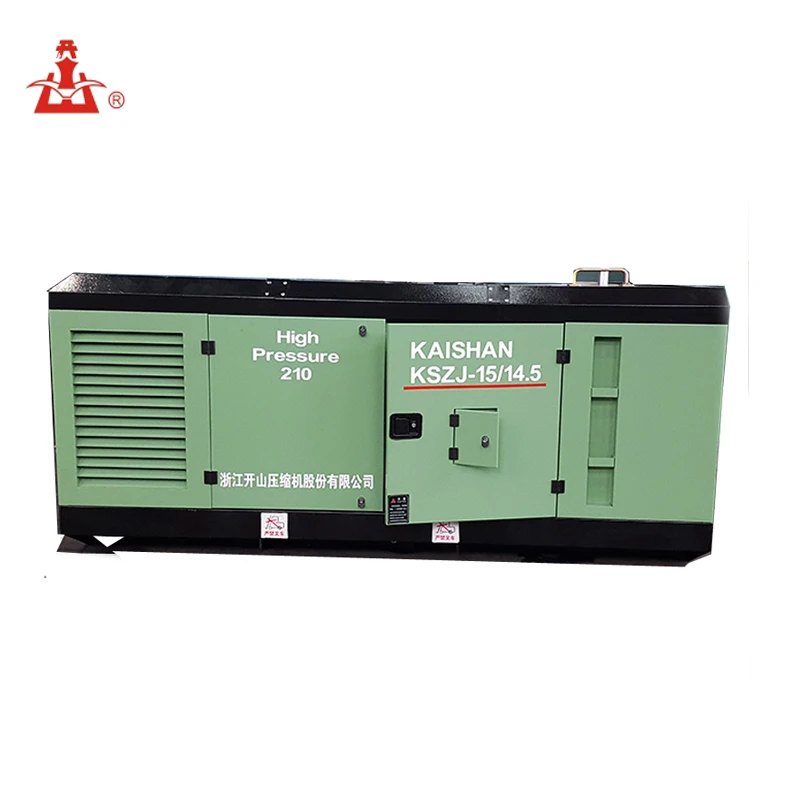

Technical Parameters of KAISHAN KSZJ Diesel Screw Air Compressor

Model	Capacity (m3/min)	Exhaust pressure (Mpa)	Model of engine	Weight kg	Dimensions (mm)
KSZJ-15/14.5	15	1.45	YC6A180Z-T21	2500	3000×1520×1800
KSZJ-18/17	18	1.7	YC6A260L-20	3200	3000×1800×2000
KSZJ-19/18	19	1.8	YC6A260L-20	3200	3000×1800×2000
KSZJ-23/23	23	2.3	YC6MK340L-K30	4850	3500×1950×2030
KSZJ-29/23G	29	2.3	YC6M400L-K20	5000	3500×1950×2030
KSZJ-31/25	31	25	YC6K500-K30	6000	4000×2100×2100
KSZJ-34/25	24	2.5	YC6K550-K30	6800	4250×2100×2200
KSZJ-24/17	24	1.7	YC6MK340L-K30	4500	3500×1950×2030

FAQ

Why choose us?

1), 100% spare parts can be supplied.

We can supply all spare parts: for air compressor, we can supply air filter, oil filter, oil core, belt and so on. for drilling rig, we can supply drill bit, drill rod, dth hammer, motor, joint etc, diesel engine parts. (Low Pressure, Middle Pressure, High Pressure)

2), We are the public company,all the products can ensure the quality.

we are the Public company,the group have several fatories.cosist of the spare parts we are all produce ourselves,so we can control the quality,also the significant cost advantage.

3), Training is Free to every customer. Wherever you need us, for installation, maintainance, or proper use of our company machines, we will be right there for you. In addition, we provided one year warrantee to make sure your machine runs consistently.

4), We will recommend a suitable type for you and send you a best quotation.

A: What is the working pressure ( Mpa, Bar, PSI)?

B: What is the volume flow ( m3/min, CFM)?

C: What is the volume flow ( m3/min, CFM)?

D: What is the Power supply ( KW, HP)?

How to place an order:

1), Send inquiry

2), We will contact to you

3), Tell us your require model quantity or ask us other question you need to know

4), Send you the invoice

5), Wait for your deposit

6), Prepare your products, pack your products, delivery

7), Send you document for custom

8), After sale service

Packaging & Shipping

Packaging Detail: Container or according to your requirement

Delivery Detail:15-25 days after your payment

Company Information

factory

Kaishan group Co., Ltd was founded in 1956.There are 31 members of the company, the company's total assets are 6 billion yuan, more than 6,000 employees and sales revenue is 4.5 billion yuan in 2011,Kaishan group Co., Ltd is the world's largest drilling machine manufacturing enterprises, the largest in Asia, the world's third air compressor manufacturing enterprises, and the largest drilling equipment manufacturers.Good Service, competitive price, high quality, fast shipping and perfect pre-sale and after-sale service.
