Datasheet | Growatt 3000MTL-S | Growatt 3600MTL-S | Growatt 4200MTL-S | Growatt 5000MTL-S | Growatt 5500MTL-S | |||||
Input Data (DC) | ||||||||||
Max. recommended PV power (for module STC) | 3900W | 4680W | 5460W | 5980W | 6500W | |||||
Max. DC voltage | 500V | 550V | 550V | 550V | 550V | |||||
Start voltage | 100V | 100V | 100V | 100V | 100V | |||||
PV voltage range | 70V-550V | 70V-550V | 70V-550V | 70V-550V | 70V-550V | |||||
MPP work voltage range/ nominal voltage | 80V-550V /360V | 80V-550V /360V | 80V-550V /360V | 80V-550V /360V | 80V-550V /360V | |||||
Full load dc voltage range | 160V-450V | 190V-500V | 150V-500V | 160V-500V | 175V-500V | |||||
Max. input current of tracker A/ tracker B | 10A/10A | 10A/10A | 15A/15A | 15A/15A | 15A/15A | |||||
Max. input current per string of tracker A/tracker B | 10A/10A | 10A/10A | 15A/15A | 15A/15A | 15A/15A | |||||
Number of independent MPP trackers / strings per MPP tracker | 2 / 1 | 2 / 1 | 2 / 1 | 2 / 1 | 2 / 1 | |||||
Output (AC) | ||||||||||
Rated AC output power | 3000W | 3600W | 4200W | 4600W | 5000W | |||||
Max. AC apparent power | 3000VA | 3600VA | 4200VA | 4600VA | 5000VA | |||||
Max. output current | 13.6A | 16.3A | 19A | 20.9A | 22.7A | |||||
AC nominal voltage | 220V/230V/240V;180Vac - 280Vac | 220V/230V/240V | 220V/230V/240V | 220V/230V/240V | 220V/230V/240V | |||||
AC grid frequency | 50Hz,60Hz /±5Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | |||||
Adjustable power factor | 0.8leading...0.95lagging | 0.8leading...0.8lagging | 0.8leading...0.8lagging | 0.8leading...0.8lagging | 0.8leading...0.8lagging | |||||
THDi | <3% | <3% | <3% | <3% | <3% | |||||
AC connection | Single phase | Single phase | Single phase | Single phase | Single phase | |||||
Certificates and Approvals | CE, IEC62109, G83, VDE0126-1-1, UTE C 15-712,G59, AS4777, AS/NZS 3100, CEI0-21, VDE-AR-N4105, EN50438, CQC, IEC 61683, IEC 60068, IEC 61727, IEC 62116, INMETRO |

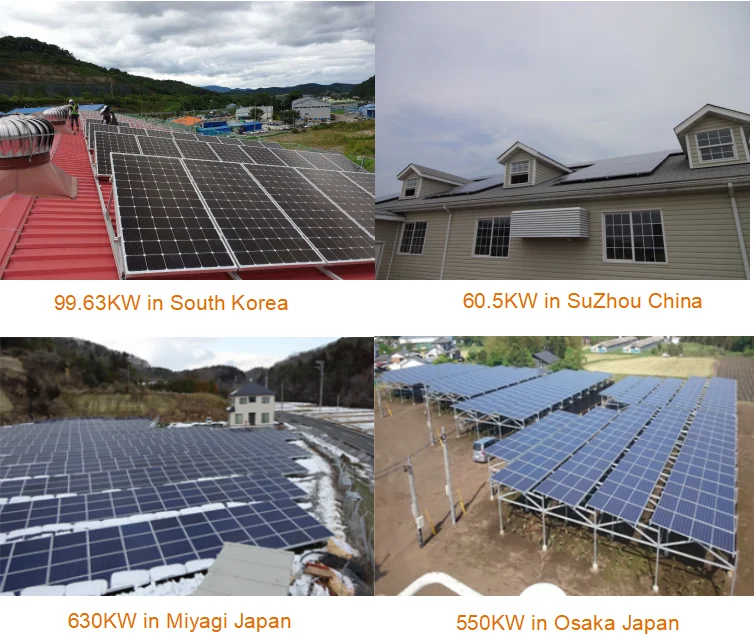

Growatt is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters including on-grid, off-grid and storage inverters, and user side smart energy management solutions as well. The power capacity of Growatt on-grid inverters ranges from 1 kW to 100 kW, meanwhile its off-grid and storage inverters cover a power range from 1 kW to 630 kW. Growatt inverters are extensively used worldwide for applications in residential, commercial, utility-scale scenarios as well as other storage power station projects.
Since its foundation in 2010, Growatt has established branch offices one after another in Germany, US, UK, Australia, Thailand, India, Netherlands, etc in order to better serve the customers across the globe. Growatt always sticks to the R&D investment and technology innovation, and provides customers with premium products and services through its core inverter technology, rigorous quality control and continuous improvement of customer service. By end of September 2018, Growatt has shipped over 1.2 million inverters to over 100 countries and regions across the globe, growing into a Global Top 10 Inverter Brand and becoming the No.1 Chinese Residential PV Inverter Brand.
