ZOOMLION б/у бетононасос грузовик 130 м 3/ч 35 м3

Описание и отзывы

Характеристики

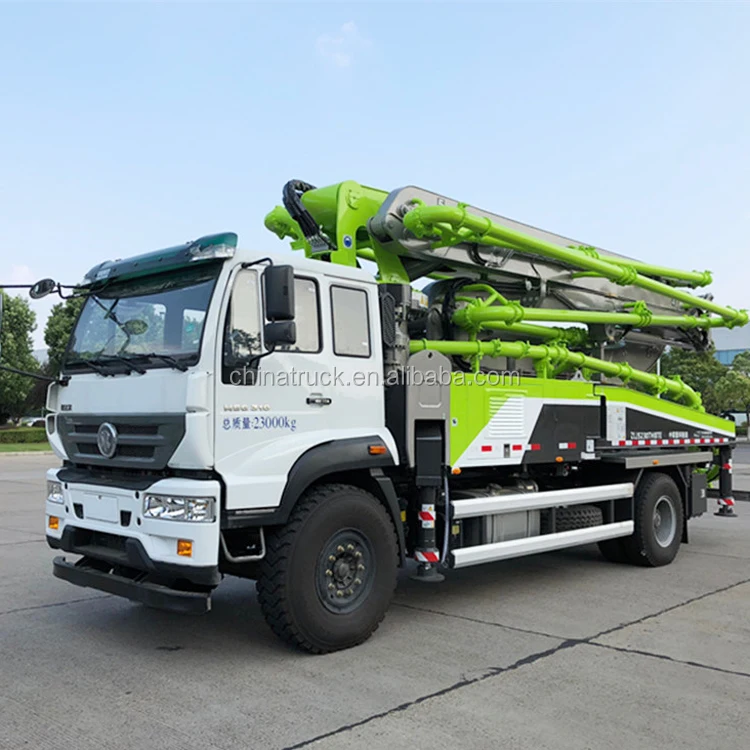

ZOOMLION used concrete boom pump truck 130m3/h  35m3  56m Truck 43m

Selling point

• Compact in design, 43m pump mounted on a 4-axle truck.

• Efficient pump unit, ideal for long time use.
• Agile placing boom with 5 arms with unfolding height 9.1m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management,          real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.

Model	Unit	43X-5RZ
Pump Unit	Max. Theor. output	m3/h	140/90
	Max. Theor. concrete output Pressure	MPa	7/11
	Rated working pressure	MPa	35
	Pumping frequency	min-1	27/17
	Hopper    capacity	L	550
	Filling height	mm	1540
	Hydraulic system type		opened loop
	Distribution valve		S valve
	Oil cylinder dia.×stroke	mm	φ130×2100
	Concrete cylinder    dia.×stroke	mm	φ230×2100
	Hydraulic oil cooling		Wind cooling
	Recommended concrete slump	cm	12~23
	Max. aggregate dimension	mm	40
Boom    Section	Structure type		43X-5RZ
	Placing depth	m	43
	Max. horizontal distance	m	39
	Max. placing depth	m	30.46
	Slewing angle		±270°
	Boom number		5
	The length of boom section	mm	8350/7250/7050/7930/8420
	Sections folding angle		90°/180°/180°/240°/200°
	Pipe diameter	mm	125
	End hose length	mm	3000
	Min. height of opening placing boom	mm	9100
	Outriggers span     (front×rear×side)	mm	8220×8800×8900
