Product Description

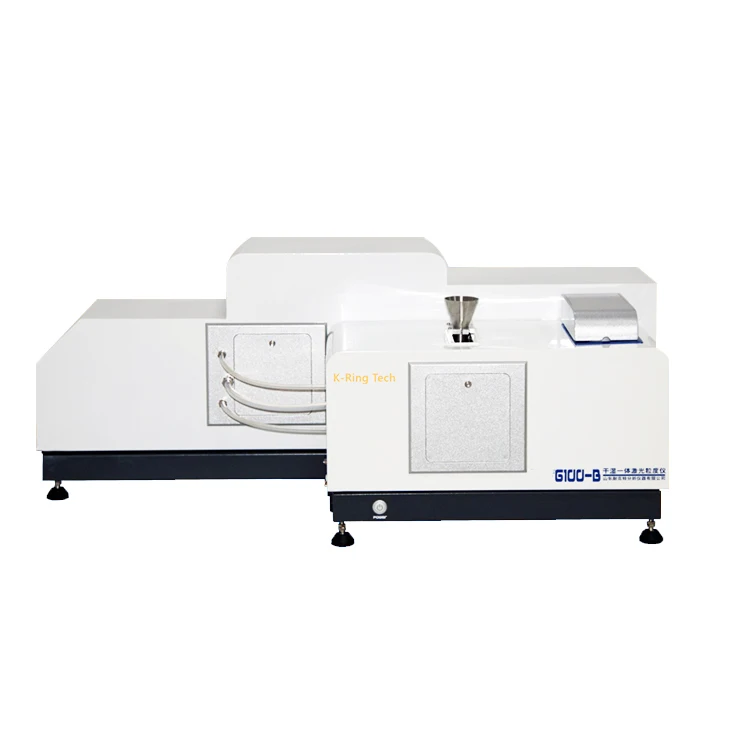

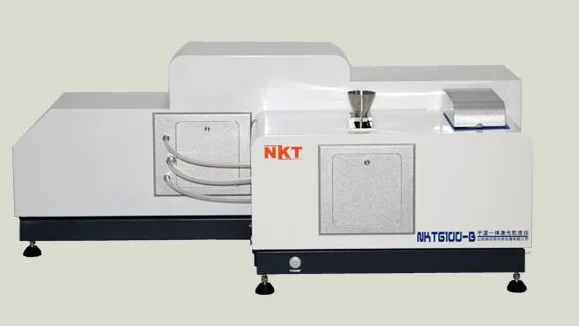

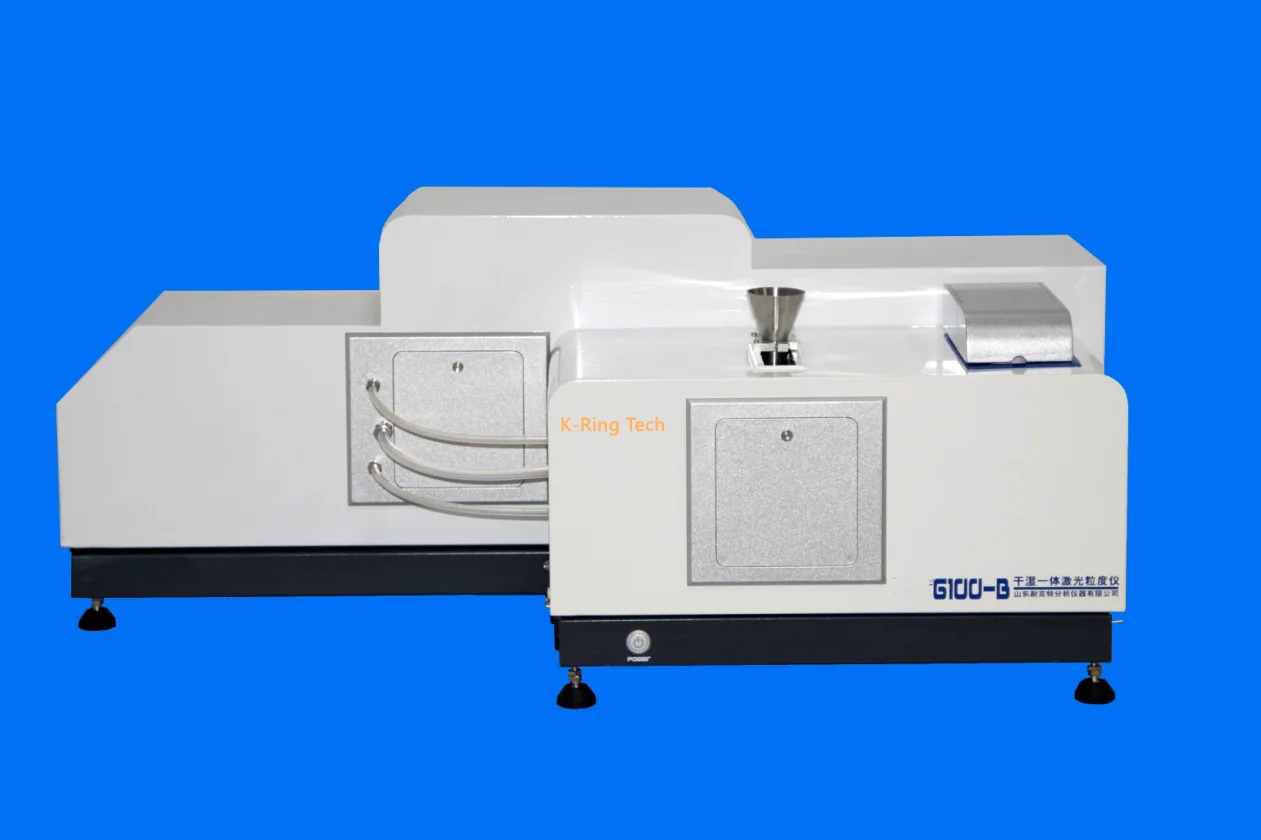

Dry and wet integrated laser particle size analyzer



Description:
Main performance characteristics of NKT6100-B laser particle size analyzer:
★ Advanced optical path design: NKT6100-B adopts convergent Fourier transform test technology to ensure maximum range in the shortest focal length, effectively improving the resolution of the instrument; The unique high-density detection unit enables 6100-B to have super-strong small particle testing capability. The high-density detection unit uses NKT6100-B to have super-strong full-scale seamless testing capability.
★ Double optical path design: double optical path design is adopted for the measurement of 0.01 micron, the measurement range is 0.01 micron to 2000 micron, and blue 405 nanometer laser is adopted for the auxiliary laser. (Optional)
★ One-button switch between dry and wet: the switch between dry and wet will be completed automatically by the instrument, and the whole process will be completed within 10s.
★ Automatic Z-direction movement of the main detector: after the dry-wet switching, the optical glass intervention will cause the focal length of the converging light to change. NKT6100-B will automatically adjust the main detector according to the different dry and wet methods so that the main detector is always on the focal plane.
★ Large-aperture lens: large-aperture Fourier transform lens, more effective to realize Fourier transform of optical signals, more accurate and more effective.
★ Anti-dry-burning ultrasound: NKT6100B realizes water-free protection of the sample cell to avoid damaging ultrasound; Meanwhile, the ultrasonic power can be adjusted in the range of 0 to 100 watts.
★ dustproof and shockproof design: the whole instrument is designed in a sealed way, which greatly improves the service life of internal components. The unique suspension structure can effectively avoid the interference of external vibration on the instrument, making the result test more stable and reliable.
★ Strong anti-corrosion design (optional): Acid, alkali, oil (including all solvent oils) and organic solvents (such as acetone, phenol, n-hexane and other organic solvents) can be provided according to the actual needs of customers.
★ Fog Warning: The instrument has the functions of temperature measurement, humidity measurement and water temperature measurement inside the instrument. The three data are displayed on the computer in real time. When the fogging condition is reached, a sample window fog warning prompt will be issued.


Specification model
NKT6100-B
Implementation standard
ISO 13320-1:1999；GB/T19077.1-2008
No bubble discharge
With bubble-free design, data without bubble interference is more accurate.
Misoperation protection
The instrument has self-protection function for misoperation, and the instrument does not respond to misoperation.
Laser parameters
Imported fiber output high power laser λ= 635nm, p>5mW
Optical path calibration
Automatic optical path calibration
Dispersion method
ultrasonic
Frequency: f=40KHz, power: p=100W, time: freely adjustable; With ultrasonic anti-dry burning
Circulation and stirring
Integrated design of circulation and stirring with adjustable rotating speed of 100-33950rpm.
Circulation flow
Rated flow: 0-30L/min Adjustable rated power: 25W
Sample cell
Self-designed boiling type sample cell has better dispersion effect, and the capacity: 190-600mL can be tested normally.
Microinjection
The instrument can be equipped with micro full-automatic testing device, and 10 ml can be used for cyclic testing (optional)
operator schema
Computer operation
Test speed
< 1min/ time (excluding sample dispersion time)










Company Profile

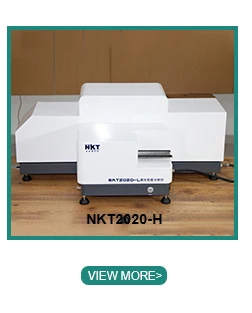

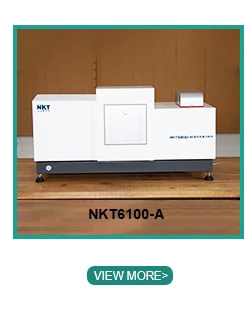

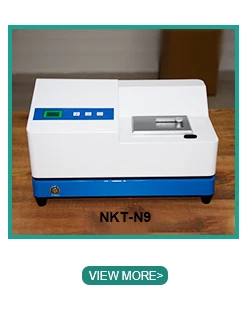

Recommend Products






Certifications




Packing&Shipping




FAQ


Purchase laser particle size analyzer need know points:
1) What materials need test?
If suspension/emulsion, must choose liquid dispersion particle size analyzer, and some materials are also reacted with water, so need liquid dispersion particle size analyzer also.
Generally, cement, metal powders and pharamcy materials need dry dispersion model particle size analzyer.
2) What size range need test?
By now, Based on MIE scattering, laser particle size analyzer can test the particle range is 0.01um-2000um.
If materials range is not so wide, for example, 10um-20um, smaller range of particle size distributon choose closer range model will be preciser, no need to buy large range model.
3) What is dispersion media?
For liquid model, in order that sample can disperse well and circualte in the laser particle size analyzer, generally we need use water, alochol or organic solvent as dispersion media.
For dry dispersion model, just use compressed air as dispersion media.
In the current market, Dry laser particle size analyzer cost is higher than liquid dispersion models, so if can test well, liquid model is better.
More questions, please contact us, we will offer you the best suitable laser particle size analyzer for you!
