Фрезерный станок хобби с ЧПУ XH7125, фрезерный станок с ЧПУ
US $14900-$15300
Вертикальный обрабатывающий центр vmc 850l по низкой цене хобби с ЧПУ для
- Категории: Machine Centre >>>
- Поставщик: Nadun,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

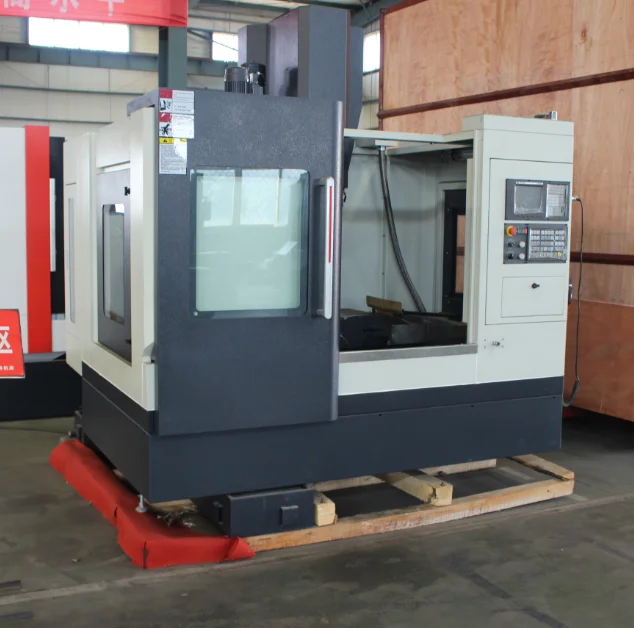

Low price vertical machining center vmc 850l hobby cnc machining center for sale
Vertical machining center use
This VMC is suitable for the mechanical processing and mold making.And it can adapt to the processing requirement from rough machning to finish machining.It can also finish many working procedures like milling,drilling,tapping,boring etc.
Vertical machining center Features
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japan NSK bearing
Germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Product main technical specifications:
Specifications | Unit | VMC650 | VMC850 | VMC1050 |
Table size | Mm | 900x400 | 1050x500(1000x530) | 1050x560(1000x530) |
Table max. load | Kg | 450 | 600 | 600 |
X/Y/Z axis travel | Mm | 650x400x500 | 800x500x600 | 1000x500x600 |
Distance between spindle center and column guide surface | Mm | 476 | 560(579) | 560(579) |
Distance between spindle end face and worktable surface | Mm | 100-600 | 140-740 | 140-740 |
X/Y/Z Max. feed speed | Mm/min | 10000 | 10000 | 10000 |
X/Y/Z Max. rapid traverse | m/min | 24/24/20 | 20/20/15 | 20/20/15 |
The spindle max. speed | r/min | 8000 | 8000 | 8000 |
The spindle taper hole | Type | BT40 | BT40 | BT40 |
Spindle motor | kW | 5.5/7.5 | 7.5/11 | 7.5/11 |
X/Y/Z Axis servo motor | kW | 1.0/1.0/1.5 | 2.0/2.0/2.0 | 2.0/2.0/2.0 |
X/Y/Z motor connection |
| Direct | Direct | Direct |
X/Y/Z Guide way type |
| Two lines and one hard(Line rail) | sliding rail(Line rail) | sliding rail (Line rail) |
The workbench T slot | Mm | 3-18x125 | 5-18x90 | 5-18x90 |
Repeat positioning accuracy | Mm | ±0.004 | ±0.004 | ±0.004 |
Tool magazine |
| Turntable Style Tool Magazine/ disc type tool magazine | Turntable Style Tool Magazine/ disc type tool magazine | Turntable Style Tool Magazine/ disc type tool magazine |
Tool capacity |
| 16 turntable Style Tool Magazine /16 disc type tool magazine | 16 turntable Style Tool Magazine /24 disc type tool magazine | 16 turntable Style Tool Magazine /24 disc type tool magazine |
Maximum tool weight | Kg | 7 | 8 | 8 |
Max. tool length | Mm | 250/300 | 250/300 | 250/300 |
Electric capacity | kVA | 10 | 11 | 11 |
Machine size(LxWxH) | Mm | 2300x2200x2400 | 2700x2400x2700 | 2920x2400x2700 |
Net. weight (about) | Kg | 4500 | 5700 | 6000 |

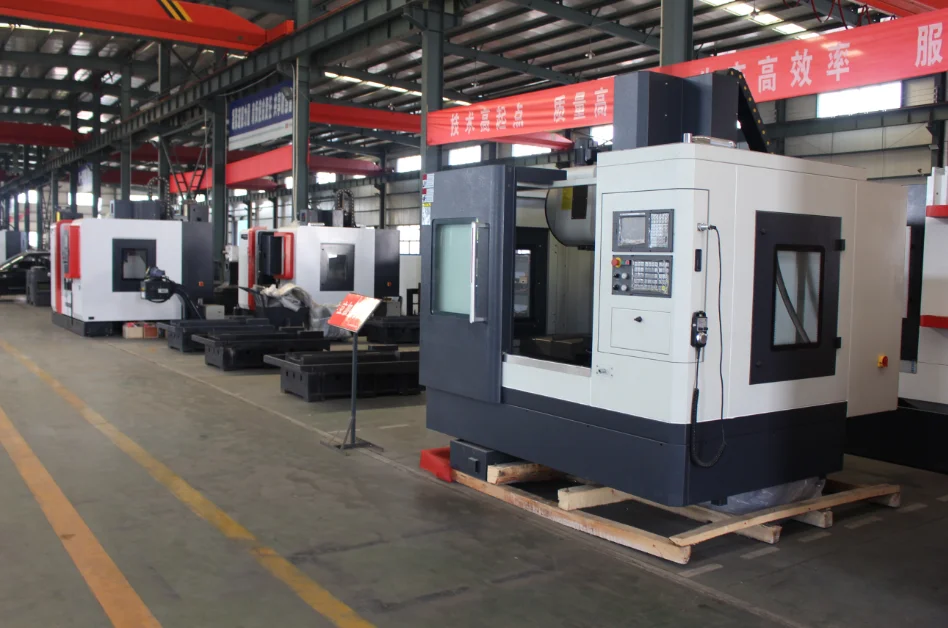

Detailed Images

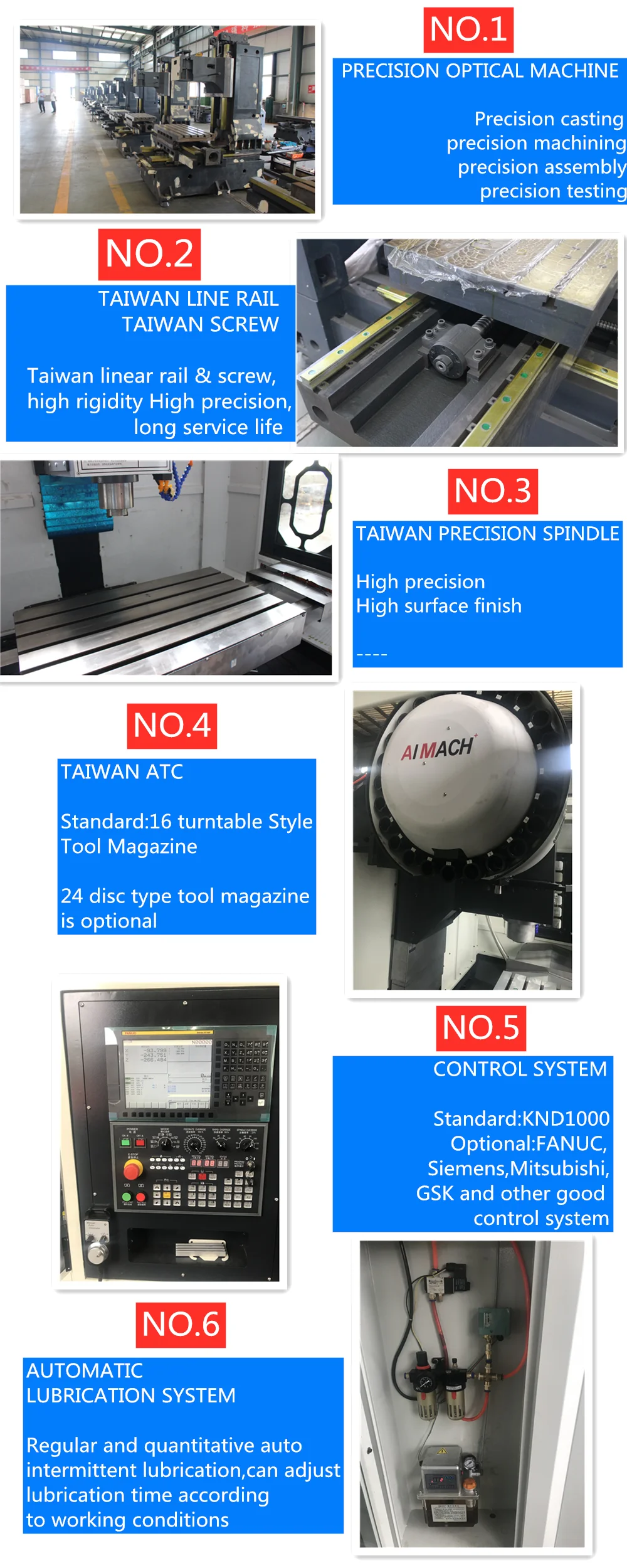

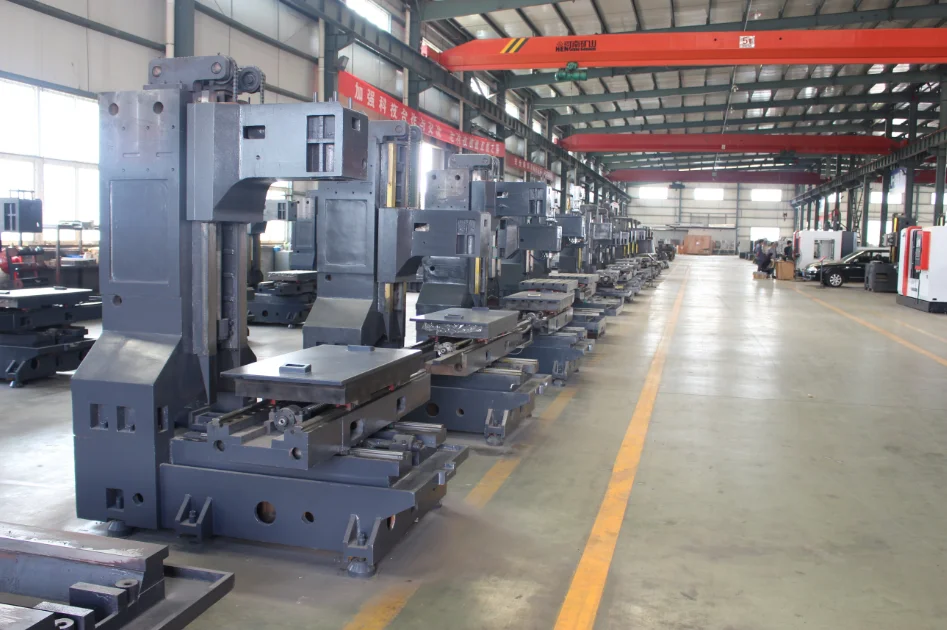

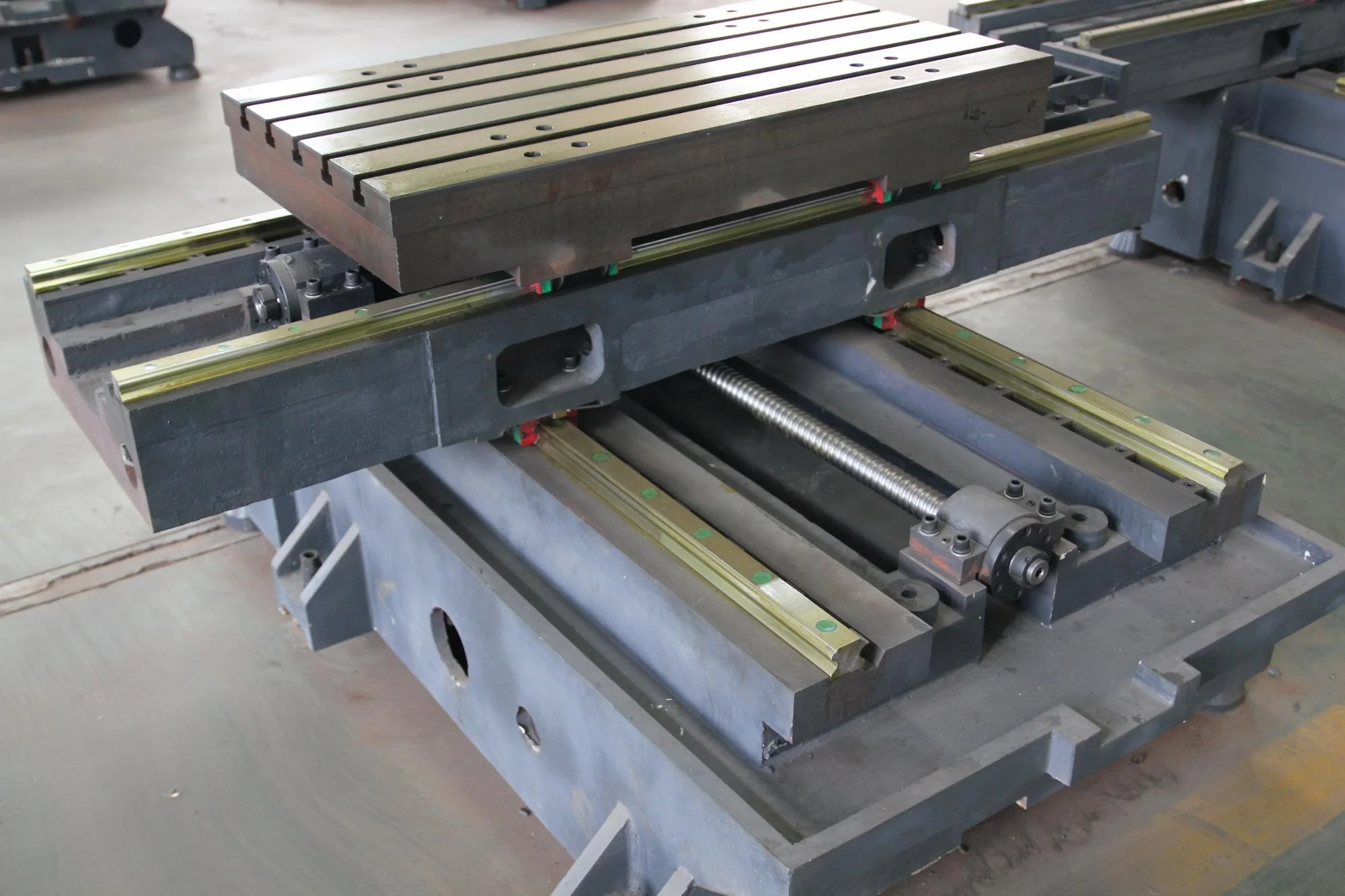

DETAILS SHOW

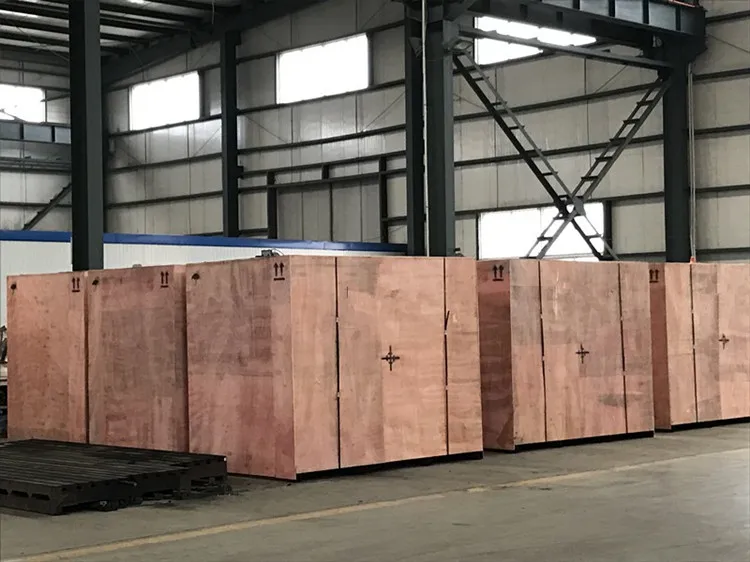

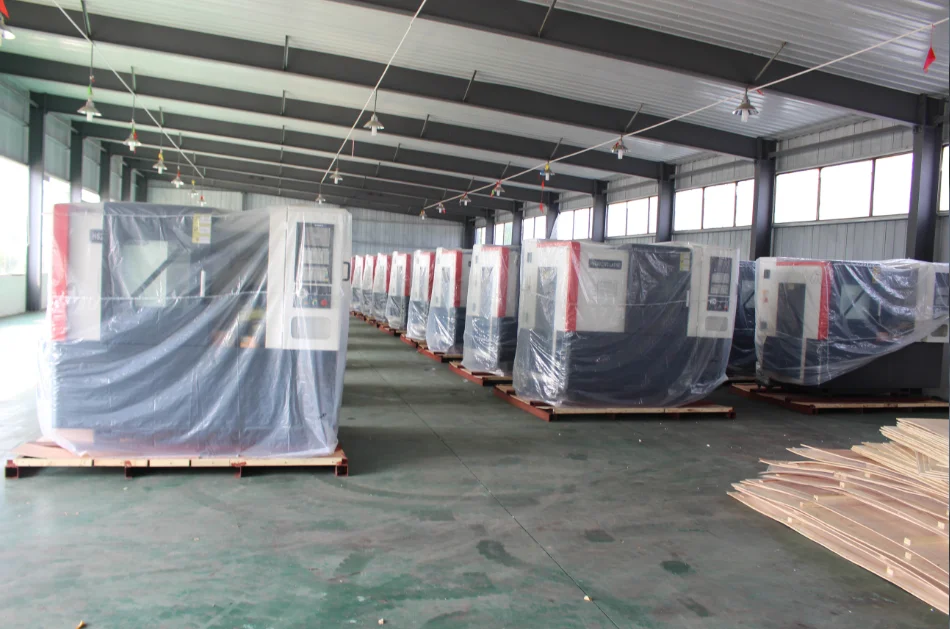

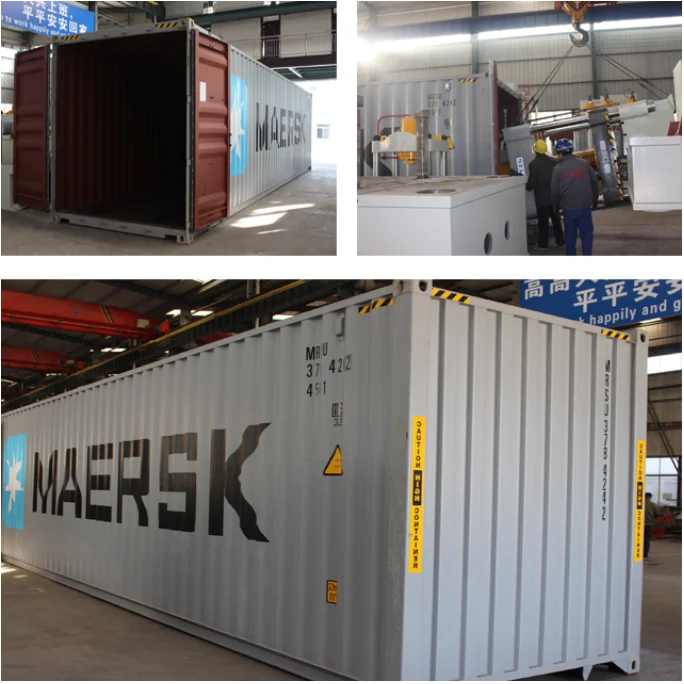

Packing&Shipping
After Sales Service
 | 1. Inquiry and consulting support 2. Sample testing support 3. Recommend the most suitable machine according to customer's purpose 4. Factory visiting welcomed 5. Warranty 1 year 6. Engineers available to service machinery oversea 7. Video or telephone technical support |
Company Information
FAQ
Q1: How can i get the after-service?
A: We provide one year guarantee
We will send you the spare parts if the problems caused by us.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure, welcome to inspect our factory.
Our factory address: No219 Xingye Road Tengzhou City Shandong Province
We can pick you up in the Tengzhou station
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory , export proportion 50~60%.
Q4:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime.
3. Trade Assurance is available.
