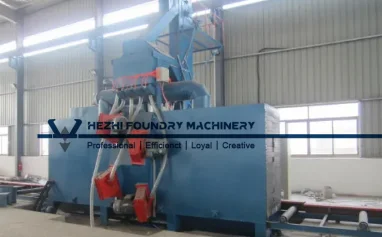

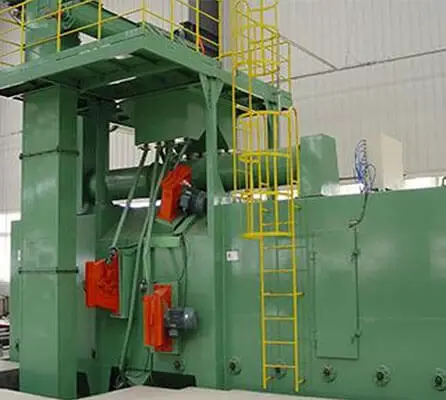

Beam & Profile Shot Blast Machine is special blast cleaning equipment for H beams, I beams, steel profiles .
Roller conveyors are made of three parts, feeding rollers, middle rollers and out-feeding rollers. Feeding rollers deliver work pieces to middle rollers in blasting chamber where work pieces will be blasted by blasting wheels mounted on the blasting chamber walls.Out-feeding rollers deliver blasted and finished work pieces out of blasting chamber for unloading.
Feeding rollers and out-feeding rollers are driven by variable speed reducers. Roller speed can be adjustable according to work pieces surface condition and metal surface finish level.
Feeding rollers and out-feeding rollers are driven by variable speed reducers. Roller speed can be adjustable according to work pieces surface condition and metal surface finish level.
Beam & Profile Shot Blast Machine is heavy duty and versatile wheel blast cleaning equipment.

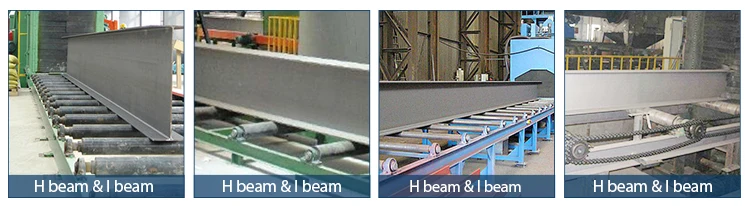

Work pieces include H beams, I beams, steel plate, sheets and strips, square tubes, tubes and pipes, bars and rebars.
Work pieces include H beams, I beams, steel plate, sheets and strips, square tubes, tubes and pipes, bars and rebars.

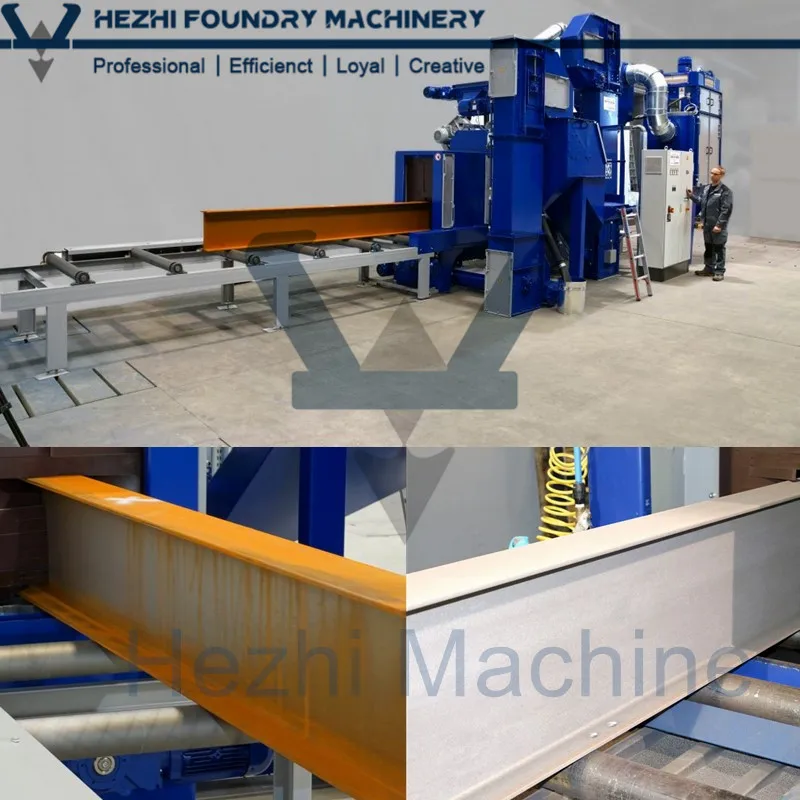

Fabricated steel works and structural steel works can be blasted thoroughly to reach SA 2.5 or even SA 3.0 ready for priming and coating.
Model | QH698 | QH6912 | QH6915 | QH6920 | QH6930 | Q6940 |
Height | 800mm | 1200mm | 1500mm | 2000mm | 3000mm | 4000mm |
Max width | 300mm | 400mm | 500mm | 500mm | 500mm | 500mm |
Speed | 0.5-4m/min | 0.5-4m/min | 0.5-4m/min | 0.5-4m/min | 0.5-4m/min | 0.5-4m/min |
Wheels | 4 PCS | 4 PCS | 4 PCS | 6 PCS | 6 PCS | 8 PCS |
Capacity | 4x125kg/s | 4 x125kg/s | 4 x125kg/s | 6 x125kg/s | 6 x125kg/s | 8 x125kg/s |
Air volume | 17560 m3/min | 19000 m3/min | 19550 m3/min | 27758 m3/min | 28050 m3/min | 38000 m3/min |
Power | 78kw | 113kw | 156kw | 224kw | 204kw | 293kw |
Dimension (mm) | 12180x4250x7095 | 15200x5370x6797 | 30650x6850x9095 | 31200x6850x9095 | 44020x6385x7758 | 4500x7830x11117 |
We can design and manufacture all kinds of non-standard shot blasting machines
According to customers' different detail requirements for work piece ,weight and productivity .

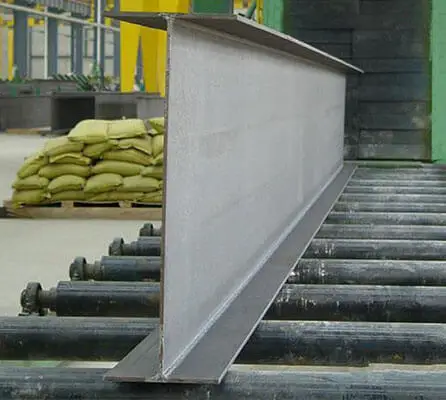

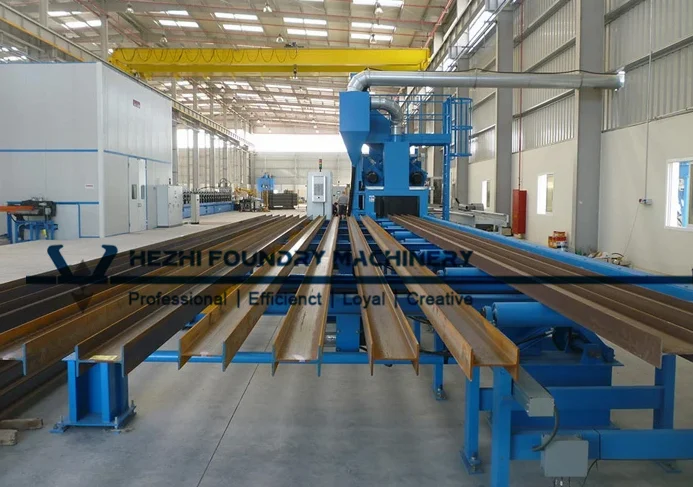

Roller Conveyor System
Composition: feeding rollers, middle rollers, out-feeding rollers.
Loading Capacity: 2 tons per meter.Rollers Distance: 1 m.
Rollers Speed: 0.5-4 m per min.
Roller QTY: Standard or customized
Roller Material: Steel
Rollers Speed: 0.5-4 m per min.
Roller QTY: Standard or customized
Roller Material: Steel
Drive: variable speed reducer.

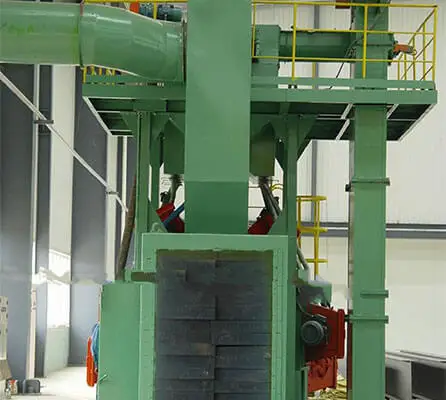

Blasting Chambers
Composition: main blasting chamber, 2 auxiliary blasting chambers.
Auxiliary Blasting Chamber: Four layers rubber curtains to prevent steel shots & grits out.
Auxiliary Blasting Chamber: Four layers rubber curtains to prevent steel shots & grits out.
Main Blasting Chamber: All the blasting wheels mounted chamber in different angles,protected by Mn alloy liners.
Divided &Modular Chamber:Designed according to shipping container's space
Abrasive Recycling System
Longitude Screw: to collect used steel shots and grits at the bottom of blasting chamber.
Horizontal Screw: to deliver collected shots and grits from longitude screw to bucket elevator.Bucket elevator: to lift used steel shots and grits from bottom to top separator.
Separator: to separating qualified shots and grits out to abrasive hopper

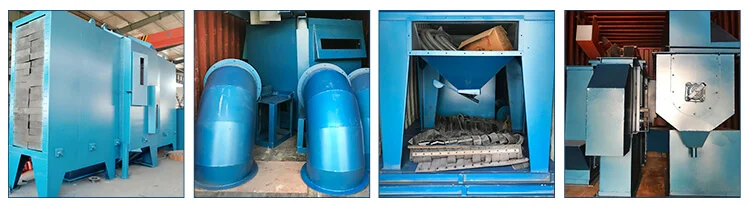

Dust Collection System
Filtration Rate: 99.9%, dustless shot blasting machine,for health enviroment.
Cyclone Dust Collector: First sate dust collection.
Dust Collector: Cartridge or bag type are second stage dust collection.
Fan Extractor: To extract dusts from piping to dust collector.
Ventilation Piping: To collect dusts from blasting chambers and separators.
Dust Collector: Cartridge or bag type are second stage dust collection.
Fan Extractor: To extract dusts from piping to dust collector.
Ventilation Piping: To collect dusts from blasting chambers and separators.

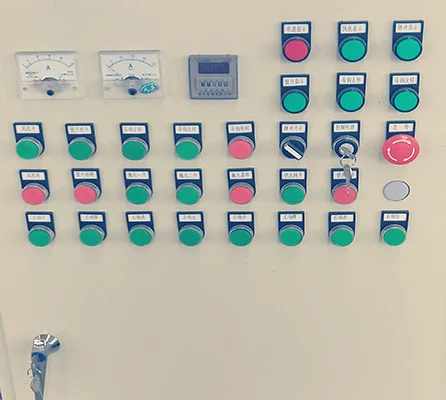

Electric Control System
Model: Automatic ( manual type is available).
Control Unit: PLC is optional.P L C : Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: On main control panel and rollers conveyors.
Power Indicator: Available on control panel.

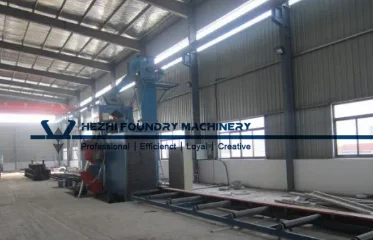

H beam steel shot blasting machine made by Hezhi Group:
Qingdao Hezhi Machinery Group located in Qingdao West Coast Economic New Zone .we are a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005 .
We has convenient transportation and strong production strength. Hezhi Group is a high-tech industrialized entity integrating
casting machinery, surface shot blasting machine, sand treatment,and automation equipment research, development, production, operation, export and service. We owned 3600m2 work shop area for production with 2x10 cranes.Another 2600m2 space is planned for
extension.
ISO9001 and CE certificate is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective
products.3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable shot blasting Machinery!
We has convenient transportation and strong production strength. Hezhi Group is a high-tech industrialized entity integrating
casting machinery, surface shot blasting machine, sand treatment,and automation equipment research, development, production, operation, export and service. We owned 3600m2 work shop area for production with 2x10 cranes.Another 2600m2 space is planned for
extension.
ISO9001 and CE certificate is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective
products.3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable shot blasting Machinery!
Q:What is basting speed of beam & profile shot blasting machine ?
A:0.5-1.5 m per minutes.
Q:What is max weight of rollers of beam & profile shot blasting machine ?
A:2 tons per 1 meter.
Q:What kind of abrasives are used for beam & profile shot blasting machine ?
A:Steel shots, steel grits or steel cut wire.
Q:Is it necessary to dig pit for installation of beam & profile shot blasting machine ?
A:0.5-1.5 m per minutes.
Q:What is max weight of rollers of beam & profile shot blasting machine ?
A:2 tons per 1 meter.
Q:What kind of abrasives are used for beam & profile shot blasting machine ?
A:Steel shots, steel grits or steel cut wire.
Q:Is it necessary to dig pit for installation of beam & profile shot blasting machine ?
A:It depends on the rollers height and work piece size.
Q:How to clean small work pieces shorter than 1 meter ?
A:To make tooling on roller.
Q:How many operators are needed to run rotary drum shot blasting machine ?
A:1 operator.
Q:How to clean small work pieces shorter than 1 meter ?
A:To make tooling on roller.
Q:How many operators are needed to run rotary drum shot blasting machine ?
A:1 operator.
