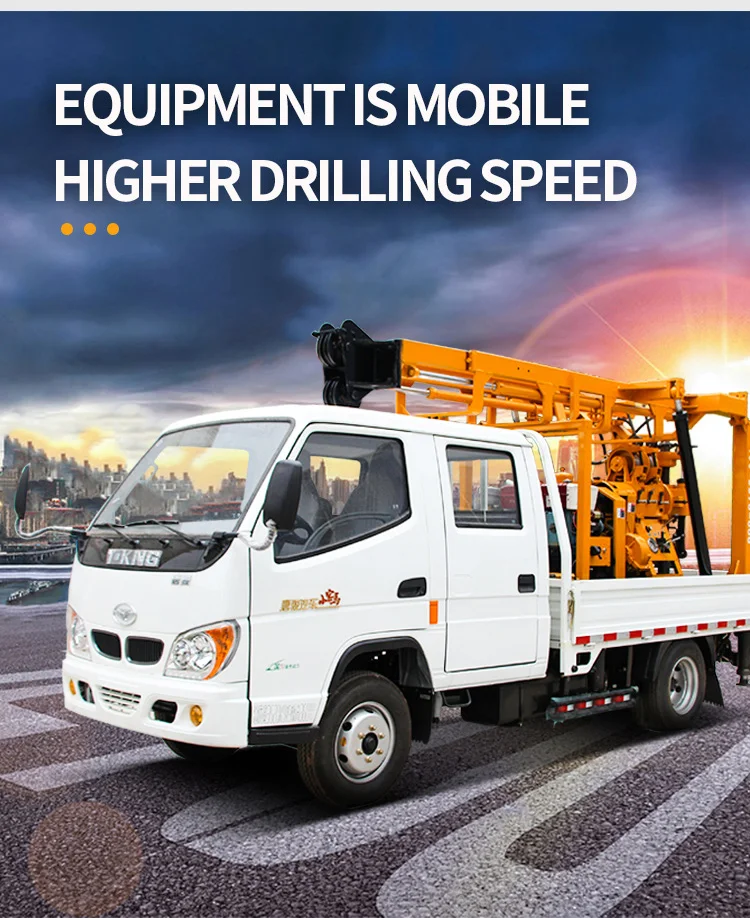

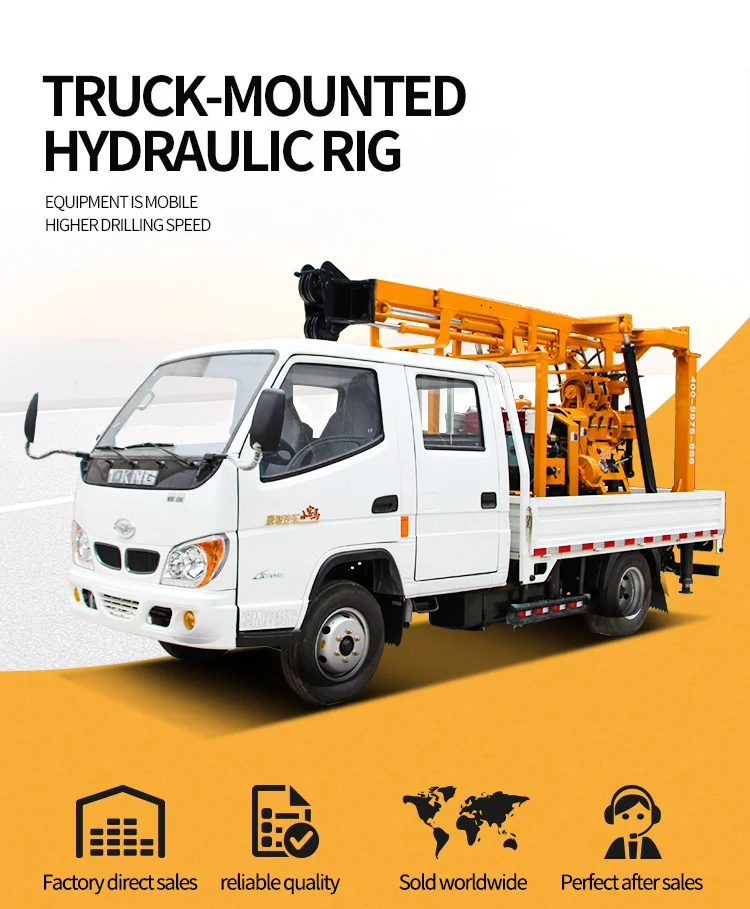

Truck Mounted Borehole Water Well Drilling Rig machine,Model XY-3C
HW-230C, XY-3C truck-mounted drilling rig is a kind of truck-mounted drilling rig designed to meet the needs of high-speed, high efficiency and high mobility. The machine is reasonable in structure, simple in operation, convenient in maintenance and convenient in transportation, and no need to lift by crane after it is transported to the site. It is suitable for geological survey exploration, basic exploration of roads and high-rise buildings, and various concrete structure inspection hole, river embankments, subgrade grouting hole and direct grouting, civil water wells and ground temperature central air conditioning.

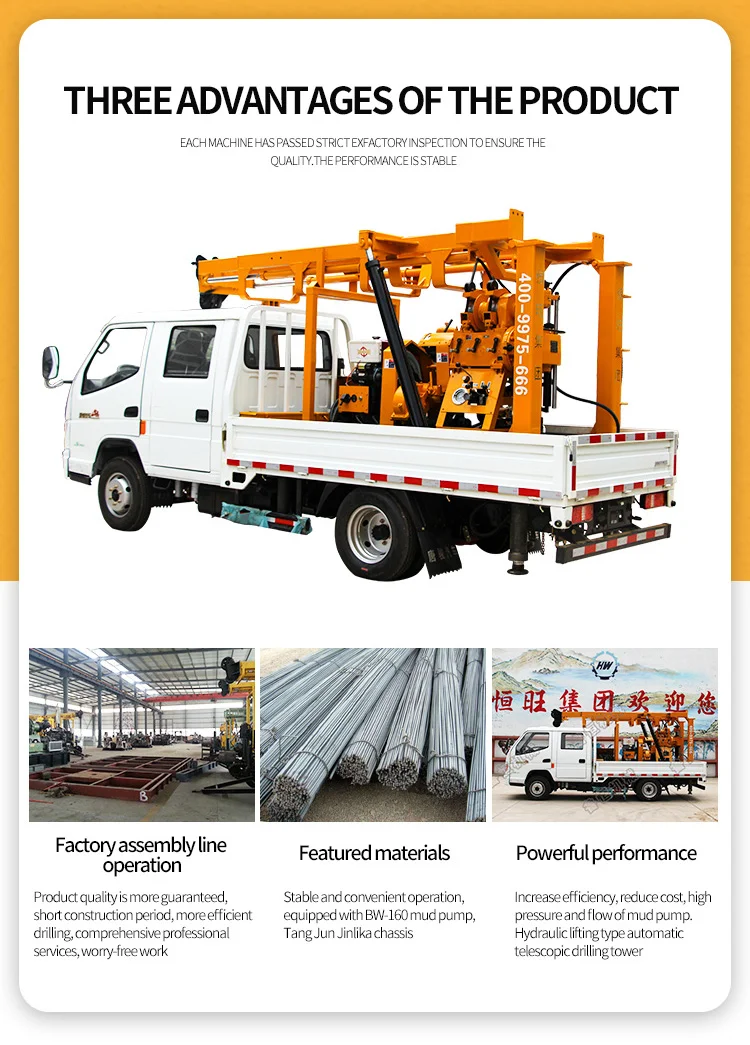

Main features

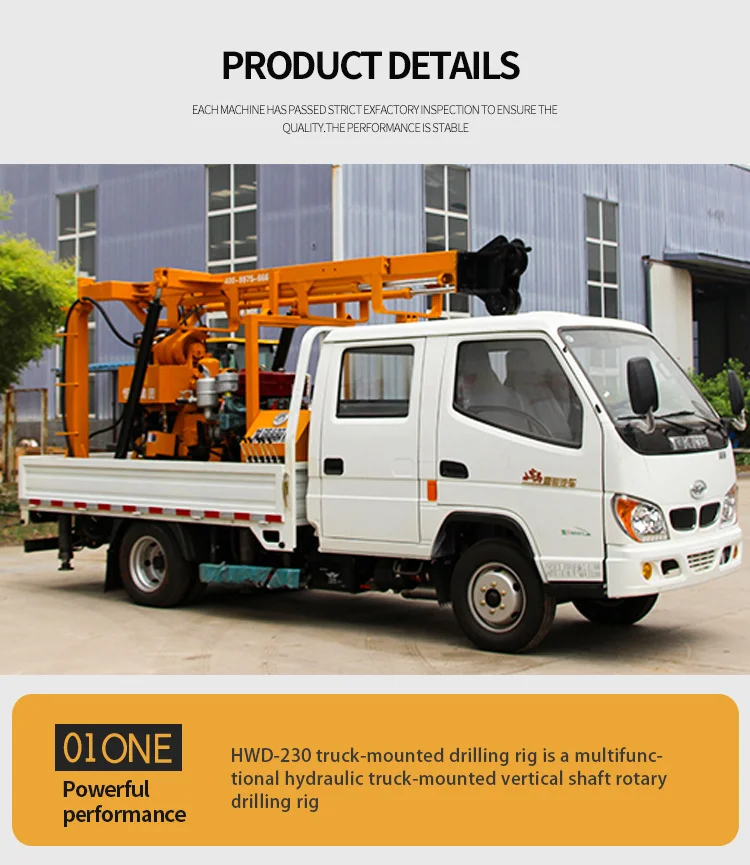

1, Truck-mounted drilling rigs are hydraulic spindle rotary drilling rig.

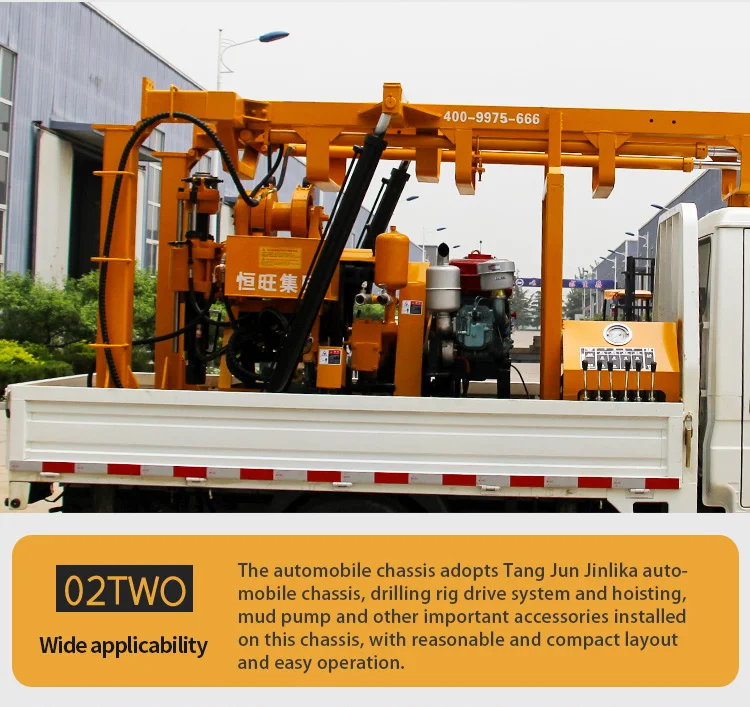

2, HW-230C uses Tangjun Jinlika chassis, XY-3C uses Qingdao Sailong medium truck chassis, drilling rig and mud pump are installed on the chassis, Reasonable and compact layout, easy to operate.

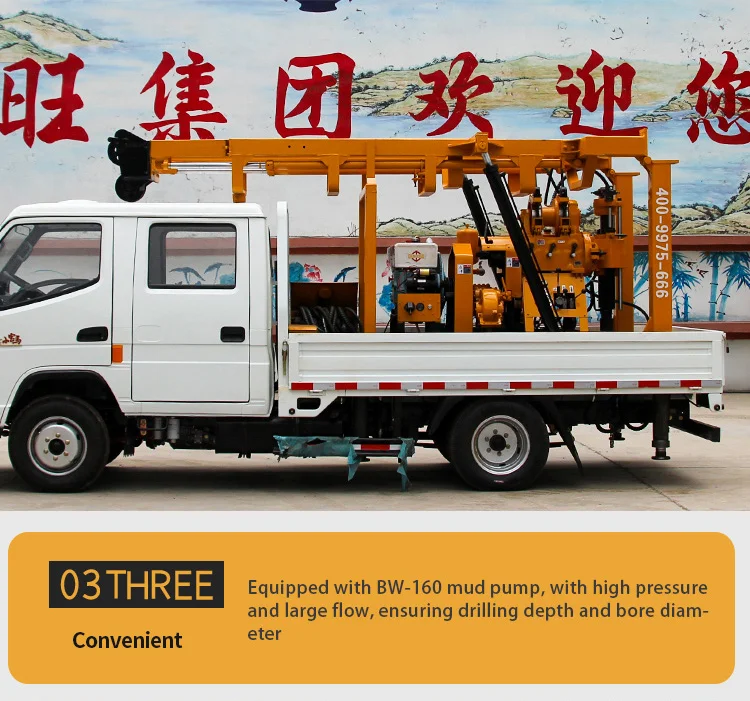

3, Configuring BW-160 or BW-250 mud pump, high pressure, big flow, it ensures drill depth and diameter.

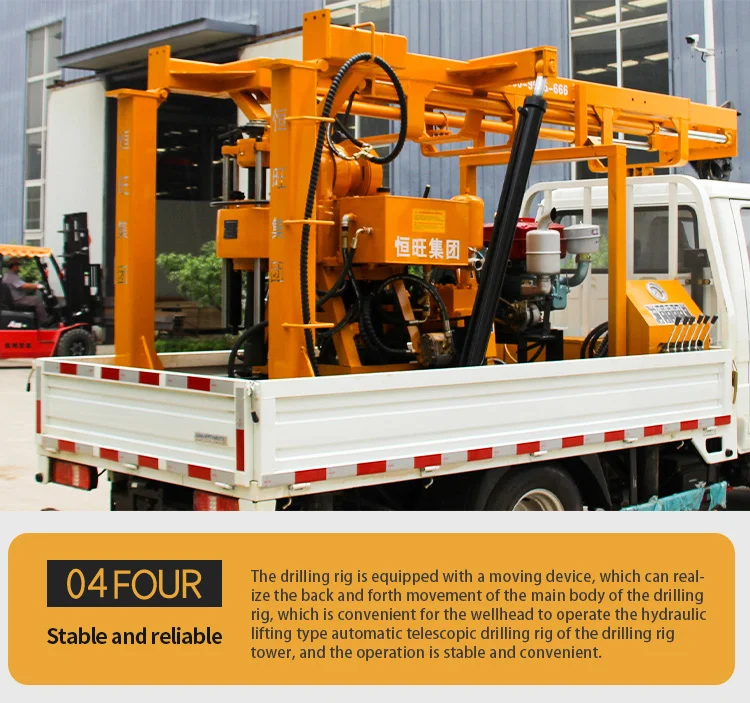

4,Drilling rig self-equipped with mobile devices, drilling rig can be achieved move back and forth, and it is convenient for wellhead operation.
5,Drilling rig tower hydraulic up and down and automatic telescopic drilling tower, safe and convenient operation.
Technical Parameters
The technical parameters about the Truck Mounted Borehole Water Well Drilling Rig machine,Model XY-3C
Main technical parameters of water well drilling rig
Model
HW-230C
XY-3C
Drilling depth (m)
30-230
30-600
Drilling hole dia. (mm)
300-75
300-75
Drilling angle (° )
90-75
90-75
Spindle speed (r/min)
64 -557
30-1050
Spindle stroke (mm)
450
600
Max winch lift capacity (kg)
1600
3000
Main winch steel wire capacity(m)
35
65
Reel lifting speed (m/s)
0. 12-0. 95
0. 3-1.9
steel wire dia. (mm)
12. 5
12. 5
Drilling tower height ( mm )
6500
6500
Weight without engine (kg)
970
1800
Diesel engine
ZS11 15
Rated power 14. 7kw/2200rpm
Yunnei YN27
Rated power 39kw/2400rpm
Mud pump
BW-160
BW-250
vehicle chassis
ModeI
Tangjun Jinlika double-column bar light truck
(CA1167PK2L2E4A80) New Sailong medium truck
Drive type
4*2
4*2
Model
Quanchai 4B2-95C40
BF4M2012-16E4
Diesel engine
Emission standard
GB3847-2005, GB17691-2005 IV
GB3847-2005, GB17691-2005 IV
Rated power (kW)
70
121

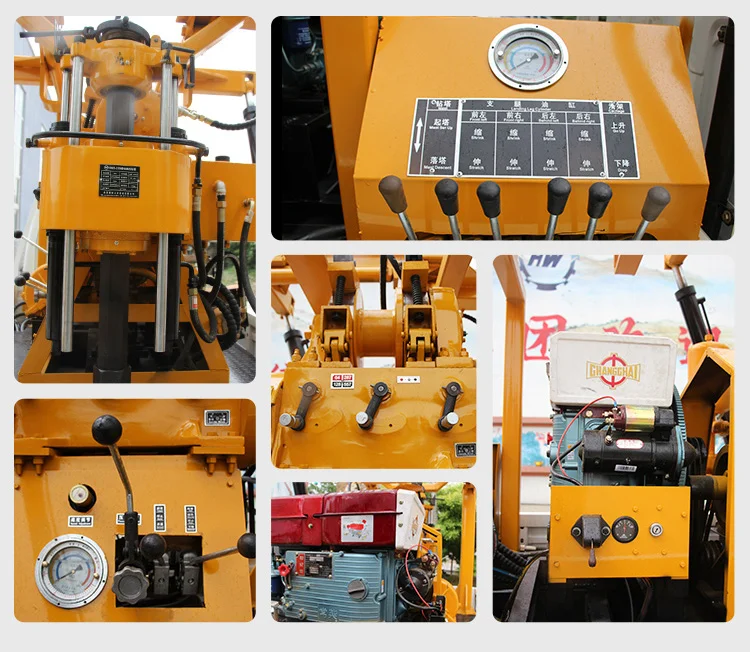

Details Images
The more details about Truck Mounted Borehole Water Well Drilling Rig machine,Model XY-3C
