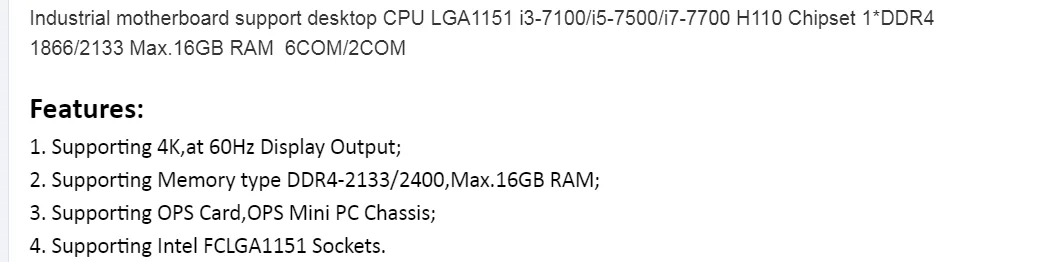

Поддержка настольный процессор 7th gen LGA1151 i3-7100/i5-7500/i7-7700 1 * DDR4 1866/2133 Max.16GB оперативная память 6COM/2COM материнская плата

QM1100 Motherboard Spec.

Name

Skylake 6th Gen.I3 6100 I3 6300 I5 6400 I5 6500 I7 6700;

Kaby lake 7th Gen. LGA1151 PIN Core I3 7100 I3 7300 I5 7500 I7 7700.

Chipset

H110

BIOS

Support LAN boot rom,Wake On LAN,Power ON,Watch dog,etc functions.

Display core

Built-in GPU

Display Output

Having EDP/LVDS/VGA/HD-MI Pin or Interfaces;

Support Independent three display;

Support Synchronous&Asynchronous Dual Panel and Three panel Display.

1*EDP PIN;

1*LVDS PIN;

1*VGA PIN;

1*HD-MI PIN.

Memory

1*DDR4 2133/2400 DIMM slot,Support Max.16GB

Sound effect

On-board HD Audio Sound Card,support 6 Sound Channel.

Network card

1*RTL8111F (RJ45 LAN).

Storage

2*SATA3.0(standard interface+2 set SATA Power);

1*Mini-PCI-E long card slot(Support WIFI/3G/4G/M-SATA functions);

1*M.2 slot(Support M.2 SATA protocol and PCIE(NVMe)protocol.

USB

6*USB2.0;

4*USB3.0.

Power

1*DC-in 12V or 19V(Interface:the inside diameter of 2.5mm);

On-board 4PIN socket.

Rear I/Ointerfaces

2*USB2.0

2*USB3.0

1*VGA interface

1*HD-MI interface

1*RJ45_LAN interface

1*AUDIO pin

1*DC

Built-in I/O interfaces

1*4Pin ATX

1*AUDIO PIN

2*SATA hard disk interface

2*USB2.0 PIN

1*USB3.0 PIN

1*INT_SPK PIN(Power Amplifier)

1*CPU FAN PIN

1*SYS FAN PIN

1*F_PANEL PIN

6*COM PIN

1*SIM Card Slot

Temperature

Work:-20°C ~60°C

Humidity

5%~90%,Non-Condensation.

Size

170*170mm
