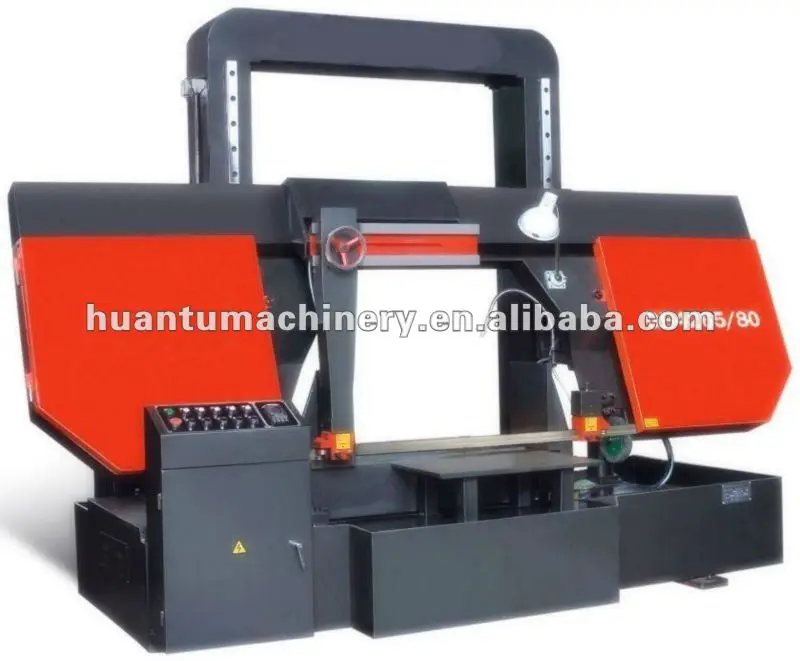

Band Saw Machine bandsaw machine for metal cutting, vertical saw, blade saw machine



Main features

1. Suitable for sawing and cutting materials into same-sized in massive quantity

2. Auto material feed, auto cut feed, auto cut.

3.Man-machine interface instead of the traditional control panel, digital way to set up the working parameters.

4.PLC programmable controller make selecting saw or cut mode easily.

5.Linear scale for feed positioning, the positioning error ≤0.2mm.

6.Double-column and double-cylinder structure greatly prolongs the service life of the machine, a unique feature exclusively owned by the company.

7. Hydraulic control of cutting speed, step less speed regulation

8. Stable sawing with high precision

9. Can be customized: Automatic chip collection device;  The clamping device for cutting bundles



After-sale sevice:

One spare wear-part for free (for each machine)

One year warranty and lifelong sevice.

band saw blade and machine part supply







Model	GB42100
Max. Cutting Diameter	Round Φ: 1000	mm
	Plate: 1000*1200	mm
Blade Speed	15—60 (Stepless speed)	m/min
Blade Size	1.6*67*10160	mm
Motor Output	11	kw
Hydraulic Pressure	1.5	kw
Coolant Pump	0.12	kw
Machine Size(L*W*H)	4800*1900*3100	mm
Net Weight	9000	kg
