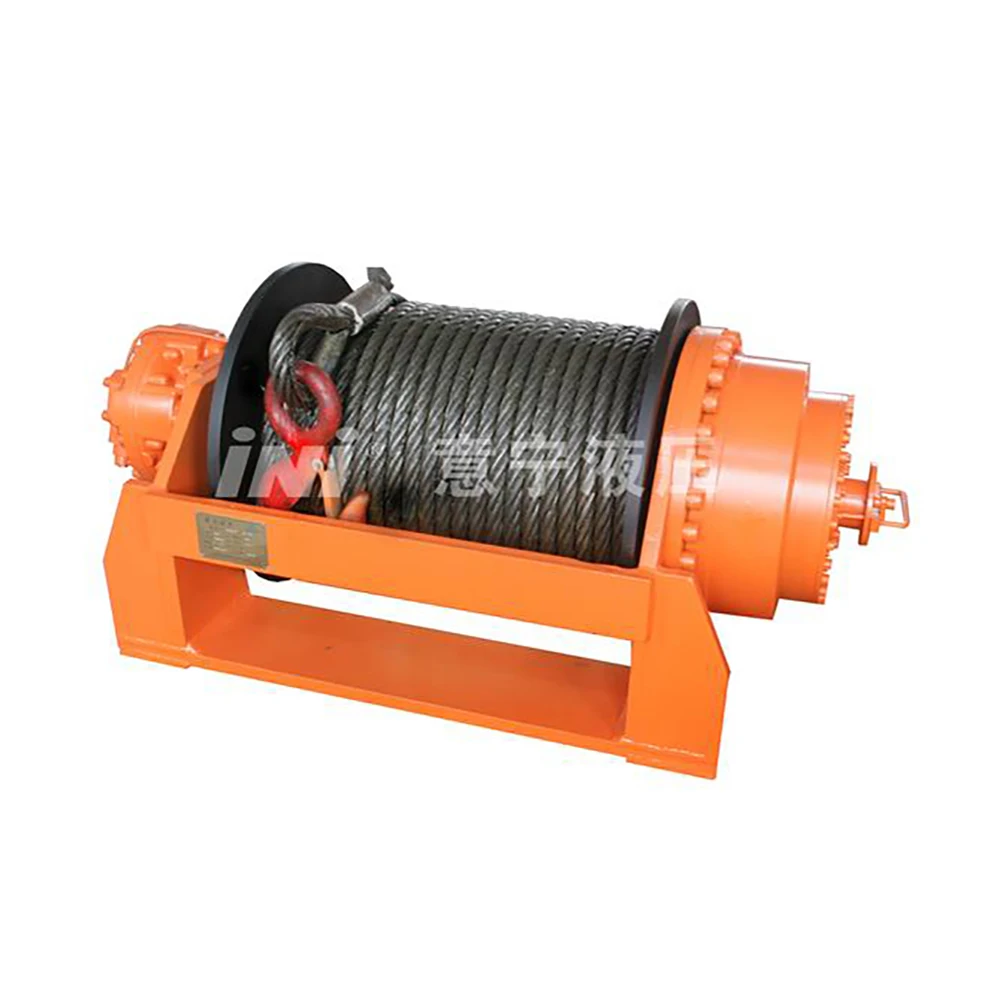

Product Description

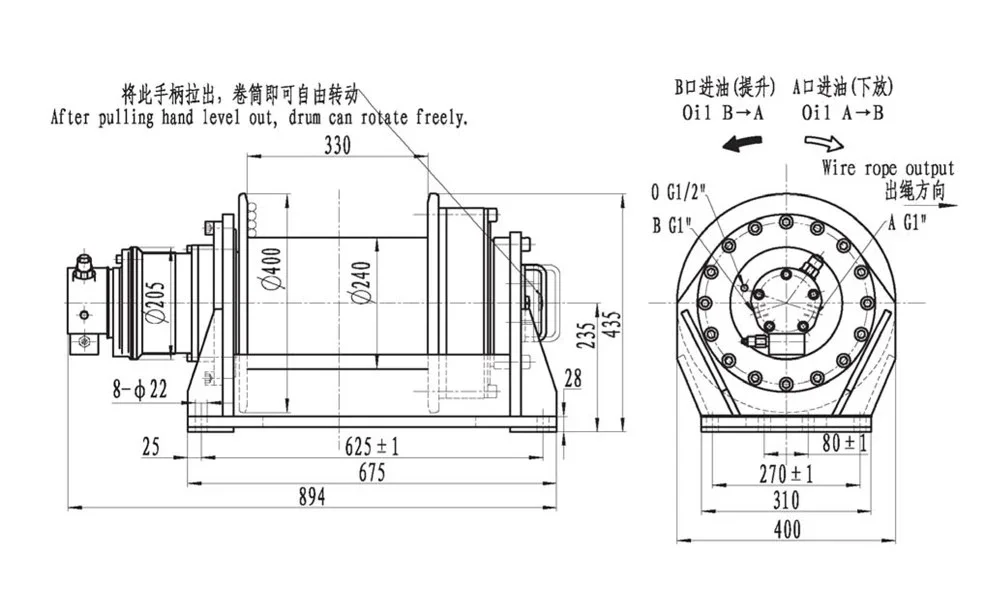

ISYJ series hydraulic vehicle recovery winches patent product of our company. Its a huge success with tow truck manufactures. We have wide line pull available ranging from 1 ton to 30 ton. It has a brake and a manual declutch system which is fitted at the
final stage of gearbox. When we pull out the handle, the drum can rotate freely
The power generated by the hydraulic motor is transferred to the drum by way of planetary gear units incorporated in the drum.
Product Name
ISYJ Series Hydraulic Winch
Material
Metal Steel
Color
OEM or Customer's Request
Application
Heavy Machinery
Motor
Hydraulic Motor
Certificate
ISO9001:2008
Power
Hydraulic System
OEM
Yes




Application

They can be used to pull salvage vehicles, cross country vehicles, military heavy trucks and bulldozers which are damaged or stuck in mud and they can be used for self recovery.

A range of accessories such as rope guides and pressure rollers are available on request.

Options Example

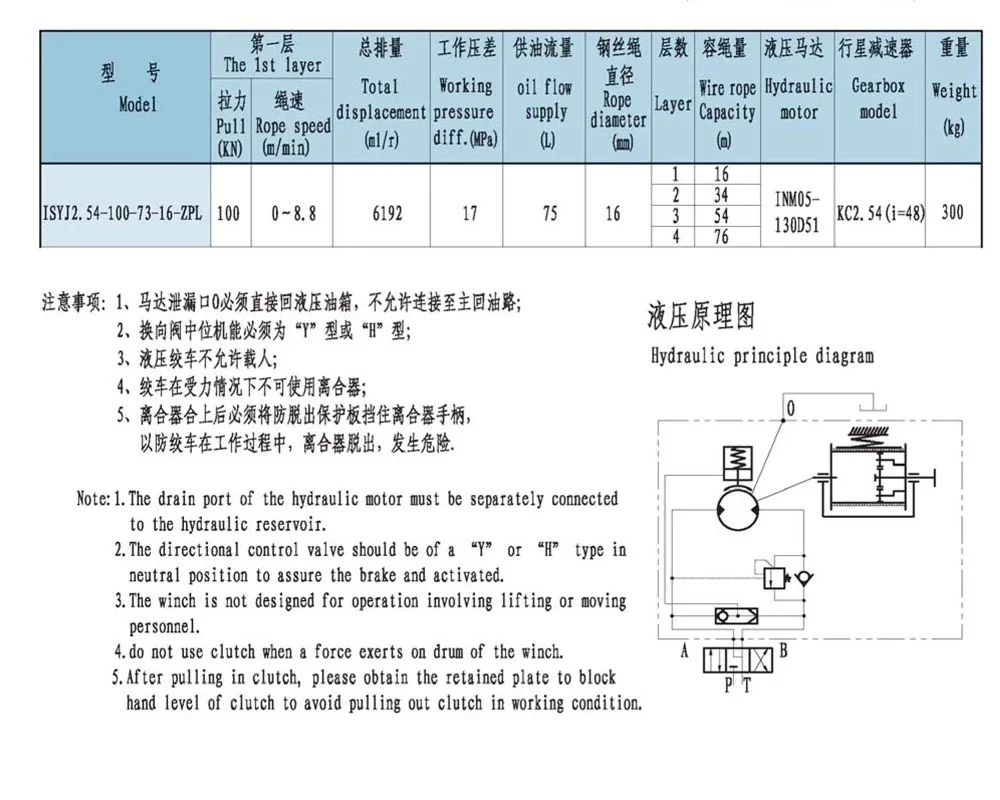

ISYJ2.5-10-103-8-ZPL represents that he modules of the gearbox of the winch is 2.5. The rated single pull on 1st layer is 10kN, drum capacity is 103m, rope diameter is 8 mm. The winch is fitted with brake, counterbalance valve and clutch.
MAIN FEATURES
• we can provide tailored solution to customers
• wide line pull range up to 30 ton.
• high starting& working efficiency
• simple structure and longer lifetime
• Low maintenance relieves your anxiety
Other Products
IYJ17 Series Single Phase Compact Planet Hydraulic Winch
•Technology: Hydraulic System
•The hydraulic motor, planetary gearbox and brake are installed in the drum of the winch, so the overall length is kept to the minimum. It is very suitable for applications where the installing room is limited.
•Application: mining industry, deck machinery and truck cranes, mobile crane，aeriel platform，Machinery or Marine
ISYJ Series hydraulic recovery rope winch truck
•Technology: Hydraulic Systemwide line pull：available ranging from 1 ton to 30 ton.
•It has a brake and a manual declutch system which is fitted at the final stage of gearbox. When we pull out the handle, the drum can rotate freely
•Application: ship and deck machinery, construction machinery, Machinery or Marine
IYJ-N Series Built-in Hydraulic Winch
• We can design and manufacture special winches according to customers' specifications.Wide line pull range up to 60 ton compact design & high reliability
• easy to install, high starting& working efficiency,Reliable operation with little noise ,Low maintenance relieves your anxiety
•Application:ship and deck machinery, construction machinery, Machinery or marine
IMC Series Hydraulic Motor
•use the patent technique of our company and consist of a variety of valve blocks with function of braking and single
counterbalance valve, high speed hydraulic motor, Z type brake, KC type or GC type planetary gearbox, drum, frame and clutch. •The
user only needs to provide a hydraulic power pack and directional valve.
•Application:construction, petroleum, mining, geological drilling, ship and deck machinery.
ISYJ Series Compact Logging Hydraulic Winch
•We have wide line pull available ranging from 1 ton to 30 ton. It has a brake and a manual declutch system which is fitted at the final stage of gearbox.
•When we pull out the handle, the drum can rotate freely
•They can be used to pull salvage vehicles, cross country vehicles, military heavy trucks and bulldozers which are damaged or stuck in mud and they can be used for self recovery.

IYJ15 Series Marine Haul Barge Winches Systems
the winch is fitted with brake, counterbalance valve, and is driven by a high speed axial hydraulic motor.
This winch series can be equipped with a rope roller, alarm system for the last three winding ropes, rope-guider, output shaft for rotation speed measurement, these items are optional.
•Application:construction, petroleum, mining, geological drilling, ship and deck machinery
Main product

Recommend Products
Our Services & Strength
We're among the first and best hydraulic products manufactuers in China. We specialize in designing and manufacturing hydraulic winches, hydraulic motors,hydraulic slewing drives, wheel and track drives, planetary gearboxes,travel motors and wheel motors, hydraulic capstans,hydraulic power units, and hydraulic pumps. We have broad product range, and we can provide one-stop and tailored solutions for driving, controlling and moving to our customers.
FAQ
Q: We Can Not Find The Goods Which We Need From Your Website, What Should We Do?
A: We Manufacture And Design Wide Variety Of Hydraulic Products, Some Of Them Have Not Been Uploaded On Website, You Can Send Us
Descriptions And Pictures Of The Goods Which You Need, We Will Check Whether We Can Supply. If Not, You Can Send Us Sample By
Express, We Will Develop This Item For Bulk Orders.

Q: Can We Buy 1 Piece Of Each Item For Quality Testing?
A: Yes, It's No Problem.

Q: We Want To Buy Your Products, How Can I Pay?
A: You Can Pay Via T/T And Western Union.

Q: How Can You Guarantee The Quality?
A: If You Meet With Quality Problem Within 1 Year, We Will Replace Goods Or Return Your Funds.
