Product Description


Specification
3.2m 200kg headload heavy-duty steady pneumatic telescopic mast


Model No.
TAL-P3.2-1.5-200-AT8
Main pole material
aluminum alloy 6063/T5
Surface treatment
Hard anodizing
Surface color
Bronze or white
Extended height
3.2m
Retracted height
1.5m
Max head load
200kg
Sections Number
3 sections
Mast net weight
39kg( without accessories)
Max wind load
120km/h ( with guy wire fixed)
accessories
air hose/air compressor/tripod/guy wire/ steel stakes


Certifications




Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.





Lift operation choose

If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.

If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.





Accessories

3.2m 200kg headload heavy-duty steady pneumatic telescopic mast







Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..

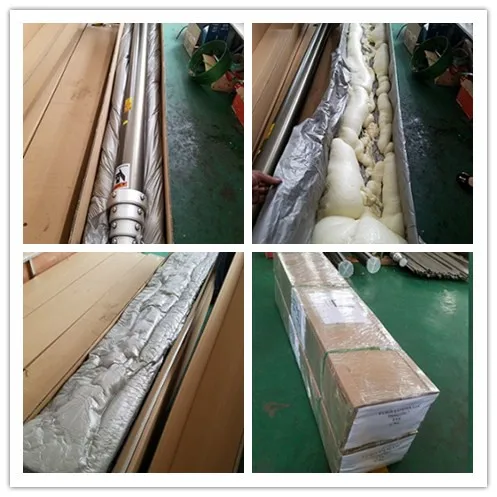

Packing & Delivery




Package information based on different specifitation
extended height less than 9m
also weight less than 70kg
packed into a  carton, inner space filled with foam to protect mast.
 wooden case if customer request.
extended height more than 9m
also weight more than 70kg
packed into plywood case, inner space filled with foam to protect mast.


Other Specification


Pneumatic telescopic mast
MODEL No.
Extended
Height
(m)
Retracted
Height
(m)
Bottom
OD
(mm)
TOP
OD
(mm)
Section
NO.
Head-load
(KG)
TAL-2.0-1.3-150-AT8
2
1.3
118
98
2
150
TAL-3.0-1.5-50-AT8
3
1.5
98
66
3
50
TAL-4.0-1.3-20-AT8
4
1.3
87
43
4
20
TAL-4.5-1.65-50-AT9
4.5
1.65
118
66
4
50
TAL-5.0-1.7-40-AT8
5
1.7
98
51
4
40
TAL-5.0-1.75-30-AT9
5
1.75
98
51
4
30
TAL-6.0-1.7-30-AT8
6
1.7
118
51
5
30
TAL-6.0-1.75-12-AT8
6
1.75
87
28
5
12
TAL-6.0-2.0-50-AT9
6
2
118
66
4
50
TAL-6.0-1.95-30-AT8
6
1.95
87
43
4
30
TAL-6.0-1.5-25-AT9
6
1.5
118
51
5
25
TAL-7.0-1.95-40-AT8
7
1.95
118
51
5
40
TAL-8.0-1.8-50-AT9
8
1.8
160
51
7
50
TAL-8.0-2.2-60-AT7
8
2.2
140
66
5
60
TAL-8.0-2.0-25-AT8
8
2
118
36
6
25
TAL-9.0-2.15-30-AT8
9
2.15
140
51
6
30
TAL-10.0-2.4-30-AT7
10
2.4
140
51
6
30
TAL-12.0-2.7-250-AT8
12
2.7
279
140
7
250
TAL-15.0-3.5-150-AT9
15
3.5
229
98
6
150
TAL-16.0-3.0-30-AT8
16
3
180
51
8
30
TAL-18.0-3.0-100-AT8
18
3
279
66
10
100
TAL-20.0-3.3-55-AT8
20
3.3
229
66
9
55
TAL-30.0-4.0-30-AT8
30
4
316
51
13
30


NOTE:

above specification does not include all we can do.



Our Service


OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery



Our Company





       Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
      Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans
       Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers
an one for one timely information feedback, we have organized an expert team for quality control and inspection system,
we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We
think outside the box and are continually developing new products to meet customer requirements, what you are asking
for is our motive power of task, we wish one of our products will well-meet what you demand.
