Высококачественный двубалочный козловой кран 20 тонн

Описание и отзывы

Характеристики





Product Application:

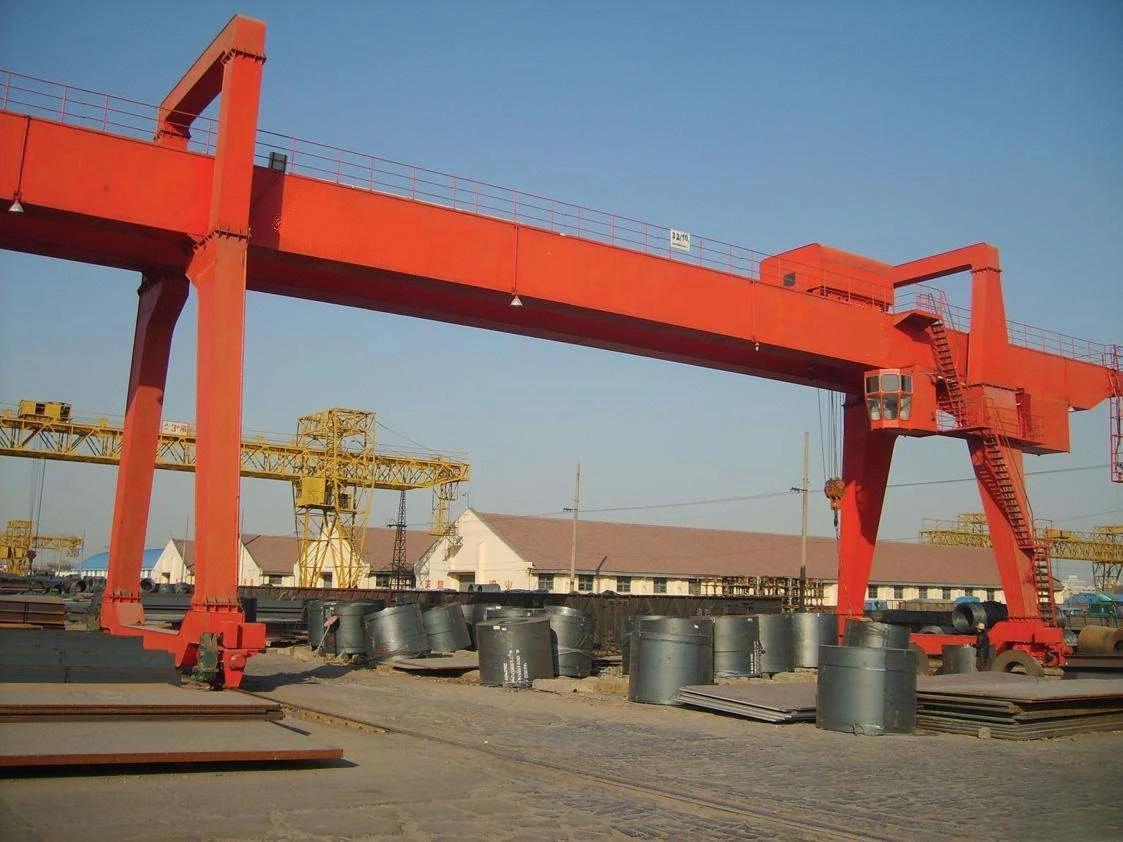

1.Gantry crane with electric hoist also called single beam door crane or goliath crane, it is a kind of track travelling mid-light type crane, It is especially suitable for the task of loading and unloading long and bulk material and steel, pipes. It also can be used together with other lifting appliance for special purpose.

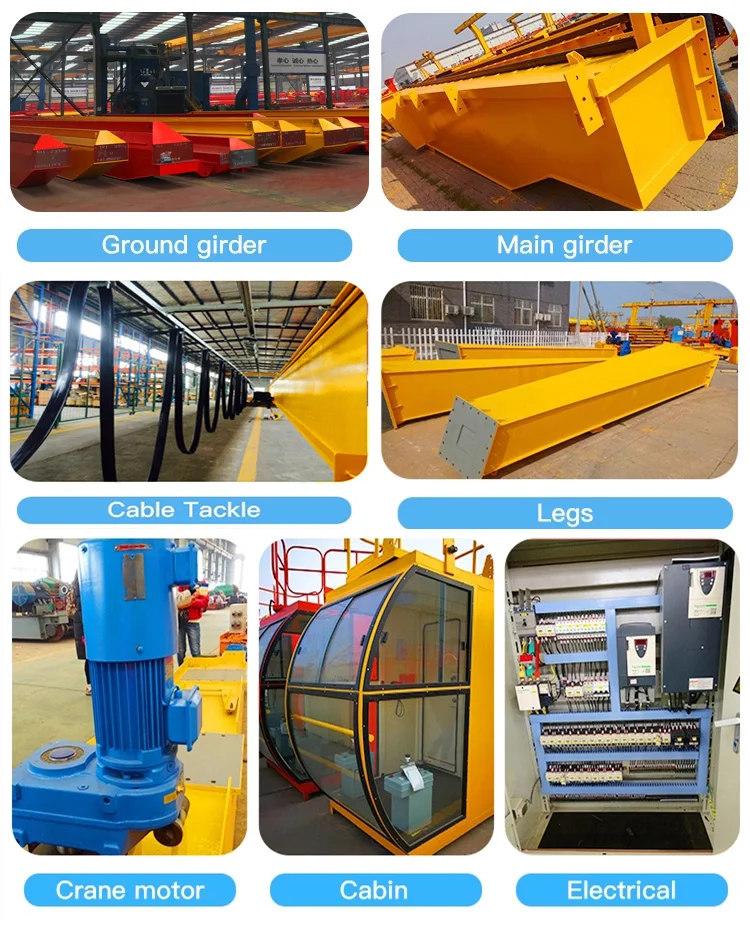

2.This type of gantry crane consists of 5 main parts, namely, the bridge structure, A-frame support legs, the traveling mechanism, the trolley and the electric equipment. It has box type and trussed type, box type has characteristic of slim body and strong lifting capacity; trussed type has characteristic of small windward surface, small deadweight and strong lifting capacity.



3.The girder could also have a double girder design for heavy duty applications, where a suitable track is provided on top of the girders for travel of crab wheels.



4. It is applied in varied industries such as material stocks area, cement plant, granite industry, engineering industry, construction industry, shipping yards, road sides, mines, quarries, heavy fabrication unit, factories, railway yards, harbors, etc.







Lifting Capacity			T	3	5	16	20
Operational method				Pendent line with push button /cabin
Speed	Lifting		m/min	8 ,8/0.8	8,8/0.8	3.5	3.5
	Cross travelling			20	20	20	20
	Long travelling	Ground		20	20	20	20
		Cabin		30,40	30,40	30,40	30,40
Motor	Lifting		Type /kw	ZD41-4/4.5	ZD141-4/7.5 ZDS10.8/4.5	ZD151-4/13	ZD152-4/18
	Cross travelling			ZDY12-4/0.4	ZDY121-4/0.8	ZDY121-4/0.8×2	YZD-4/0.8×4
	Long travelling	Ground		ZDY21-4/0.8×2 ZDY21-4/1.5×2	YZR132M1-6/2.2×2 YZR132M2-6/3.7×2	YZR160M1-6/6.3×2 YZR160M2-6/8.5×2	YZR160M1-6/6.3×2 YZR160M2-6/8.5×2
		Cabin		ZDR22-4/1.5×2 ZDR24-4/2.2×2	YZR132M2-6/3.7×2 YZR160M1-6/5.5×2	YZR160M2-6/8.5×2 YZR160L2-6/11×2	YZR160M2-6/8.5×2 YZR160L2-6/11×2

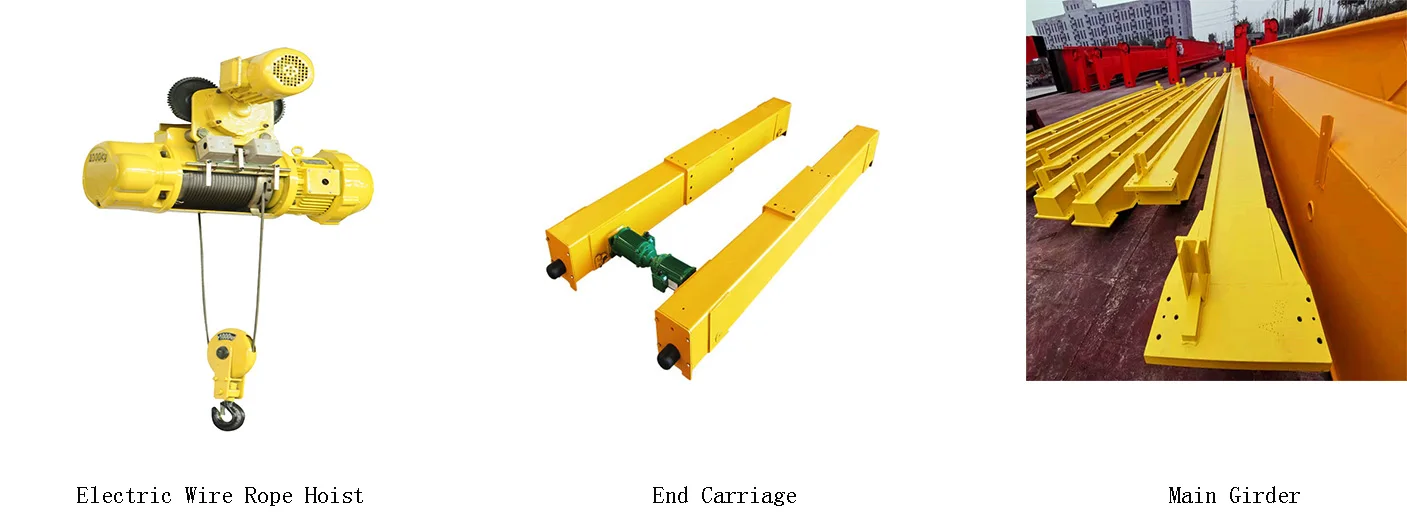

Electric hoist			Type	CD1/MD1	CD1/MD1	CD1	HC
Power supply				Depends



Features and advantages:

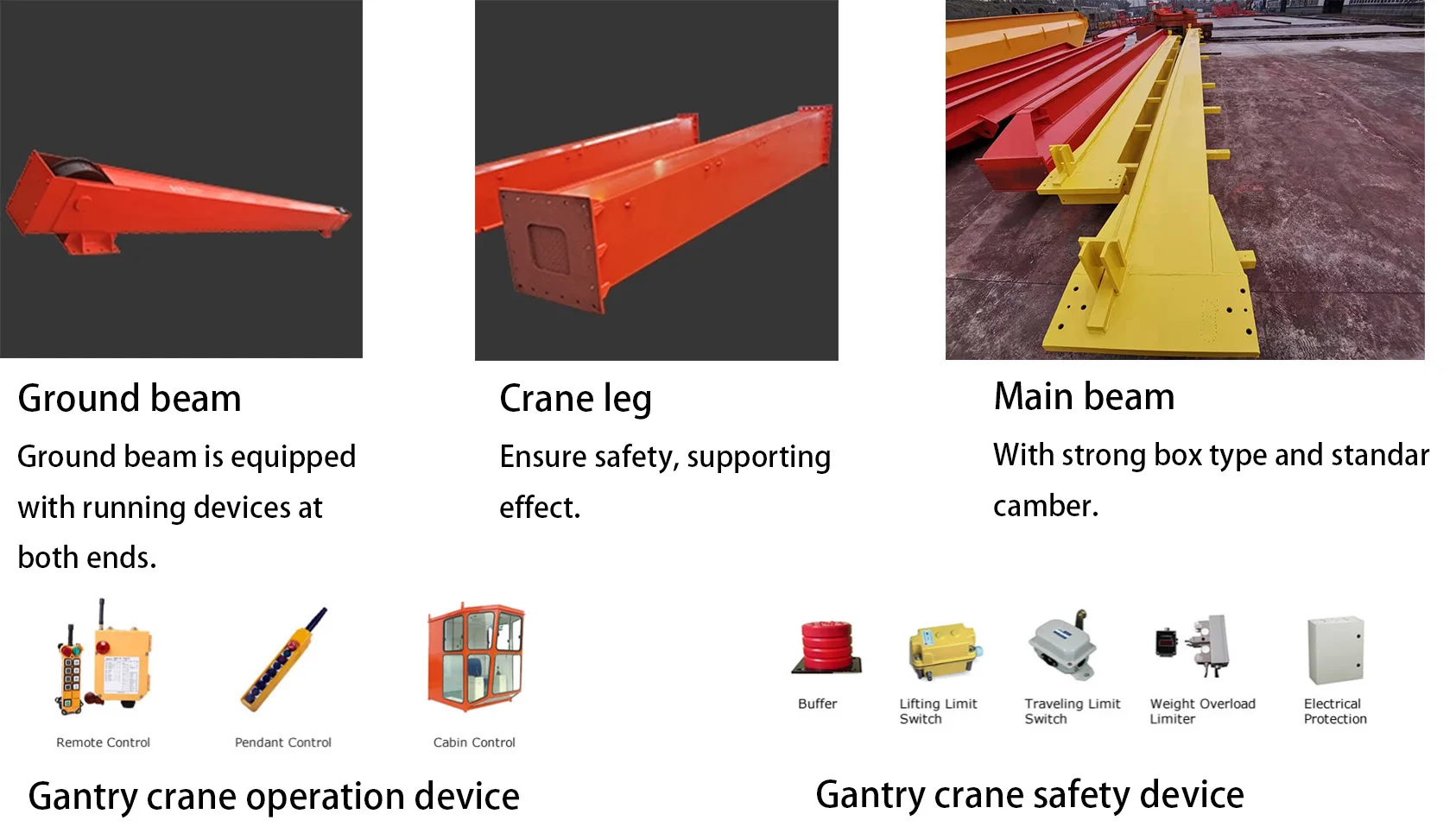

1. Divided into full gantry, semi-gantry and L foot type, mainly used in outdoor yard, yard goods, bulk cargo for loading and unloading.

2. Door frame shape metal structure, two feet installed under the main beam and possible walk on the track of ground directly.

3. Both ends of the main beam may have overhanging cantilevers, Fe37 or Fe52 standard steel and whole 40m CNC cutting web ensures curve smooth and precision molding.

4. Safety power conductor system, configuration phase protection, IP55 protection class, top quality and long time bearing polyurethane materials buffer, etc.

5. Effective and optimization design minimize the self-weight and ensures safety, stability and intensity, also promises excellent performance, easy and smooth operation.

6. All connections adapt heavy-duty aviation plug and socket with firmly seal and insertion, the power supply system uses 450/750V flat PVC cables.

7. Convenient wireless remote control and easy pendant control, additional driver is unnecessary. Pendant control: IP65, 500,000 times life.

1. What about the payment term&price term?

As usual, we accept T/T, L/C as the payment term, and the price term, FOB&CIF&CFR etc are ok.



2. What's the delivery time?

Usually, we will delivery the goods within 15-20 working days, but this is aim at 1-10pcs products, if you give more quantity, it just depends.



3. Are we a manufacturer&factory or trading Company?

Chongqing Shanyan Crane Machinery Co.,ltd is a manufacturer in Chongqing, China, we have specialized in crane&hoist over 10 years, our high quality products were welcomed in many countries.
