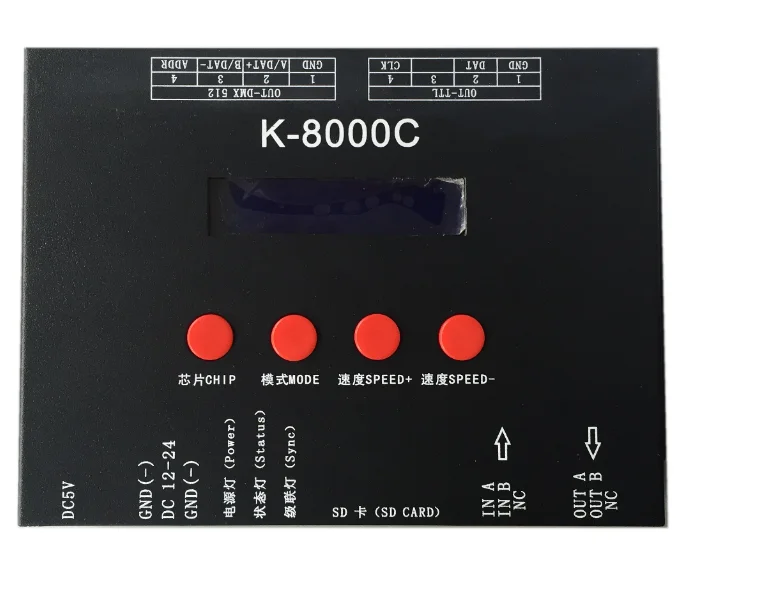

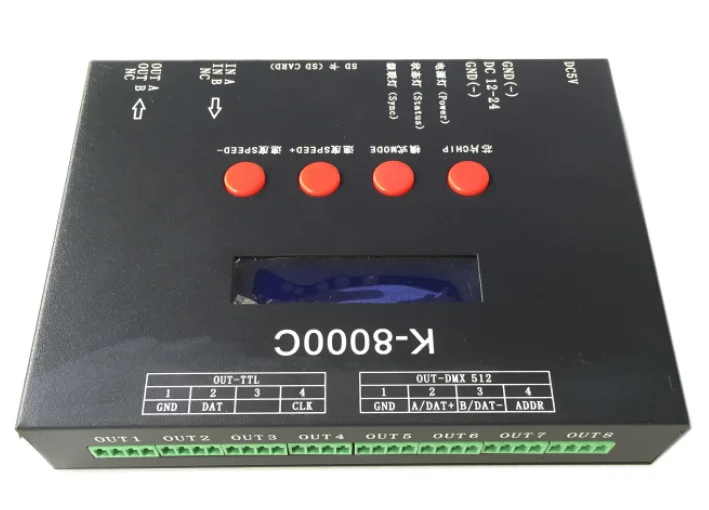

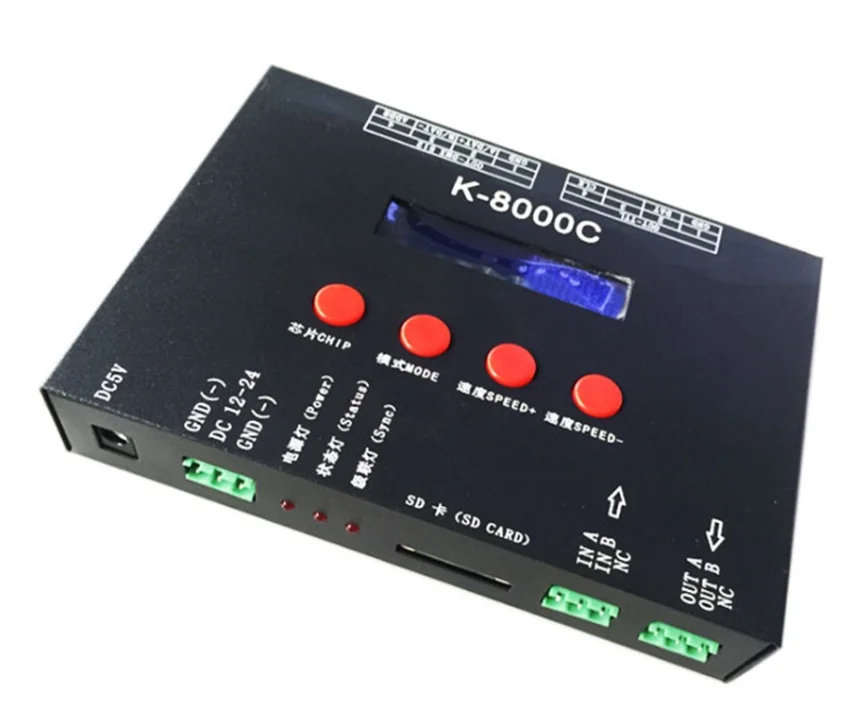

K-8000C программируемый DMX/SPI SD карты светодиодный контроллер пикселей; off-line;DC5-24V для RGB полноцветный пиксель полосы
- Категории: >>>
- Поставщик: Shenzhen,ETOP,Technology,Company,Ltd.
Поделиться:
Описание и отзывы
Характеристики
K-8000C programmable DMX/SPI SD card LED pixel controller;off-line;DC5-24V for RGB full color led pixel light strip
Product Description
| Power Supply | DC 5V -24V |
| Power | 5W |
| Temperature | -20 ℃-85 ℃ |
| Weight | 0.8kg |
Features:
1,32 to 65536 degree Gray control, Gamma correction procession handle.
2,Support various point, line light source, and all kinds of rules and specific shaped handle.
3,The controller has eight ports output, each port can support up to 512/1024 lights(DMX lights can support up to 512 pixels).
4,The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.
5,The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.
6,The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
7,For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.
8,Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.
9,Enhanced 485 TTL and 485 differential (DMX) signal output.
10,The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.
NOTE :
1.If support RGBW four channels' l01ights should select K-8000-RGBW.
2.If support single channel light should choose K-8000-W, at this time, one channel means one pixel, the software effect make as white lighting.
Supported chip
1,32 to 65536 degree Gray control, Gamma correction procession handle.
2,Support various point, line light source, and all kinds of rules and specific shaped handle.
3,The controller has eight ports output, each port can support up to 512/1024 lights(DMX lights can support up to 512 pixels).
4,The playback content stored in SD card, the SD card can store up to 32 files, SD cared capacity supports 128MB-32GB.
5,The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.
6,The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
7,For the DMX lighting IC, the controller comes with write address function; In addition, with use of our 2016 LedEdit-K V3.26 or later edition can make one key write address function setting.
8,Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.
9,Enhanced 485 TTL and 485 differential (DMX) signal output.
10,The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.
NOTE :
1.If support RGBW four channels' l01ights should select K-8000-RGBW.
2.If support single channel light should choose K-8000-W, at this time, one channel means one pixel, the software effect make as white lighting.
Supported chip
Support chips(PC Software Select K-8000-RGB):
00: UCS1903,1909,1912,2903,2904,2909,2912;TM1803,1804,1809,1812;
SM16703,16709,16712;WS2811;INK1003;LX3203,1603,1103;GS8205,
8206;SK6812(Support up to 1024*8=8192 pixels)
01:SM16716,16726(Support up to 1024*8=8192 pixels)
02:P9813(Support up to 1024*8=8192 pixels)
03:LPD6803(Support up to 1024*8=8192 pixels)
04:LX1003,1203(Support up to 1024*8=8192 pixels)
05:WS2801(Support up to 1024*8=8192 pixels)
06:LPD1886(Support up to 1024*8=8192 pixels)
07:TM1913(Support up to 1024*8=8192 pixels)
08:TM1914(Support up to 1024*8=8192 pixels)
09:P9883,P9823(Support up to 1024*8=8192 pixels)
10:DMX(Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
11:DMX 500K(Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
12:DMX 250K-CZF (Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
13:DMX 250K-CZF (Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
00: UCS1903,1909,1912,2903,2904,2909,2912;TM1803,1804,1809,1812;
SM16703,16709,16712;WS2811;INK1003;LX3203,1603,1103;GS8205,
8206;SK6812(Support up to 1024*8=8192 pixels)
01:SM16716,16726(Support up to 1024*8=8192 pixels)
02:P9813(Support up to 1024*8=8192 pixels)
03:LPD6803(Support up to 1024*8=8192 pixels)
04:LX1003,1203(Support up to 1024*8=8192 pixels)
05:WS2801(Support up to 1024*8=8192 pixels)
06:LPD1886(Support up to 1024*8=8192 pixels)
07:TM1913(Support up to 1024*8=8192 pixels)
08:TM1914(Support up to 1024*8=8192 pixels)
09:P9883,P9823(Support up to 1024*8=8192 pixels)
10:DMX(Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
11:DMX 500K(Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
12:DMX 250K-CZF (Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
13:DMX 250K-CZF (Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)
Note :
1,To copy files to SD card, you must format the SD card first, pay attention to is that each copy must be formatted first.
2,SD card must be formatted as FAT form or FAT32 form.
3,The SD card can not be hot-swappable, plug the SD card each time, you must first disconnect the power supply controller.
![SA%63$K]EZ4I9QGTH8{SQD.png](http://sc02.alicdn.com/kf/Hf43fbdcdb7684b8ca54da42b38bf9c33c/227083799/Hf43fbdcdb7684b8ca54da42b38bf9c33c.png)
