Соединитель полосы шага 9 5 мм для силовой электрической клеммной колодки PCB винтового
- Категории: Terminal Blocks >>>
- Поставщик: Shenzhen,Hongyian,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
9.5mm pitch strip connector for power electric PCB screw type barrier terminal block
.
lastic material: PA66 UL94V-0 |
Pin header: Brass,Tin plated |
Screw: M3.5 Steel,zinc plated |
Rated voltage: 300V 450V |
Rated current: 30A 32A |
Wire range: 18-10 AWG 0.5-4.0mm2 |
Withstanding voltage: AC2000V/1Min |
Torque: 0.8N.m(7.0Lb-in) |
Temp: -40℃ ~ +105℃ |
Max soldering: 250℃±10℃/5Sec |
Strip length: 4.5-5.0mm |
Pitch: 9.5mm |
Pole: 2P-30P |

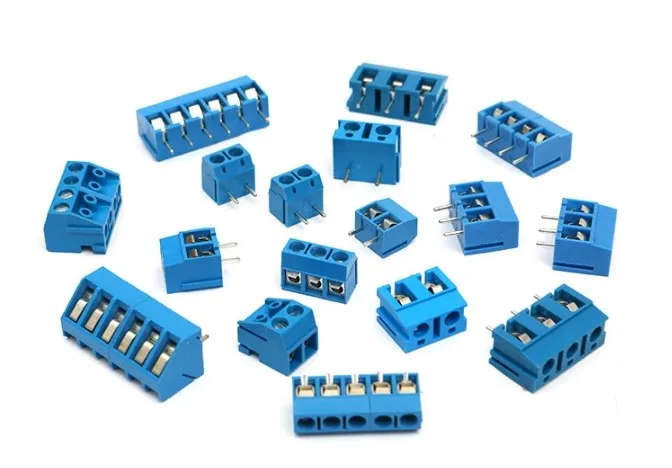

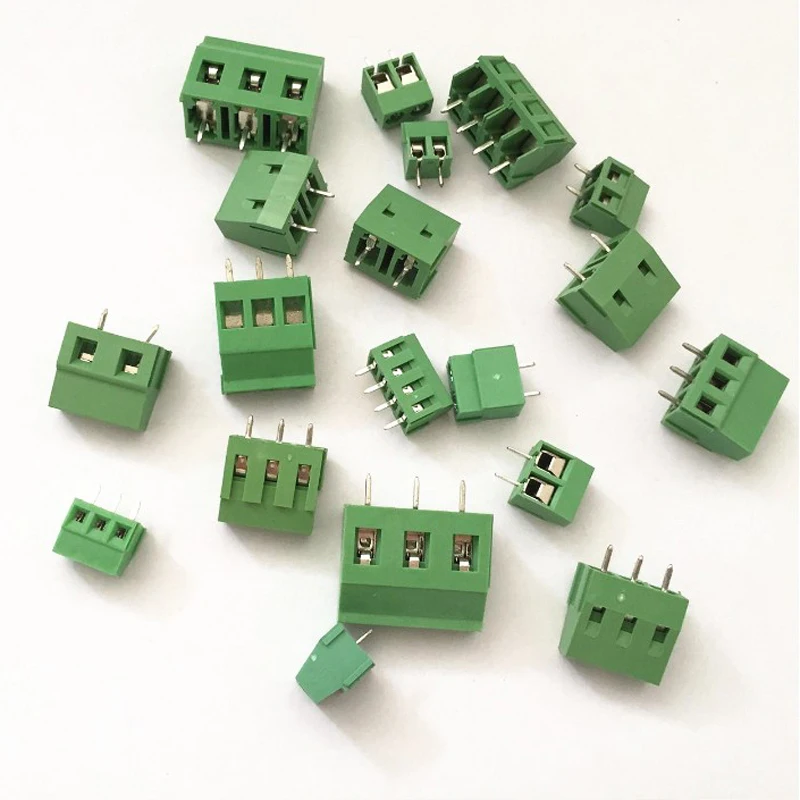

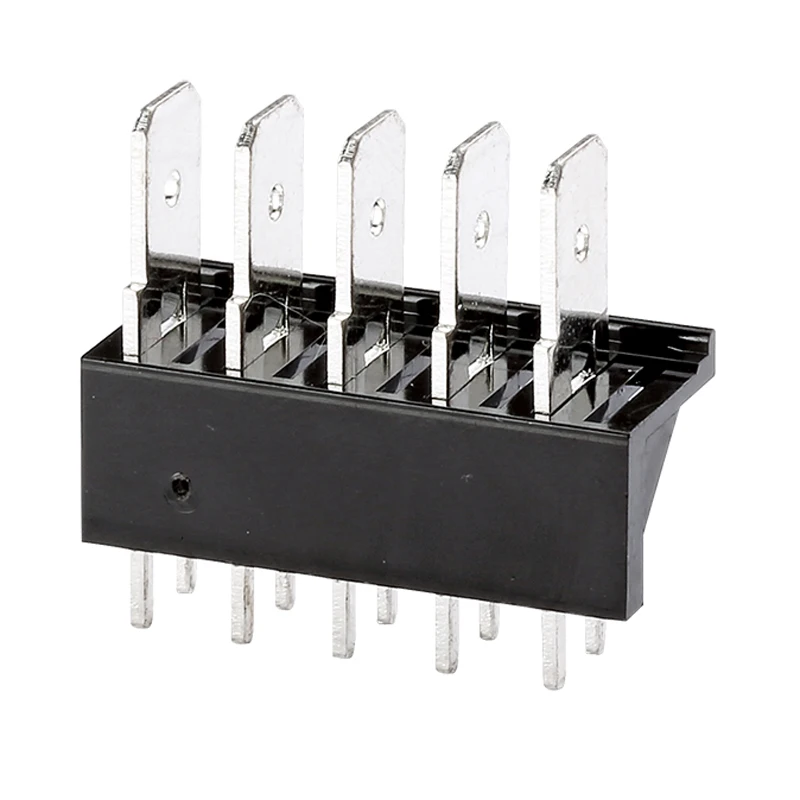

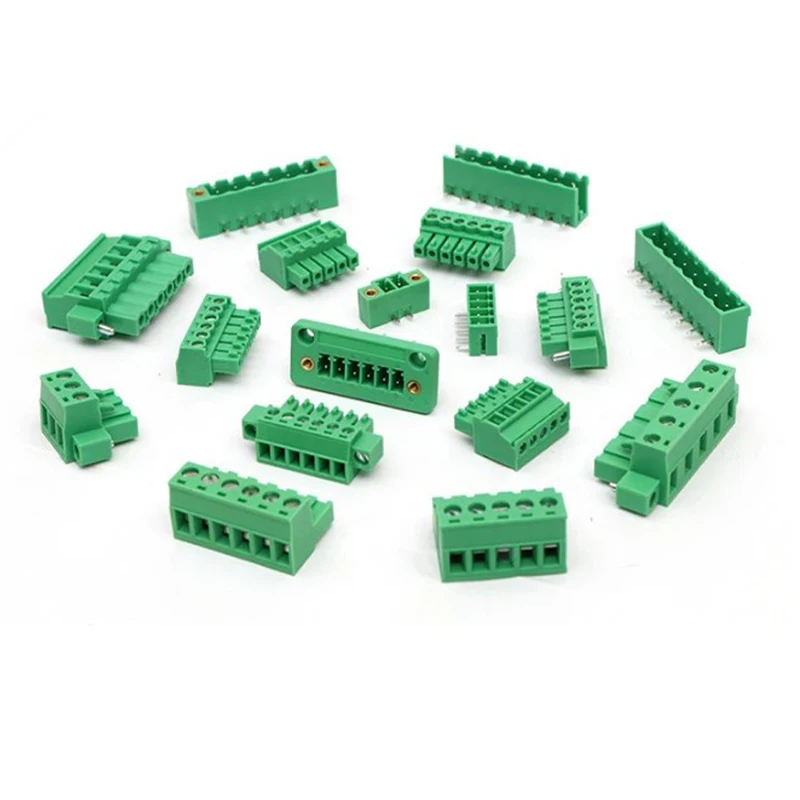

Products Images
Related Products
Packaging & Shipping
The products are packed by PE bag ,then put the bag in a small box ,after that the box is puted in a much strong and biger carton
Our Services
Services and Support
Sample Availability & Policy
Samples are to be sent to our customers for free based on their request so long as they are willing to pay for the freight, or we can pay the freight for some old customers from our side as well, or the customer can pay the freight in advance and we can ship samples with our courier as well.
Guarantees/Warranties/Terms and Conditions
We provide product quality guarantee.
A 15-day quick delivery is assured.
Payment terms include T/T but it is subject to negotiation like L/C, PayPal, Western Union and more.
Export/Import Processing Support
We pride ourselves on our ability to provide timely service to satisfy customers' requests.
Our services include insurance, shipping, customs, handling of export documents and quality inspection.
After Sales Service
Excellent service is offered through our network of offices and head office.
Please contact our marketing sales department either by phone or e-mail or if convenient, visit our office.
Aside from the friendly service, we offer the most competitive prices and flexible scheduling.
Company Information
One of the key exporting parts are Cables,Connector wires, Connectors & Cable Assembly , not only fast L/T, stable quality guarantee, also with very competitive price.
FAQ
Q:What's your MOQ?
A:Our MOQ usually comes to 1000 pcs,but we accept the small order quantity for test.
Q:Can I visit your factory?
A:Welcome to visit our factory,and we will show you our professional production process, and hoping we can have a long cooperation with you.
Q:What's your sample time?What's your delivery time?
A:7 days for sample,and 15-20 days for mass production.It's depends on the quantity.
Q : How do I inspect my goods?
A : You can inspect by visiting factory,or ask third party to inspect,or by picture inspection.
Q : How much does it cost to ship to my country?
A : The freight will be given by the freight company based on your Gross Weight and CBM.
Q:How do l know if you ship out my order?
A:The tracking number(DHL,UPS,FedEx,TNT,EMS etc.)or Air Waybill or B/L by Sea will be sent to you as soon as your goods are shipped out,we also follow up the delivery and keep you informed.The helpful after service is provided-We support what very sell.
Q : Can I make personalized/customized products?
A : Sure, Just send us your drawing or sample .
