Модный комплект электровелосипеда 48 в 1000 Вт с батареей
- Категории: Electric Bicycle Kit >>>
- Поставщик: Changzhou,Ncyclebike,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Fashionable 48v 1000w electric bike kit with battery e bike kit with lithium battery 1000W

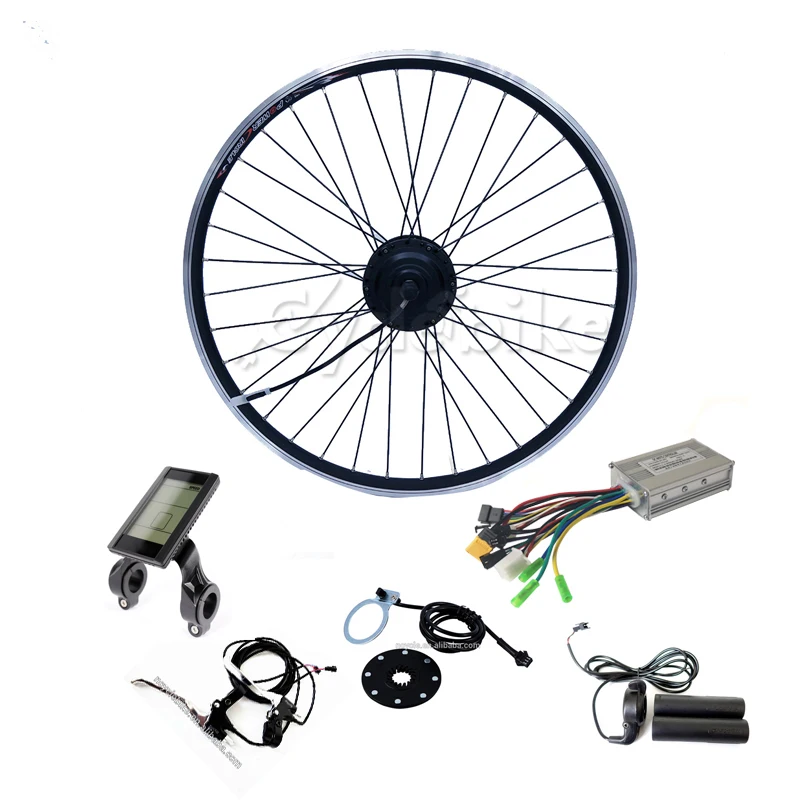

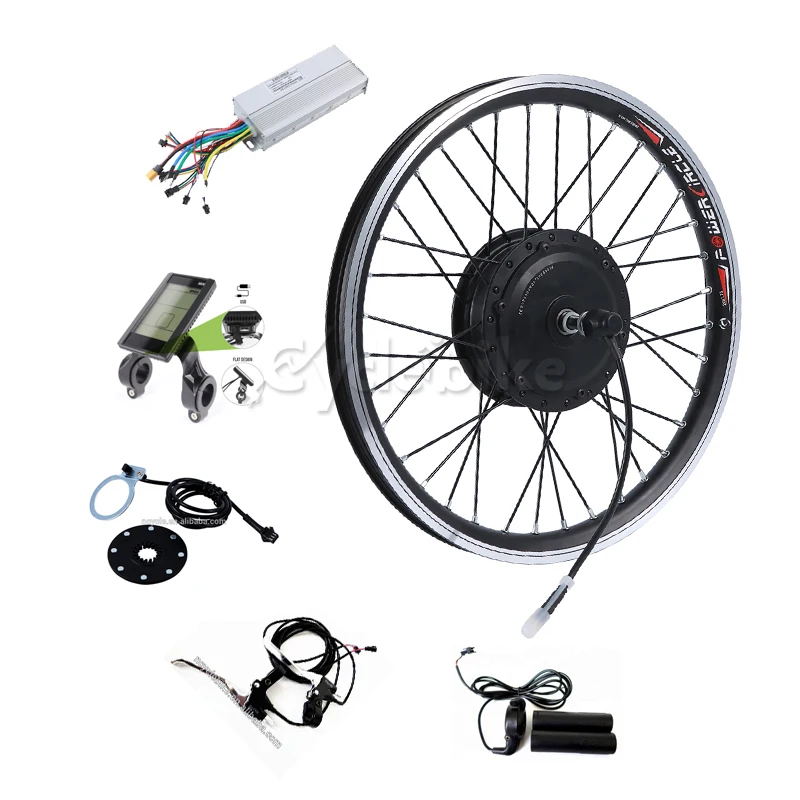

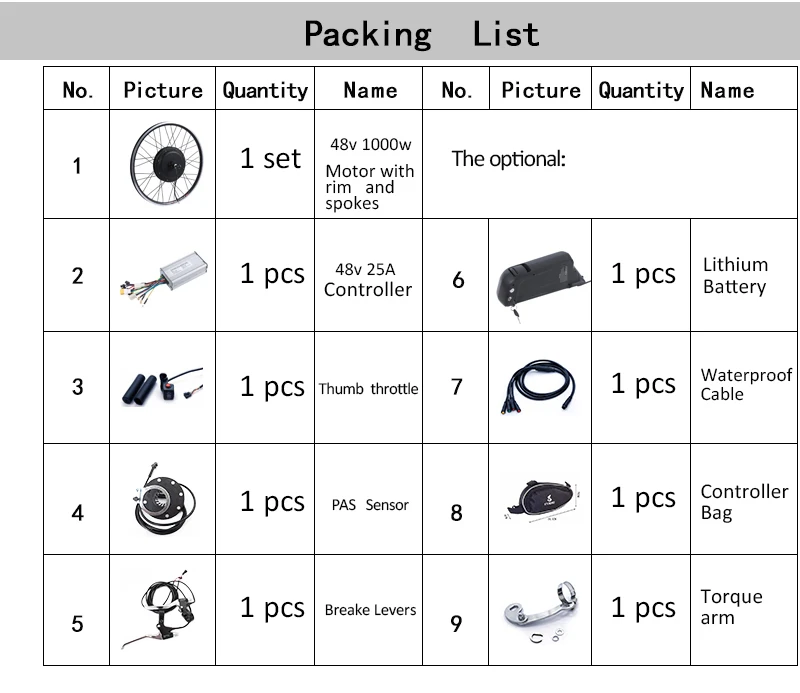

The packing list of 48v 1000w electrric bike kit :
1× 1000W brushless gearless hub motor(front )
1× 26 -27.5inch Double-wall Aluminum rim with 12G spokes to choose assembled
1× 48V 25A smart controller
1× Thumb throttle with on/off switch and battery indicator
1× Pair Electric brake levers
1× 1:1 8 magnet intelligent pedal assistant
1x LcD display
1x User installation manual
1x 48v 13AH lithium battery

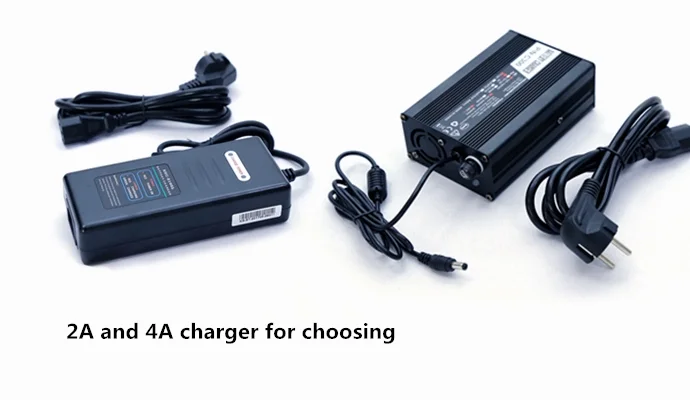

1x 48v 2A charger with charing port
1x key and locking switch
1x battery indicator and base
Products details
The parameter of the 1000W motor
Model ENC481000 |
Voltage 48v Motor power 1000w Type Front motor Design brushless gearless Waterproof grade IP54 speed 25-50km/h Max torque 120kgs Max Efficiency >78% Open size 135mm-142mm Wheel size 16''-29'' Integrate speed sensor option Brake wuxing brake levers N.W <6.2kg |

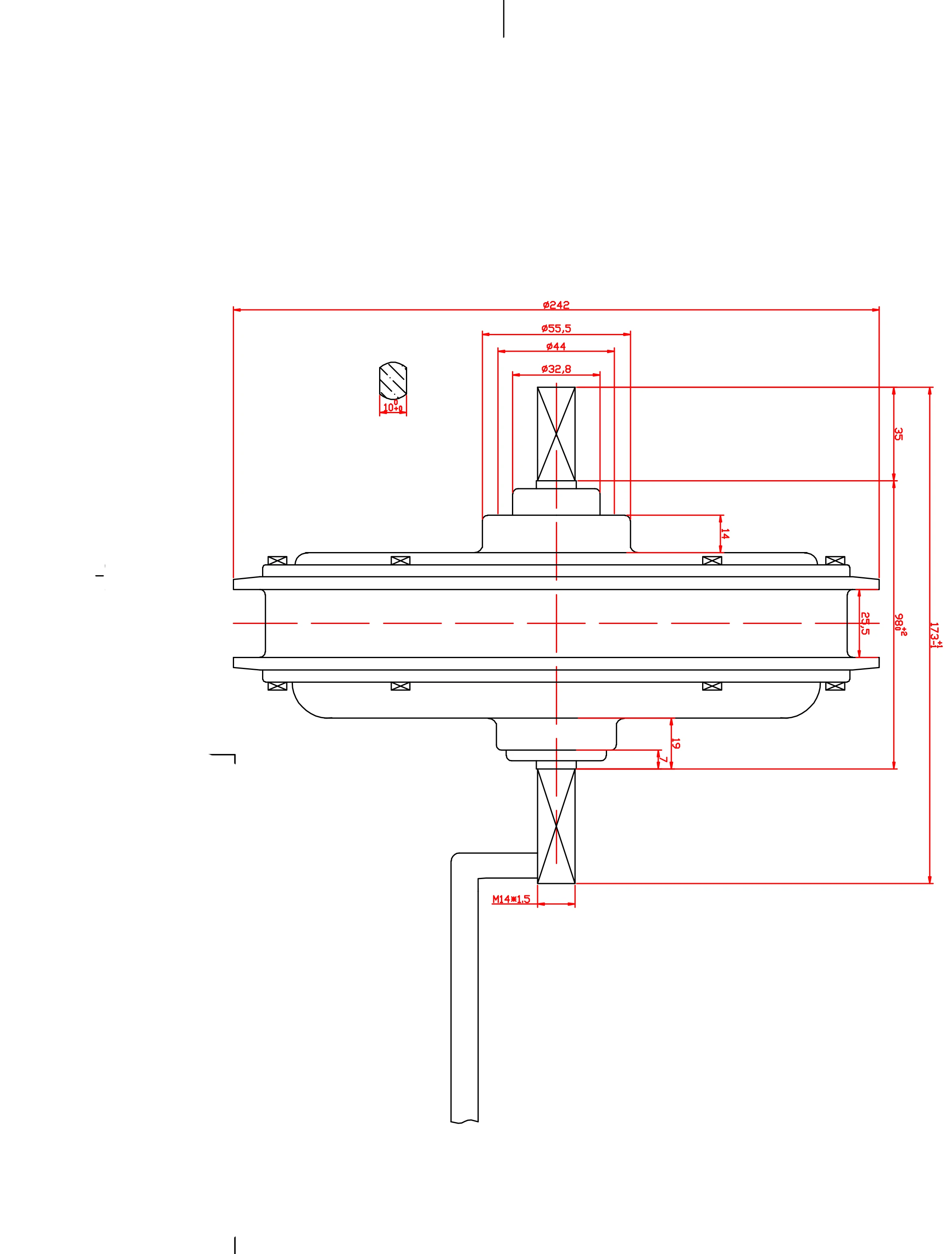

drawing of the 48v 1000w motor

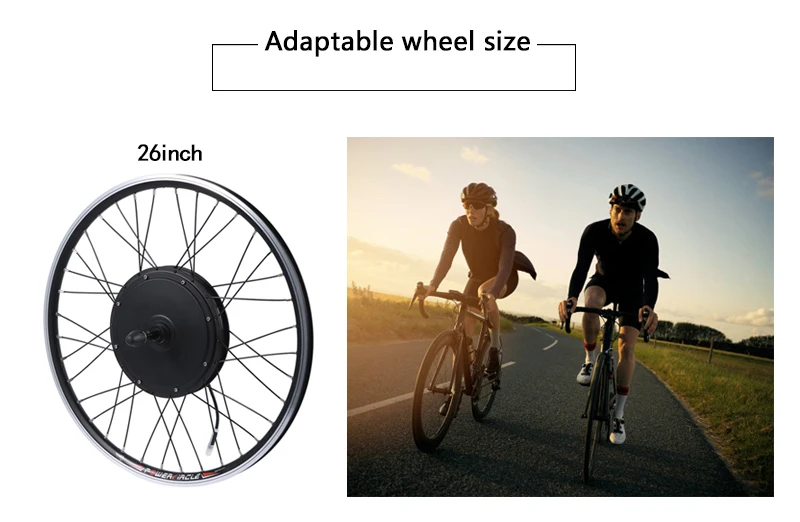

we have 20'' 24'' 26'' 28'' 29'' and 700c wheel to choose , and our wheel with high quality double Alumimium rim with 12G spokes.
48v 25A smart controller
Brushless motor controller works smoothly and silently.
Made of aluminium alloy which can protect the inner circuit and good for heat dissipation to avoid thermal overloading
The wires and interfaces are durable, and ensure low malfunction of long time use
Made of aluminium alloy which can protect the inner circuit and good for heat dissipation to avoid thermal overloading
The wires and interfaces are durable, and ensure low malfunction of long time use
Magnet 8magnet
shell color black PC
lead way three wire system
Standard SM-3Y
shell color black PC
lead way three wire system
Standard SM-3Y
This PAS can be installed in a different location,fitting a variety of models,and need to remove crank set and bottom bracket to install.
48v Thumb throttle with on/off switch and battery indicator
we have thumb and twist throttles to choose

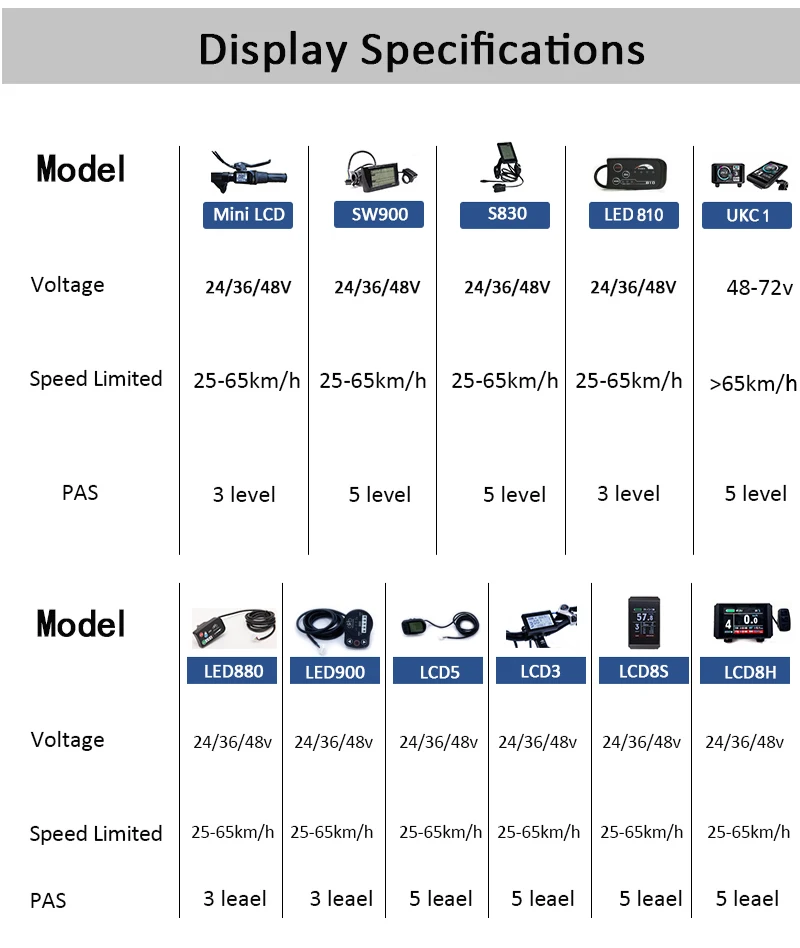

We also can supply other displays
Battery parameter
Model | 48v 13ah battery |
Material | economic cell |
Nominal Voltage | 48V |
Rated Capacity | 13AH |
Max Charge Voltage | 58.8V |
Min Discharge Voltage | 38.2V |
Rated Discharge Current | 35A |
Max Discharge Current | 60A |
Charging Mode | Charging Mode |
Suitable motor | 250w-1000w |

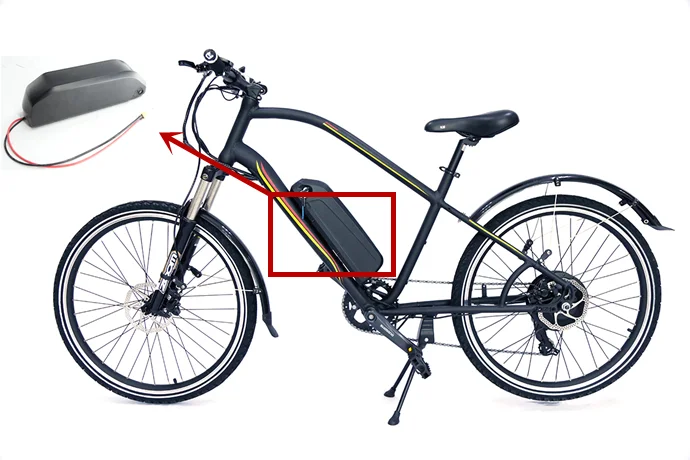

Battery Details
Battry feature advantage caution
Features
1. Classic tiger shark style
2. Waterproof and Solid plastic Case;
3. Lighted battery LED power Indicator;

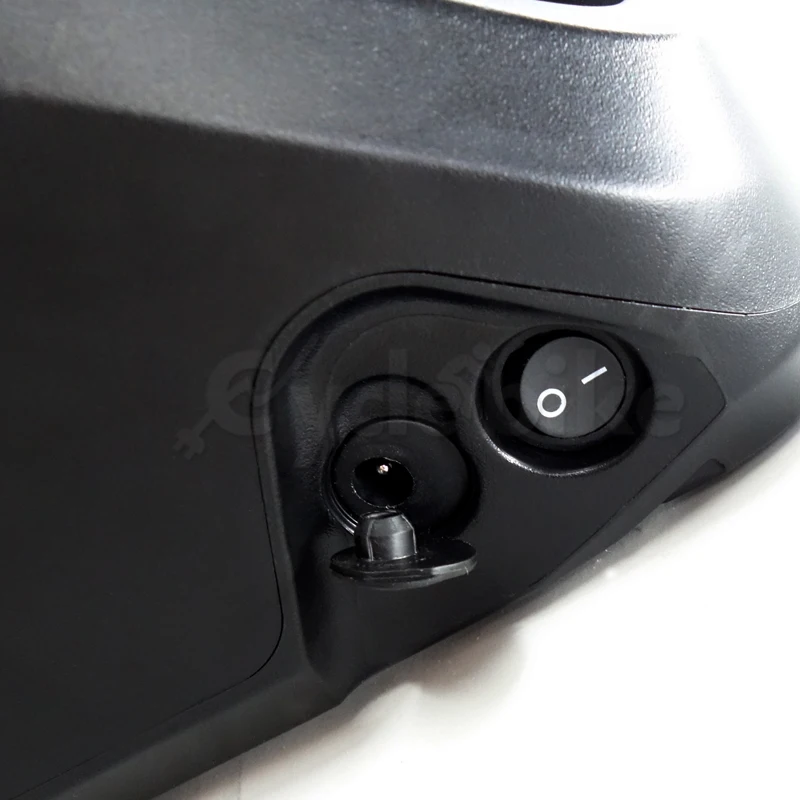

4. Convenient Charge Port;

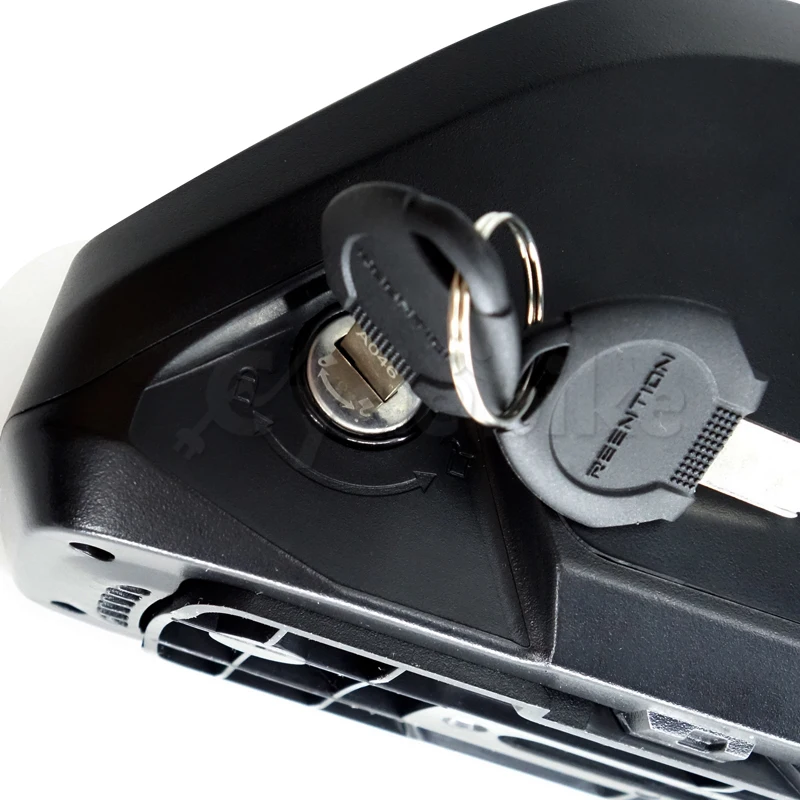

5. Lock with Keys securely locks the mount on bike frame.
ADVANTAGES
1) Environmental friendly;
2) High density of energy;
3) Light weight;
4) Low self-discharge;
5) Low internal resistance;
6) Long cycle life, chargeable up to 1000 times;
7) No memory effect;
8) Doesn't contain Mercury, No fire, No explosion, No leakage;
9) BMS for battery over charge, over discharge, short circuit protection; 100% quality test before shipping
CAUTION
1. Prohibit have the positive pole and the negative pole of the Li-ion Battery input/output in the short-circuit.
2. Prohibit put the Li-ion battery in fire, it must be away from the fire source and the heat source.
3. Prohibit discharge by charging port, on the contrary, it is not allowed too.
4. Charge temperature in the work environment: 0℃- 45℃
Discharge temperature in the work environment:-20℃- 60℃
5. If the charging is not stopped in the provisions time, please stop charging.
1. Classic tiger shark style
2. Waterproof and Solid plastic Case;
3. Lighted battery LED power Indicator;
4. Convenient Charge Port;
5. Lock with Keys securely locks the mount on bike frame.
ADVANTAGES
1) Environmental friendly;
2) High density of energy;
3) Light weight;
4) Low self-discharge;
5) Low internal resistance;
6) Long cycle life, chargeable up to 1000 times;
7) No memory effect;
8) Doesn't contain Mercury, No fire, No explosion, No leakage;
9) BMS for battery over charge, over discharge, short circuit protection; 100% quality test before shipping
CAUTION
1. Prohibit have the positive pole and the negative pole of the Li-ion Battery input/output in the short-circuit.
2. Prohibit put the Li-ion battery in fire, it must be away from the fire source and the heat source.
3. Prohibit discharge by charging port, on the contrary, it is not allowed too.
4. Charge temperature in the work environment: 0℃- 45℃
Discharge temperature in the work environment:-20℃- 60℃
5. If the charging is not stopped in the provisions time, please stop charging.
Application
Packing & Delivery
Shipping
Take the cost-effective way based on your quantity or do as you request. To think what customer needs.
For the sample packge via international express we can. if a bulk order via Sea transporation.
For the sample packge via international express we can. if a bulk order via Sea transporation.
why you choose Ncyclebike,we have 5 advantage.
1.Supply to USA,Europe,and Austrilia
2.Professional Perfomance electric bike parts supplier
3.Supply some parts for free. Delivery fast and on time
4. Customized rigid package for long transport. Great package can be delivered to your customer directly
5. Excellent after-sales service. To think what customers want,all customers centered.
Optional parts
Our company
Our Services
In-sale Services:
1.Try our best to satisfy every customer's reasonable demand;
2.Stay in touch with our clients during installation;
3.Cooperate friendly with client and satisfy our clients with best quality electric bike .
After-sale Services:
1.Provide 2-year guarantee for normal products free;
2.If problems are appeared during use, we will send replacement parts as soon as you send fault parts to check.

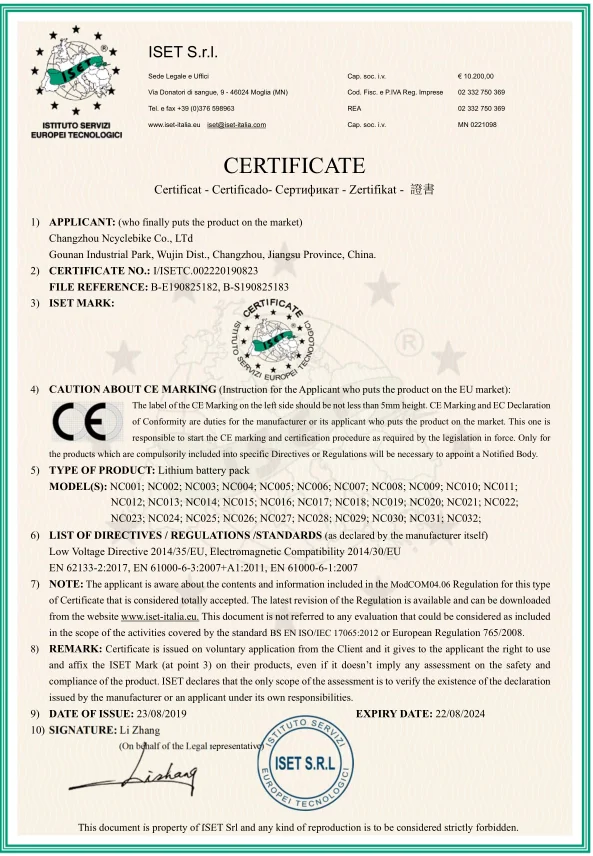

Certification
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: for big order T/T 30% as deposit, and 70% before delivery. fro small order pay by T/T. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
