High quality automatic PCB de-paneling machine, V groove PCB depaneler





Application

The PCB separator is for cutting V-cut PCB,Aluminum PCB, LED strip, fiber panel, etc

For cutting both long and short V cut PCB.

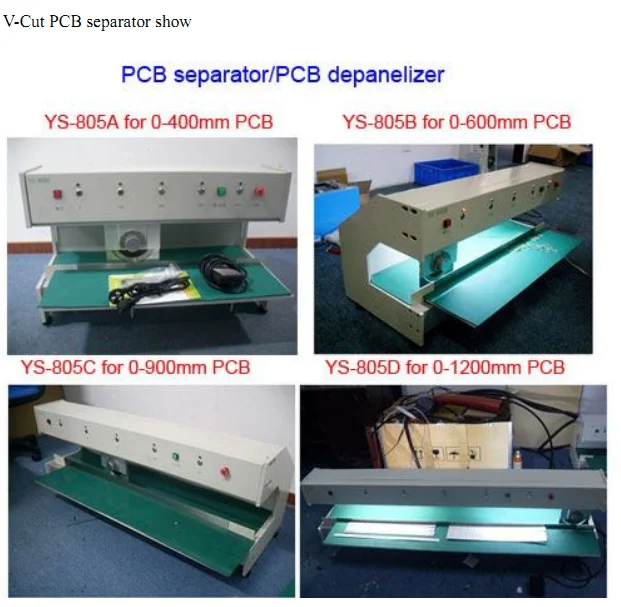

Available PCB length:

YS-805A for cutting Max. 400mm V-cut PCB

YS-805B for cutting Max. 600mm V-cut PCB

YS-805C for cutting Max. 900mm V-cut PCB

YS-805D for cutting Max. 1300mm V-cut PCB



Specification

Model	YS-805A/YS-805B/YS-805C/YS-805D
Max PCB length (mm)	400/600/900/1300
Cutting Speed (mm/s)	300/500
Cutting Thickness (mm)	0.2-3.2mm
Power Supply (V)	110V /220V
Size (mm)	740x550x460/940x550x460/1200x550x460/1530x550x420
Weight (Kg)	55/70/80/90
Blade working life for metal (Year)	0.5
Blade working life for PCB (Year)	1
Guarantee (Year)	3
Delivery (Day)	1-2days after receiving payment
Min. Order (Set)	1
Ability (Set/month)	300



Features

1.Full automation,stable performance,easy operation,high safety and simple maintainence.



2.Uniquie shape,practical operation,and gorgeous appearance.



3.Cutting principle is based on Motor data transfer, blade moving to cut PCB.



4.Suitable for all V-CUT PCB board. PCB thickness:0.2-3.2mm, PCB v-cut thickness:0.2-2.0mm.



5.During cutting,it can effectively decrease physical strength to avoid welding spot cracking.



6.PCB remains still during cutting, thus to ensure personal safety.



7.Lower linear blade is used to fix the PCB v-cut, and upper circular blade moves to separate PCB.



Our advantage

1. A professional manufacturer with over 10 years’ experience, quality is guaranteed.

2. Original manufacturer of V cut PCB separator, Factory price.

3. Experienced PCB separator experts, focusing on innovation and research.

4. Responsible sales and after-sales team, fast and professional technical guides.







Shenzhen Robotsung Automation Technology Co., Ltd was incorporated in January 2001, now has offices in Shenzhen, Suzhou, Guangzhou, Chongqing and Qingdao, placed a leading role in China market for the automation equipment. Our products including Full automatic and semi automatic Screwdriver Machine, PCB cutting machine, SMD components counter, pipe cutting machine, Glue Dispenser and paste mixer.



Our company has a team of experienced system engineers, advanced programmers, circuit designers, precision machinery designers, structural engineers and mechatronics engineers. They are engaged in researching and developing the software and hardware of industry control system, have committed to the development, production, sales and service of new automation system and automation equipment. Now we have made outstanding achievement in CNC technology, automation control, equipment intelligent, remote monitoring and industry data network development.

To ensure quality, we have more than 15 QC members to carry out strict inspection at each stage: incoming inspection (IQC), in-process inspection (IPQC) and final inspection (FQC). We have also introduced 10 sets of inspection machines, which allow us to make products meet international standards.
