Микроперистальтический насос JIHPUMP с двигателем постоянного тока 3 в 6 BPT для эфирных масел и

Описание и отзывы

Характеристики

JIHPUMP Micro Peristaltic Pump with 3V  6V DC motor BPT Tubing for Essential Oil and Analysis Instrument

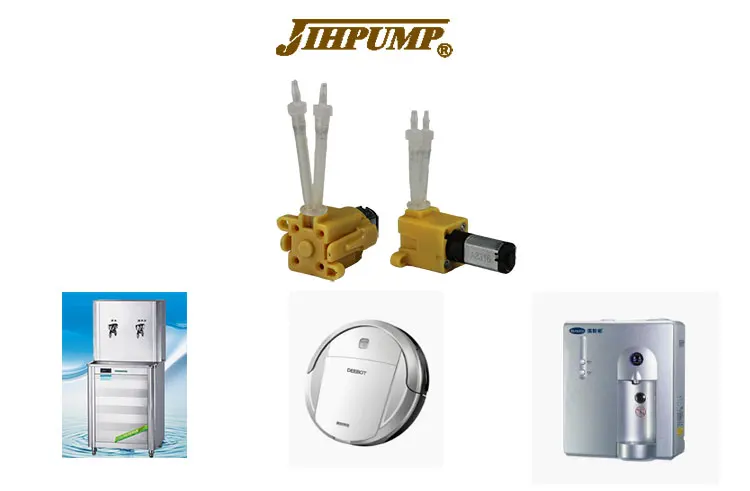

Applications

1. Appliances: water dispanser,sweepers, water purification;

2. Medical usages: for liquid transfer, sampling, dispensing;

3. Chemical engineering usages: sample analysis, dispensing liquid;

4. Laboratory use: liquid dispensing, extract liquid;

5. Environmental usages: transferring and sampling sewage;

6. Factory usages: for liquid dispensing;

7. Family usages: watering flower, garden irrigation.





WX2/ZL Flow rate(g/min, medium: clean water)



WX2/ZL
Tube type/Speed	TPE tube	Fluorine tube (F)	BPT tube
	ID1.6*δ0.8
3V-180rpm	1.6	1.4	0.8
3.7V-300rpm	2.6	2.8	1.6
WX2/ZLX
Tube type/Speed	TPE tube	Fluorine tube (F)	BPT tube
	ID1.6*δ0.8
6V-290rpm	1.2~2.7	1~2.4	0.6~1.7





Features



A micro-flow peristaltic pump for micro-flow delivery;

Compact structure, small size, fine workmanship;

Light weight, the minimum weight is only 10g;

Low noise, suitable for use with small household appliances;

Imported hose for adaptable to strong corrosion;

High-speed micro motor for gap operation;

The pump body has its own mounting holes.



Parameters



Pump Mode	WX2/ZL(Normal DC Motor) WX2/ZLX(DC Planetary Motor)
Power	DC 3V,≥0.3A, ≤1W
Weight	10g
Functions	On/Off, Cw/Ccw (change wiring order),Speed up/down(with DC speed control board)

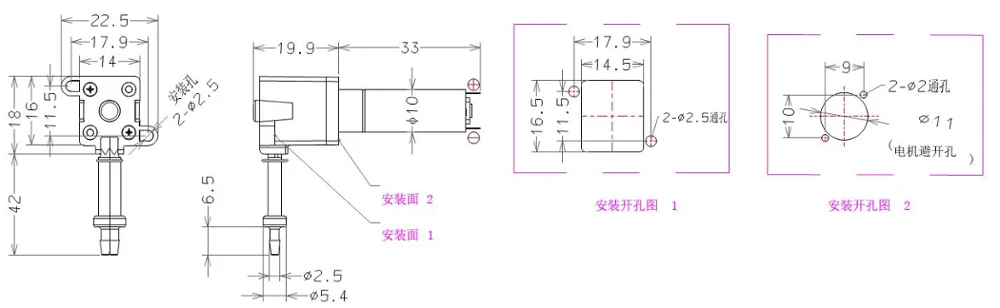

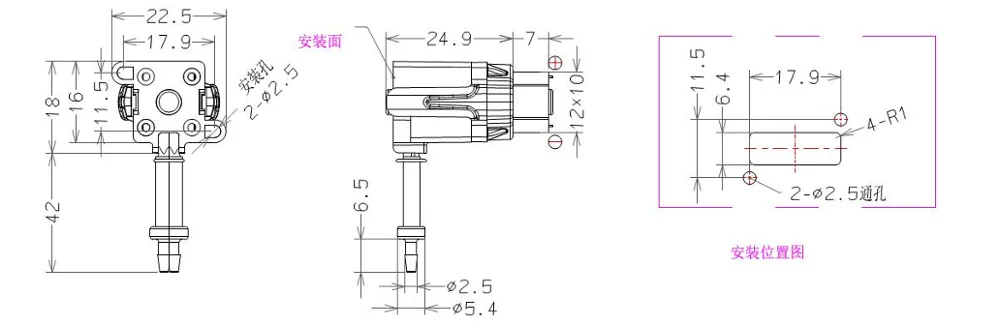

Dimensions





WX2/ZL





WX2/ZLX
