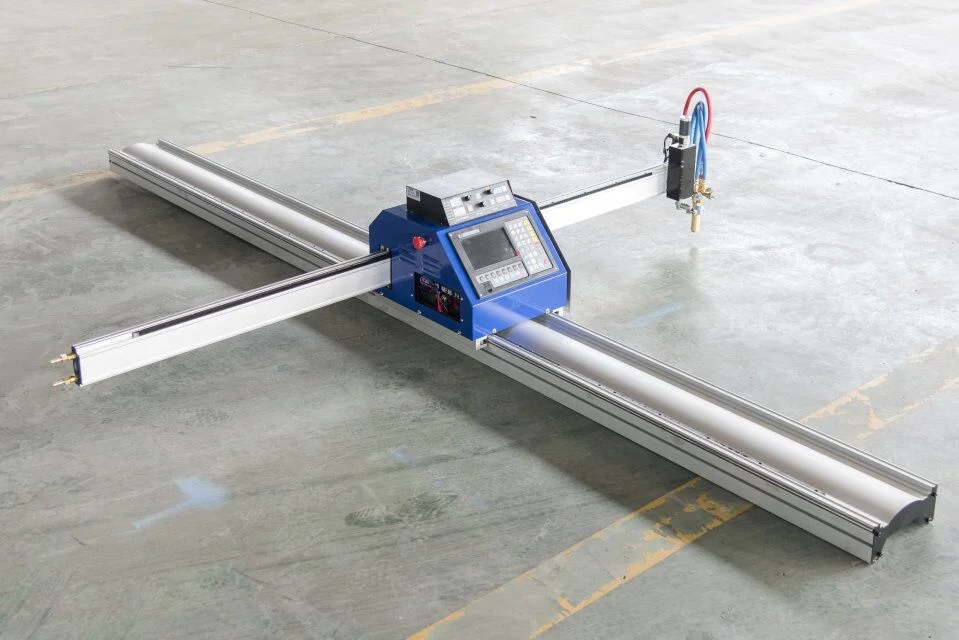

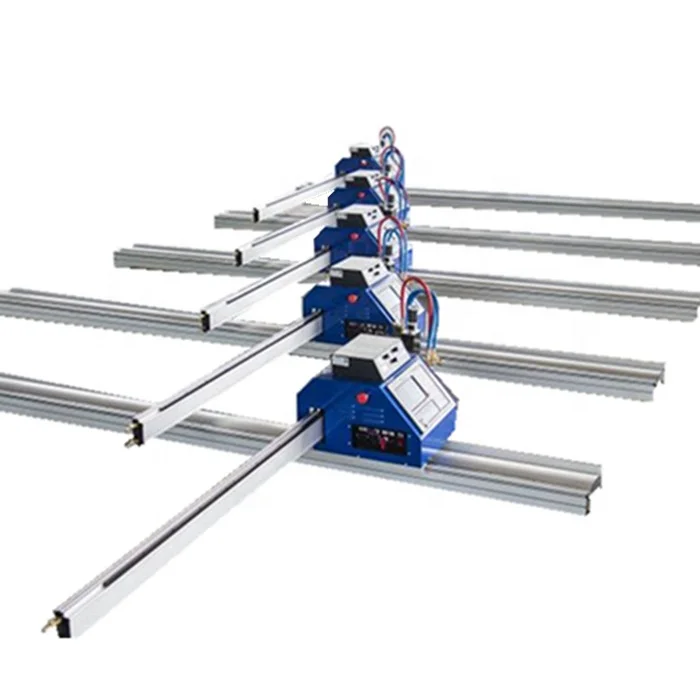

CNC плазменный Мини резак плоттер режущий станок плазменная резка листового металла в
- Категории: CNC Plasma Cutters >>>
- Поставщик: Shandong,Jiaxin,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
No. | Technical specification | ||||||
1 | Model | JX-1525 | JX-1530 | JX-1755 | |||
2 | Machine voltage | AC 220±10%VAC 50/60Hz | |||||
3 | Cutting mode | plasma and O2/C3H8 or C2H2 | |||||
4 | Effective cutting range(mm) | 1500*2500 | 1500*3000 | 1700*5500 | |||
5 | Plasma cutting gas | compressed air | |||||
6 | Flame cutting gas | Oxygen+ propane or acetylene | |||||
7 | Cross beam width*guide rail length (mm) | 2000*3000mm | 2000*3500 | 2200*6000 | |||
8 | Cutting speed mm/min | 50-10000mm/min | |||||
9 | Flame Cutting thickness (mm) | 5-200 (Oxygen + acetylene or propane) | |||||
10 | Plasma Cutting thickness (mm) | 2-30mm(according to your plasma power source） | |||||
11 | Move precision | ±0.2mm/m | |||||
12 | Torch | Flame, electric height adjustment(±60mm) | |||||
13 | Cutting system | FL2100 control system | |||||
14 | Host weight(kg) | 19 | |||||
15 | Total weight(kg) | 100 | 120 | 150 | |||
16 | Type of gas | antylene or propane | |||||
17 | Emergency stop | Yes | |||||
18 | Working temperature | -5~45℃ | |||||
19 | Power | 8.5kw | |||||
20 | Plasma power | 63A,100A,120A,160A OR 200A According to cutting thickness | |||||
21 | Arc | Untouched arc striking | |||||
22 | Processing Materials | Iron, steel aluminum sheets, galvanized sheets | |||||

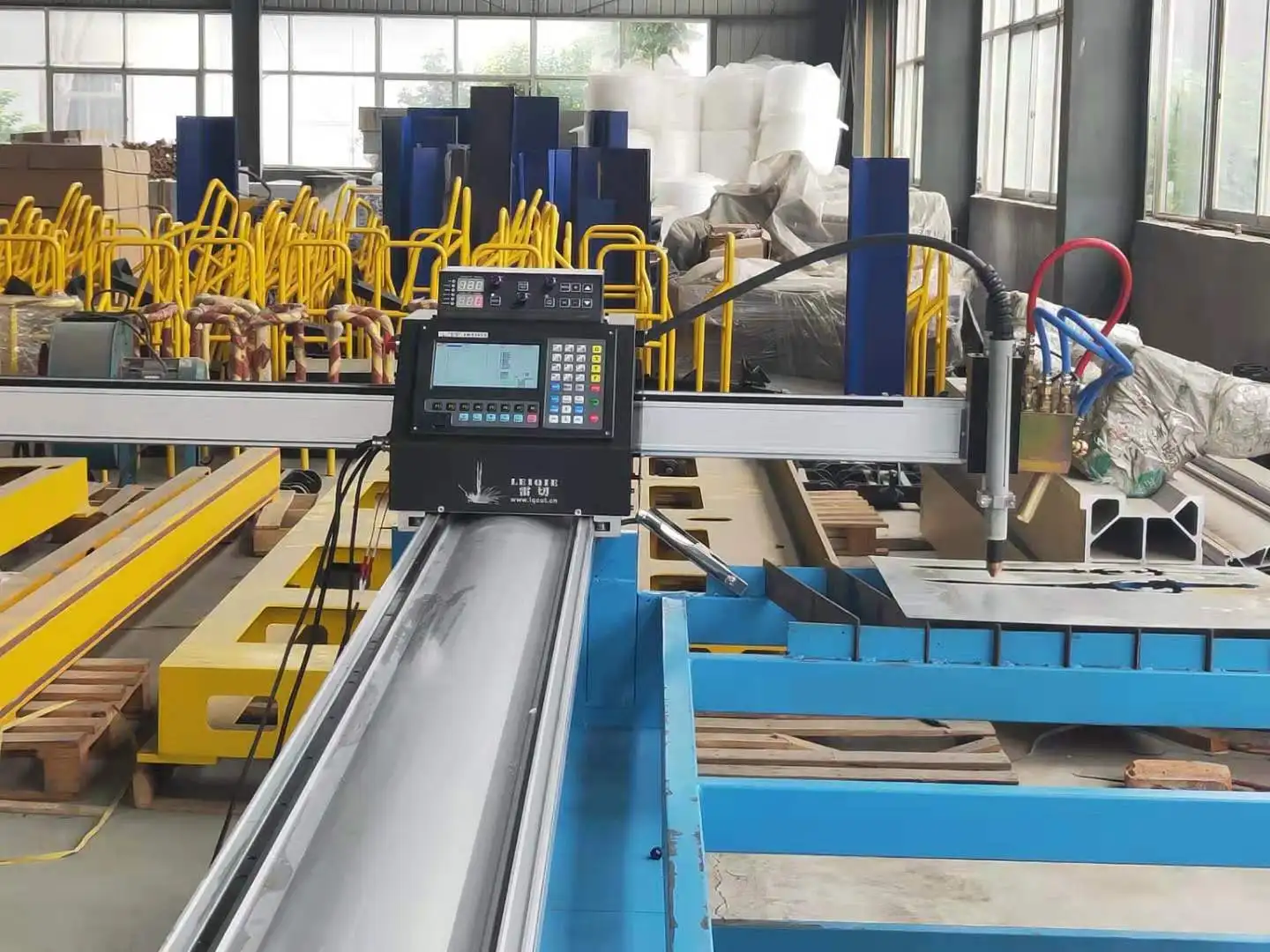

Detailed Images

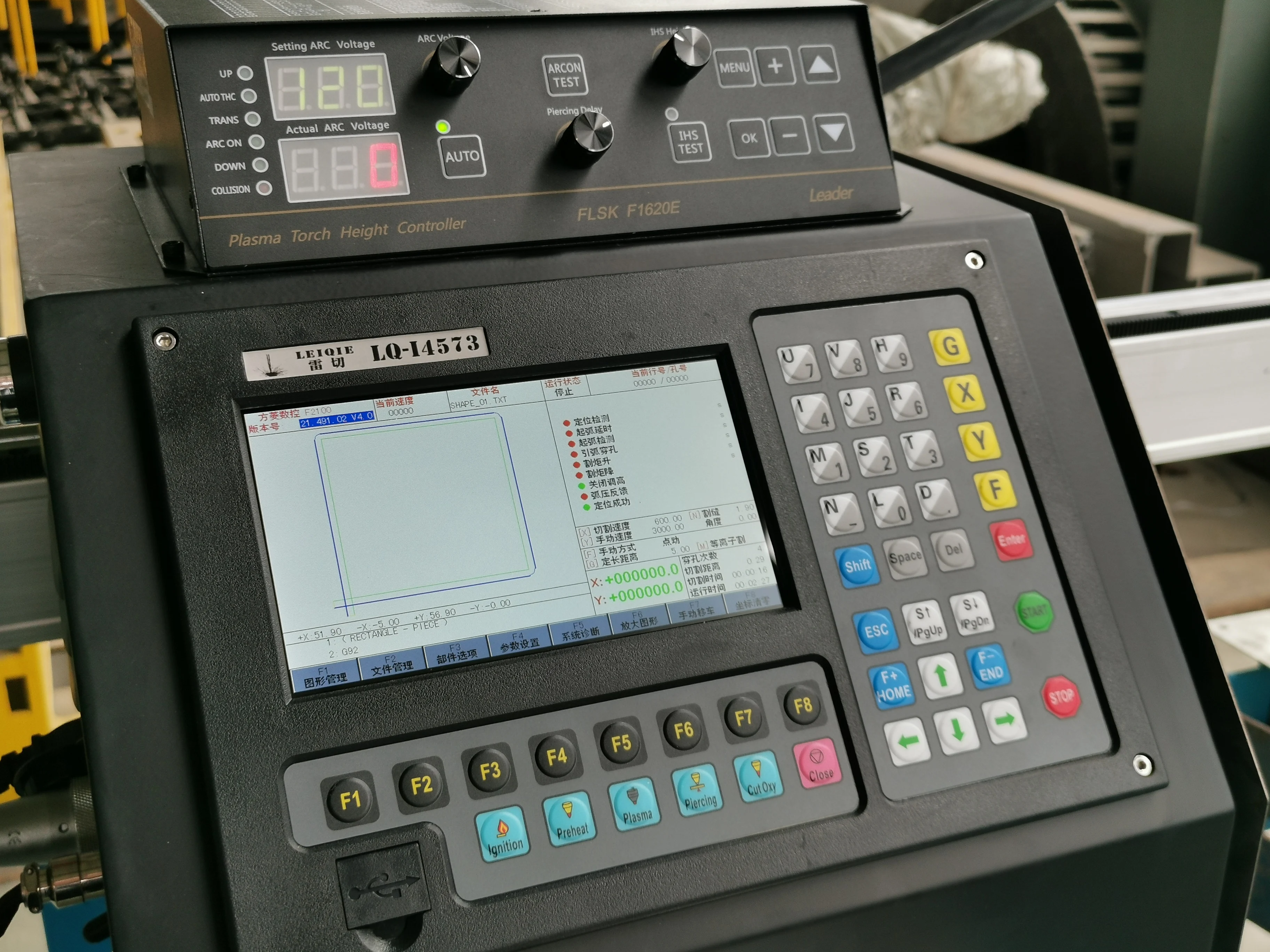

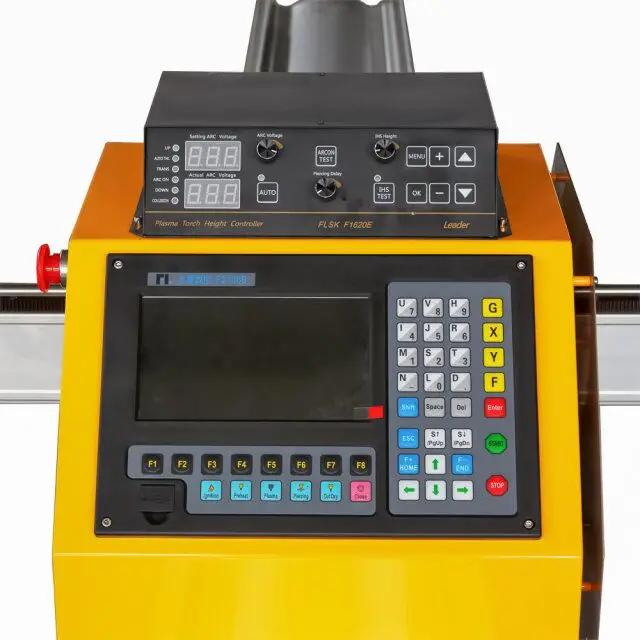

control system
Graphic display function
English interface and other 18 languages
English interface and other 18 languages
Excellent graph library ,49 graphics
steel plate correction function
steel plate correction function
Kerf can be automatically compensated
Cutting can continue when power fails
Continuous return can be done
Positioning and cutting can be done randomly
Off-line cutting can be done:
Online upgrading function

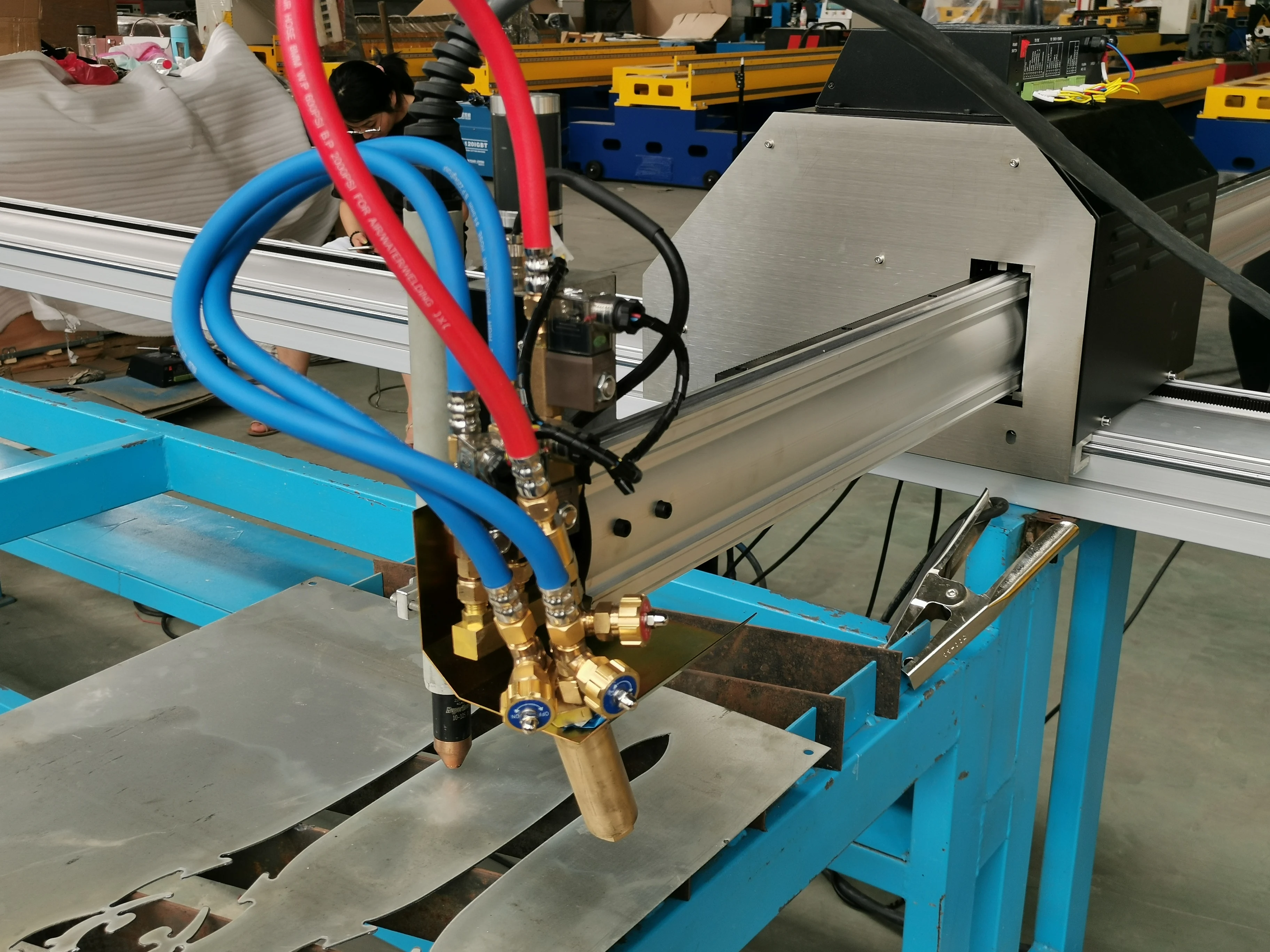

cutting torch
Flame cutting torch is fixed, plasma cutting torch is together with the plasma power source.
Flame torch and plasma torch could be changed very easily.
Flame torch and plasma torch could be changed very easily.
Fangling brand F1620 THC(torch height control)
If metal sheets are rugged, should use THC to adjust distance from torch to metal surface.
X.Y axis Guide:
16 pcs bearings, 8pcs X axis and 8pcs for Y axis. Much more steady.

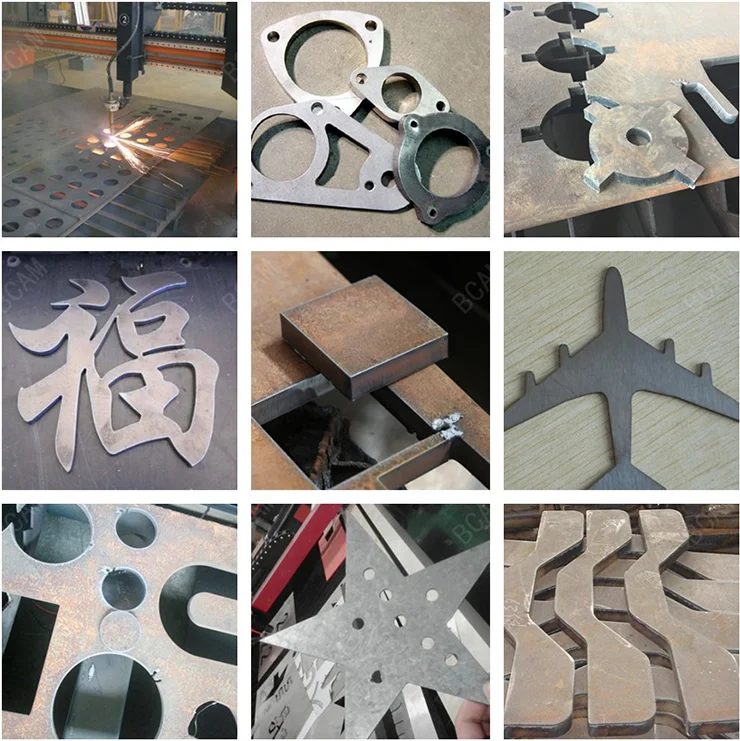

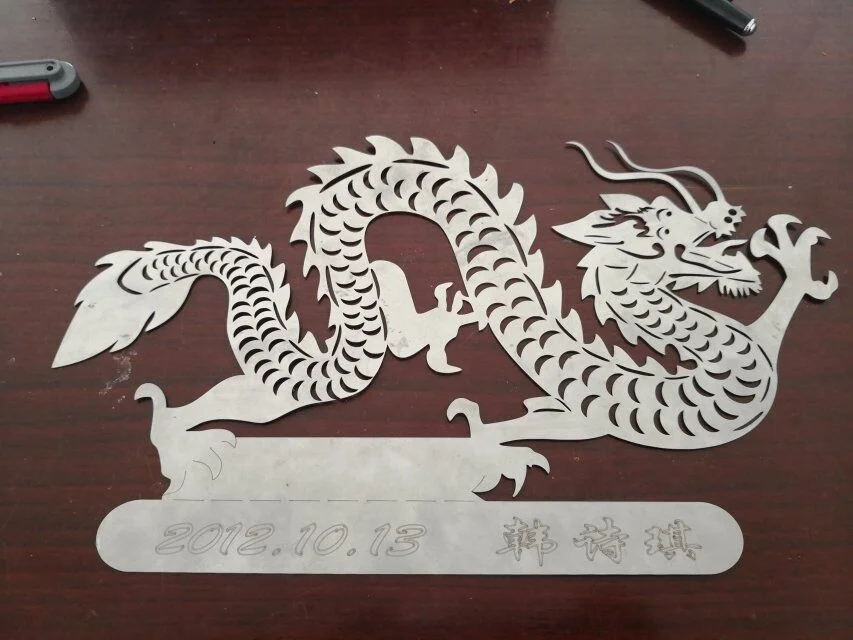

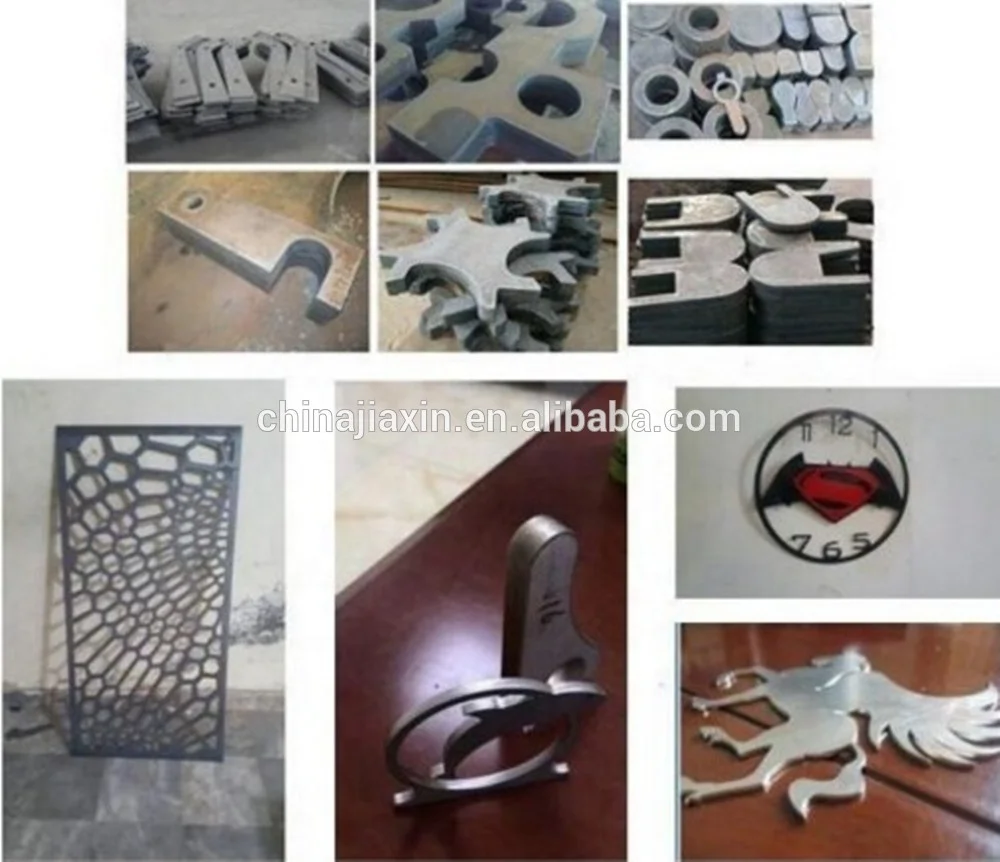

cutting example
Certifications
Packing & Delivery
Company Profile
1.We provide you the friendly English User manual and Testing Video for free.
2.24 hours technical support by email or calling.
2.24 hours technical support by email or calling.
3.12 Months warranty Quality guarantee and Charge free technical support forever.
4.Free training to make sure you master the operating of automatic stirrup bending machine, not including programming training.
4.Free training to make sure you master the operating of automatic stirrup bending machine, not including programming training.
5.Videos of operating the machine are available.

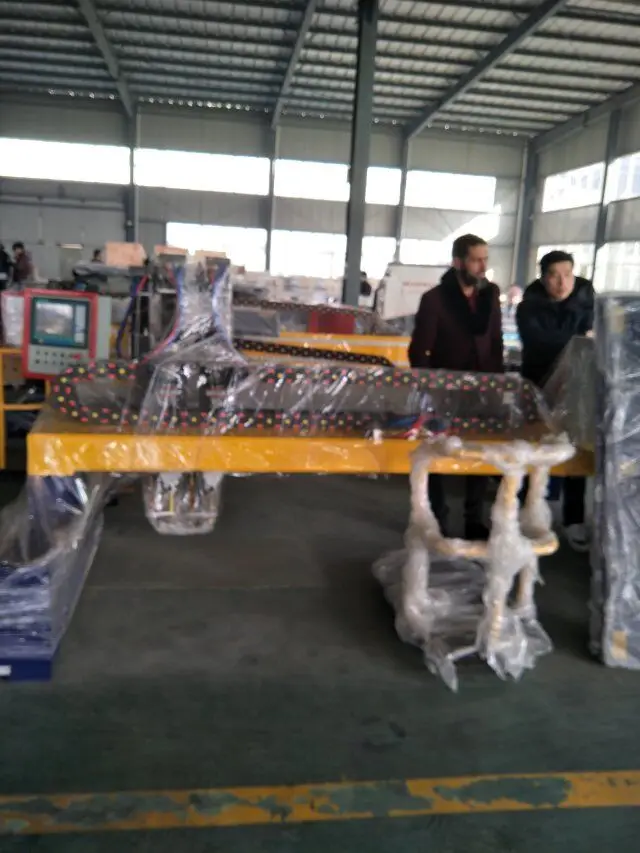

Customer Photos
FAQ
1.Q: What's the delivery time?
A: 10-15 working days to delivery port.
A: 10-15 working days to delivery port.
2.Q: What's the usually delivery terms?
A: FOB, CNF, CIF, Exworks will be OK.
A: FOB, CNF, CIF, Exworks will be OK.
3.Q: What's the MOQ?
A: 1 set.
A: 1 set.
4.Q: What’s the payment term?
A: We accept T/T, L/C or Cash.
A: We accept T/T, L/C or Cash.
5.Q: What's your delivery port?
A: Usually Qingdao port, Shanghai port.
A: Usually Qingdao port, Shanghai port.
6.Q: What's the packing?
A: Iron Pallet and Plywood cases or carton or depending on your requires. 7.Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.
A: Iron Pallet and Plywood cases or carton or depending on your requires. 7.Q: Can I change the motor to my local voltage and frequency, Is thereany extra charge?
A: Yes, we can supply motor with frequency and voltage according to local standard. Such as 220V/380V/410V/415V/440V, and 50HZ/60HZ without extra charge.
8.Q: Can you place OEM orders?
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information
A: Yes,OEM orders are acceptable. We can manufacture machines according to your requirement with your design,logo,color,materials or brand information
9.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
A:Our factory is located in Jining City, Shandong Province, China, about 2 hours from Beijing, 3 hours from Shanghai.
