Многофункциональный упаковочный пакет Qingdao Bostar упаковочная машина для лапши быстрого приготовления с дозатором саше
- Категории: Многофункциональные упаковочные машины >>>
- Поставщик: Qingdao,Bostar,Packing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Application
We can also design total auto packing solution including multi-pack after single block packing, to arrange the packed product automatically and pack 4, 5, 6, 7, 8 bags of noodles into one bag.
Professional instant noodle packing solution supplier for more than 20 years, solve all your problem about instant noodle packing, provide before and after sale service and best price.
Model | BOSS 450/120 | BOSS 450/132 | BOSS 590/120 | BOSS 590/150 |
Packing film size(mm) | Max450 | Max450 | Max590 | Max590 |
Packing speed(packs/min) | 20-180 | 20-160 | 20-130 | 20-130 |
Package length (mm) | 90-370 | 90-450 | 90-370 | 100-450 |
Product width (mm) | 20-140 | 20-140 | 40-220 | 40-220 |
Product height (mm) | 5-60 | 15-70 | 5-60 | 35-75 |
Power (kw) | 3.6 | 3.6 | 4 | 4 |
Dimension L*W*H (mm) | 4500*1050*1700 | 4500*1050*1700 | 4500*1150*1700 | 4500*1150*1700 |
Weight (kg) | 1000 | 1000 | 1100 | 1100 |
Voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |

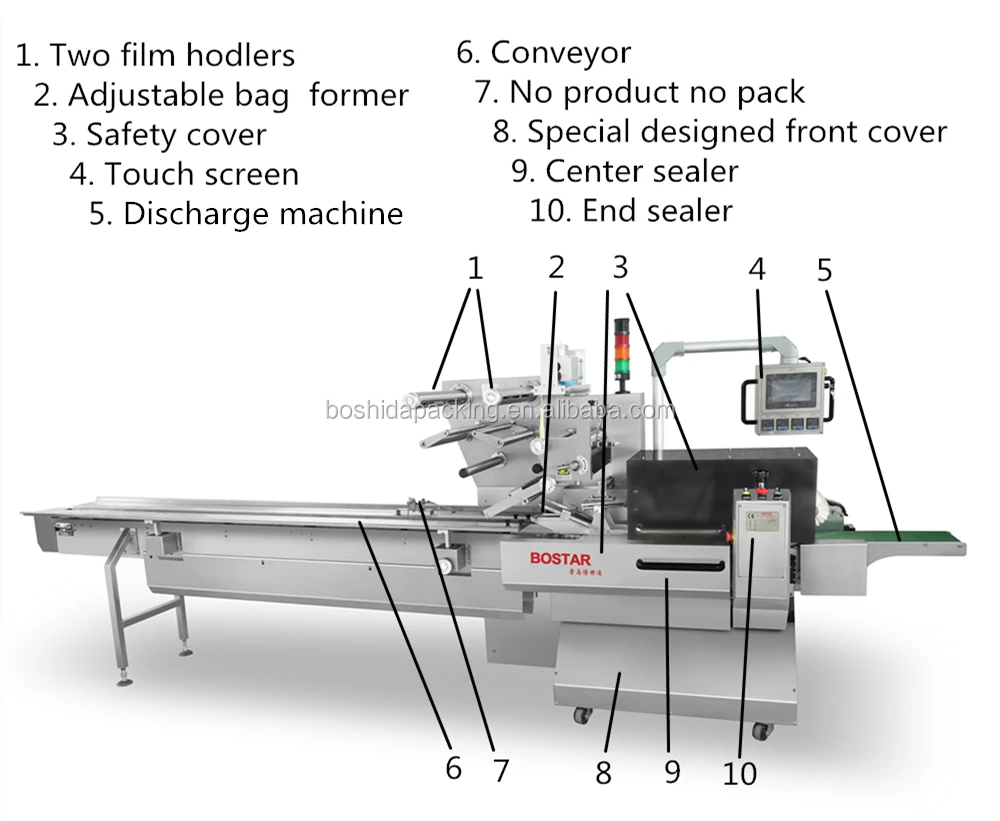

Main Features
2) One set of rotary end sealing jaw (with straight or zig-zag cutter and cycle stop at open position function)
3) Adjustable end sealing, can adjust according to the products height.
4) Panasonic PLC Program Controller.
5) PID Control Temperature, making the seal at a low temperature to raise the packing speed and reduce the film burning.
6) High sensitivity photoelectric eye color tracking, numerical input of cutting sealing position for extra accuracy.
7) 7' colorful touch screen with 10 kinds of product packing data memories for easy data setting and change over.
8) CE Certification. Adopted multiple security protective measures to ensure the safety production.
9) 12mm thickness hard steel board and the total weight is about 1000kg. So in the high speed, the machine can also have a stable running situation and long running life.

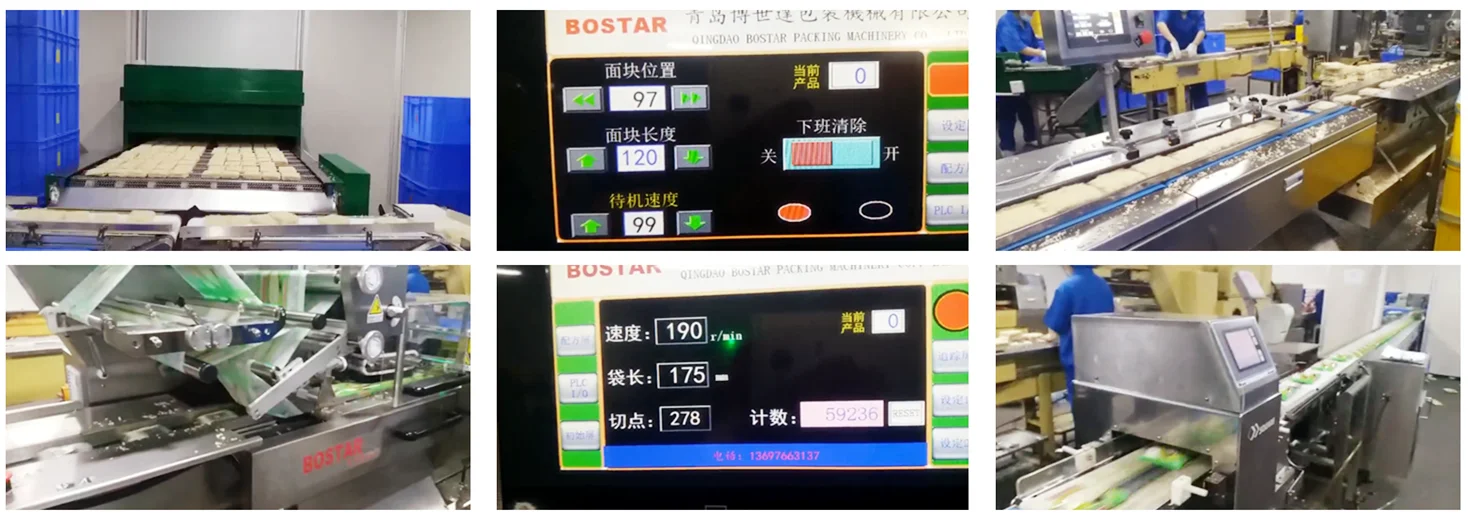

Customer's factory
Three stage auto feeder, check the position of instant noodle block and arrange the line up automatically.
Equip film auto connecting device, when one roll of film using up, the second roll will connect at the end of first roll automatically, make sure continue production.
Equip dispenser machine for seasoning sachet, and equip metal detecting machine and weight detecting machine after single bag packing.
Equip film auto connecting device, when one roll of film using up, the second roll will connect at the end of first roll automatically, make sure continue production.
Equip dispenser machine for seasoning sachet, and equip metal detecting machine and weight detecting machine after single bag packing.

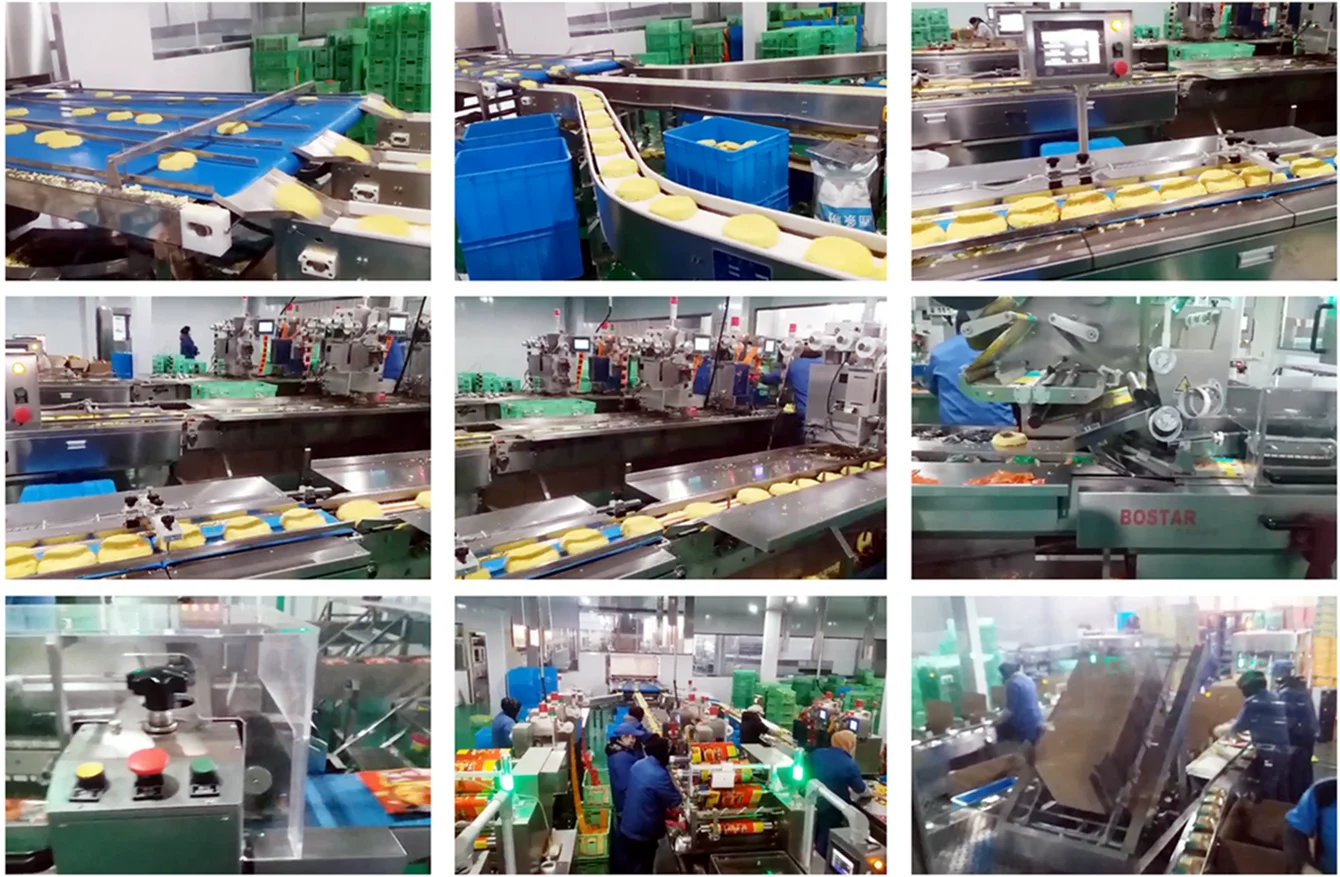

CUSTOMER'S FACTORY 1 : One drag two auto packing line
After output of production line, the instant noodle will be divided into two parts and go into two conveyor on both sides. One packing line use green film and dispenser machine for one kind of taste, another packing line use yellow film and dispenser machine for another kind of taste, so this two packing line will produce two taste of instant noodle at one time.
Green bag instant noodle packing line
Yellow bag instant noodle packing line
Picture of packed product of each packing line

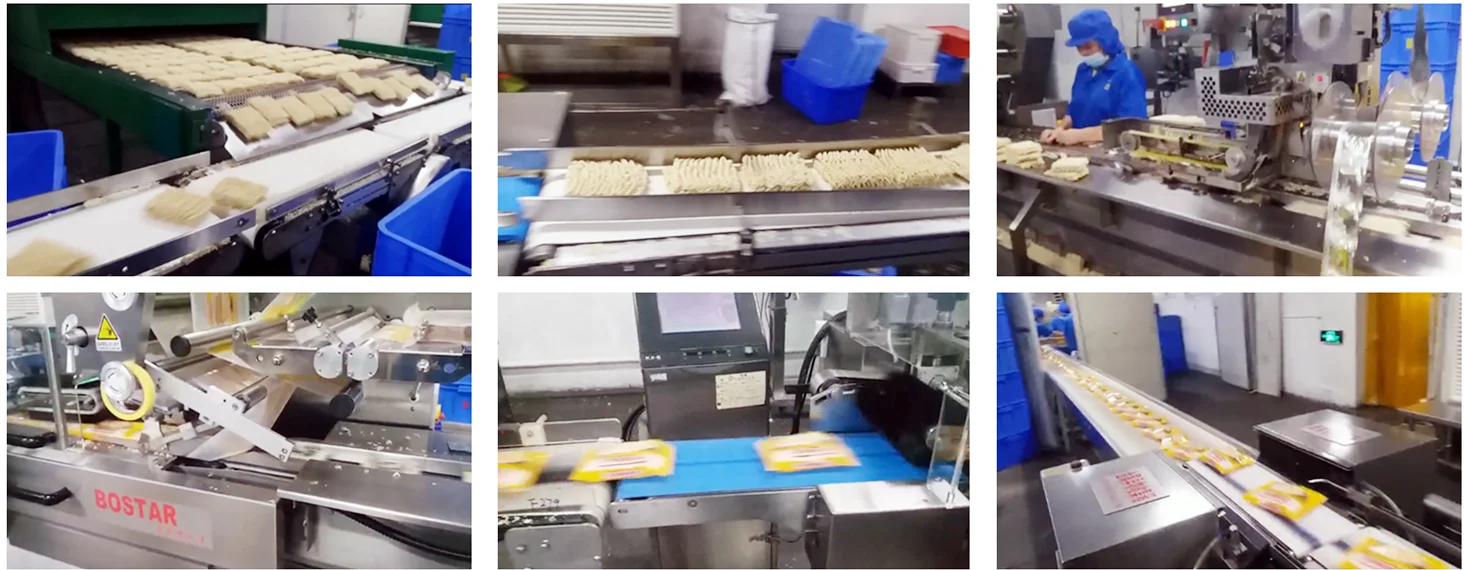

CUSTOMER'S FACTORY 2 : One drag three auto packing line
After output of production line, the instant noodle will be divided into three parts and go into three conveyor on three direction. This is one drag three auto packing line, usually design for large capacity production line. Packing speed for each packing machine is able to reach 200 bags per minute.

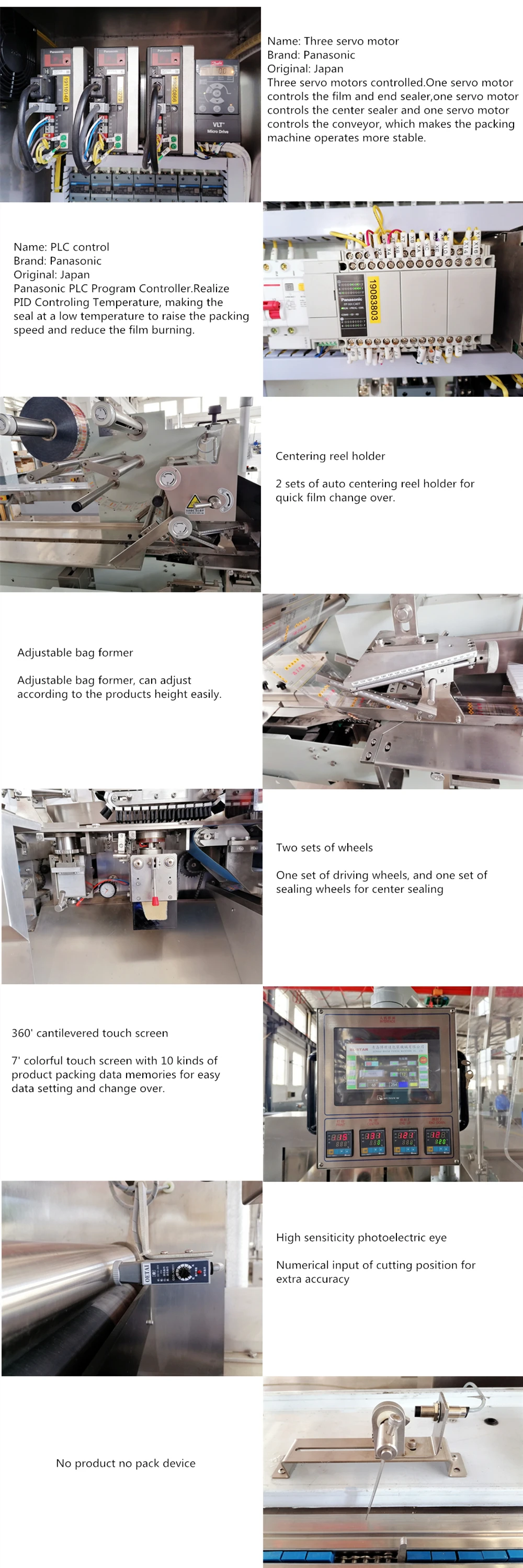

Detailed Images
Manufacture
We have 20000 square metes factory, more than 100 employees, every one of BOSTAR packing machine is customized as characteristic of product and customer's requirement. Equip best quality electric element, process spare part by manual and machine, precise assembly, and after many times of debugging and running, to be a finished and perfect set of packing machine.
Packing & Delivery
For packaging, we will fix the easily movable parts first with nylon cable ties. Cover with protection film, then cover with stretching film. Then cover with international standard wooden case.
If standard model of packing machine and have in stock, will leave factory in 3 days after receive payment.
If customizes special packing machine, will leave factory in 30 days after receive payment.
If standard model of packing machine and have in stock, will leave factory in 3 days after receive payment.
If customizes special packing machine, will leave factory in 30 days after receive payment.
Our Strength
☆Specializes in the R&D and production of packaging machinery in the food and daily necessities industries, such as bakery products, instant noodles, biscuits, solid products, seafood packaging and etc.
☆Self-owned brand with market competitiveness, and launched a series of products such as heat shrink packaging machine, automatic feeder, automatic film-connection, full system packing line and products packaging without tray to meet the needs of different customers.
☆Complete independent research, processing, sales and after-sales service system, and has a team of high-quality young and highly innovative team spirit.
☆Moreover, overseas after-sales service engineers will provide installation and training instruction as per customers' requirement.
☆Self-owned brand with market competitiveness, and launched a series of products such as heat shrink packaging machine, automatic feeder, automatic film-connection, full system packing line and products packaging without tray to meet the needs of different customers.
☆Complete independent research, processing, sales and after-sales service system, and has a team of high-quality young and highly innovative team spirit.
☆Moreover, overseas after-sales service engineers will provide installation and training instruction as per customers' requirement.
Our Service
Pre-sales service
★Inquiry and consulting support
★Sample testing support
★View our factory
After-sales service
★Training how to install the machine
★Training how to use the machine
★Engineers available to service machinery overseas
★Inquiry and consulting support
★Sample testing support
★View our factory
After-sales service
★Training how to install the machine
★Training how to use the machine
★Engineers available to service machinery overseas
Our Factory
☆Sheet metal factory, manufacture and machining the spare parts by ourselves. We have CNC lathe, CNC bending machine, CNC grinding machine, CNC turning and milling machining center and many other automatic machining machine.
☆We have a warehouse where spare parts and various other materials are stored in different categories for easily pick up and store.
☆We have two assembly workshops, assembly conveyor and main frame of packing machine.
☆Two debugging workshops, workers will debug the finished assembly machine here and adjust according to customer's requirement.
☆Finished workshop, after debugging, packing machine will be here, run for several days to make sure no failure.
☆We have a warehouse where spare parts and various other materials are stored in different categories for easily pick up and store.
☆We have two assembly workshops, assembly conveyor and main frame of packing machine.
☆Two debugging workshops, workers will debug the finished assembly machine here and adjust according to customer's requirement.
☆Finished workshop, after debugging, packing machine will be here, run for several days to make sure no failure.
A: We are manufacturer factory professional in manufacturing the flow/horizontal/pillow packing machine with the design, research, development, customization and innovation according to market change and customer demand.
We warmly welcome you to visit our factory, and we will show you around our factory, including sheet metal workshop, machining workshop, assembly workshop, debugging workshop and so on. You will see the whole process of the manufacture of our packing machine, as well as the packing process of any product you want.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. When order large quantity of machines, or customized machine according to special product, it will take 10-20 days.
We will do our best to meet our customers' requirements.
Q: Do you provide overseas after-sales services ? is it free or extra ?
A: 1. For technical training on adjustment and operation of the equipments at abroad, the seller shall send technicians to the buyer's factory while the buyer shall be charged for such service cost including round-air ticket, boarding & lodgings, visa fee as well as daily service fee of USD100.00.
2. For damaged spare parts resulting from quality problem, the seller shall supply the buyer free of charge for replacements within the guaranty period. Otherwise, the buyer shall buy parts at own expenses.
Q: What is your terms of payment ?
A: Payment term: 50% of total value to be paid by T/T as down payment, and the 50% balance payment to be paid prior before shipment.
Of course, we will based on our customers' available payment type, it can be discussed according tot the special condition.
1. With more than twenty years expertise and technical experience, do better in this flow packing filed and get our customers' great satisfaction.
2. Embrace the innovation customization and flexibility.
3. Every cent you spent on purchasing our packing machine will be worthy.
4. Provide the perfect packing solution based on the you need.
5. Extremely high quality of machine and professional technical after-sales service.
2. Embrace the innovation customization and flexibility.
3. Every cent you spent on purchasing our packing machine will be worthy.
4. Provide the perfect packing solution based on the you need.
5. Extremely high quality of machine and professional technical after-sales service.
