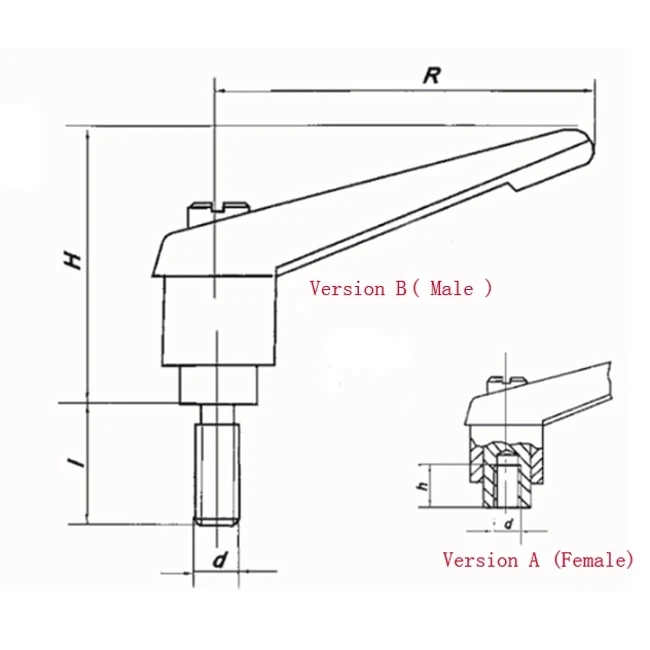

R | d | L | H | h | h1 | d1 |
50 | M5/M6 | 10-40 | 40 | 10 | 8 | 10 |
63 | M8 | 15-40 | 43 | 14 | 10 | 13 |
80 | M10 | 15-50 | 55 | 18 | 12 | 16 |
95 | M12 | 15-50 | 63 | 20 | 15 | 19 |
114 | M16 | 20-60 | 75 | 25 | 18 | 23 |

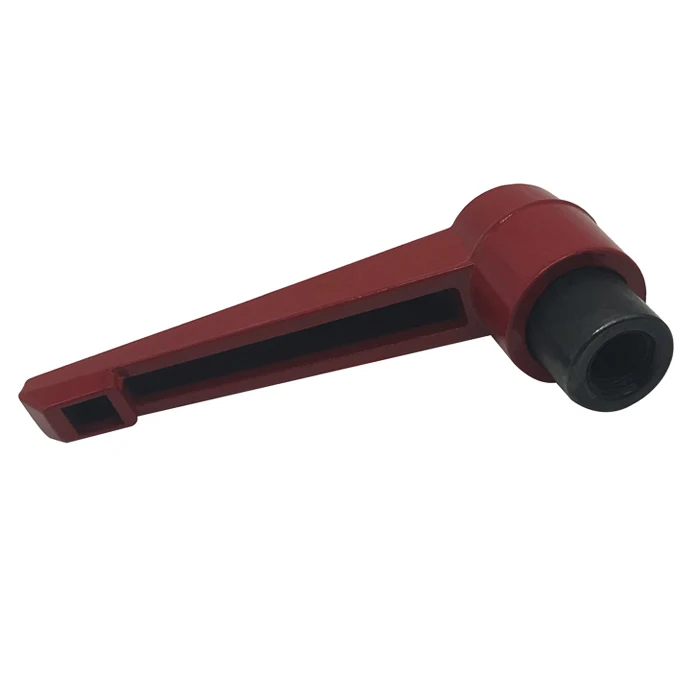

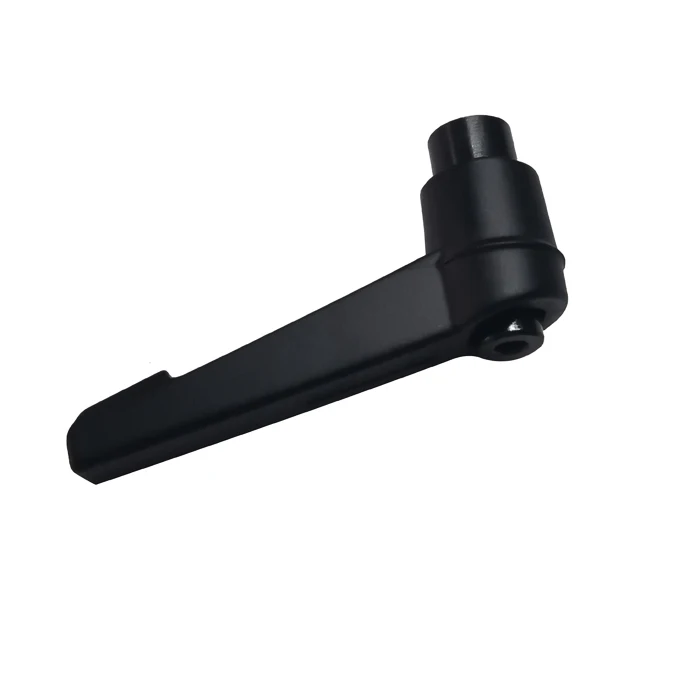

Version A ( Female ) : the thread size and R
The thread sizes : M6, M8, M10, M12, M16
R : 50mm, 63mm, 80mm, 95mm, 114mm

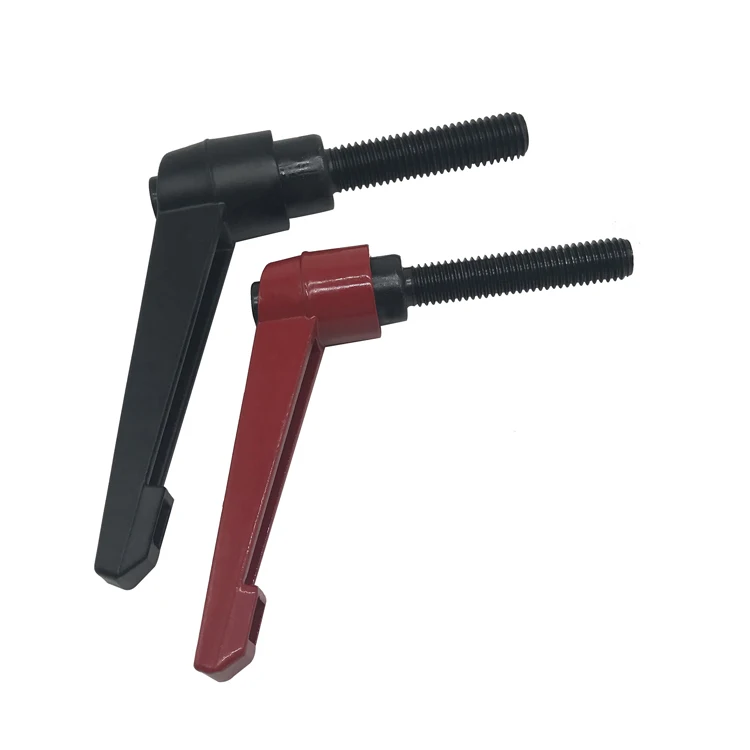

Version B ( Male ) : the thread size and R and the zinc-coated steel stud's length
The thread sizes : M6, M8, M10, M12, M16
R : 50mm, 63mm, 80mm, 95mm, 114mm
Zinc -coated steel stud's length : 10mm-50mm
Note : inches and metrics are all avaialble
Q: Are you specialized in manufacturing clamping levers ?
A : YES, we are Professional manufacture.We can provide you with the competitive prices and the best quality.
Q: Do you provide samples ? Is it free or extra ?
A :Yes, we are glad to offer samples for your testing but we don't pay the delivery freight.
Q: Do you inspect all your goods before shipping?
A: YES, we have 100% test before shipping.
Q: What about the delivery ?
A : Shipping you at once if there are enough in stock, 2-3 days if there are not enough in stock.
Q: What about the payment items?
A : Payment<=5000USD, 100% in advance. Payment>5000USD, 30% T/T in advance ,the balance before shippment.
Q:How to contact you ?
A : You can send inquiry,it will be replied within 2 hours;And you can also contact with us through TM or WhatsApp/Skype/Wechat:86-18632897931 as you like.
1.We are professional manufacturer and exporter for many years.
2. It is available for A few samples are free for your testing before you place PO.
3. We have our own strict quality inspection team so pls don't worry the quality.
4. Dispatching you timely Because our warehouse is so rich and we have so many courier partners.
