Jnspeedy Jnspeedy spray poliuretane foam machine

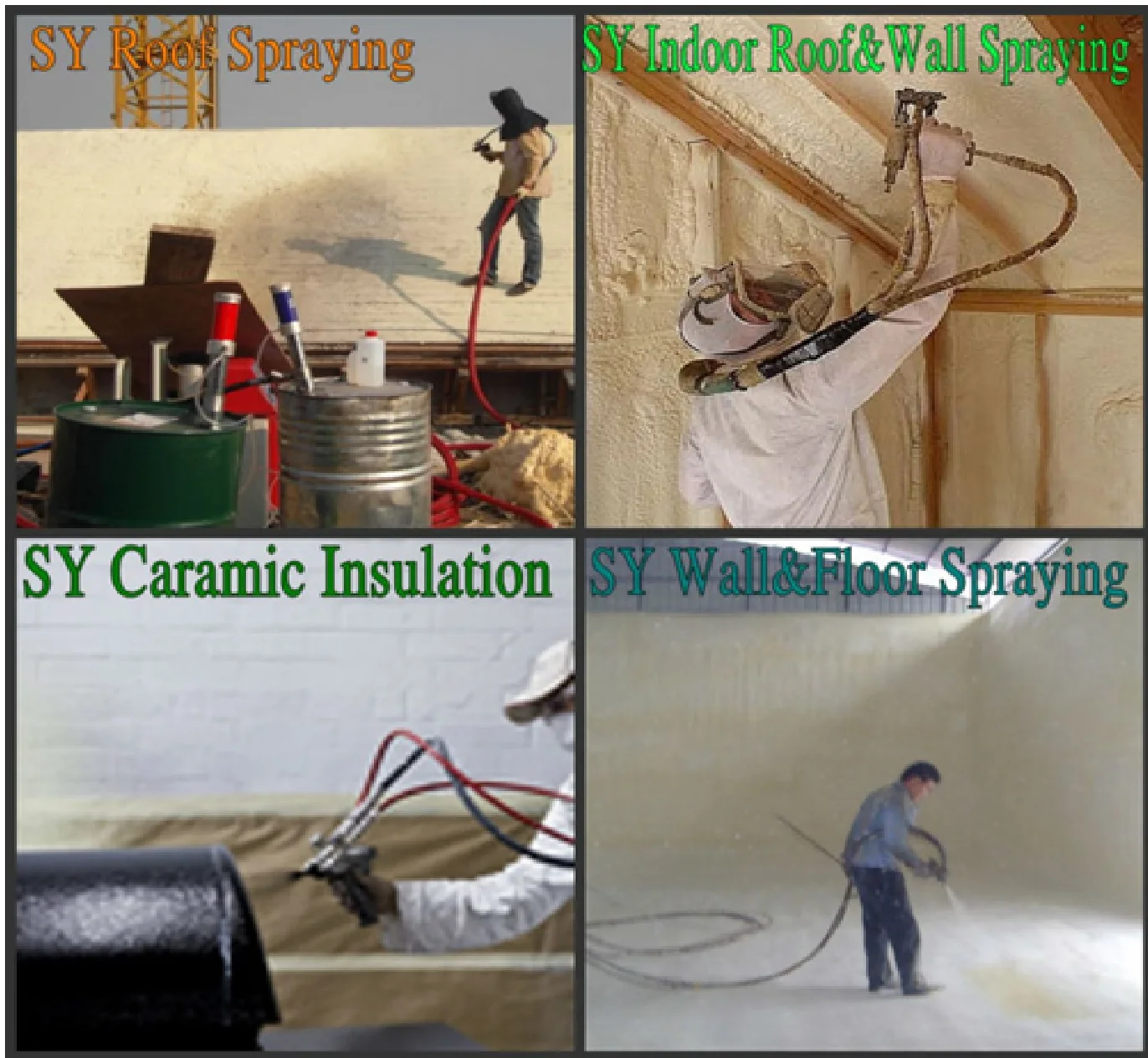

Application:
1.Elastic polyurea is used in waterproof, fire-proof, wear-resistant,
2.acid-alkali-salt resistant commercial, plastic runway, swimming pool,
3.sewage pool, hospital, workshop floor, garage floor, pipeline interior.
Specifications:
Specifications:GT-6000 | |
The ratio of raw material | 1:1 |
Max working pressure | 35MPa |
Raw Material Output Flow | 2~15Kg/min |
Total power | 22KW |
Maximum Pipe Length | 120m(optional) |
Viscosity range of raw materials | 200~1000CPS(at operating temperature) |
Heating temperature range | 0℃~80℃ |
Driving mode | Hydraulic drive |
Power Supply | Three-phase four-wire 380V 50Hz/60Hz (customizable) |
Barometric source | 0.6~0.8MPa 1m³/min |
Outline size | 940mm×1250mm×750mm |
Weight | 216Kg |
Heater power | 6000W×2 |
Heating Power of Pipeline Insulation | 3500W |
Standard configuration | |
Mainframe | 1set |

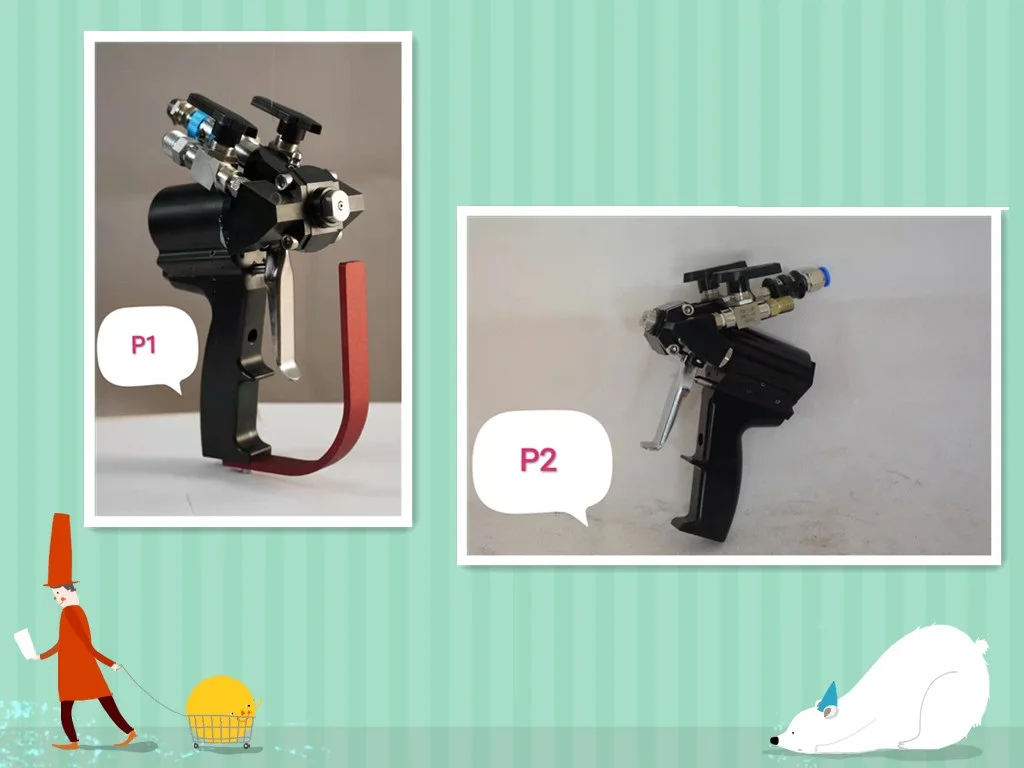

Spray gun | 1ps |

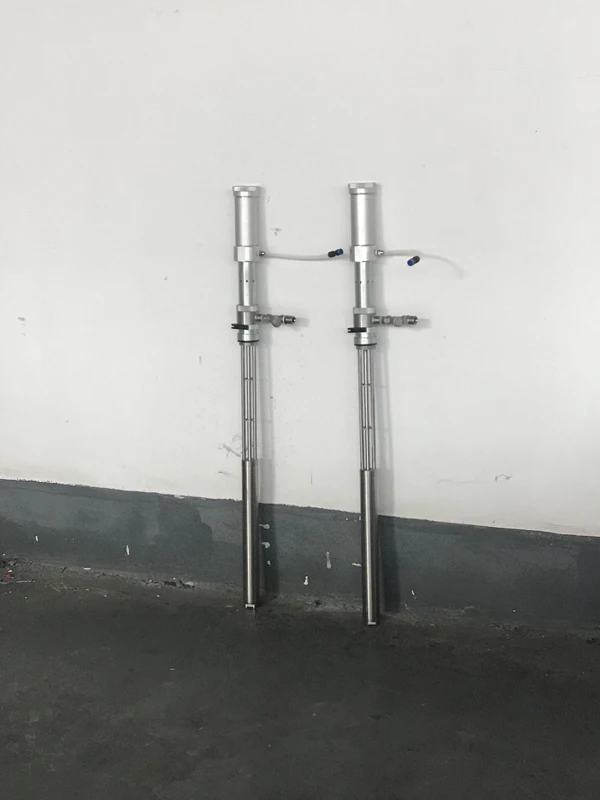

Transfer pump | 2pcs |
Heated hose (Standard) | 15m |
Gun barrel | 2 roots (3 m/root) |
Spare parts and tools | 1set |
Shipping parameters | |
Transport weight | 324KG |
Packing dimensions | 900*1200*1550 |
