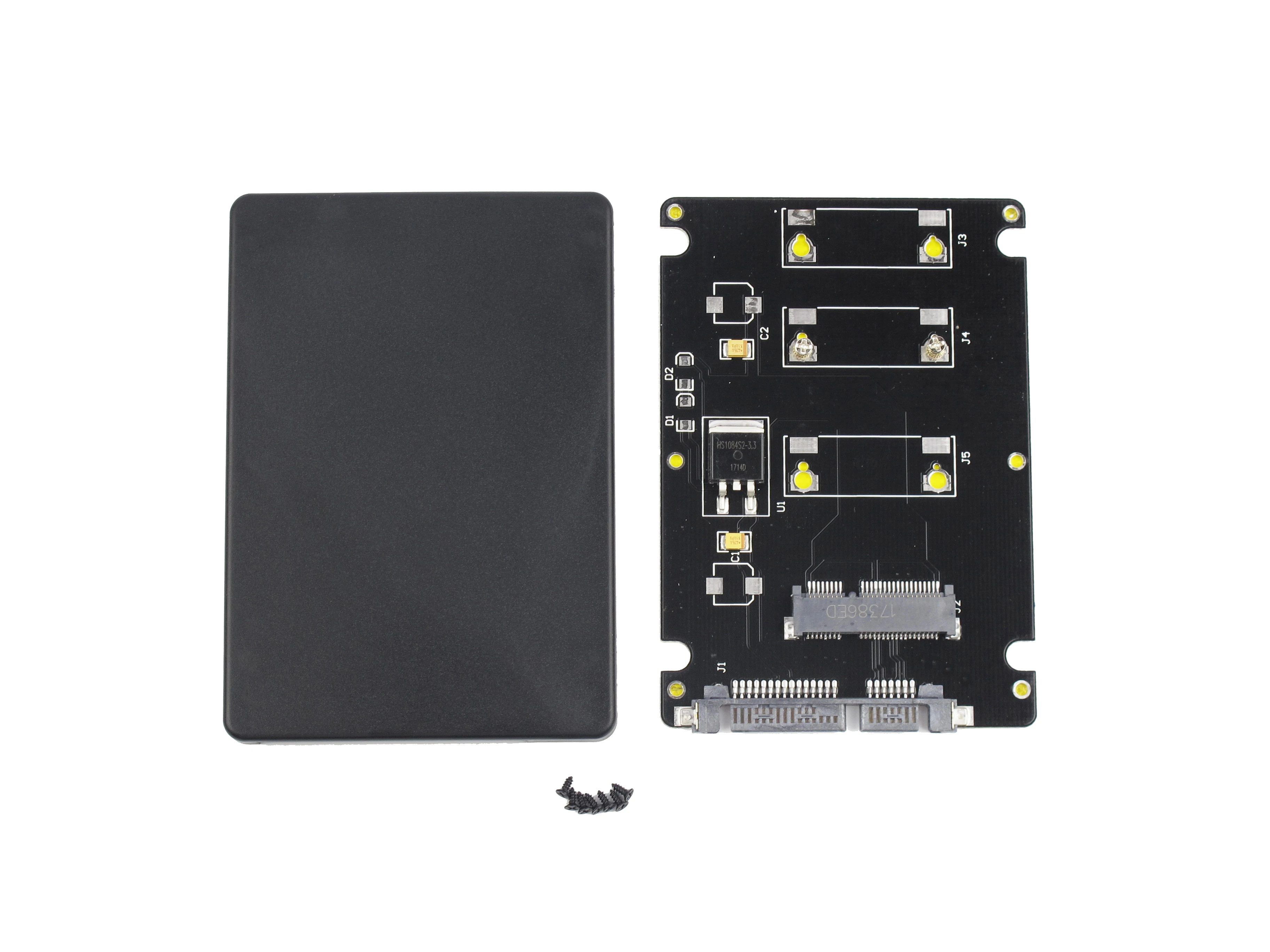

Meitk Factory Price mSATA to SATA3 SSD Adapter Box
Product Description
MSATA to SATA3 2.5-inch adapter box, which does not affect the speed after the transfer, 7MM thickness is compatible with all standard 2.5-inch mounting positions, black appearance, plastic housing, high-quality inductor to ensure quality and stability.
Only MSATA-defined SSDs in the MINI PCIE interface are supported, tested and shipped, 100% OK when shipped! If you ca n’t use it, it ’s definitely because the interface is not defined properly or for other reasons. It is strongly recommended that you read the return agreement and determine the interface definition of the hard disk before purchasing! Don't worry about returns for shipping costs!
Supports SATA3 transmission standard. The adapter card only changes the interface form of the solid-state hard disk. It does not change any performance of your hard disk. What are your original hard disk parameters? The performance of the output interface will not change if you use the adapter card.
Regarding heat dissipation: The original intention of the MSATA design is to use it in a closed environment. It must be resistant to high temperatures. Don't worry about this problem. In addition, the space in the adapter box is large enough. The air convection problem is considered when designing, so there is no worry about heat dissipation Necessary!
note:
1: This product only supports solid-state drives defined by the mSATA interface in mini pci-e. MSATA is not equal to 1.8-inch MICRO SATA. It does not support solid-state drives defined by SATA MINI PCIE (ASUS signal) interface in mini pci-e. Wrong burn card
2: There are three pin definitions for the mini pci-e interface solid state drive. One is called mSATA, which is more commonly found on Lenovo and THINPAD machines. It can also be called the INTEL-defined interface. The other is called SATA MINI PCI-E. Seen on Asus's EPC and some tablet computers, it is also called ASUS-defined interface; there is also a PATA-defined interface, which is essentially an IDE interface, which is more common on Dell MINI 9 and other machines. The three interface definitions have exactly the same appearance and cannot be distinguished by the naked eye, so be sure to distinguish the interface definition of your solid state hard disk! Pay special attention to the definition of the interface of the hard disk. You ca n’t just look at the appearance and labels. Many domestic brands of SSDs use the same label and the same circuit board for different interface definitions. As long as you move some components on the circuit board, you can change the interface of the hard disk. definition!
3: In addition to the pin definition of the solid state drive with mini pci-e interface, there is also a distinction in length: A: half height, 2.7 cm in length; B: full height, 5 cm in length; C: 7 cm in length, photographed Please indicate the length of your solid state hard disk in the message box, the shop can ship according to your solid state hard disk size
Only MSATA-defined SSDs in the MINI PCIE interface are supported, tested and shipped, 100% OK when shipped! If you ca n’t use it, it ’s definitely because the interface is not defined properly or for other reasons. It is strongly recommended that you read the return agreement and determine the interface definition of the hard disk before purchasing! Don't worry about returns for shipping costs!
Supports SATA3 transmission standard. The adapter card only changes the interface form of the solid-state hard disk. It does not change any performance of your hard disk. What are your original hard disk parameters? The performance of the output interface will not change if you use the adapter card.
Regarding heat dissipation: The original intention of the MSATA design is to use it in a closed environment. It must be resistant to high temperatures. Don't worry about this problem. In addition, the space in the adapter box is large enough. The air convection problem is considered when designing, so there is no worry about heat dissipation Necessary!
note:
1: This product only supports solid-state drives defined by the mSATA interface in mini pci-e. MSATA is not equal to 1.8-inch MICRO SATA. It does not support solid-state drives defined by SATA MINI PCIE (ASUS signal) interface in mini pci-e. Wrong burn card
2: There are three pin definitions for the mini pci-e interface solid state drive. One is called mSATA, which is more commonly found on Lenovo and THINPAD machines. It can also be called the INTEL-defined interface. The other is called SATA MINI PCI-E. Seen on Asus's EPC and some tablet computers, it is also called ASUS-defined interface; there is also a PATA-defined interface, which is essentially an IDE interface, which is more common on Dell MINI 9 and other machines. The three interface definitions have exactly the same appearance and cannot be distinguished by the naked eye, so be sure to distinguish the interface definition of your solid state hard disk! Pay special attention to the definition of the interface of the hard disk. You ca n’t just look at the appearance and labels. Many domestic brands of SSDs use the same label and the same circuit board for different interface definitions. As long as you move some components on the circuit board, you can change the interface of the hard disk. definition!
3: In addition to the pin definition of the solid state drive with mini pci-e interface, there is also a distinction in length: A: half height, 2.7 cm in length; B: full height, 5 cm in length; C: 7 cm in length, photographed Please indicate the length of your solid state hard disk in the message box, the shop can ship according to your solid state hard disk size
Packaging & Shipping
1 XAdapter
Our Services
1.Factory competitive price for our agents directly, welcome to contact us for best price.
2.OEM/ODM available. Customizes your own case to help your business greatly.(Min. Order Quantity Requirement).
*All material we used eco-friendly and CE, FCC, ROHS, ISO9001 approved. If there is any problem caused by our improper manufacturing, PLEASE contact us when you in freetime
Company Information
FAQ
1.Q: What's your best price?
A: Our products have a quite wide price range for different types and different quality requirement. Please contact us freely, we will be happy to give you a quotation upon receipt of your detailed requirements.
2.Q: How can I get the samples?
A: If you need some samples to test, please pay for the shipping cost and sample cost.
3.Q: How much is the shipping cost and How long does it takes till I get my package?
A: The freight depends on the weight & packing size and your shipping address.
DHL: 3-6 Days; UPS: 5-7 days; Fedex: 6-8 days; EMS: >7 days.
4.Q: How can I get your wholesale price list?
A: Please feel freely to contact us on Trademanager or send us an inquiry, then we can send you the price list and more information via email.
5.Q: How do you do OEM/ODM service?
A: We can do the custom designed case as you required, including print the logo on the case. After you send case design file to us, we will start to produce a sample for you to have a check. We don't start the production until you are satisfied.
6. How can I get the greatest discount?
a. To place large quantity for each item, at least 100 pcs per model. If 1 or 2 pieces per item, we can't give you much discount.
