Product Description

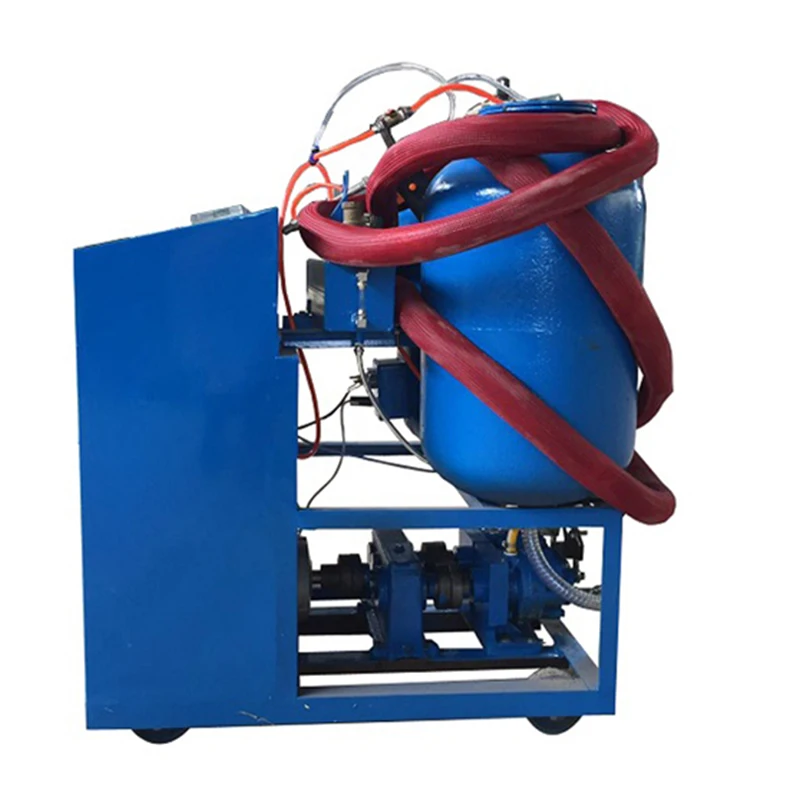

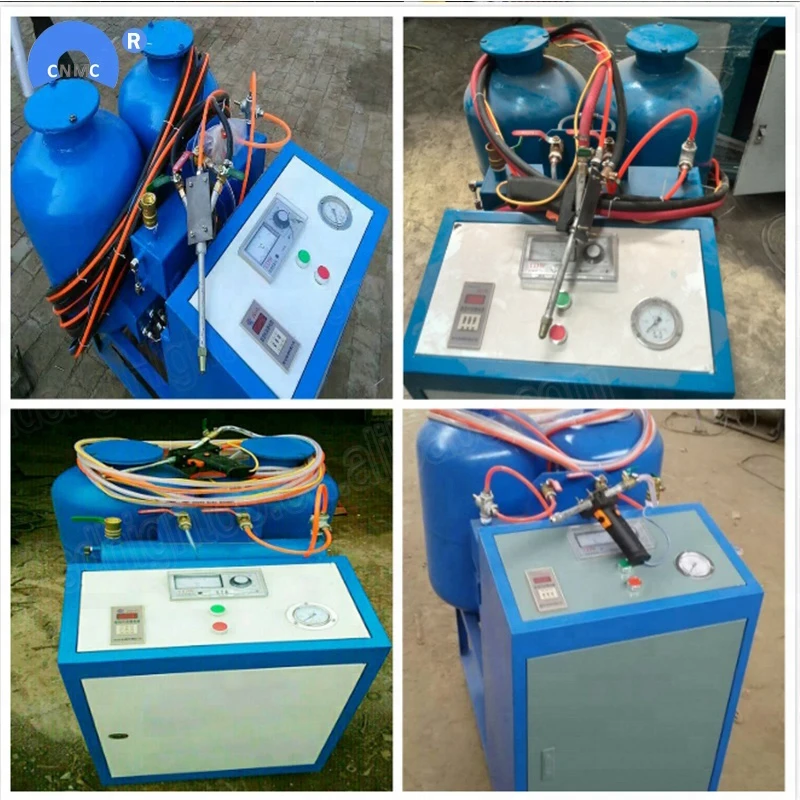

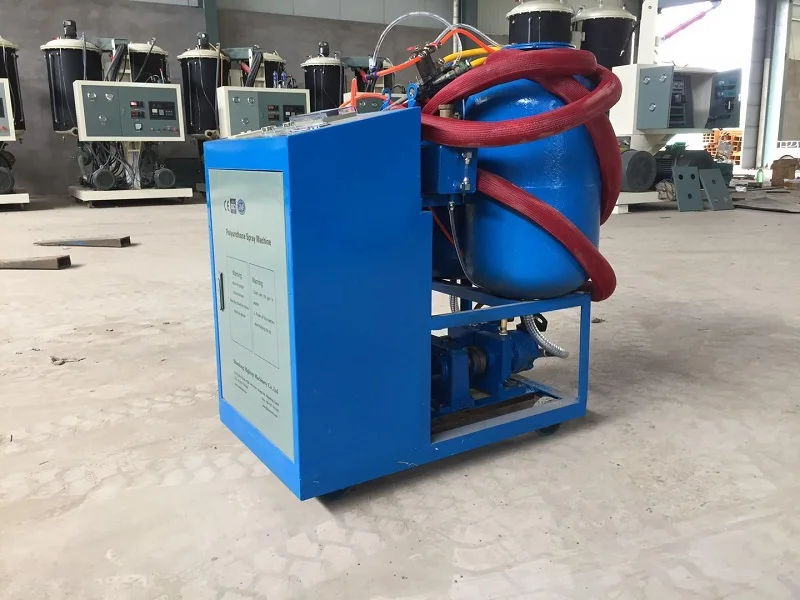

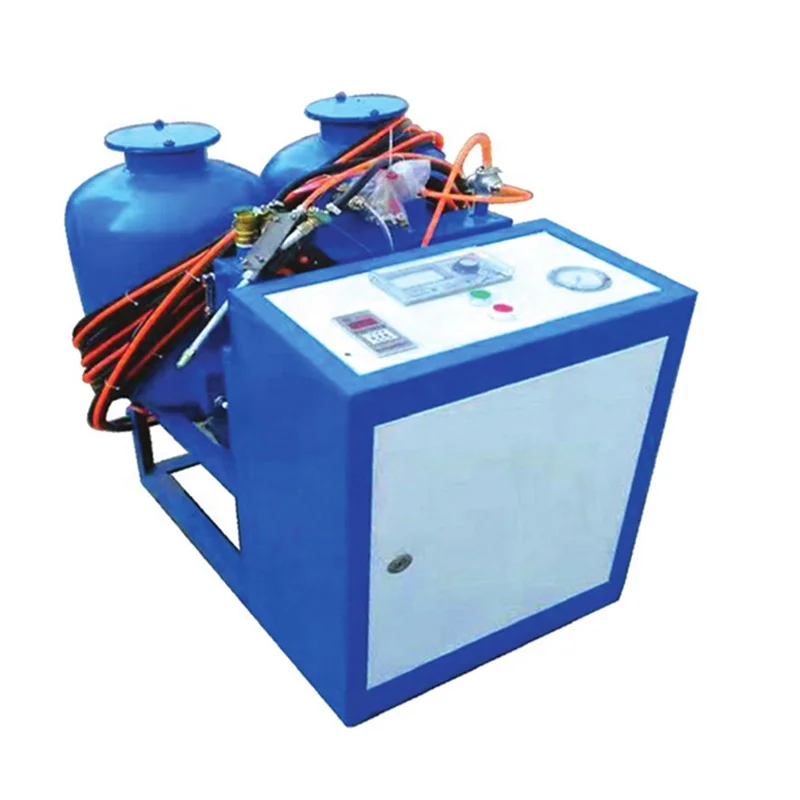

Thermal building insulation polyurethane pu spray foam machine

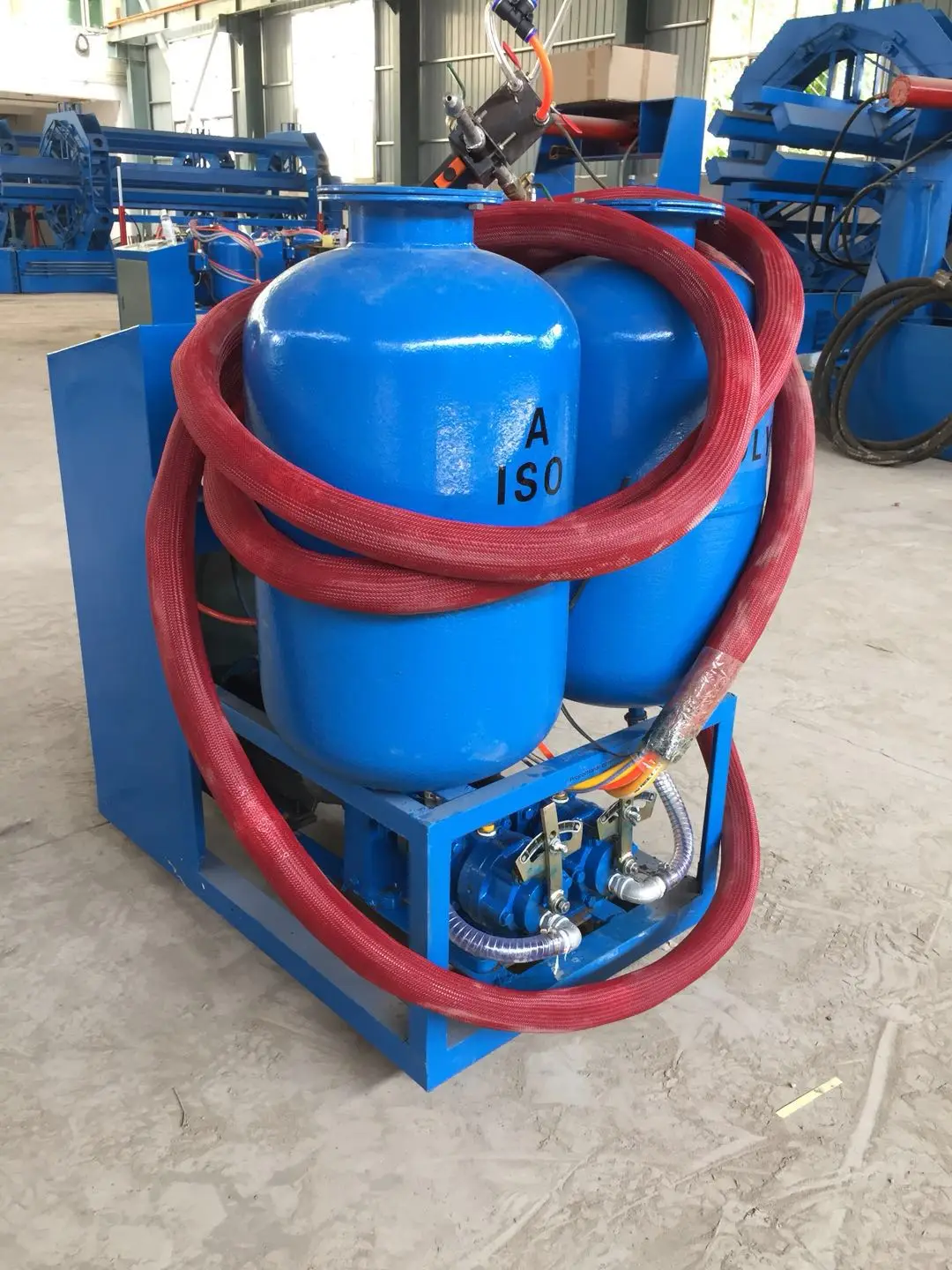

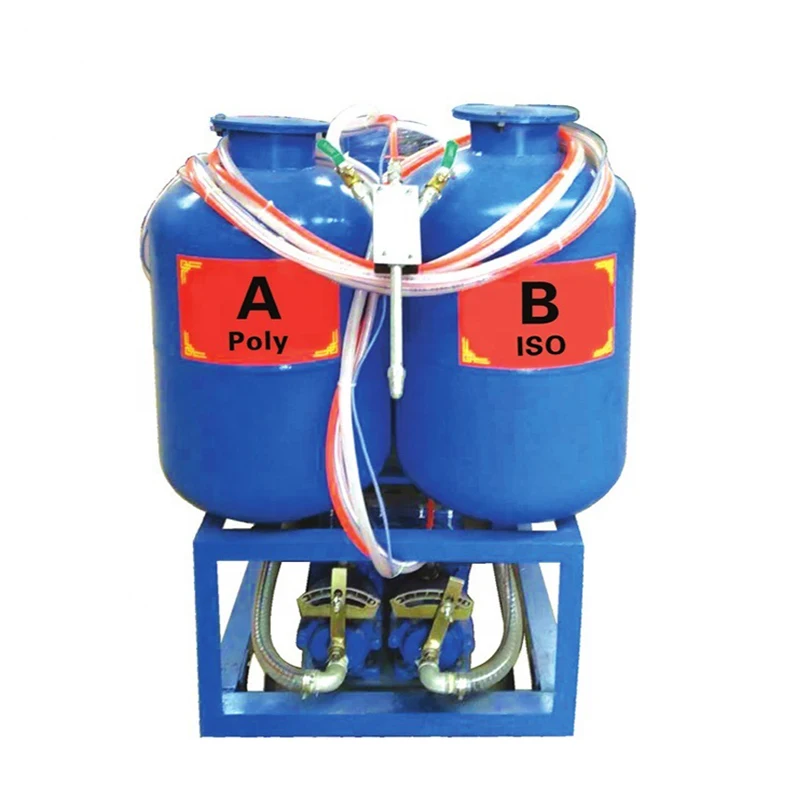

The machine has two possession tanks, each for independent tank of 28kg. Two different liquid material are entered into the two ring shaped piston metering pump from two tanks respectively. Start the motor and the gearbox drives two metering pumps to work at the same time. Then two kinds of liquid materials are sent to the nozzle at the same them in accordance with the pre-adjusted ratio.

Applications:
1. Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers, trucks, refrigerated trucks, tank, etc.
2. Casting: solar water heaters, tank insulation, cabin, insulation board, security doors, refrigerators, pipes, road construction, packaging, road construction, wall insulation, etc.

Model

CNMC-600

Power source

220V/380V

Heating power

1.5KW

Driven mode

pneumatic

Air source

 0.5~0.8 MPa ≥0.6m³/min

Raw output

9 kg/min

AB material output ratio

1:3~3:1

Spray gun

1 Set

Hose

8 meters

Metering pump model

HJ9-100

Entrance diameter

1/2"

Exit diameter

1/2"

Rotation speed

500/min
