We specialize in Class 10 to Class 100,000 (ISO 4 – ISO 8) GMP directional Wheels ISO6 PVC Wall Dehumidifier Modular Cleanboothcleanrooms that are used for some of the following activities: Pharmaceutical Production Cleanrooms, Medical Production Cleanroom, pharmaceutical storage rooms, temperature controlled rooms, bio-safety laboratories, pharmaceutical research laboratories, stem cell research laboratories, server control rooms, organic chemistry laboratories, laser rooms, microbiology laboratories, dry rooms and more.
The ISO5 GMP directional wheels dehumidifier modular cleanbooth For Laboratory belong to a new fashion product, its suitable for high cleanliness part area working, can make the working environment reach to a high cleanliness but no need change all room to cleanroom, not only save the cost, but also saving time to make it, usually cleanbooth production time arround 15-20days, and easy to install it.
Cleanbooth also have easy move, light weight, material choose fixing ...etc advatage. more and more customer choose this equipment to replace standard cleanroom project.
FED STD 209E equivalent | ||||||||||||
Class | >=0.1um | >=0.2um | >=0.3um | >=0.5um | >=5um | ISO | ||||||
1 | 35 | 7 | 3 | 1 | ISO3 | |||||||
10 | 350 | 75 | 30 | 10 | ISO4 | |||||||
100 | 100 | ISO5 | ||||||||||
1000 | 1000 | 7 | ISO6 | |||||||||
10000 | 10000 | 70 | ISO7 | |||||||||
100000 | 100000 | 700 | ISO8 |
ISO 14644-1 Cleanroom Standards | ||||||||||||||
Class | >=0.1um | >=0.2um | >=0.3um | >=0.5um | >=1um | >=5um | Class | |||||||
ISO1 | 10 | 2 | ||||||||||||
ISO2 | 100 | 24 | 10 | 4 | ||||||||||
ISO3 | 1000 | 237 | 102 | 35 | 8 | 1 | ||||||||
ISO4 | 10000 | 2370 | 1020 | 352 | 83 | 10 | ||||||||
ISO5 | 100000 | 23700 | 10200 | 3520 | 832 | 29 | 100 | |||||||
ISO6 | 1000000 | 237000 | 102000 | 35200 | 8320 | 293 | 1000 | |||||||
ISO7 | 352000 | 83200 | 2930 | 10000 | ||||||||||
ISO8 | 3520000 | 832000 | 29300 | 100000 | ||||||||||
ISO9 | 35200000 | 8320000 | 293000 | Room Air |
Electronics Cleanrooms, Aerospace, Optics, Research, Military, Defense, Etc.
This ISO5 GMP directional wheels dehumidifier modular cleanbooth for laboratory design normally involves products research, manufacturing, or repair & calibration that does not normally require the room surfaces, and equipment to be sanitized or sterilized to eliminate microbial contamination.
Pharmaceutical Production Cleanrooms
This ISO6 sandwich panel HEPA dehumidifier modular cleanroom/cleanbooth requires additional details of construction to allow wet chemical sterilization of surfaces, equipment, and increased positive air pressure gradients, etc. FDA validatable cleanrooms require additional capability to validate and certify control and monitor equipment and procedures to either manually or automatically record permanent written records or data- logging to match manufactured batches of product with the cleanroom facility performance.
Medical Production Cleanroom
This Vertical Laminar Flow HEPA Electronics Industry Modular Cleanroom is similar to the pharmaceutical cleanroom style. The product requirements for particulate cleanliness and sterility will determine specifications for finishes, controls, and manual and automatic documentation.
Pharmaceutical / Medical Research Cleanrooms
This ISO5 GMP directional wheels dehumidifier modular cleanbooth is similar to the requirements for pharmaceutical or medical products cleanrooms except that there is usually no requirement for any FDA validatable features.

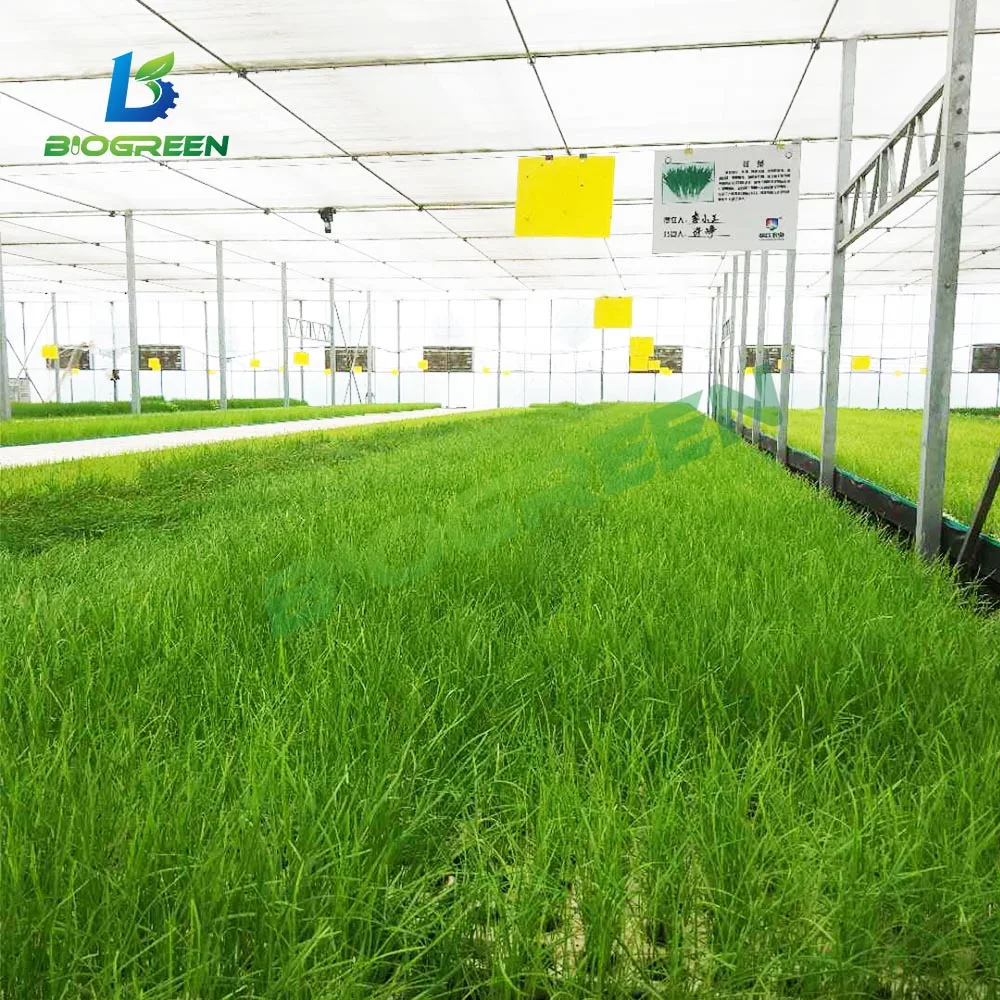

Plant Growing Cleanroom
Provide high-quality plant growth clean rooms from Flowering room, Mother room, Cloning room, Drying room... etc. We can also supply and design for you.
1.What industry do you need the cleanbooth
2.What size and height and cleanliness do you need for cleanbooth?
3.What kind of work will be do in cleanbooth?
4.Are there any requirements for cleanbooth?
5.What kind of material for wall you want?
More requirement Please contact us feel free
Collect detailed information, customize design drawings and detailed solutions
Professional engineers provide on-site installation services to ensure the quality of clean rooms and provide guidance for Cleanroom use.
Provide on-site acceptance services and support quality certification
