Сетки галстук инвертора ветровой турбины генератор 1000w 2000w 24v 48v 96v 120v 220v на сетки инвертор для домашнего
- Категории: Inverters >>>
- Поставщик: Wuxi,Flyt,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
1,this inverter integrated system maximizes energy harvest, increases system reliability, and implifies design, installation and management.

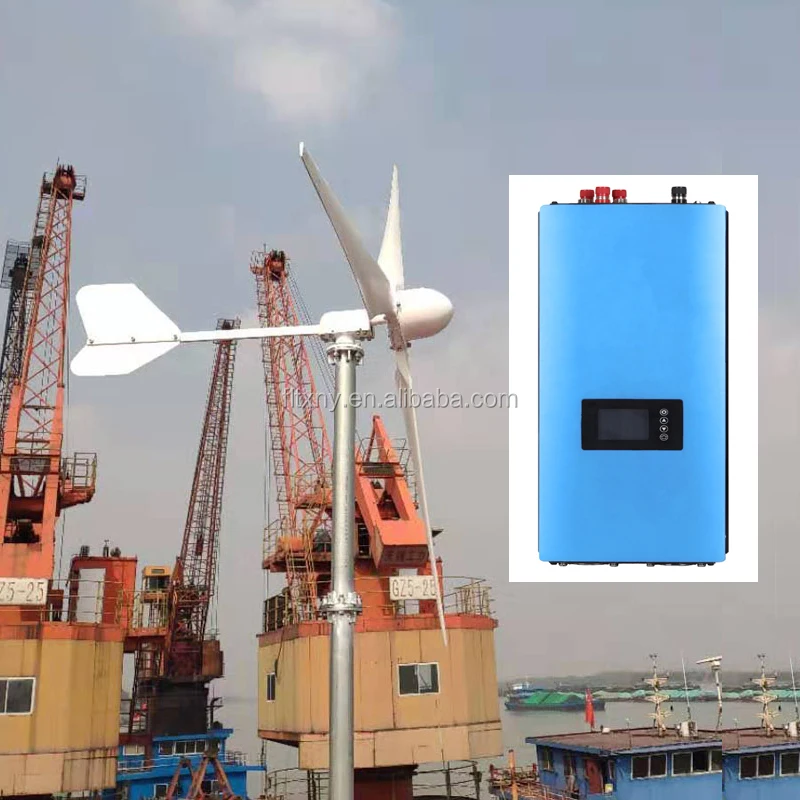

The small type wind grid tie power inverter can obtain the wind energy from wind turbine, and can tie to the grid through its output cables with no extra equipment. The installation is very convenient and reliable.
The small type wind grid tie power inverter can obtain the wind energy from wind turbine, and can tie to the grid through its output cables with no extra equipment. The installation is very convenient and reliable.

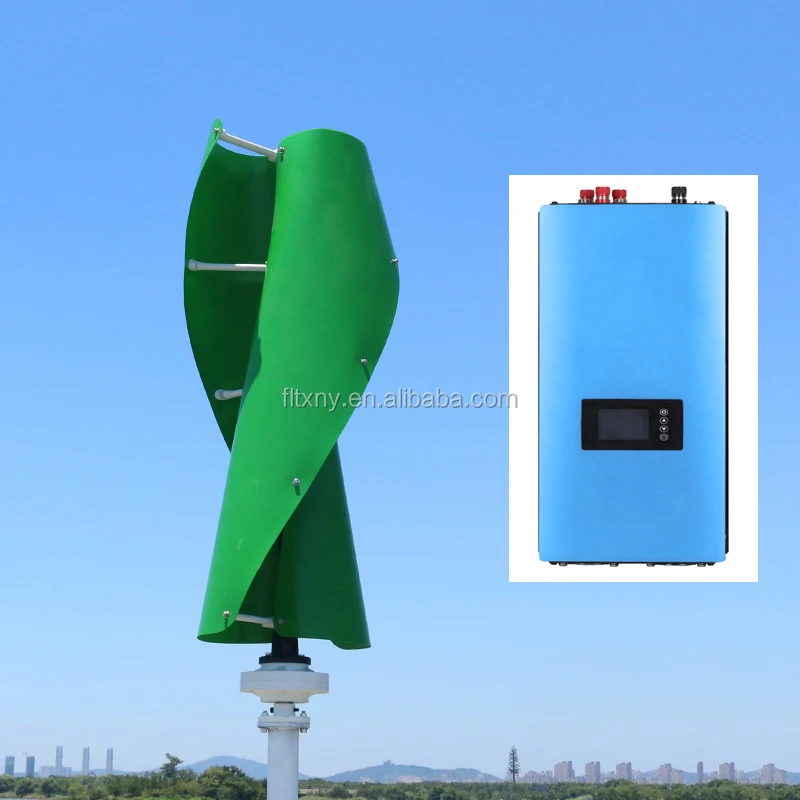

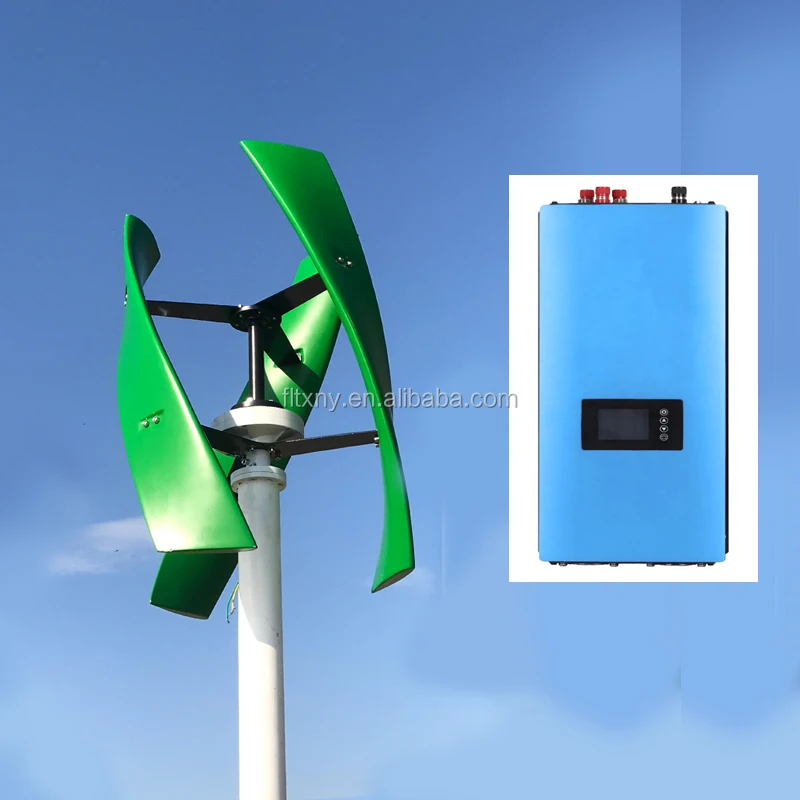

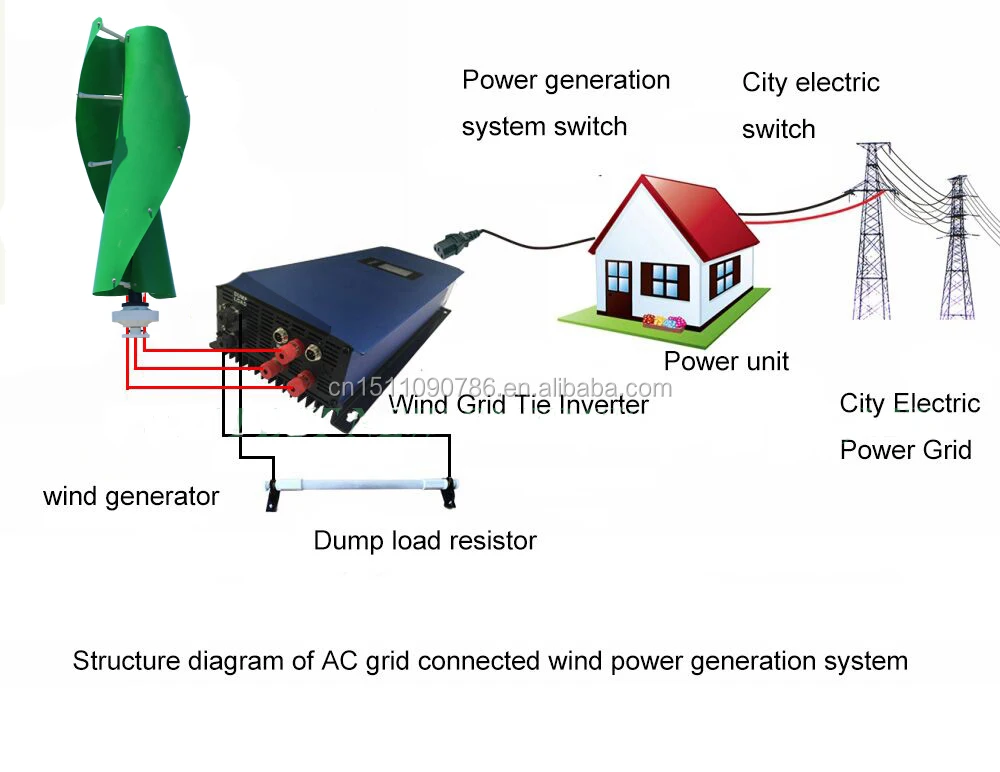

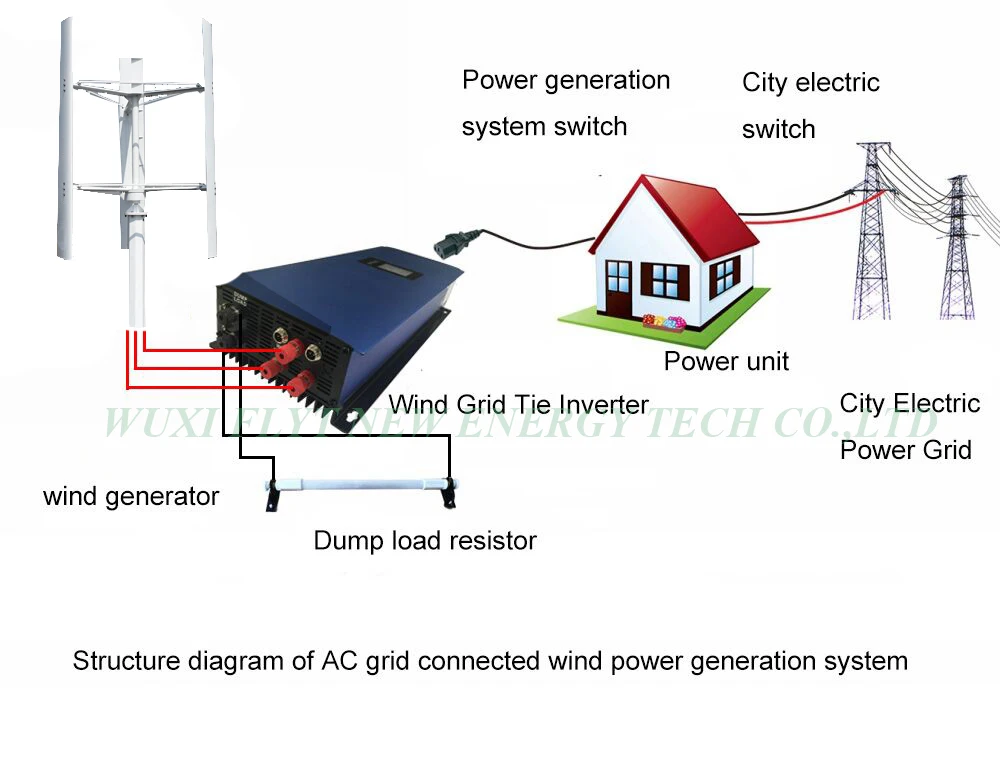

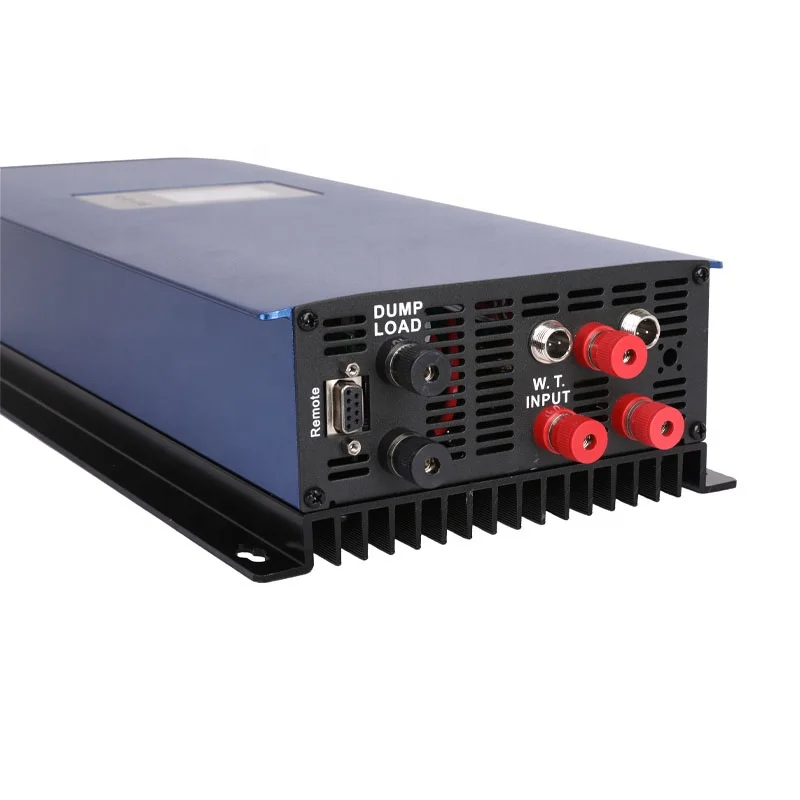

2,This inverter combining with small grid tie inverter and wind turbine as ‘SGWT’. The system includes wind turbine and small grid tie inverter and installation kit, and some “SGWT”also will include controller, dump load resistor.
The inverter can be connected to any outlets of utility grid at house. The small grid tie inverter monitors the volume, frequency and phase of the home utility grid, then produce pure sine wave AC power that the frequency and phase are as same as the grid's, and the volume is a bit higher than the grid's, then according to the current controlled PWM, to control the output power to the grid. The small grid tie inverter just puts out power when the home grid is on.
The inverter can be connected to any outlets of utility grid at house. The small grid tie inverter monitors the volume, frequency and phase of the home utility grid, then produce pure sine wave AC power that the frequency and phase are as same as the grid's, and the volume is a bit higher than the grid's, then according to the current controlled PWM, to control the output power to the grid. The small grid tie inverter just puts out power when the home grid is on.
3,When the wind turbine is rotating, and the output of the voltage is in the range of the rated input voltage of the inverter, the wind turbine will produces power, and the grid tie inverter will change the power from wind turbine to the home grid. When the total power of electric apparatus that are using in the house is larger than the output power of the inverters, these power from the inverters will be consumed in the house, this will slow down the power meter,otherwise, the difference of the output power of the inverter between the total used power of the apparatus will go out from the house to the out grid.
Max input voltage | 65v | 90v | |
Peak power tracking voltage | 25 V - 60 V | 50 V - 90 V | |
Operating AC voltage range | 22 V - 65 V | 45 V - 90 V | |
Peak Inverter efficiency | 22 V - 60 V | 45 V - 90 V | |
Nominal voltage/Range | 230V/185V-265V | 115V/95V-140V | |
Frequency range | 47.5-51.5 for 50Hz,59.3-60.5 for 60Hz | ||
Power factor | >0.95 | ||
Output wavefor | Pure sine wave | ||
Over current protection | yes | ||
Over temperature protection | yes | ||
Reverse polarity protection | yes | ||
Anit-Island protection | yes | ||
Stackable | Just for AC Output | ||
Operating temperature range | -20℃~ 45℃ | ||
Strorage temperature range | -40℃~ 65℃ | ||
The shipping method and costs are not the best for all countries, please contact us to check the best shipping way to your address and we will try to give you the biggest discount.
1,Competitive Price
--We are the factory/manufacturer so we can control production costs and then sell at the lowest price.
2,Controllable quality
--All products will be produced in our factory so we can show you every detail of the production and let you check the quality of the order.
3. Multiple payment methods
-- We accept online Alipay, bank transfer,Paypal ,LC, Western union etc.
4,Various forms of cooperation
--We are not only offer you our products, if it is needed, we could be your partner and design product according to your requirement. Our factory is your factory!
5.perfect after-sales service
--As a manufacturer of wind turbine and generator products for over 4 years,we are very experiences to dealing all kinds of problems. So whatever happens,we will solve it at the first time.
--We are the factory/manufacturer so we can control production costs and then sell at the lowest price.
2,Controllable quality
--All products will be produced in our factory so we can show you every detail of the production and let you check the quality of the order.
3. Multiple payment methods
-- We accept online Alipay, bank transfer,Paypal ,LC, Western union etc.
4,Various forms of cooperation
--We are not only offer you our products, if it is needed, we could be your partner and design product according to your requirement. Our factory is your factory!
5.perfect after-sales service
--As a manufacturer of wind turbine and generator products for over 4 years,we are very experiences to dealing all kinds of problems. So whatever happens,we will solve it at the first time.
