Машина для намотки электрических кабелей и проволочных

Описание и отзывы

Характеристики

Electric cable and wire coil winding binding winder machine



Application:

The machine is suitable for AC power cord, DC power cord, headphones line, audio line, USB cable, video line, HDMI hd line, etc all kinds of transmission line with plastic bags core twisted into beam, also can be used on other tape to use packet core sealing glue.

Specification:

Products Name	Wire twist tie/ winding machine price
Model	WL-40A
Power voltage	AC220V
Power supply	220V/50Hz,60Hz 80W
Weight	45Kg
Binding length	140-260mm
Binding diameter	25-65mm
Binding coil number	Can be set, 2-6 laps recommended
Cable tie	Encapsulates the core
Safety device	The fuse, fault alarm downtime
Size	320x450x500mm

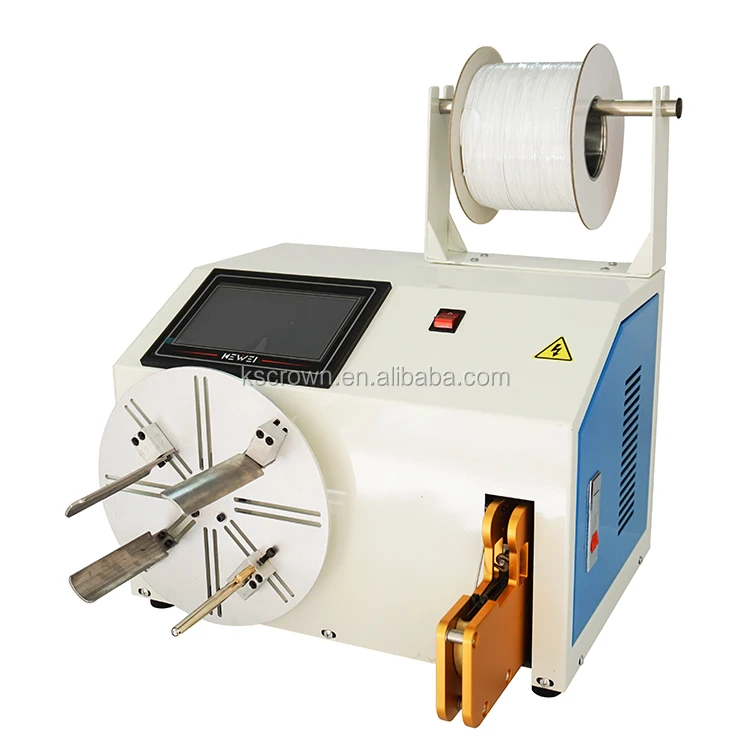

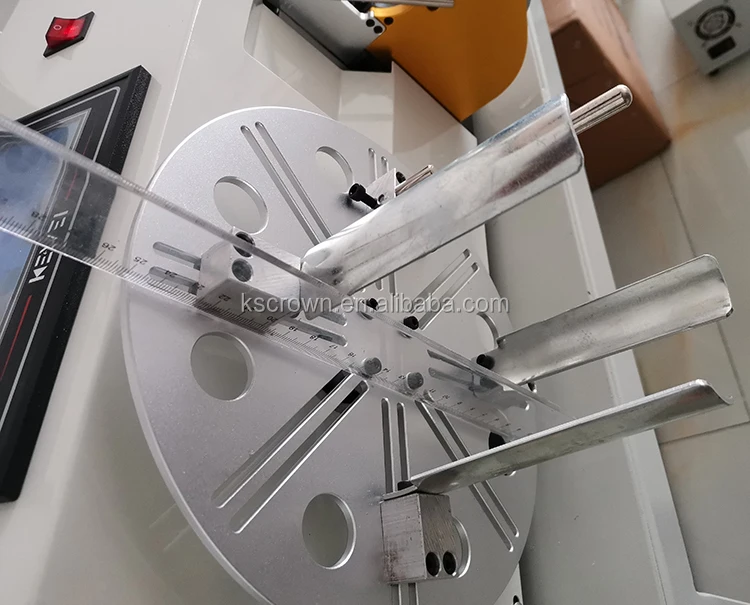

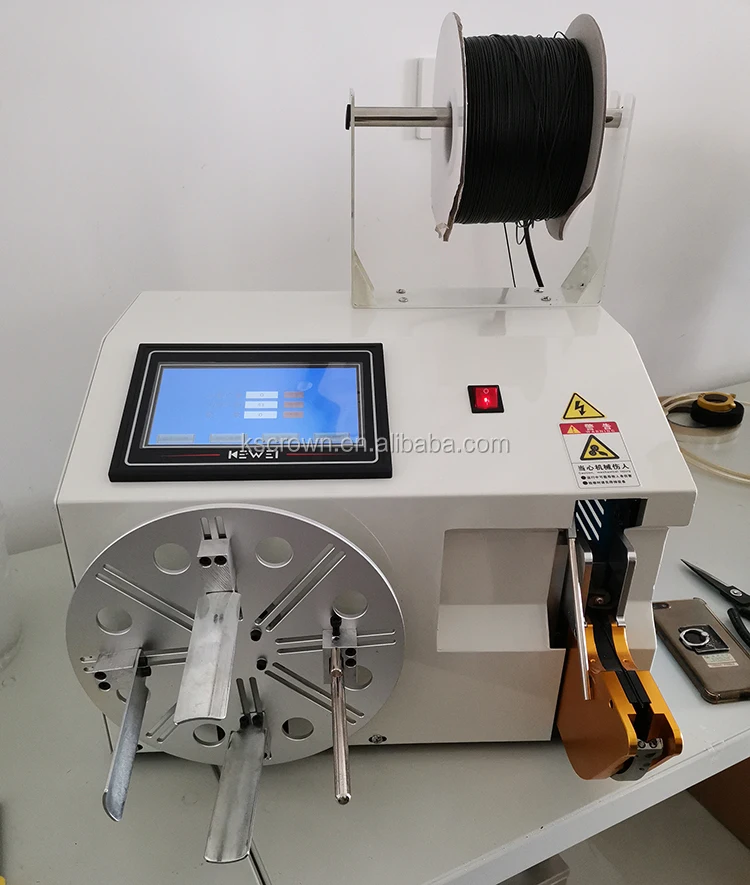

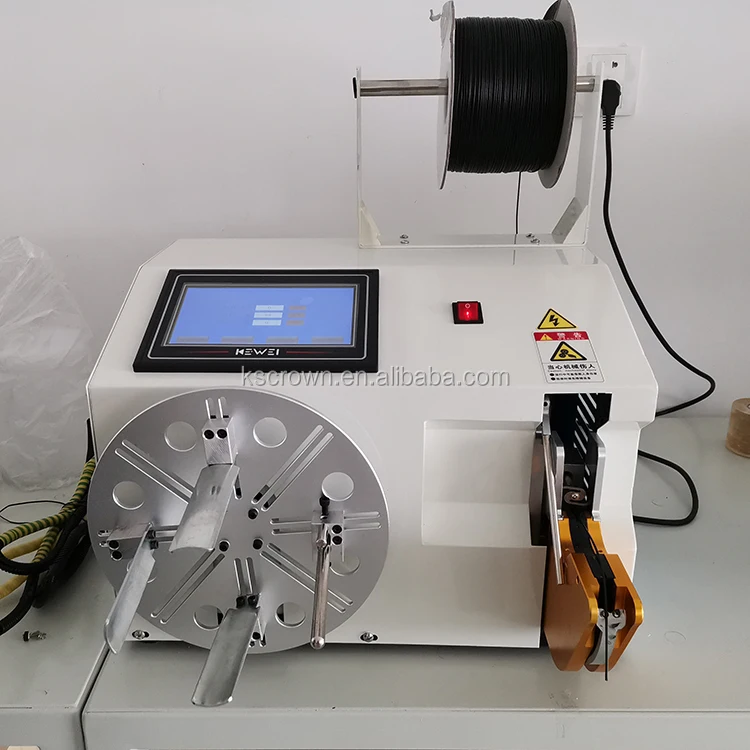

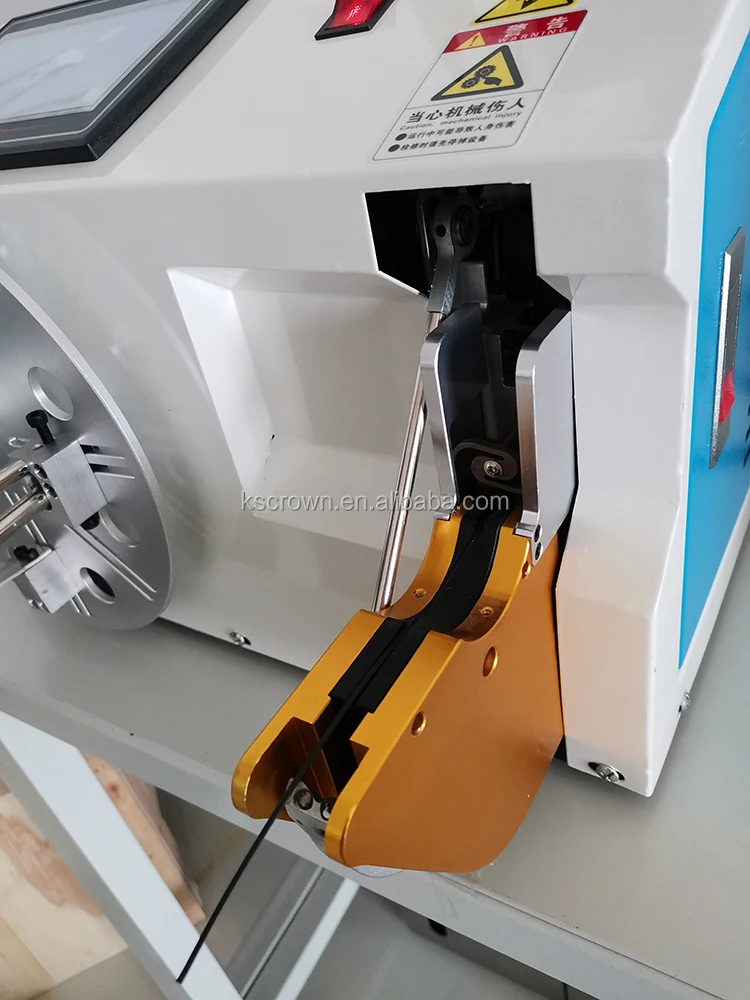

Product show:





Related models:

Model	WL-30A	WL-35A	WL-40A
Length of 8 Shape	50-200mm(can be adjusted, can be customized)
Dia of Round Shape	Φ50-200mm(can be adjusted, can be customized)
Winding Speed	Can be set, 30 speed options
Number of Windings	Can be set, 1-999 cycles
Bundling Diameter	Φ5-40mm	Φ20-45mm	Φ25-65mm
Cable Tie Length	60-140mm	110-200mm	130-260mm
Number of Bindings	Can be set, 2-6 cycles is good
Cable Tie	Plastic or rubber coated iron core wire
Power Supply	110/220VAC,50/60Hz
Power	80W
Dimensions	32*45*50cm
Weight	30kg	38kg	38kg



Remark:

If you are not sure which model you need, please contact us, we will recommend suitable model to you! Working video is available also.



Workshop & Certificate:







Our Services:

We Provide
1. Best products and factory price.
2. On-time delivery and the shortest delivery time.
3. 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
4. OEM and customized service.
5. User manuals will go with relative machines.

Service
1. QC: All products will be checked before delivery.
2. Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
3. Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
4. Operation Guidance: If you have any problem with operation, please feel free to contact us.
