Большой размер 96 мм мощный двигатель ступицы для
- Категории: Skate Board >>>
- Поставщик: Shenzhen,Maxfind,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Details

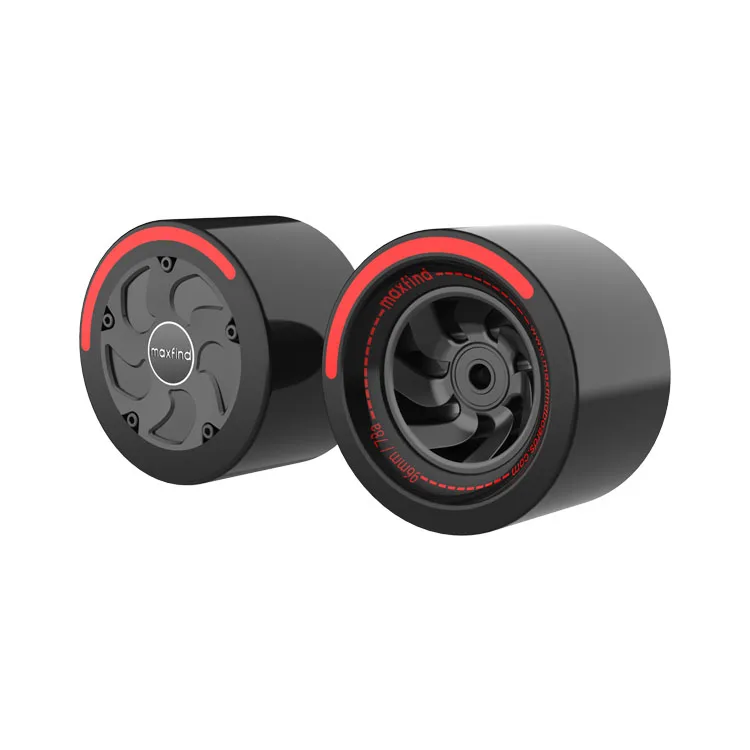

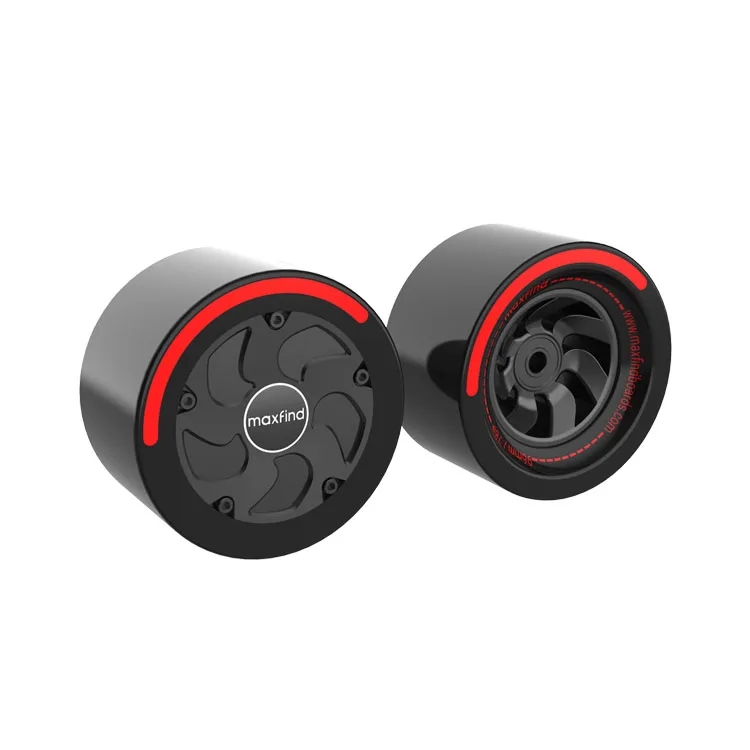

Big size 96mm powerful hub motor for electric skateboard
Maxfind Released The World's First Hub Motor Electric Skateboard In 2015. For 4 Years, We Have Been Focusing On The Development And Iteration Of Hub Motor Technology. Today, Our 6th Generation Of Hub Motor Skateboard Will Provide You With The Safest, Highest Efficiency And Highest Performance Skateboarding Experience.

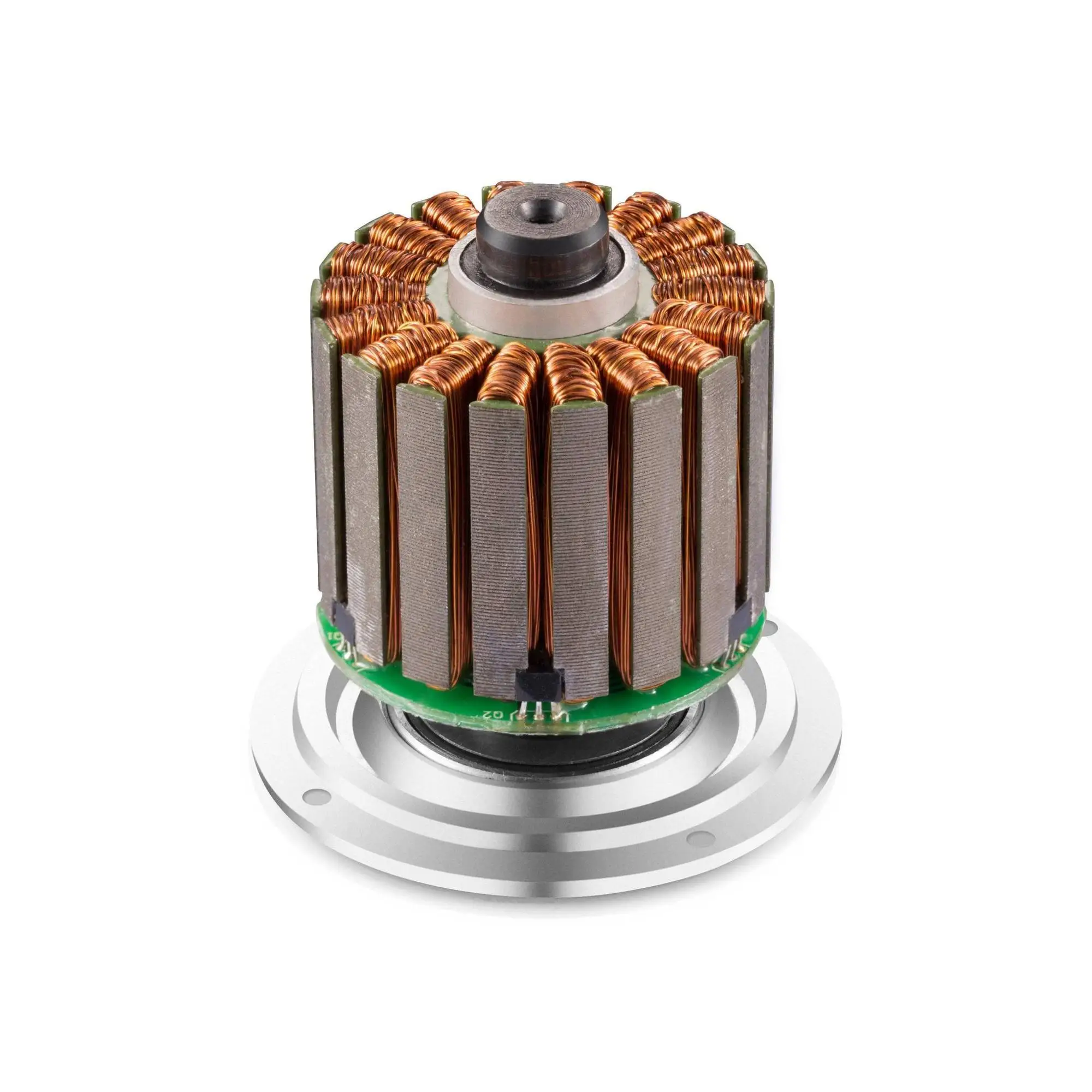

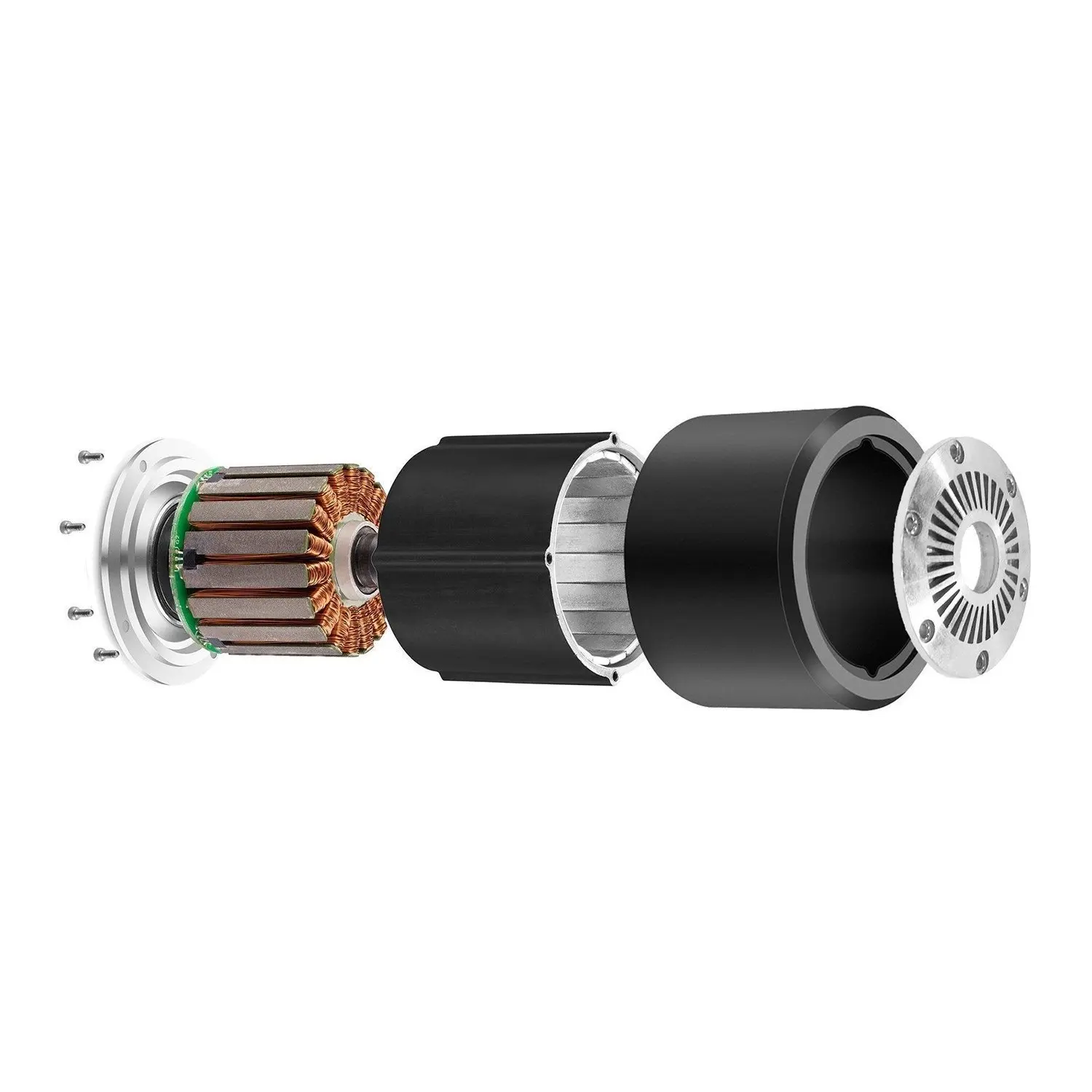

PERMANENT-MAGNET BLDC HUB MOTOR Universal For Every Board ,But The Voltage And The Current Should Be Adjusted To Match The Motherboard. | ||||||
Hub Motor Mode | M4 | M5 | M6 | |||
Motor Case Diameter | 90 mm | 96 mm | 165 mm | |||
Motor Width | 60 mm | 60 mm | 55 mm | |||
Motor Weight | 937 g | 981 g | 1776 g | |||
Hub Motor Rated Power | 600 Watts | 750 Watts | 1200 Watts | |||
Hub Motor Max Power | 1200 Watts | 1500 Watts | 2000 Watts | |||
Operating voltage range | 10-12s Lipo | 10-12s Lipo | 10-12s Lipo | |||
Waterproof Level | IP54 | IP54 | IP54 | |||
Max Efficiency | 87% | 89% | 89% | |||
Max Torque | 4.9 nm | 5.2 nm | 11.6 nm | |||
Dual Motor Hill Climbing | Up to 25% Grade | Up to 30% Grade | Up to 35% Grade | |||
Resistance (25℃) | 240 mΩ | 236 mΩ | 268 mΩ | |||
No-load Current | ≤1.6 A | ≤1.4 A | ≤1.2 A | |||
No-load RPM | 2760 | 2695 | 1220 | |||
Noise (at Rated Voltage) | Noise Lever ≤86 dB | Noise Lever ≤86 dB | Noise Lever ≤86 dB | |||
Cable Connector Type | MR30 and PHS 6pin （Hall） | 9 pin male | 9 pin male | |||
Removable Cover Tyre | Yes | Yes | Yes | |||
Cable Length | 270 mm | 215 mm | 250 mm | |||
Fit Truck Type | MAX TRUCK 2 and FF TRUCK | MAX TRUCK 2 and FF TRUCK | FF Plus TRUCK | |||
Hot Selling Points
HIGH-PERFORMANCE M4 HUB MOTOR
M4 high-performance hub motor, the power of MaxFind Max4 PRO can reach to 1200W，and torque reach to 9.4Nm. It can provide stabler and quieter riding at a top speed of 24Mph..

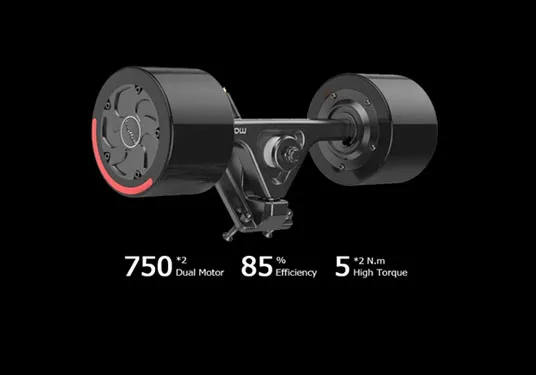

HIGH-PERFORMANCE M5 HUB MOTOR
M5 high-performance hub motor, the power of MaxFind Max4 PRO can reach to 1500W, and torque reach to 10Nm. It can provide stabler and quieter riding at a top speed of 26Mph.
The conversion rate of M5 Hub motor can reach to 85%, which ensures the perfect acceleration and longer range.

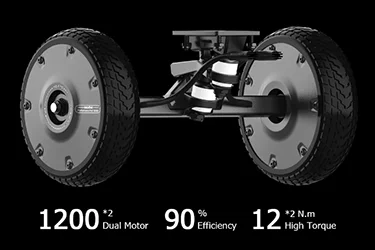

HIGH-PERFORMANCE M6 HUB MOTOR
M6 high-performance hub motor, the power of MaxFind FF PLUS can reach to 2400W, and torque reach to 24Nm. It can provide stabler and quieter riding at a top speed of 25Mph.
Detailed Images
our shop other Product

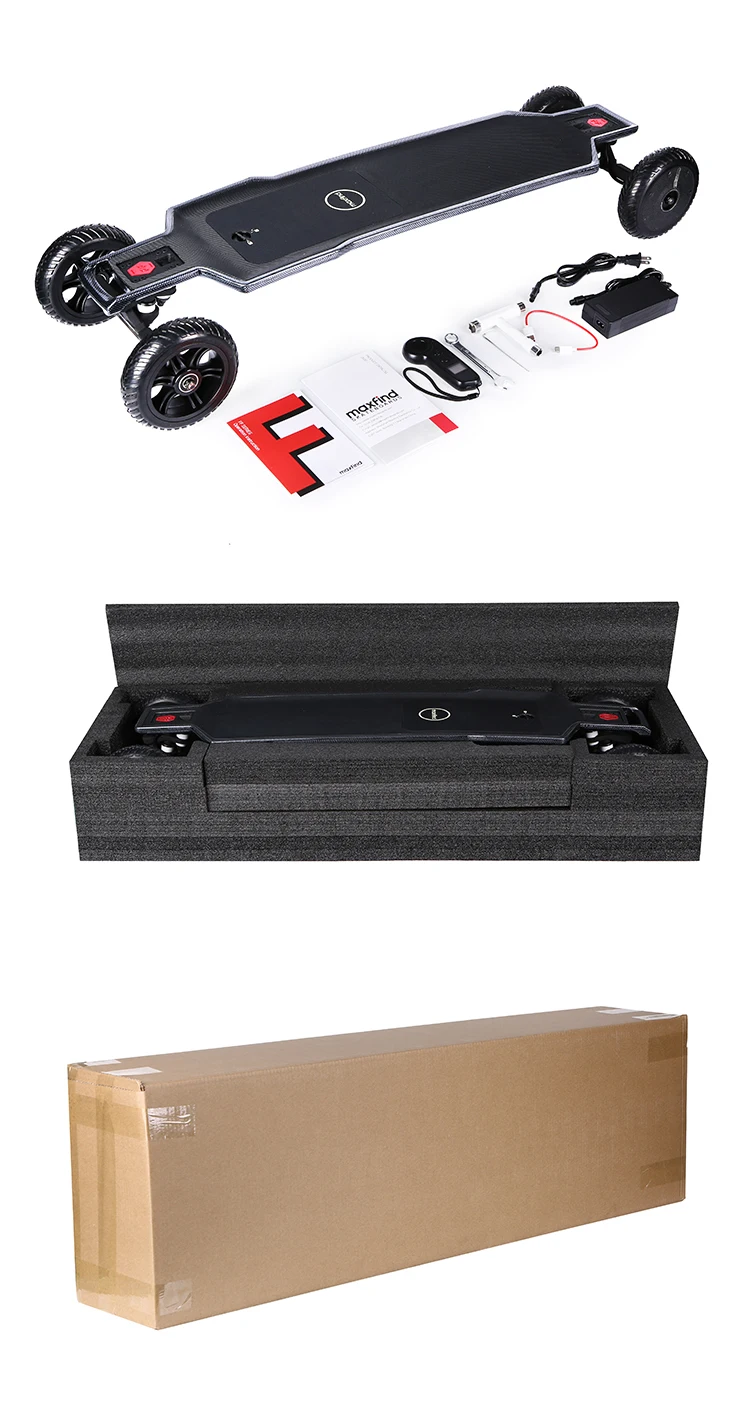

Packing & Delivery
Notice
Since the long-time seafreight, the battery maybe slumbered. Pls charge enough time to activate the battery before driving.
If failed, Maxfind will offer a new battery through local warehouse.
If failed, Maxfind will offer a new battery through local warehouse.
Certifications

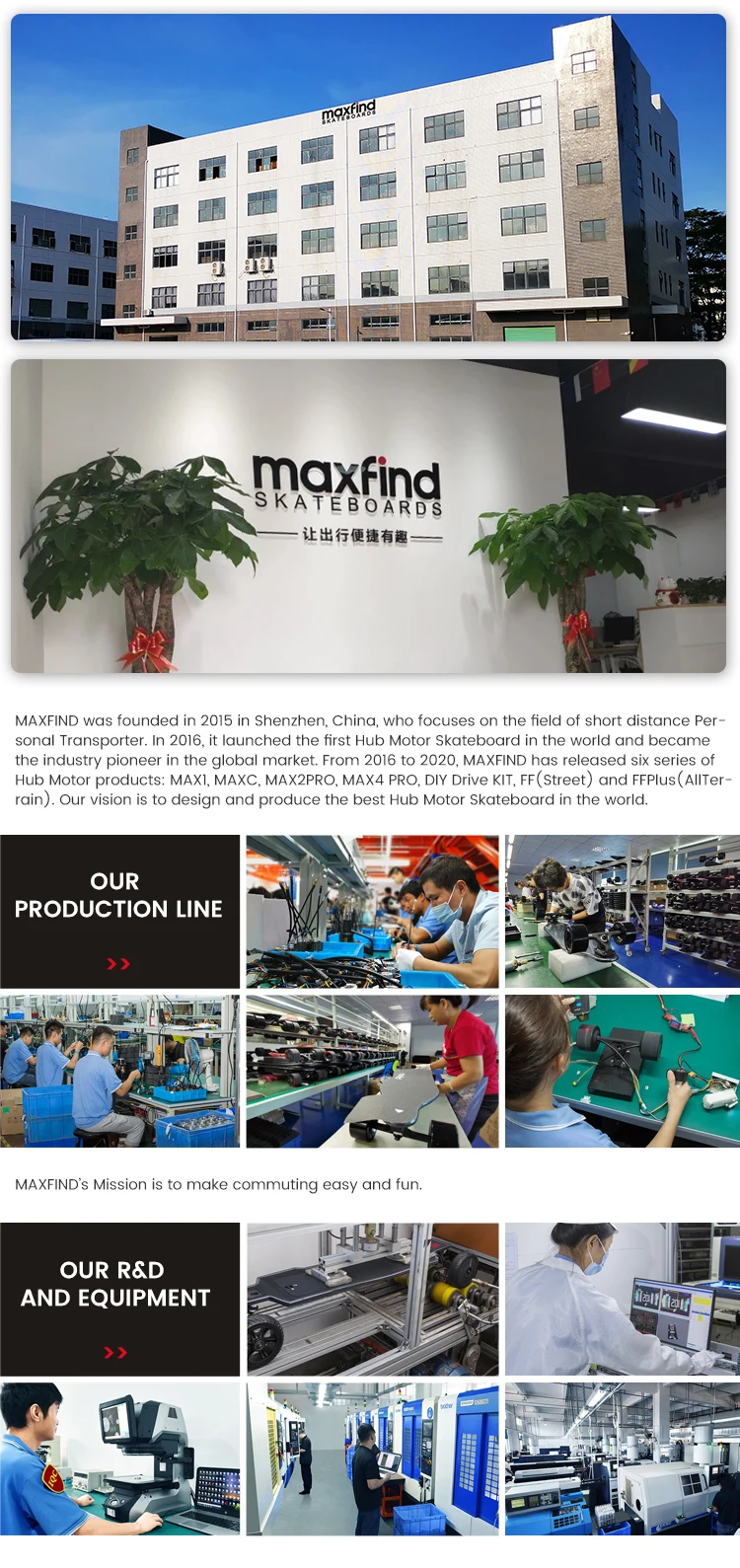

Our Company

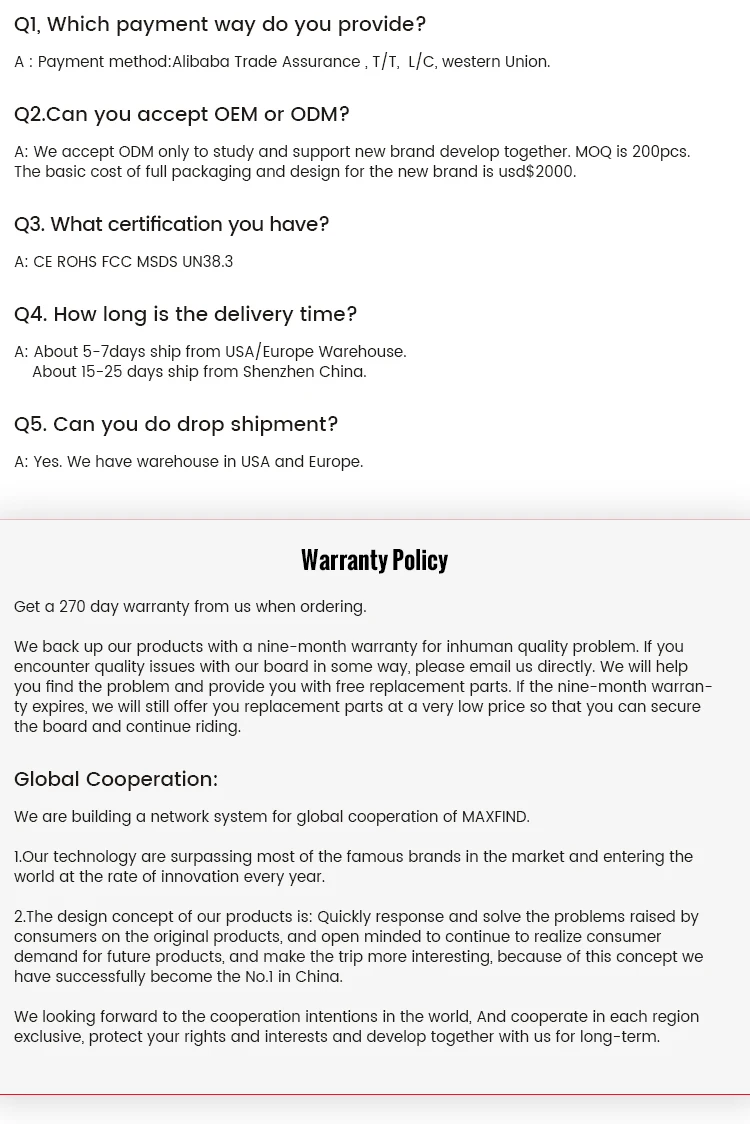

FAQ
