Product Description

Automotive Male Female Wire Battery Connector 3 PIN

YF-24 Series with multi-core(3core) design to fit with different industrial needs within below key features:

*Lock 3-pin device connector with contacts for neutral, straight, pre-fitted safety ground.

*High current capacity 20A/250VAC.

*Use different colors (blue input) for input and output (gray output) control to avoid the possibility of inter-matching.

*Quick and easy locking system.

*Use the United States imported beryllium copper for silver-plated double quality assurance, increase current stability and effective temperature rise control.

*The waterproof product meets IP65/IP67 protection level in the assembled state.

*Rated current: 20A rms.

*Unique inner core copper needle anti-outlet design.

Pin Number	3pin
Rated Current	20A
Operating Voltage	500
Insertion Force	1.2N Max
Durability	1700 times
Terminal Method	Soldering
Salt Spray	PH 6.5-7.2, NaCl, 5%, 48H
Male Female Assemble Way	unique quick lock design
Cable OD	9-14mm

Different product types for selection

About our YF-24-3PIN connector, we have the followings:

Panel Mount

Male plug+Female flange type socket

Male plug

Flange type/ four holes panel mount female socket

Male plug+Female panel mount socket

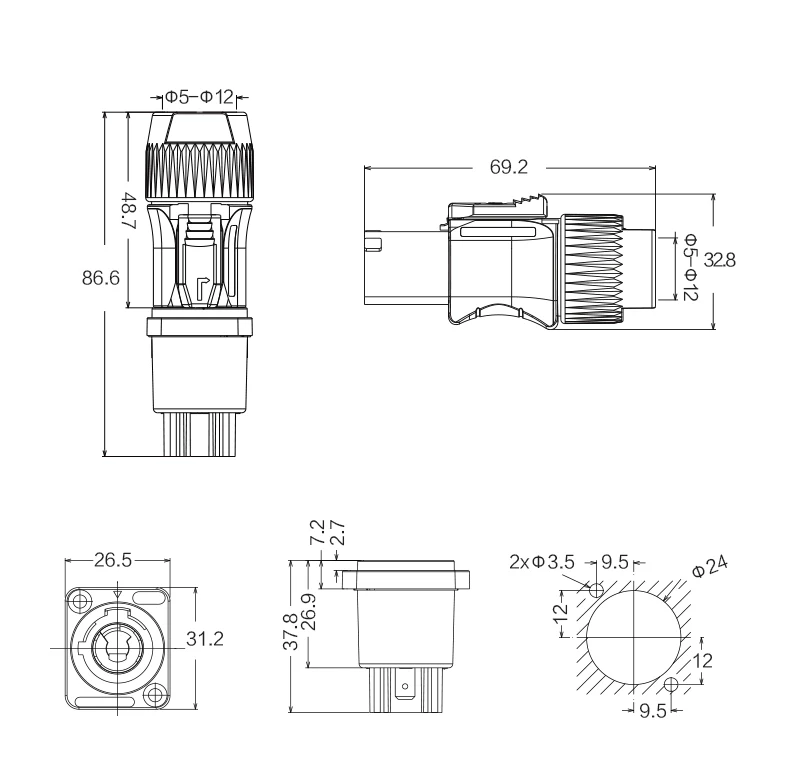

Dimenstion of the Connectors

You are welcome to contact me directly

Wechat/ Whatsapp/skype:

+86 151 5912 5629

Email: joyce@fdrag.com

Detailed Images

Raw Material of the pin

Raw Material of the Plastic

Sabic Imported from the USA

Connectors on Device

We are allowed to upload the image from our customers, do not download please.

Size Information

Certifications

Packing&Shipping

Professional Packing

1. Every two connectors be wrapped in a small plastic bag.

2.10 bags of connectors be packed in a small carton box with size 17*8*9cm

3. 24 boxes be packed in the bigger carton box with size 36*26*26cm

Different Shipping Method to Suit Different Requirements

Express for emergency needs.

EMS for cheap shipping cost needs.

Shipping by air for bulk goods.
