14-38 мм шимни и клинья рахара
- Категории: Детали оборудования для горнодобычи >>>
- Поставщик: Beijing,Pro,Drill,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
| General introduction: |
Description:Wedges and shims , it's also called Hand Splitter, Plug and Feathers, Feather Pair and Wedges.
We can design the length and hole size and shape as customers' requirement.
We can design the length and hole size and shape as customers' requirement.
Wedge is a kind of manual tools that uses manpower to impact the metal wedge into holes on stone, thereby split stone.
It is mainly used in splitting cracked stone and arch stone which by utilizing a wedge set can be separated into smaller
or standard stone blocks. Wedge can also trim relative large and irregular stone blocks.
It is mainly used in splitting cracked stone and arch stone which by utilizing a wedge set can be separated into smaller
or standard stone blocks. Wedge can also trim relative large and irregular stone blocks.

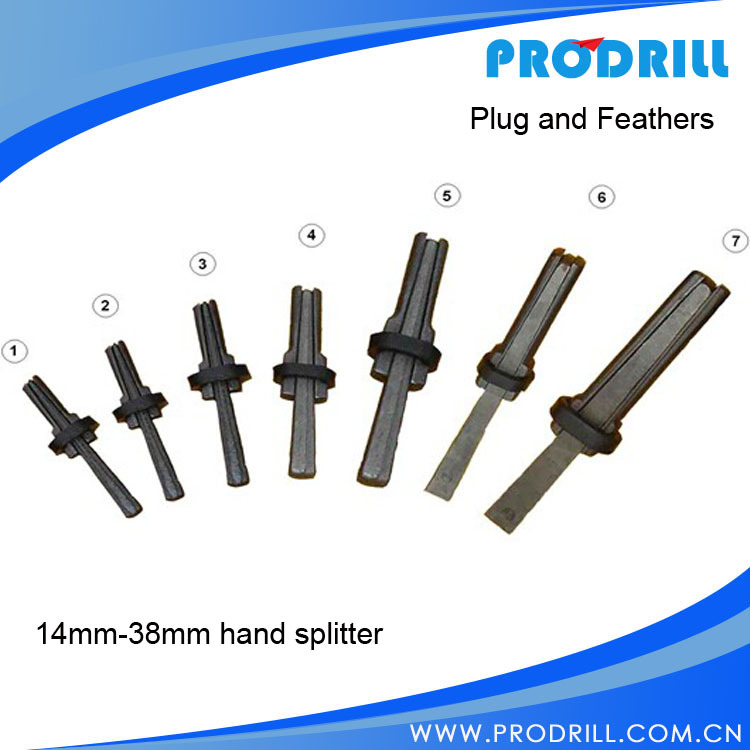

Wedge and Shim Set
Generally speaking, 3 sets of wedge and shim are required for per foot of length of stone.
The depth of drilled hole depends on the length of wedge. The following are types of wedge and shim sets.
Hand splitter, it's also called Wedge and Shims, Plug and Feathers, Feather Pair and Wedges.
We can design the length and hole size and shape as customers' requirement.
Generally speaking, 3 sets of wedge and shim are required for per foot of length of stone.
The depth of drilled hole depends on the length of wedge. The following are types of wedge and shim sets.
Hand splitter, it's also called Wedge and Shims, Plug and Feathers, Feather Pair and Wedges.
We can design the length and hole size and shape as customers' requirement.
Shims & Wedges (Feather Pair & Wedges) | ||
Hole Diameter(mm) | Length(mm) | Net Weight(mm) |
14 | 125 | 0.17 |
16 | 125 | 0.19 |
20 | 190 | 0.5 |
24 | 190 | 0.6 |
32 | 280 | 1.5 |
34 | 290 | 1.8 |
38 | 320 | 2.1 |
| Images |

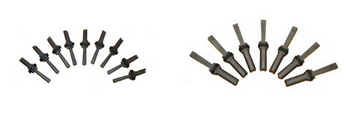

![{WG])YTM4LPE)A3BW0E7QT5.png](http://g01.s.alicdn.com/kf/HTB1NotqLXXXXXa4XFXX760XFXXXv/224307276/HTB1NotqLXXXXXa4XFXX760XFXXXv.png)
Diameter 14mm Diameter 16mm Diameter 32mm Diameter 38mm
Length 125mm Length 125mm Length 280mm Length 320mm
Weight 0.17kg/pc Weight 0.19kg/pc Weight 1.5kg/pc Weight 2.1kg/pc.
Length 125mm Length 125mm Length 280mm Length 320mm
Weight 0.17kg/pc Weight 0.19kg/pc Weight 1.5kg/pc Weight 2.1kg/pc.

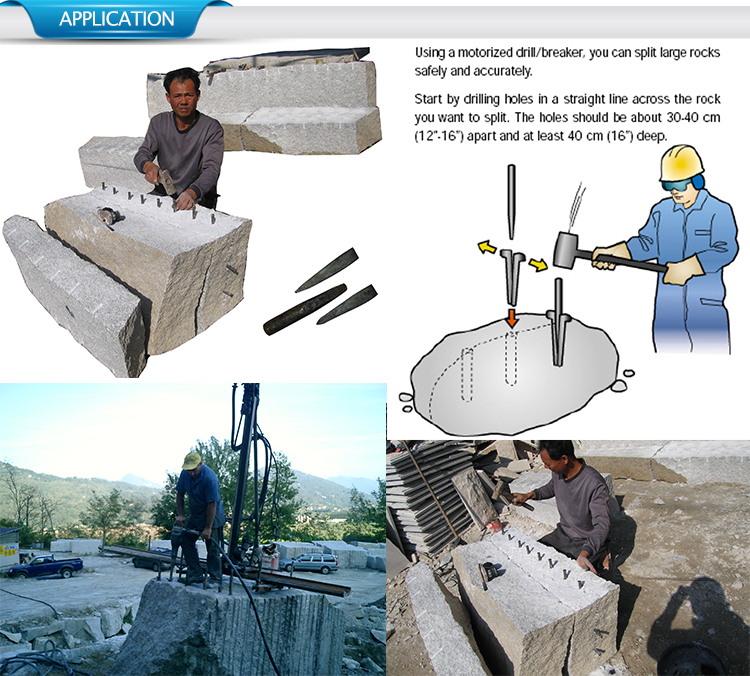

Applications
More Products
FAQ
Terms & Conditions of Ordering:
1 .Payment Terms:
T/T (Telegraphic Transfer) or Western Union
2. Delivery Term:
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Transportation:
Sample order: we suggest Courier express or by air
Bulk order: we suggest by air or by sea.
4. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B Our sales team and Technical Support will response for your question within 24 hours
(Welcome your inquiry or question, please
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
