Другие аксессуары для станков набор стальных зажимов CK12 CK10 CK08 M20 M18 M16 M14 M12 M10 M08 58 шт. комплект т-образных
- Категории: Machine Tools Accessory >>>
- Поставщик: SHANDONG,OLI,MACHINERY,CO.,LTD
Поделиться:
Описание и отзывы
Характеристики
Product Description
Steel Clamping Kits 58pcs
Material: S45C;
Hardness:HRC 32士5.
Heat treated steel black oxide finish.;
Usage: Apply for fixing each kind of working-piece on machining table.
Hardness:HRC 32士5.
Heat treated steel black oxide finish.;
Usage: Apply for fixing each kind of working-piece on machining table.

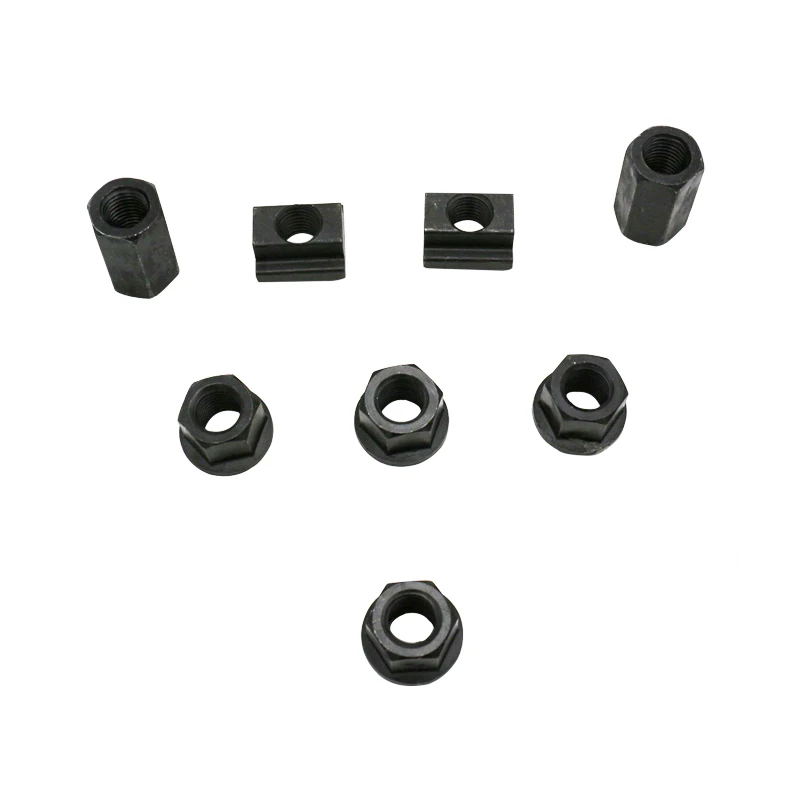

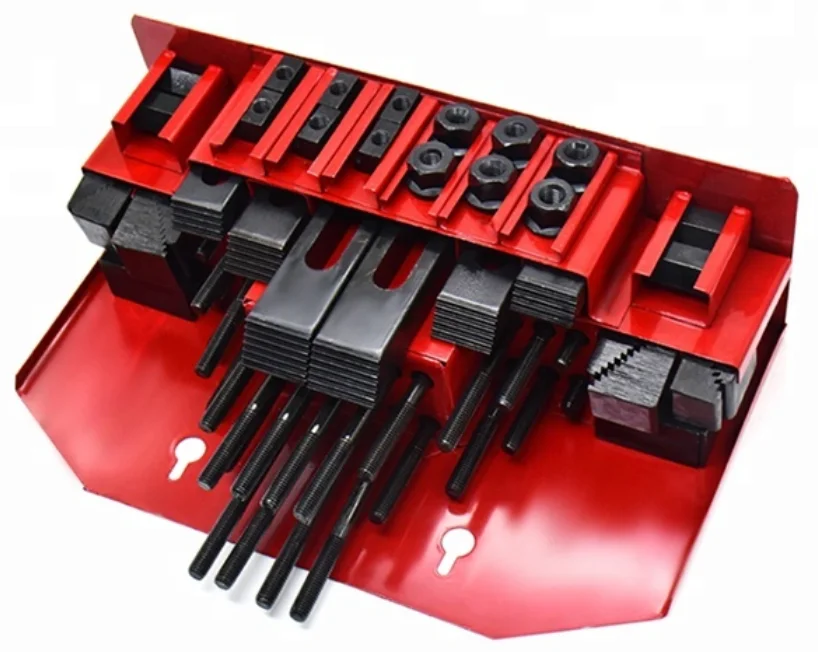

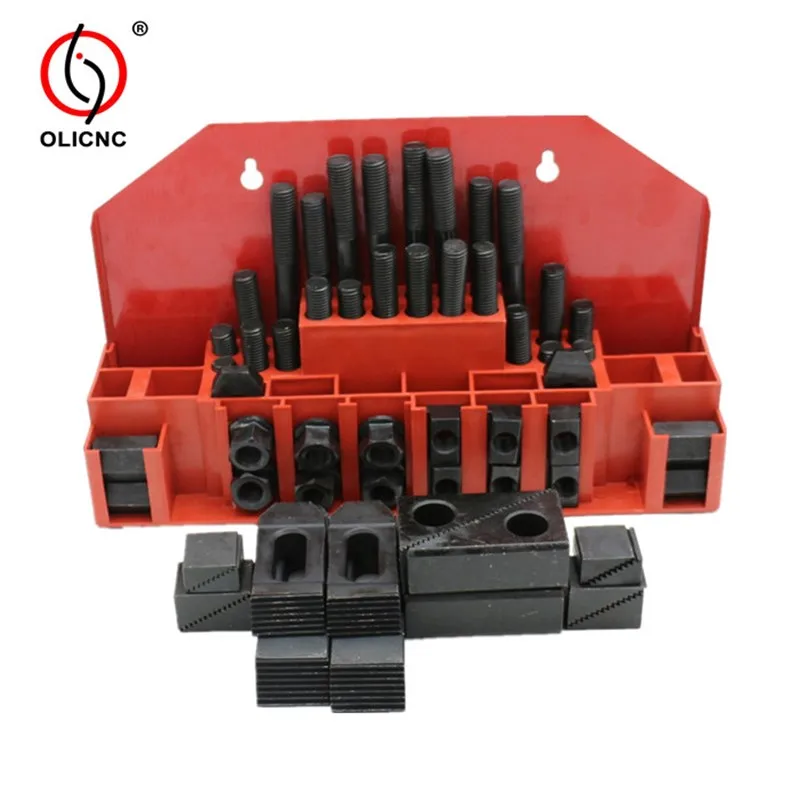

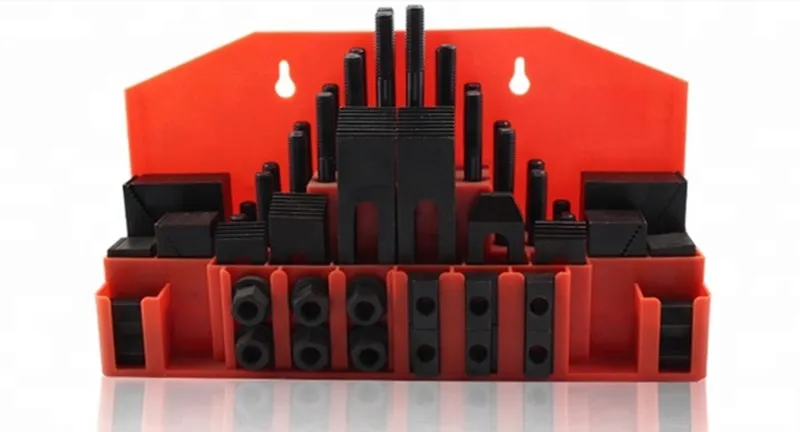

Steel Clamping Kits Total:58pcs ,mainly includes ：

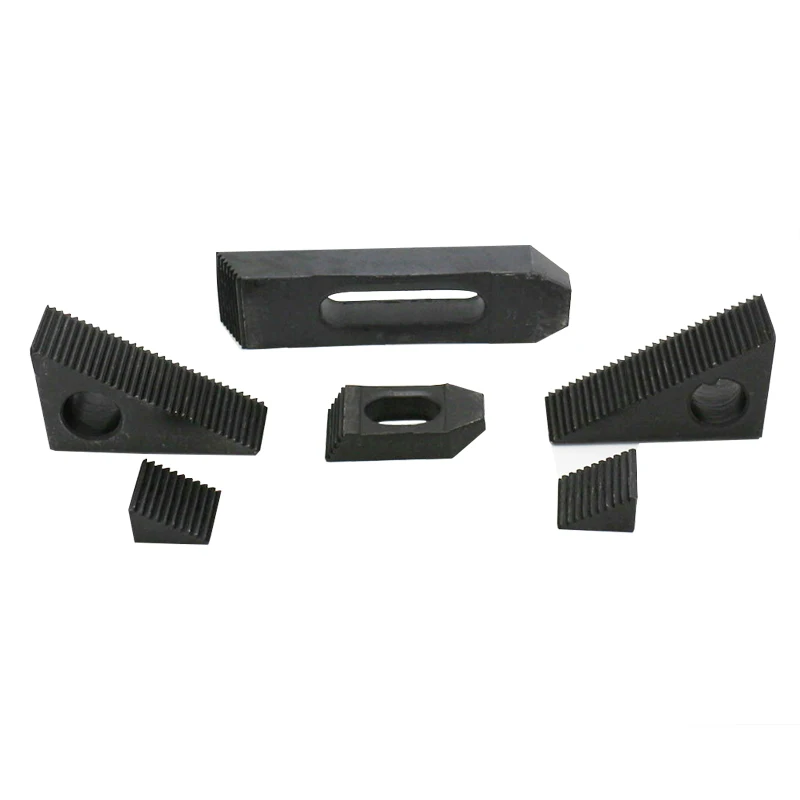

12PCS Step Blocks
6PCS Step Clamps

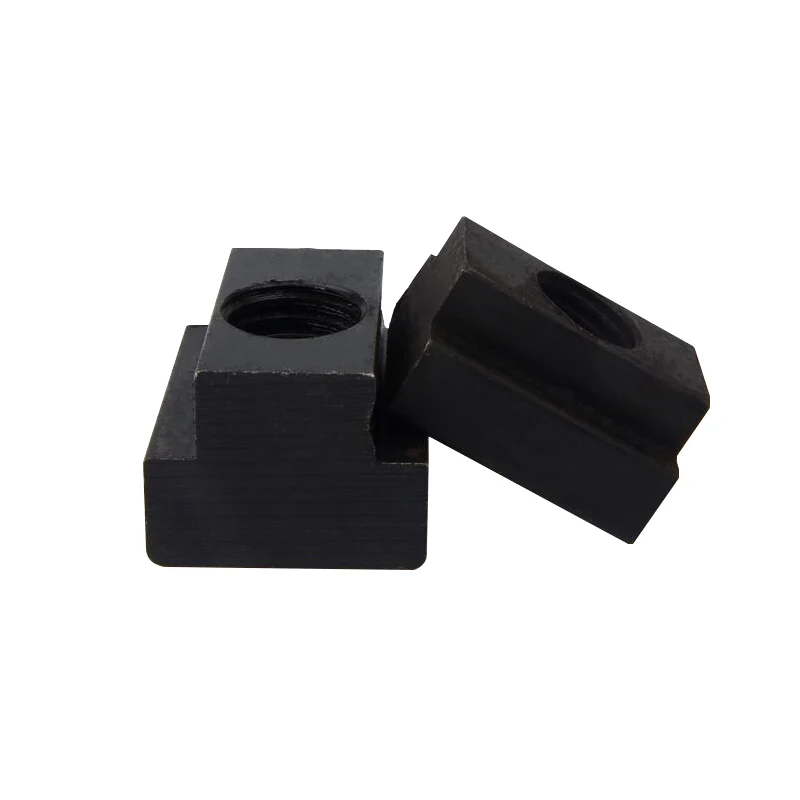

6PCS T- Nuts
4PCS Coupling Nuts
6PCS Flange Nuts
24PCS Studs
Details Images
Surface blackening, strong impact resistance, strong life longer
Higher hardness High efficiency and durability

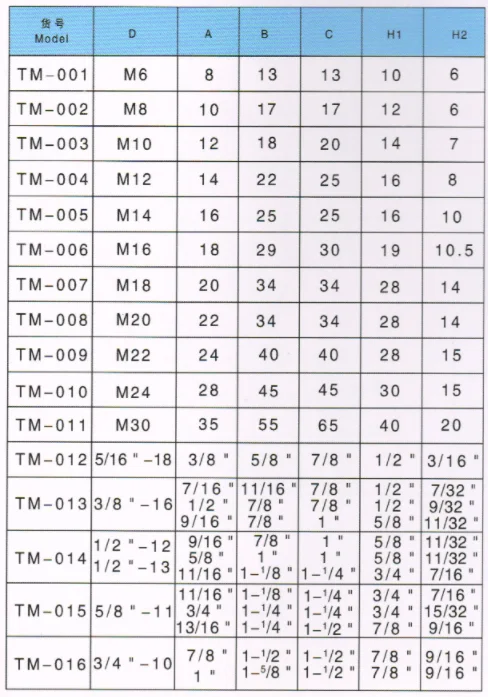

Product Parameters
公制 Metric Size | 英制 Inch Size |
M8X10mm | 5/16 "-18x3/8 |
M8X10mm | 5/16 "-18x7/16 |
M10X12mm | 3/8 " -16x7/16 |
M10X14mm | 3/8 " -16x1/2 |
M12X14mm | 3/8 " -16x9/16 |
M12X16mm | 1/2 "-12x9/16 |
M14X16mm | 1/2”-12x5/8 |
M14X18mm | 1/2 "-12x11/16 |
M16X18mm | 1/2 " -13x9/16 |
M16X20mm | 1/2 " -13x5/8 |

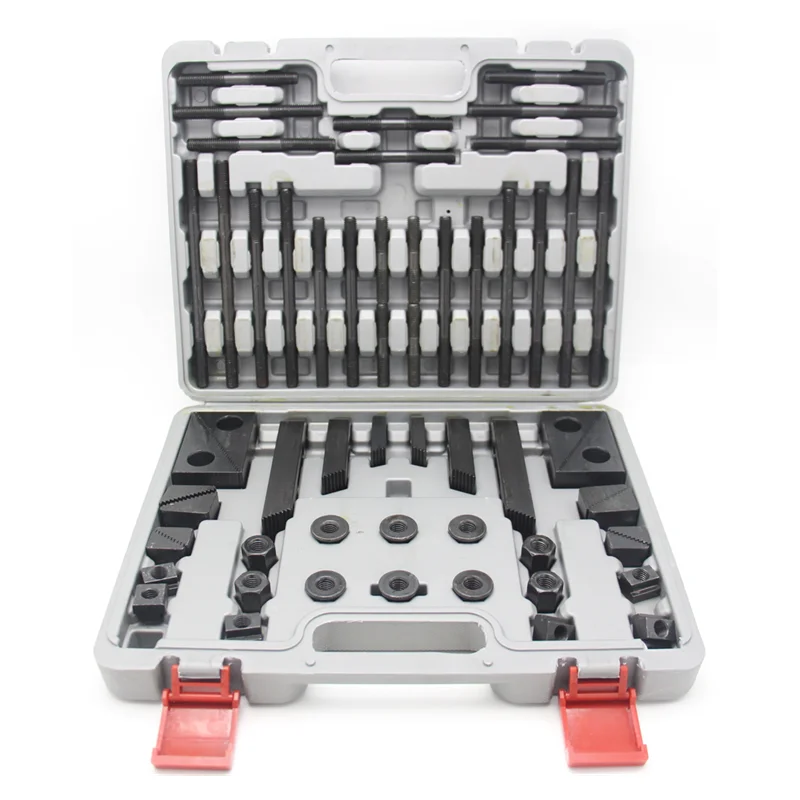

Product packaging
Direction for use
使用说明
使用说明
TYPE One
M6/M8/M10/M12/M14/M16
Description of application effect
使用效果描述
使用效果描述
TYPE Two
M18/M20/M22/M24
