Алюминиевая цистерна 3 4 bpw axle 35000 литров 40000 алюминиевый для

Product Name

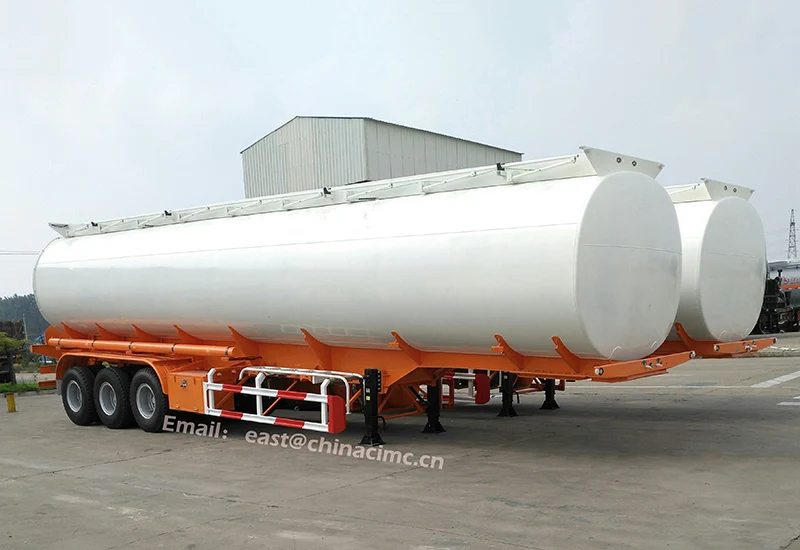

fuel Oil Tank trailer

Tank Capacity

40000 liters

Dimension

12650mm*2500mm*3900mm

Thickness

Tank body: 4mm
End plate: 5mm

Manhole cover

3 sets with 2 breath valves

Discharge valve

3 Sets, 3 inch.

Emergency valve

4 inch bottom valve, 1 set

Discharge pipe

4 inch seamless steel tube

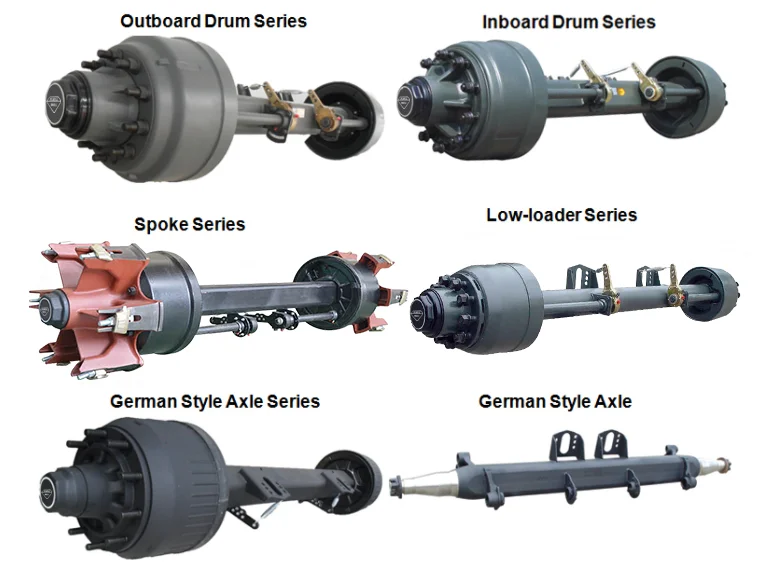

Axle Brand

BPW Brand 13Ton Axle

Tire

12R22.5 triangle brand 12units

King Pin

2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension

Brake Valve

WABCO

Brake system

2 line pneumatic brake system.
Type 30/30 spring brake system on two axles.
ISO type air coupling at front of the semi-trailer. Optional ABS

Brake chamber

Six double chamber

Electrical system

24V,7 Pole plug. The whole set of LED lights ,include Tail lamp with turn signal, brake light & reflector, side lamp etc.

Colour and Marking

Color and pattern according to customer requirements

Remark: All the products we can customize for you, if you have any inquiries about our products, please contact us, we will give you the most reasonable price, the most perfect service, the fastest delivery time and best products!
