Фитиль паяльника SW16045 оплетка провода для распайки олова очистки удаления меди оплетенный

Описание и отзывы

Характеристики

SW16045 soldering wick /  Desoldering Wire Braid for Tin Cleaning/Removing Copper Desoldering Braided Wick Wire





SW16045 solder wick/BGA Soldering wick/Desoldering wick

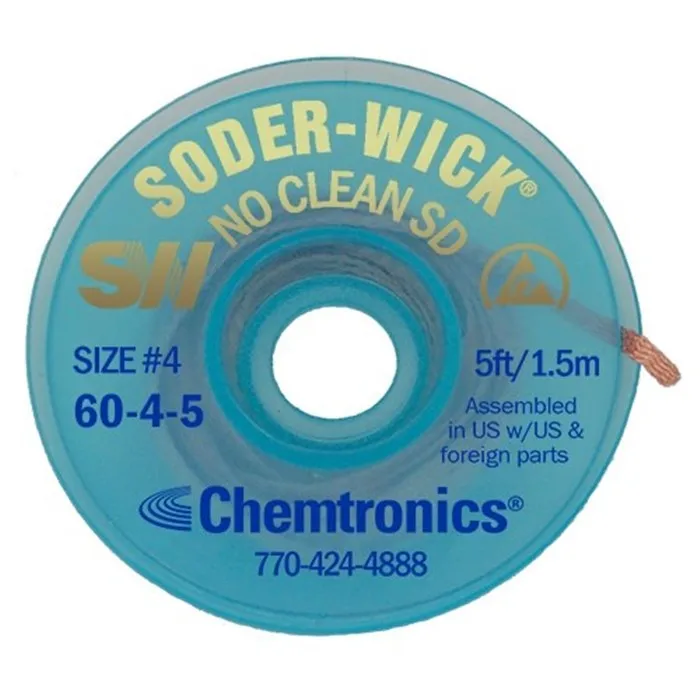

10x 5ft 2.8mm 60-4-5 Desoldering Braid Spool , Soder-Wick ,  Chemtronics

The fastest, safest rosin flux desoldering braid packaged in static dissipative bobbins



Width:2.8mm
Length:5ft



----------------------------------------------------------------------------------------





Product Specification:

Soder-Wick Rosin packaged in ESD-safe static dissipative bobbins
- Minimizes the risk of damage associated with static electricity
- Noncorrosive ultra high purity Type R rosin flux
- Minimizes the risk of heat damage to the board
- Will not leave ionic contamination on the boards

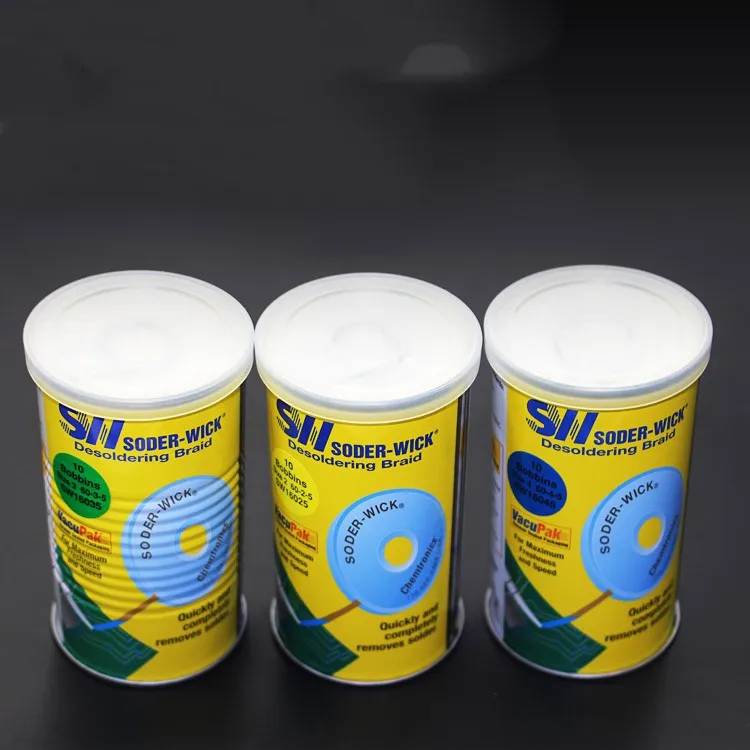

Package:10per/can(1 can includes 10 pieces.)

Soldering Wick Specification;

  Model                  Size                  Color          Suitable Application            Type

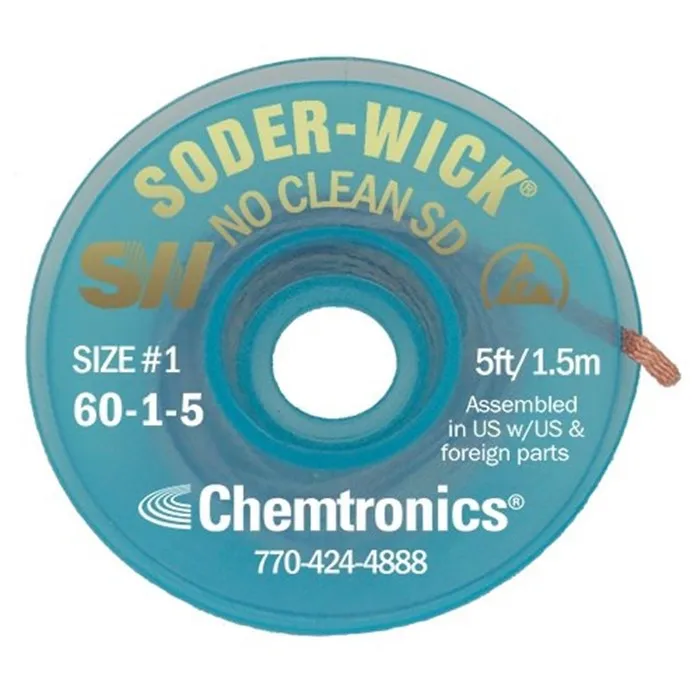

SW16015        0.030"/0.8mm        White         SMD,Micro Circuit             no-clean

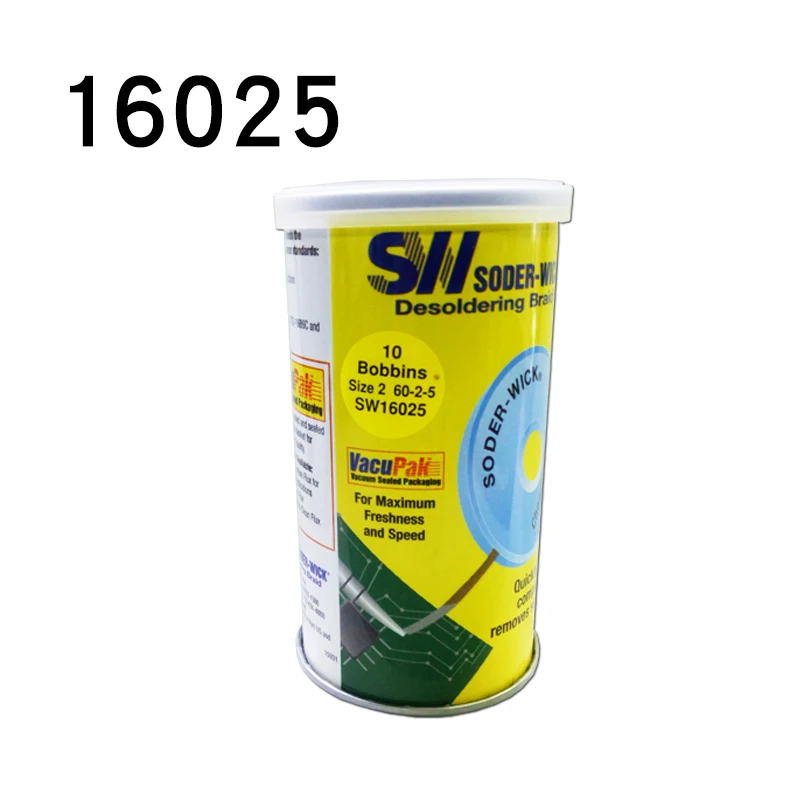

SW16025       0.060"/1.5mm         Yellow      Small bonding pad SMD      no-clean

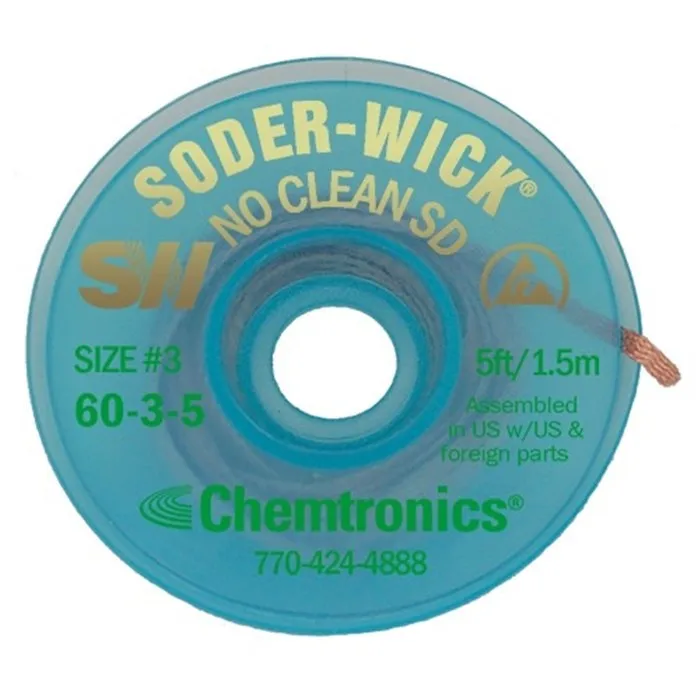

SW16035        0.080"/2.0mm         Green        Middle bonding pad            no-clean

SW16045        0.110"/2.8mm         Blue           Big bonding pad                 no-clean

SW16055        0.145"/3.7mm         Brown           Terminal                         no-clean

SW16065        0.210"/5.3mm         Red             Binding post                      no-clean

 ------------------------------------------------------------------------------------------------------------

SW18015        0.030"/0.8mm       White        SMD,Micro Circuit         Rosin Type

SW18025        0.060"/1.5mm       Yellow     Small bonding pad SMD    Rosin

SW18035        0.080"/2.0mm        Green      Middle bonding pad           Rosin

SW18045        0.110"/2.8mm        Blue         Big bonding pad                Rosin

SW18055        0.145"/3.7mm       Brown       Terminal                           Rosin

SW18065        0.210"/5.3mm       Red         Binding  post                       Rosin

 ------------------------------------------------------------------------------------------------------------

SW160BGA       BGA                   Purple          BGA&components            No-clean

 ------------------------------------------------------------------------------------------------------------

SW14015        0.030"/0.8mm      White     SMD,Micro Circuit           Lead-Free

SW14025        0.060"/1.5mm      Yellow   Small bonding pad SMD   Lead-Free

SW14035        0.080"/2.0mm      Green     Middle bonding pad          Lead-Free

SW14045        0.110"/2.8mm       Blue        Big bonding pad             Lead-Free

Products Pictures;
