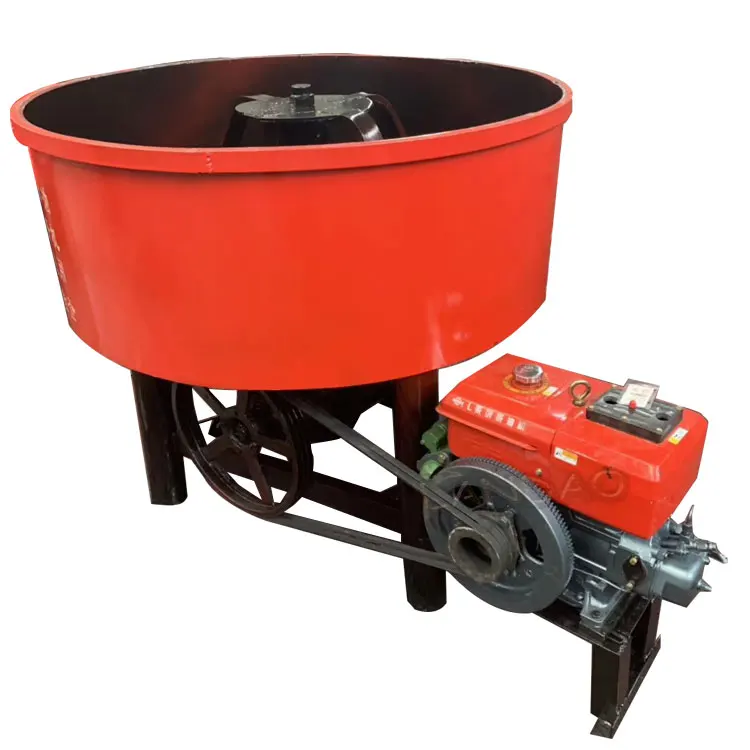

Дизельная небольшая фиксированная Бетономешалка плоского типа 250L
- Категории: Concrete Machinery >>>
- Поставщик: Henan,Landao,Machinery,And,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Diesel Small Fixed Compulsory Flat Pan Type 250L Concrete Mixer Jw250
Product Description
JW concrete pan mixer is a kind of automatic loading and compulsory mixer machine with vertical shaft. Materials are squeezed, turned, and discharged by vertical shaft with blades fixed in the mixing tank. |
| Diesel Small Fixed Compulsory Flat Pan Type 250L Concrete Mixer Jw250 is vertical shaft concrete mixer, stirred by the ring gear driving, reversing the raw material to mix wet and dry cement concrete.The series of mixer can mix a variety of mixing proportion of concrete, mortar, is suitable for all kinds of medium and small construction projects, and is the ideal mixing equipment of the concrete |
Technical Parameters
Diesel Small Fixed Compulsory Flat Pan Type 250L Concrete Mixer Jw250
Model | JW250 | JW350 | JW500 | JW750 |
Volume | 250L | 350L | 500L | 750L |
Productivity(m3/h) | 6--8 | 9--12 | 15-18 | 18-20 |
Rotary speed(r/min) | 19 | 21 | 40 | 40 |
Power(KW) | 5.5 | 5.5 | 7.5 | 11 |
Dimension(MM)(diameter*height) | Φ1100×1100 | Φ1200×1400 | Φ1300×1400 | Φ1500×1400 |

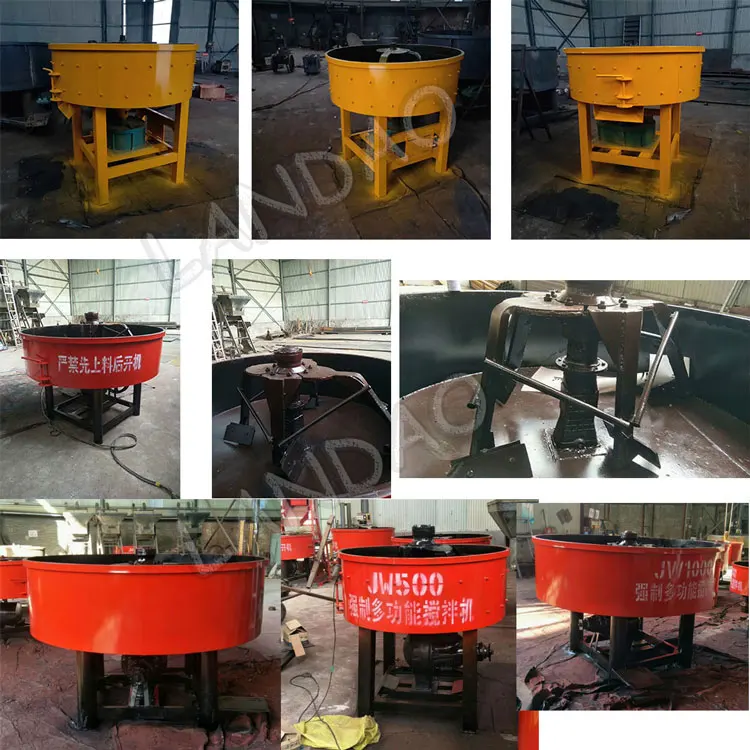

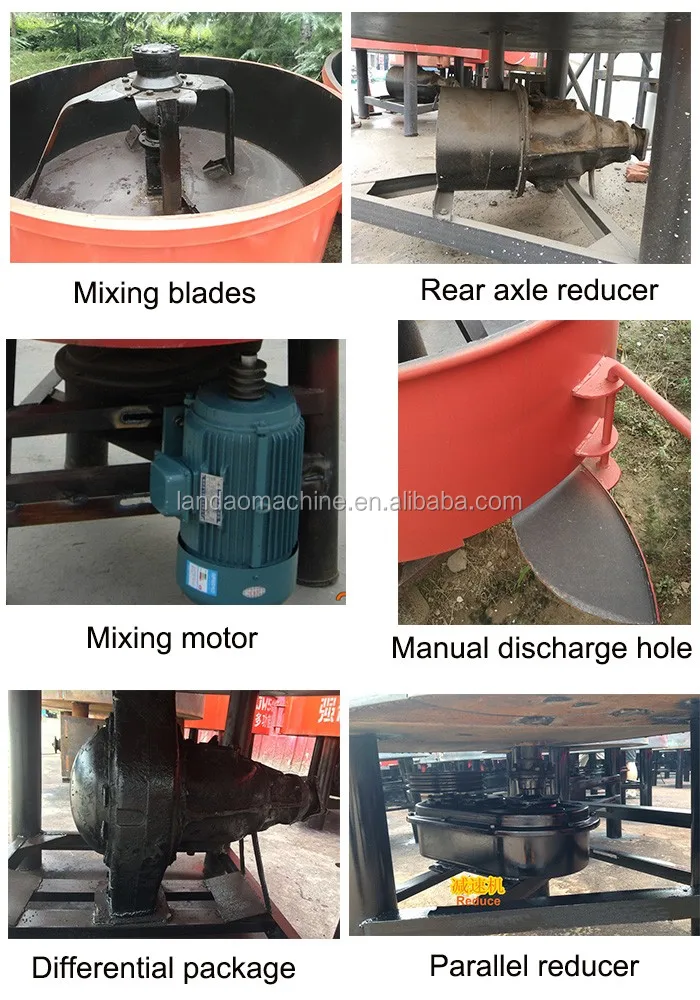

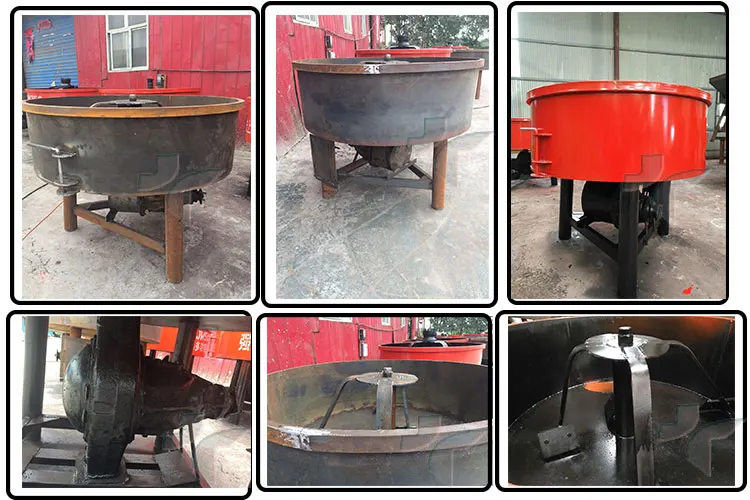

Detailed Images
Diesel Small Fixed Compulsory Flat Pan Type 250L Concrete Mixer Jw250
Our Services
Diesel Small Fixed Compulsory Flat Pan Type 250L Concrete Mixer Jw250
| After-sale service of Landao | ||
| 1 | Quality warranty period | 1 year |
| 2 | About installation and debugging | if needed, Landao will send two technicians to help installation and debugging of the machine, but all charges like food and accommodation, round way tickets and daily salary shall be in clients' account. Salary standard: usd 100 per person per day; |
| 3 | About maintenance service | If machines fail to work in the quality warranty period, Landao will send good replacement part with free charge, but any problems caused by abnormal operation will be charged; If the machines fail to work beyong the quality warranty period, replacement parts will be charged |
| 4 | About quality warranty period extension service | The user could extend the quality warranty period to 2 years by just paying usd5000 more. Then you could enjoy all free service in the quality warranty period |
| 5 | About good inspection | Landao will invite our client to check and inspect the concrete block making machine before they leave the factory. Free food and accommodation are supplied, other fees beyond that are not included. |
Company Information
Henan Landao Machinery and Equipment Co., Ltd is a trusted exporter and supplier of machinery in Zhengzhou, Henan, mainland China. Main products: 1. Material handling equipment: gantry crane, overhead crane and launching gantry; 2. Building material producing equipment: dry mortar powder mixing machine, concrete blocks making machine, concrete mixer, concrete batching plant; 3. Steel processing machinery: steel bar bending machine and steel bar cutting machine
|
Customers visiting
FAQ
Q:Are you direct manufacturer?
Q: How do you evaluate and make sure the product quality? A: For every factory cooperated with Landao, we will visit the factory first and inspect the products quality, it could be our business partner only after all items accod with Landao Quality Evaluation System. And before leaving the factory, customers are welcome to inspect and accept the products.
Q: What details do you need to send me a reliable quotation? A: 1. Concrete mixer type you need 2. Productivity of concrete mixer |
