Мини сверлильный фрезерный станок CTZX32 с 32 мм емкостью из Китая
- Категории: Drilling Machines >>>
- Поставщик: Anhui,Citie,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Quick Details
| Condition: | New | Type: | Drilling & Milling Machine | Power Source: | Electric |
| Place of Origin: | AnHui, China (Mainland) | Brand Name: | CTMACH | Model Number: | CTMACH-1032 |
| Dimension(L*W*H): | 1000*800*1200mm | Weight: | 205kg | Voltage: | 220V/380v |
| MOQ | 1 set | Certification: | ISO | Warranty: | One year |
| marketing mode: | directly selling | Manufacturer |
Packaging & Delivery
| Packaging Details: | Wooden Box package |
| Delivery Detail: | 1-10 Days |
Descriptions:
- Industrial grade machine tool can do 45 steel, cast iron, aluminum, stainless steel, and other non-ferrous metal processing.
- The machine is of high quality, excellent performance and easy operation, and can be operated by unskilled workers.
Applications:
- Suitable for home workshop DIY handicrafts, maintenance of cars and motorcycles in the workshop, teaching demonstrations used by schools, science and technology centers and research institutes, small and medium-sized factory small batch parts cut machining and repair.
- Small size, strong rigidity and high precision. Durable and easy to maintain

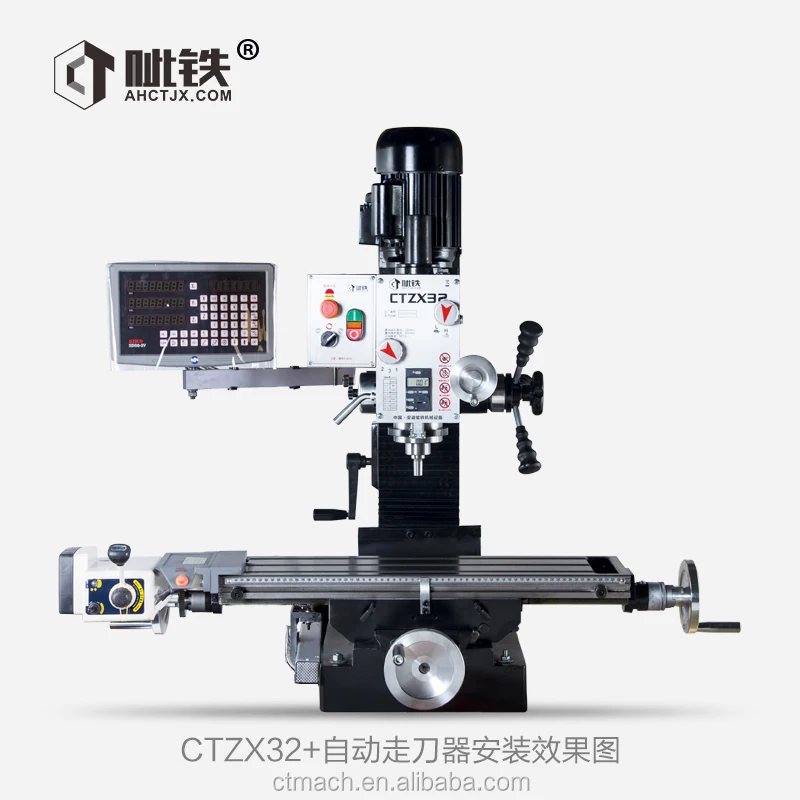

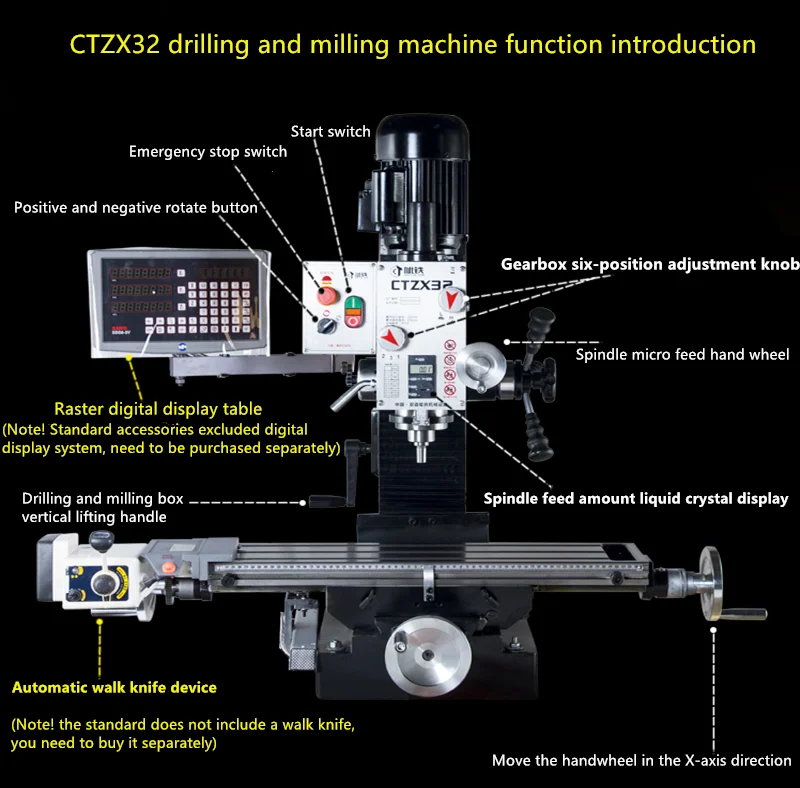

CTZX 32 Mini Drilling and Milling Machine with Grating ruler and knife controller(CTMACH-1032)
Technical Specifications
Maximum drilling diameter | 32mm |
Maximum end milling diameter | 63mm |
Maximum vertical milling diameter | 20mm |
Spindle travel | 85mm |
Maximum distance from the spindle end to the work surface | 445mm |
Spindle axis to square column surface distance | 203mm |
| Spindle taper | MT3 |
| Spindle speed | 95-1420r/min 50HZ |
Y-axis travel | 205mm |
X-axis travel | 410mm |
Z-axis travel | 310mm |
Workbench area | 180*700mm |

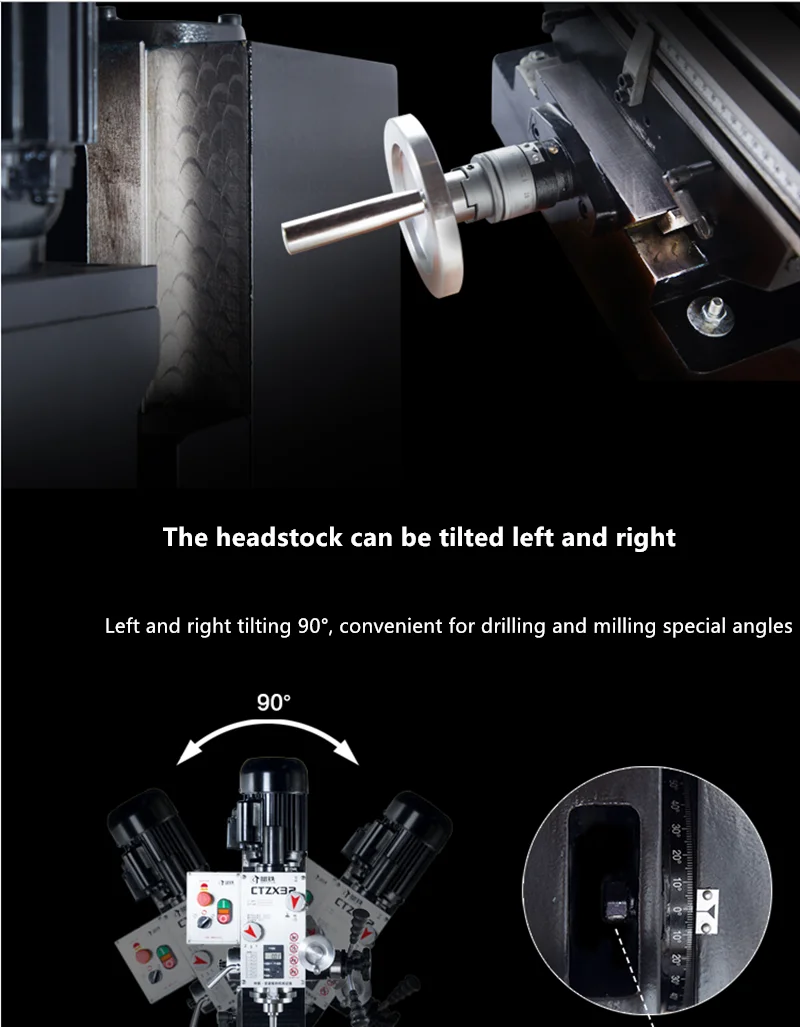

Swing angle of the spindle | +-900 |

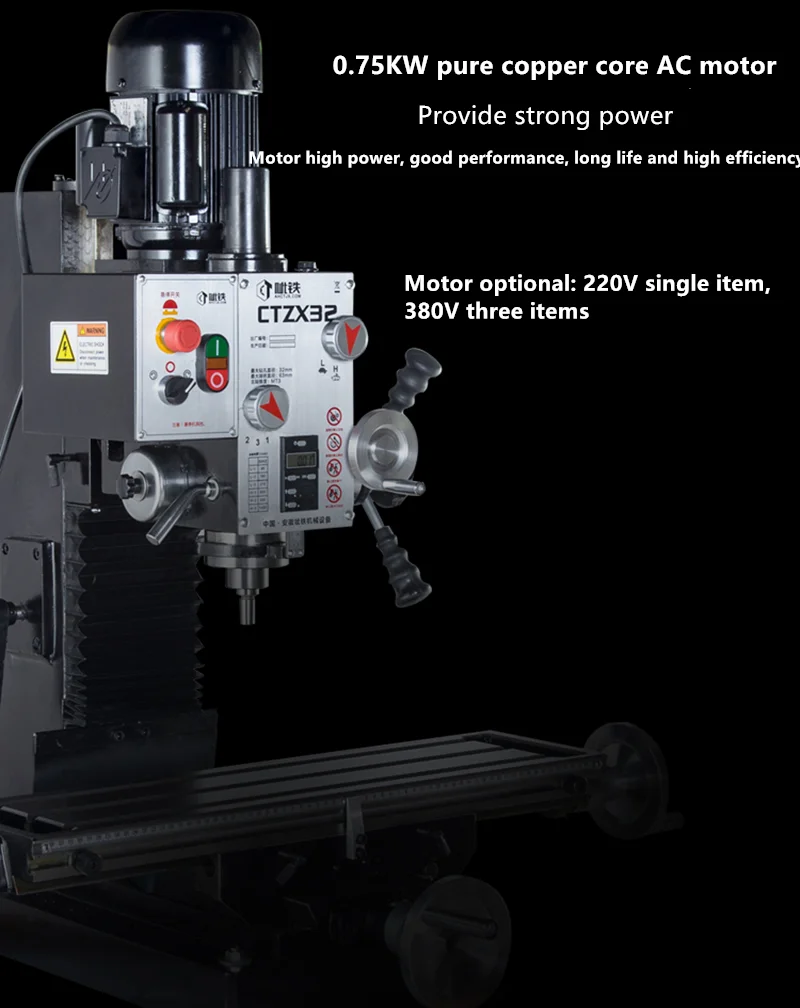

| Motor | 750W 1420r/min |

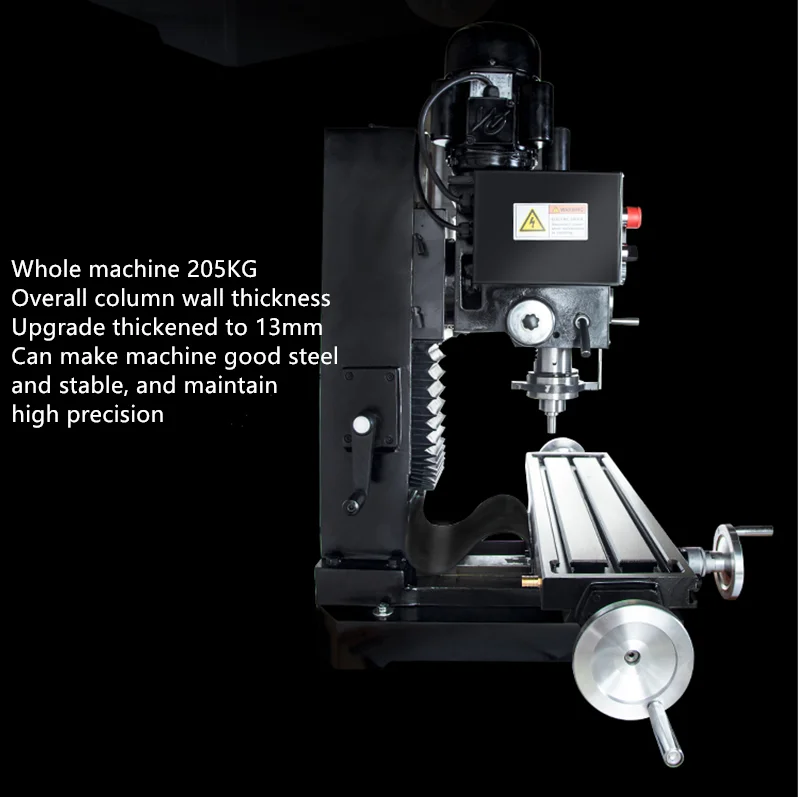

Net weight | 205kg |

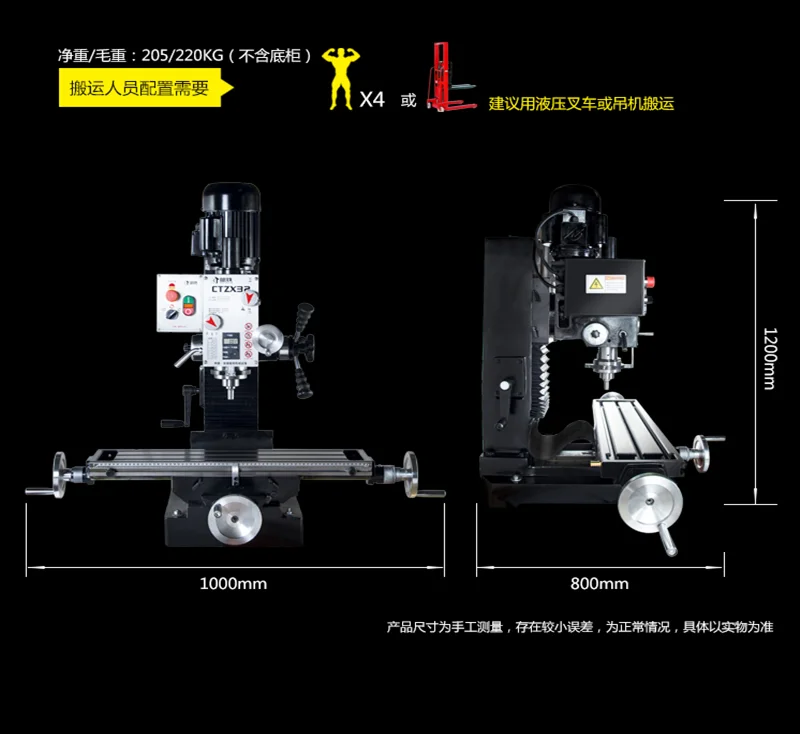

| Dimensions(L*W*H) | 1000*800*1200mm |
| Operating Voltage | 220V or 380V 3phase |

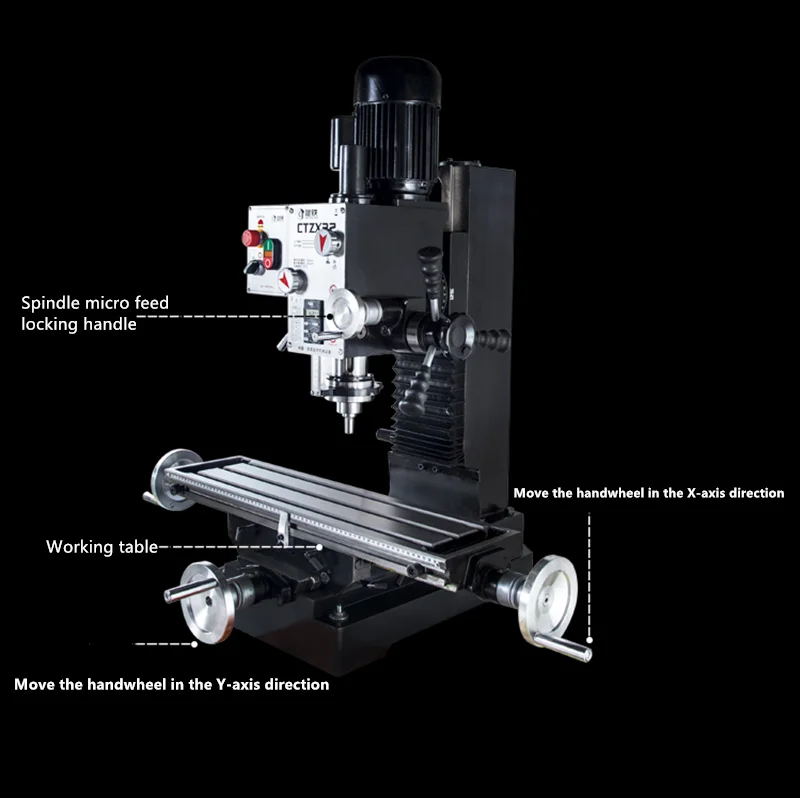

Product Display
Primary Competitive Advantages:
- Country of Origin
- Distributorships Offered
- Experienced Staff
- Guarantee/Warranty
- Product Features
- Product Performance
- Prompt Delivery
- Small Orders Accepted
- If you can't find your details,Please contact with me,then We can provide professional sevice.
- It would be better send us your drawing or CAD pictures for specialized design,then we can do better!
Our Services:
1. We are a direct manufacturer and our priority is your complete satisfaction.
2. OEM or ODM is abailable.
3. We take care of each order from start to finish. All emails will be answered in 1 day
4. No matter what's your order quantity, we will offer the same attention to our quality and service
5. Delivery & lead time: All delivery methods are ok, and our lead time is quite short. Usually, our lead time around 1-3 days, depending on the quantity.
Appliance
Dont be hesitate ,send us inquiry Now!!!
