Новое поступление 0 72 дюймов SSD7317 72x128 in-cell CTP точечная Матрица Белый пассивный OLED модуль сенсорная панель с
- Категории: Модули дисплея >>>
- Поставщик: Dongguan,Shineworld,Investment,Ltd.
Поделиться:
Описание и отзывы
Характеристики
| 0.72inch SSD7317 72x128 in-cell CTP dot matrix White passive OLED module Touch Screen Panel with controller | |
| Diagonal Screen Size | 0.72 inch |
| Color | Monochrome (white) |
| Module Construction | COG |
| Number of Pixels | 72X128 |
| Active Area | 11.6 (W) x 21.91 (H) |
| Pins | 21 |
| Drive IC | SSD7317 |
| Interface | 4-wire SPI/IIC |
| Pixel pitch | 0.17X0.17mm |
| Assembly | Soldering |
| Temperature range | ||
| Item | Min. | Max. |
| Operating Temperature (°C) | -40 | 70 |
| Storage Temperature (°C) | -40 | 85 |
| OLED Displays |
| More Product List of 0.72" OLED Display | ||
| 0.96" OLED Display | Picture | Features |
| GLO096-D-M2011 |
|
|
| GLO096-D-M2001 |  |
|
| GLO096-D-M2001 |  |
|
| GLO096-D-M2003 |  |
|
| GLO096-D-M2004 |  |
|
| Applications |

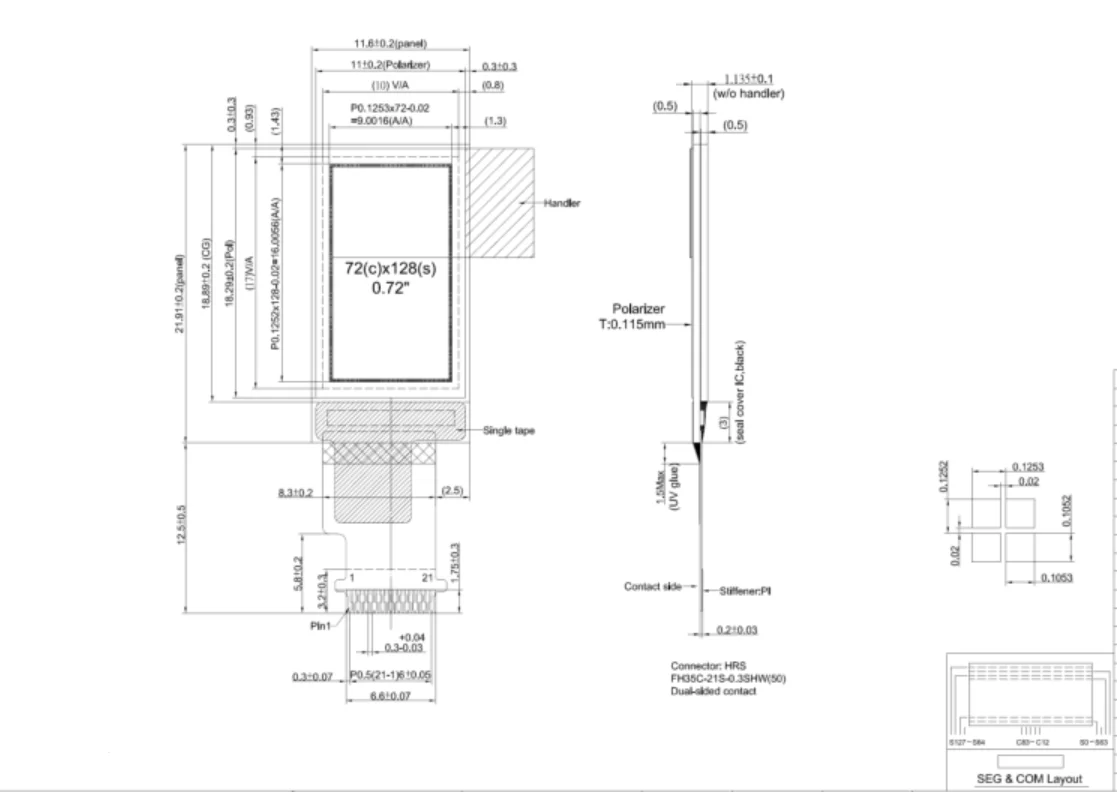

| Outline Drawing |
| Trade Information |
Trade Terms: EXW, FOB, CIF, DDU
Payment Terms: T/T, PayPal, Western Union, Escrow
Payment Condition: 40% in Advance as Deposit, 60% Balance before Shipment
Lead Time: 10-20 Working Days
Shipping: By sea, Air and Express
